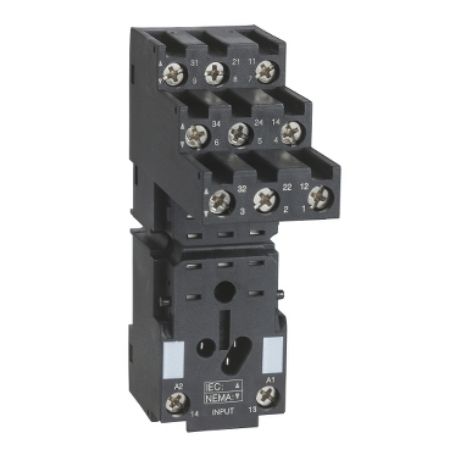

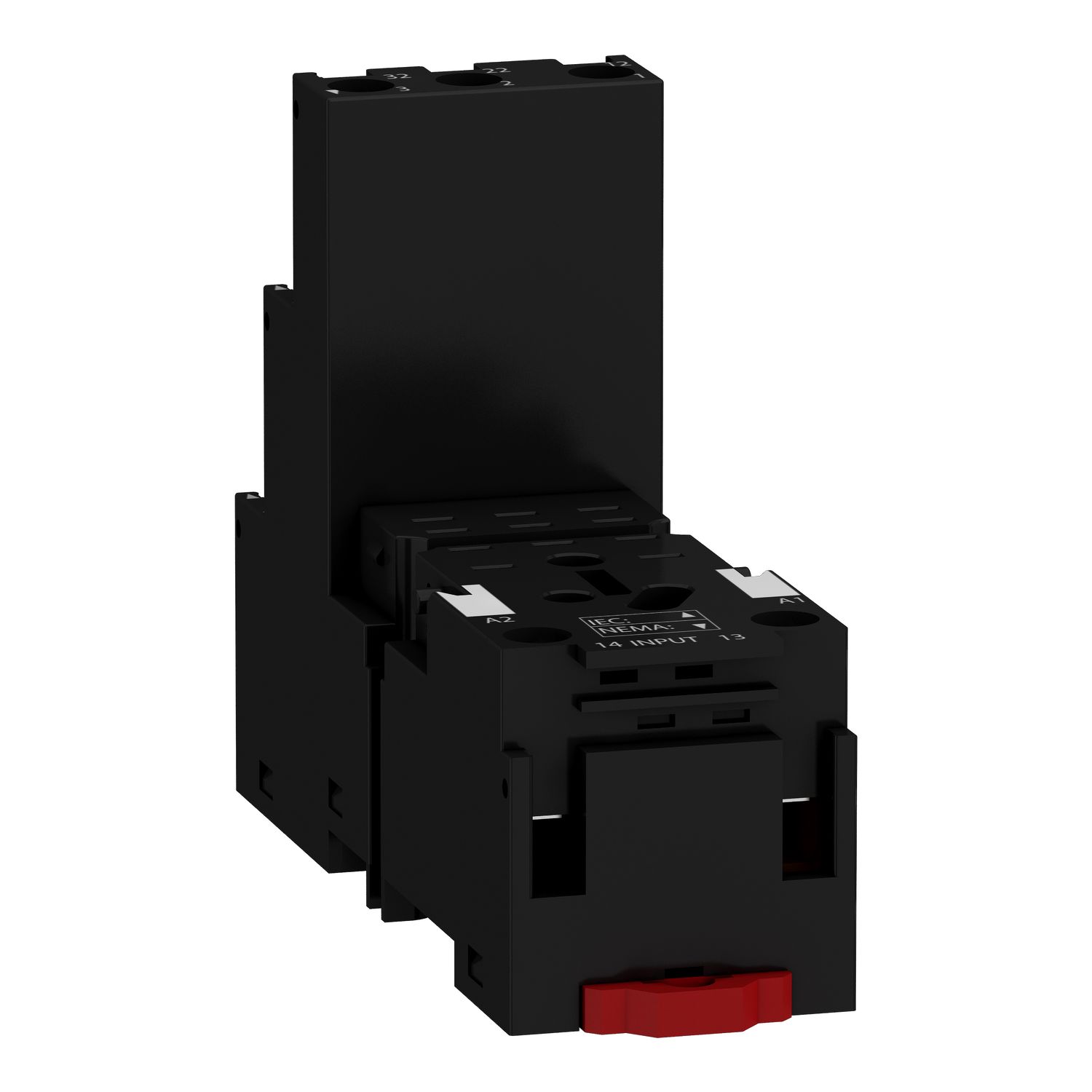

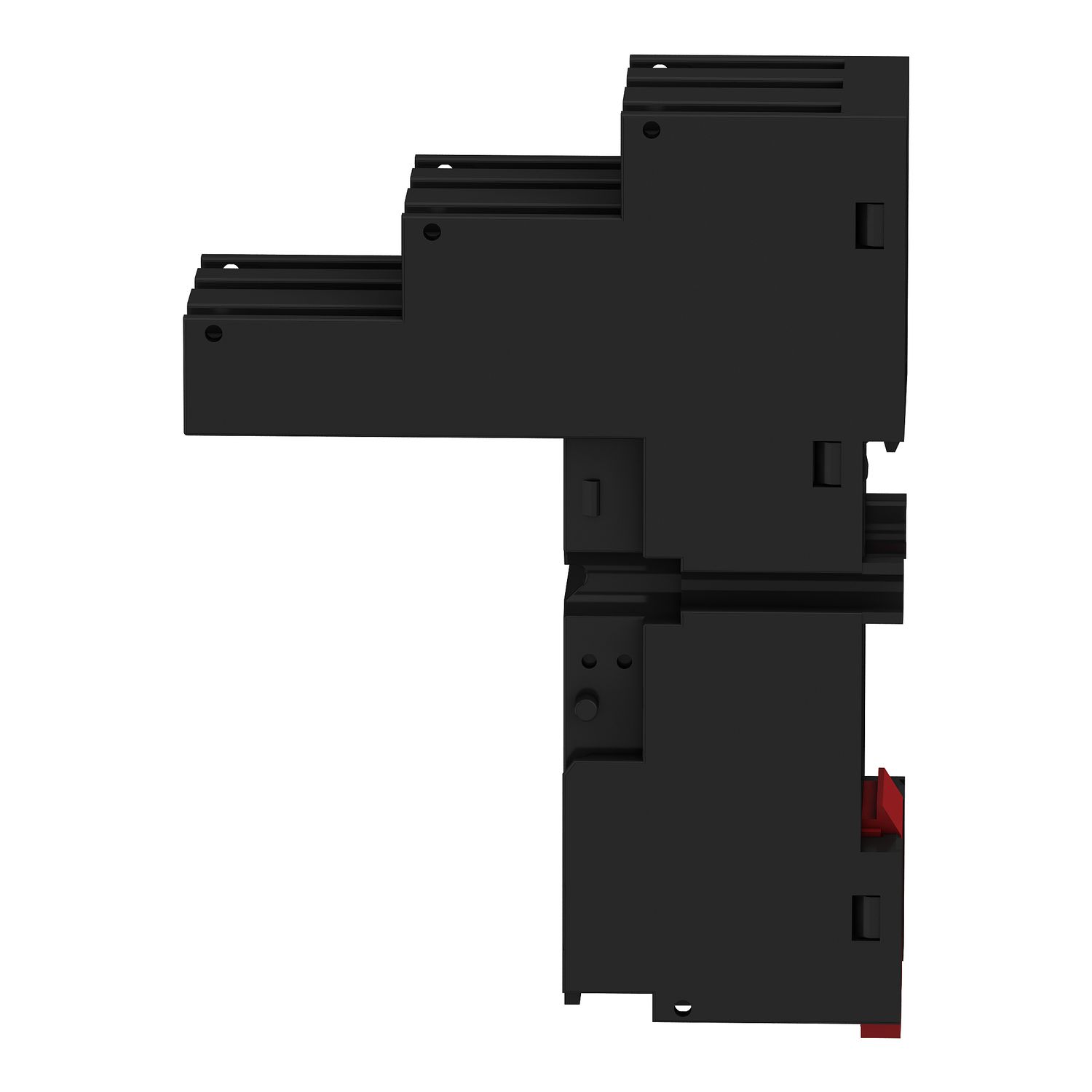

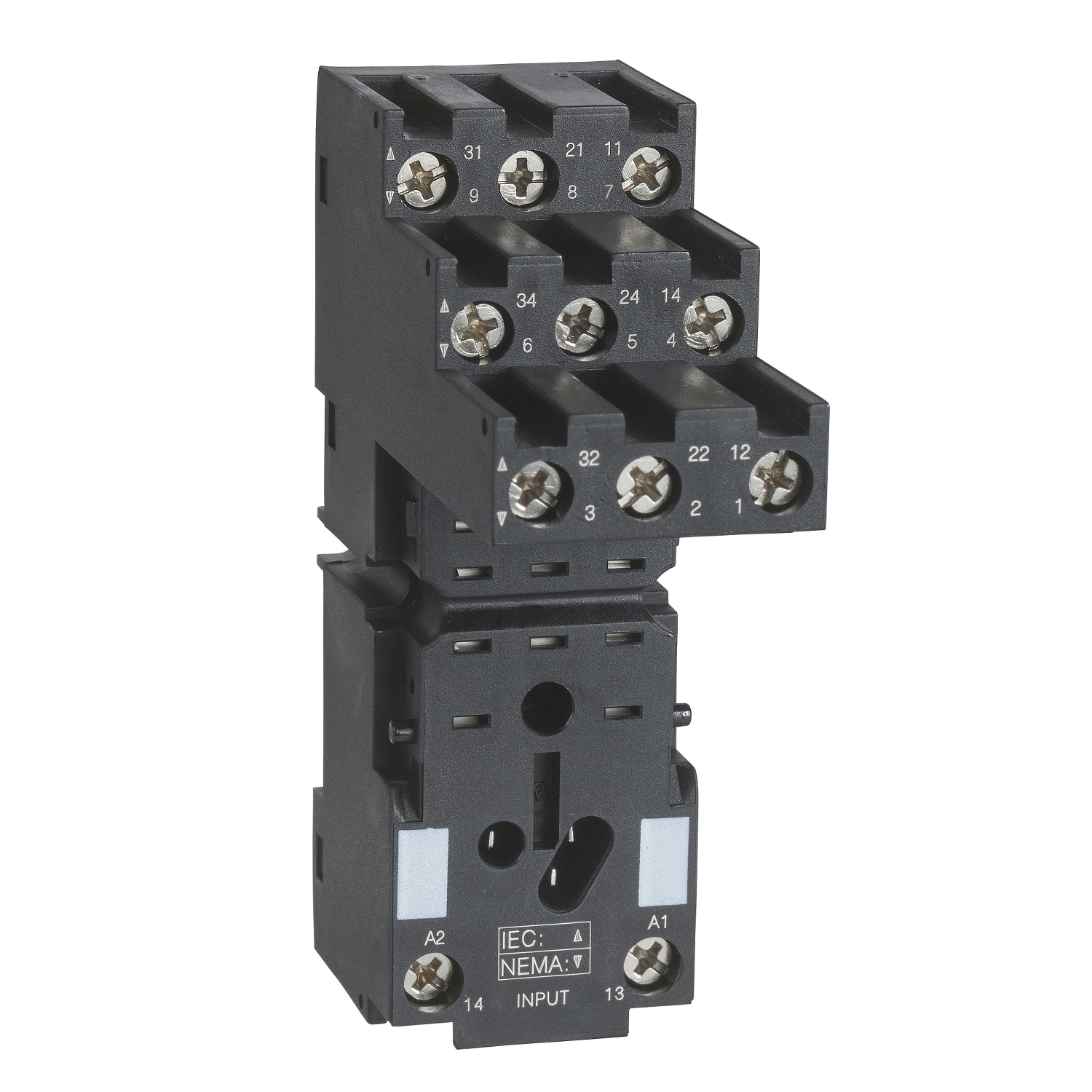

Picture of Harmony Electromechanical Relays, Socket, for RXM3 relays, screw connectors, separate contact
SKU:

RXZE2S111M

Harmony Electromechanical Relays, Socket, for RXM3 relays, screw connectors, separate contact

$12.10
Available for Shipping : 24-Nov-2024
Product Selector
Harmony Electromechanical Relays, Socket, for RXM3 relays, screw connectors, separate contact
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Declaration of conformity
Technical illustration
Product environmental
Product Page Link
Product Data Sheet
"This Harmony RXZ plug-in relay socket has a coil control voltage of 250V AC and has 3 changeover contacts 3PDT (triple pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use with space-saving design." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name RXZ
[In] rated current 10 A
Product compatibility plug-in relay RXM with 3 C/O contact
Contacts type and composition 3 C/O
Product or component type socket
Range of product Harmony Electromechanical Relays
[Ith] conventional free air thermal current 10 A
Complementary
Group of product RXM_3_C/O_CON_SEP_FLAT
Overvoltage category III
Width 27 mm
Compatibility code RXZ
Sale per indivisible quantity 10
Connections - terminals connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end, connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end, connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end, screw connectors
Fixing mode clip-on (35 mm symmetrical DIN rail), by screw (panel)
Net weight 0.066 kg
Contact terminal arrangement separate
Shape of pin flat
Pollution degree 3
[Ue] rated operational voltage < 250 V
[Uimp] rated impulse withstand voltage 4 kV
Tightening torque < 1 N.m for M3 screw(s)
Environment
Ambient air temperature for storage -40-85 °C
Dielectric strength 2500 V
IP degree of protection IP20 conforming to IEC 60529
Marking CE
Standards IEC 61984
Ambient air temperature for operation -40-55 °C
Product certifications CSA, Lloyd's, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.7 cm
Package 1 Width 6.1 cm
Package 1 Length 8.2 cm
Package 1 Weight 61 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 11.6 cm
Package 2 Width 6.8 cm
Package 2 Length 14 cm
Package 2 Weight 624 g
Unit Type of Package 3 3
Number of Units in Package 3 200
Package 3 Height 15 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 10.7 kg
Unit Type of Package 4 4
Number of Units in Package 4 1920
Package 4 Height 77 cm
Package 4 Width 80 cm
Package 4 Length 60 cm
Package 4 Weight 133.668 kg
