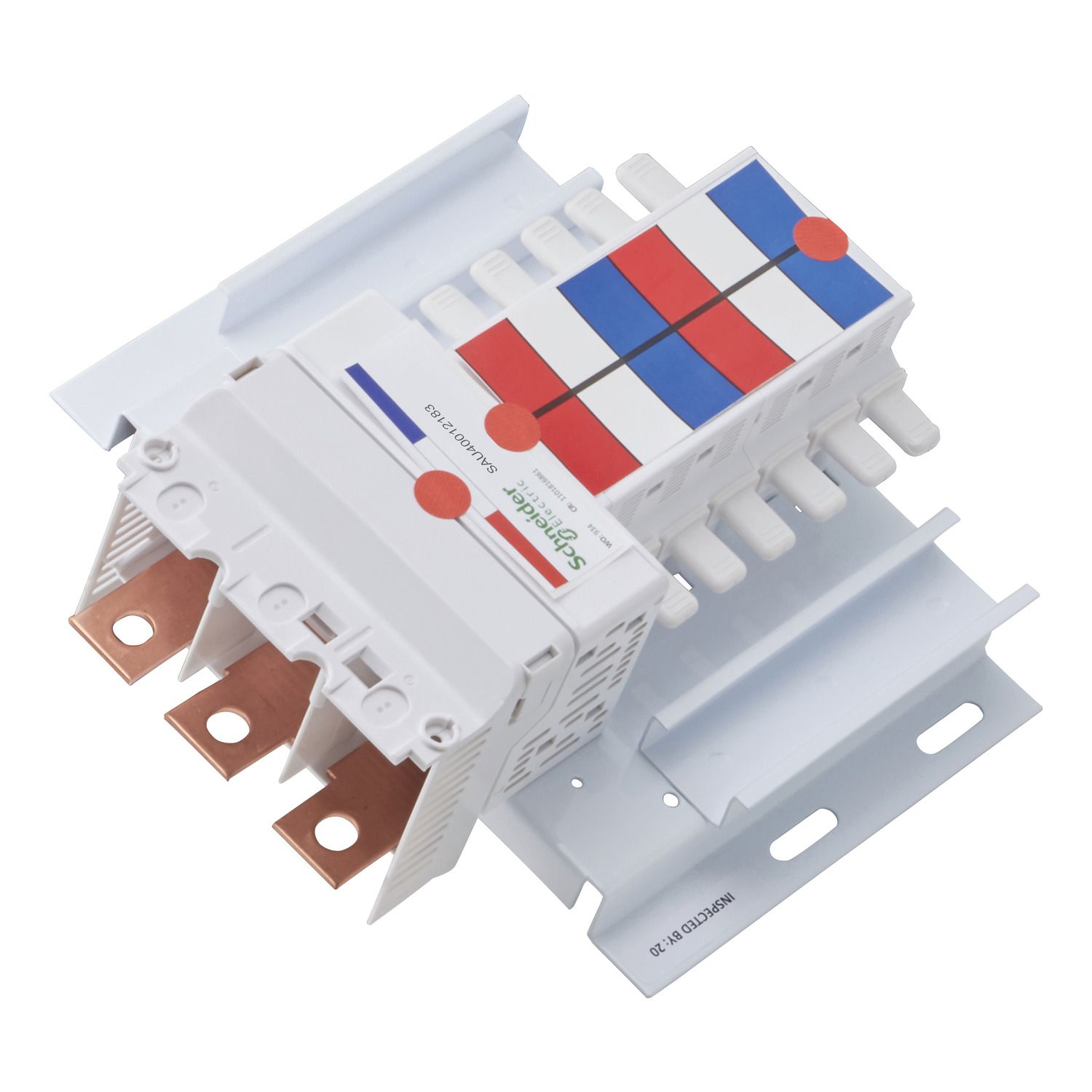

Picture of Acti9, SAU Chassis 3PH 400A, 18mm for iC60 MCB & RCBO, 12 Poles, Top or Bottom Feed
SKU:

SAU40012183

Acti9, SAU Chassis 3PH 400A, 18mm for iC60 MCB & RCBO, 12 Poles, Top or Bottom Feed

$297.46
Product Selector
Acti9, SAU Chassis 3PH 400A, 18mm for iC60 MCB & RCBO, 12 Poles, Top or Bottom Feed
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 17-Oct-2024
Product Page Link
Product Data Sheet
This Acti9 SAU Chassis product can be mounted on Distribution boards The Ie rated operational current 250A and Ue rated operational voltage of 415V at 50 Hz This chassis can have both top or bottom feeding This Chassis is compatibility with incomer 3Ph and ootgoer 1Ph or 3P devices The number of outgoing ways in Chassis is 12 with pitch of 18mm. This chassis has IP2X protection when used with relavant accessories. It is suitable for standard, commercial and industrial applications. The Ui rated insulation voltage is 500VAC with Uimp rated impulse voltage of 6kV. This product complies with AS NZS 61439-2 standard. The total dimensions are (L) 302mm x (W) 215mm.
