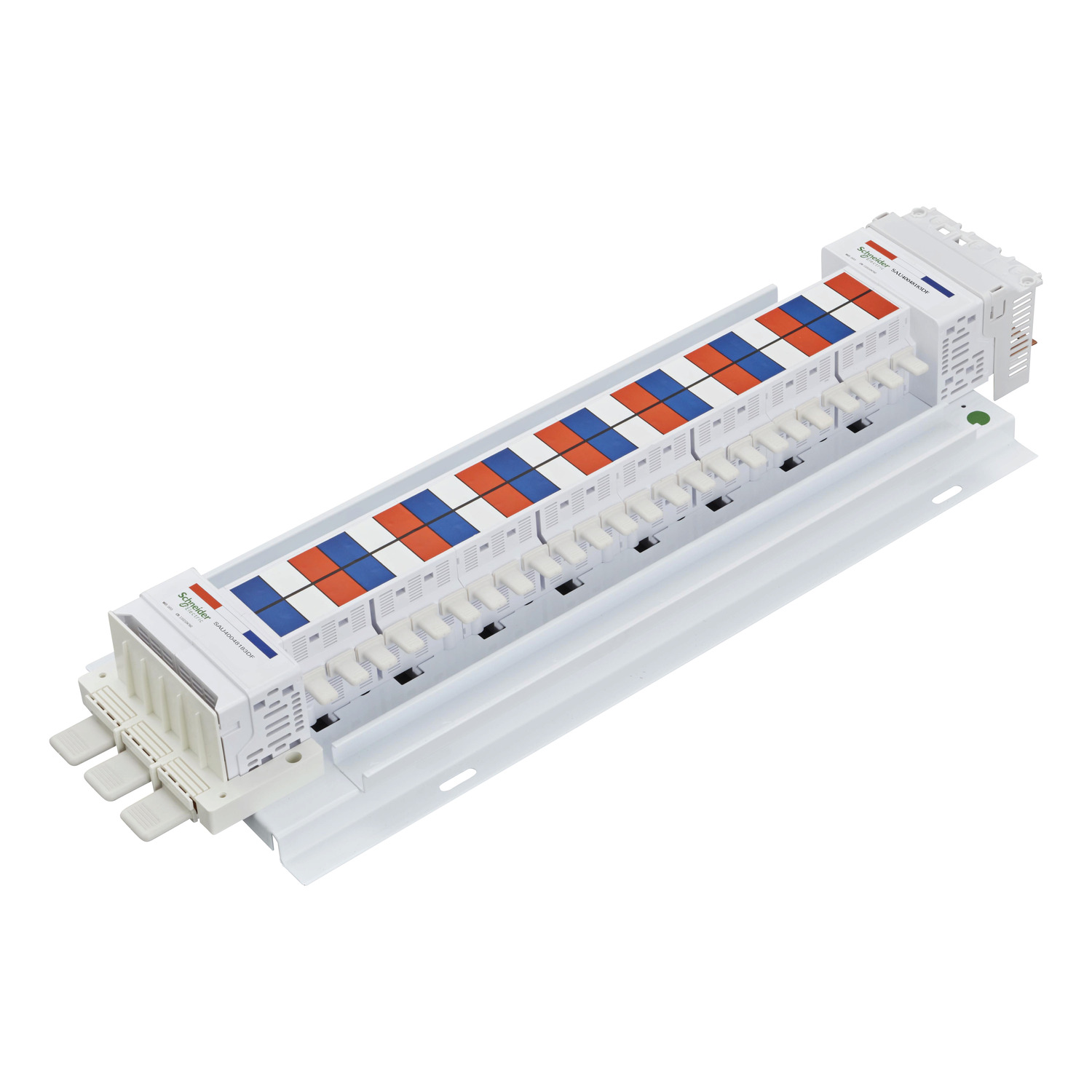

Picture of Acti9, SAU Chassis 3PH 400A, 18mm for iC60 MCB & RCBO, 48 Poles, Dual Feed
SKU:

SAU40048183DF

Acti9, SAU Chassis 3PH 400A, 18mm for iC60 MCB & RCBO, 48 Poles, Dual Feed

$638.64
Product Selector
Acti9, SAU Chassis 3PH 400A, 18mm for iC60 MCB & RCBO, 48 Poles, Dual Feed
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Product Page Link
Product Data Sheet
This Acti9 SAU Chassis product can be mounted on Distribution boards The Ie rated operational current 250A and Ue rated operational voltage of 415V at 50 Hz This chassis can have both top or bottom feeding This Chassis is compatibility with incomer 3Ph and ootgoer 1Ph or 3P devices The number of outgoing ways in Chassis is 48 with pitch of 18mm. This chassis has IP2X protection when used with relavant accessories. It is suitable for standard, commercial and industrial applications. The Ui rated insulation voltage is 500VAC with Uimp rated impulse voltage of 6kV. This product complies with AS NZS 61439-2 standard. The total dimensions are (L) 718mm x (W) 215mm.

Products specifications

Attribute nameAttribute value
Main
Device applicationdistribution
RangeActi9
Product or component typechassis
Complementary
Number of poles48, 48 x 18 mm
Protection device typeresidual current circuit breaker with overcurrent protection (RCBO) as outgoer, miniature circuit breaker (MCB) as outgoer
Depth95 mm
Width245 mm
Incomer deviceMCCB - 3P, switch disconnector - 3P
Location of connectiondual feed
[In] rated current400 A
Short-circuit withstand25 kA 0.1 s
Rated voltage415 V 50 Hz
Net weight4.44 kg
Length718 mm
[Ui] rated insulation voltage500 V
Number of ways1 way (outgoer) - 1P or 3P, 1 way (incomer) - 3P
Network typeAC
[Uimp] rated impulse withstand voltage6 kV
Busbar pitch18 mm
Environment
StandardsAS/NZS 61439
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height9.5 cm
Package 1 Width24.5 cm
Package 1 Length71.8 cm
Package 1 Weight4 kg
