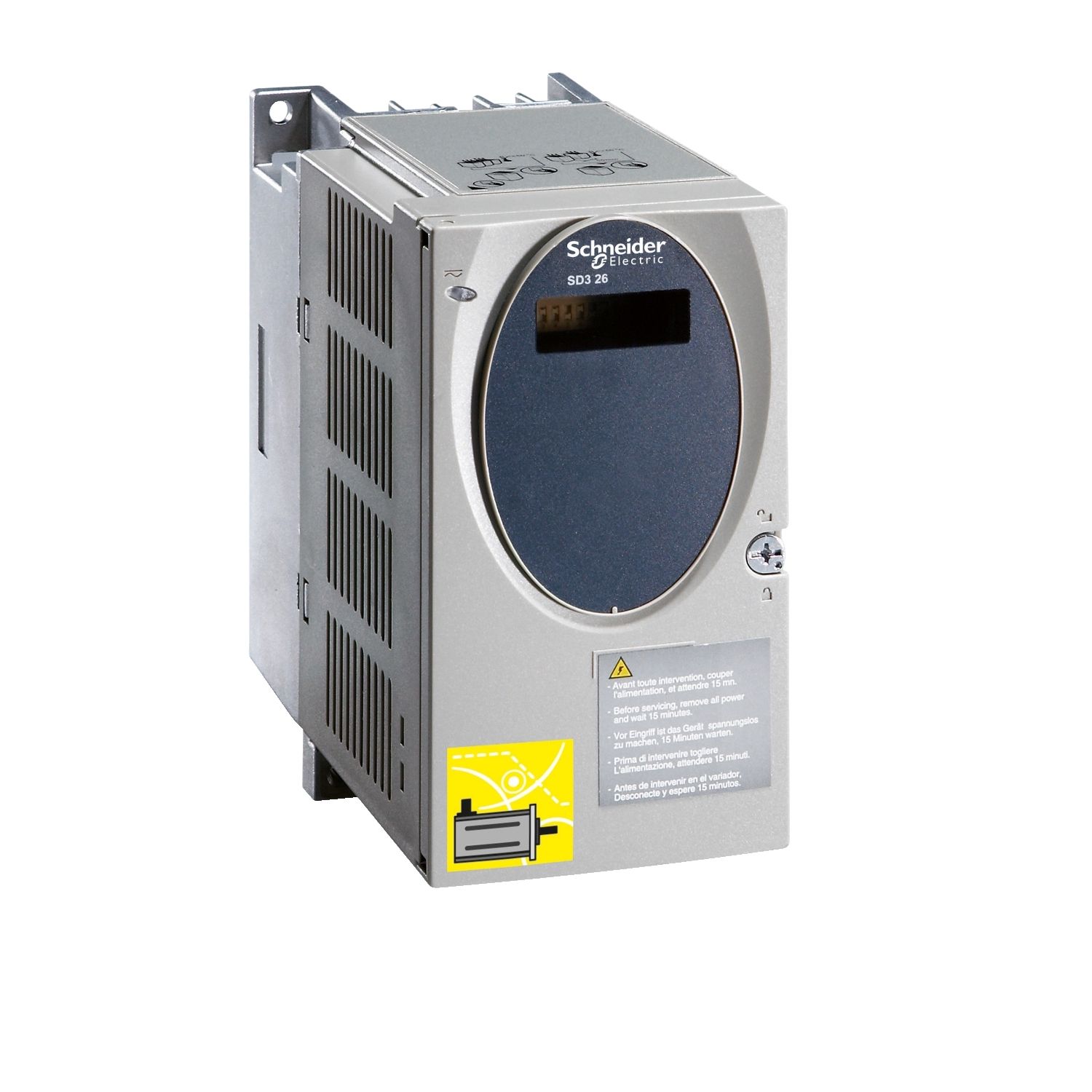

Picture of motion control stepper motor drive - SD326 - pulse/direction - <= 2.5 A
SKU:

SD326DU25S2

motion control stepper motor drive - SD326 - pulse/direction - <= 2.5 A

Please Contact Sales to buy this Product. click here
motion control stepper motor drive - SD326 - pulse/direction - <= 2.5 A
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 17-Nov-2024
User guide
Catalogue
Product environmental
End of life manual
CAD
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Lexium SD3 and motors an offer of 3-phase stepper drives and stepper motors. The 3-phase stepper motor drive with an integrated pulse/direction communication interface. High torque is available even at low speeds. It is a motor drive with a rated supply voltage of 100V to 120V, 200V to 230V, a motor phase current of 2.5A, a nominal power of 270W at 230V and maximum mechanical speed of motor drive is 3000RPM. It is provided with natural convection cooling method. It is an IP20 and IP40 rated product. Its dimensions are 72mm (Width) x 140mm (Depth) x 145mm (Height). It weighs 1.1kg. The Lexium SD3 with its excellent constant velocity characteristics is ideal for applications such as printing, paper, packaging, handling, labelling, textile industry, scanning, food and beverages. This product is certified by CUL, CE and UL. It meets EN/IEC 50178, EN/IEC 61800-3 environment 1, EN/IEC 61800-3 environment 1, EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. The SD3 is an universally applicable stepper motor drive. The package is ready for operation within a very short period of time. Connect the stepper motor to the drive, set the current and step resolution. Stepper drives and stepper motors for motion control.

Products specifications

Attribute name Attribute value
Main
Device short name SD326
Supply voltage limits 200-240 V, 100-120 V
Range of product Lexium SD3
Product or component type motion stepper drive
Complementary
Compatibility code SD326
Type of cooling natural convection
Supply voltage description single phase 115 V, single phase 230 V
Maximum input frequency 200 kHz for 5 V optocoupler input signals, 200 kHz for 24 V optocoupler input signals
Associated fuse rating 6 A at 230 V, 6 A at 115 V
Communication interface pulse/direction, integrated
Voltage state 0 guaranteed <= 0.5 V for 5 V optocoupler input signals, <= 5 V for 24 V optocoupler input signals
Input current 7 mA for 24 V optocoupler input signals, 25 mA for 5 V optocoupler input signals
Maximum voltage drop <1 V 50 mA load for readiness signal output
Maximum switching current 200 mA (readiness signal output)
Height 145 mm
Maximum mechanical speed 3000 rpm
[Us] rated supply voltage 200...230 V - 15...10 %, 100...120 V - 15...10 %
Network number of phases 1, single phase
Depth 140 mm
Nominal power 270 W at 230 V, 180 W at 115 V
Overvoltage category III
Width 72 mm
Network frequency limits 50-60 Hz (- 15...10 %)
Short-circuit current 0.5 kA
Voltage state 1 guaranteed 2.5...5.25 V for 5 V optocoupler input signals, 15...30 V for 24 V optocoupler input signals
Maximum switching voltage 30 V DC (readiness signal output)
Maximum leakage current 30 mA IEC 60990-3
Net weight 1.1 kg
Supply voltage type AC/DC
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Format of the drive block
Maximum motor phase current 2.5 A
Inrush current 60 A
Environment
IP degree of protection on upper part: IP40 (without removal of protective film), IP20
Relative humidity 5-85 % without condensation
Ambient air temperature for storage -25-70 °C
Ambient air temperature for operation 0-50 °C, 0-40 °C conforming to UL
Marking CE
Electromagnetic compatibility voltage/current impulse level 3 conforming to IEC 61000-4-5, immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, immunity to electrical transients level 4 conforming to IEC 61000-4-4, electrostatic discharge level 3 conforming to IEC 61000-4-2
Pollution degree level 2
Operating altitude > 1000...< 2000 m without derating (maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm), <= 1000 m without derating
Vibration resistance 1.5 mm (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6
Standards IEC 61800-5-1, IEC 61800-3, EN/IEC 61800-3 environment 2, IEC 61800-3 environment 1, IEC 50178
Product certifications cUL, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.500 cm
Package 1 Width 16.500 cm
Package 1 Length 18.800 cm
Package 1 Weight 1.256 kg
Unit Type of Package 2 2
Number of Units in Package 2 46
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 69.810 kg
