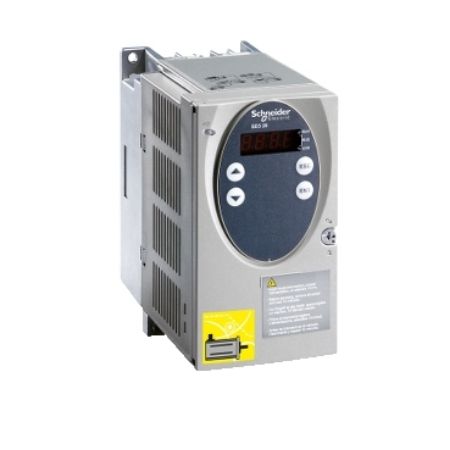

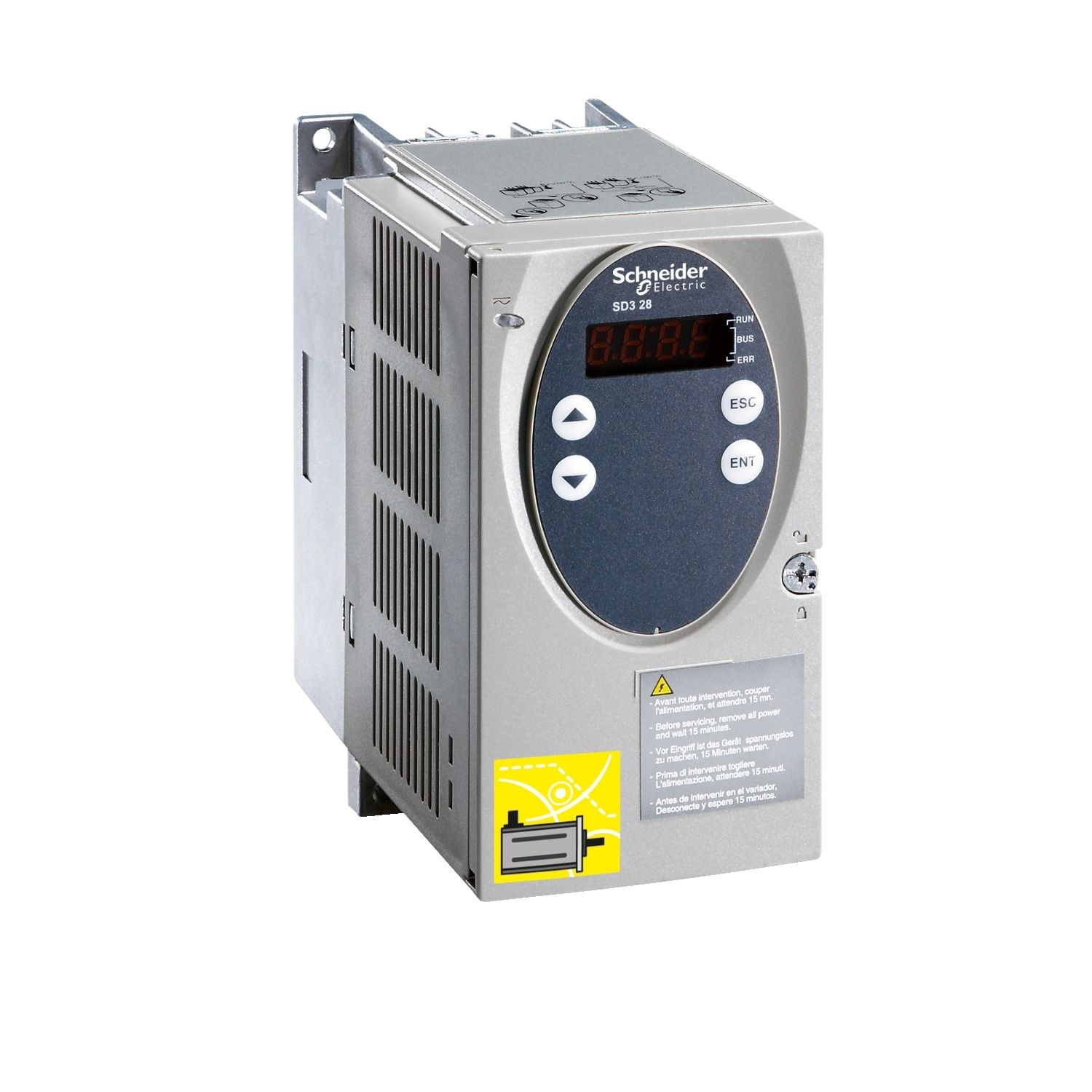

Picture of motion control stepper motor drive - SD328 - Profibus DP fieldbus - <= 2.5 A
SKU:

SD328BU25S2

motion control stepper motor drive - SD328 - Profibus DP fieldbus - <= 2.5 A

Please Contact Sales to buy this Product. click here
motion control stepper motor drive - SD328 - Profibus DP fieldbus - <= 2.5 A
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 17-Nov-2024
CAD
Catalogue
User guide
Product environmental
End of life manual
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Lexium SD3 and motors an offer of 3-phase stepper drives and stepper motors. The 3-phase stepper motor drive with an integrated Profibus DP fieldbus communication interface. High torque is available even at low speeds. It is a motor drive with a rated supply voltage of 100V to 120V, 200V to 230V, a motor phase current of 2.5A, a nominal power of 270W at 230V and maximum mechanical speed of motor drive is 3000RPM. It is provided with natural convection cooling method. It is an IP20 and IP40 rated product. Its dimensions are 72mm (Width) x 140mm (Depth) x 145mm (Height). It weighs 1.1kg. The Lexium SD3 with its excellent constant velocity characteristics is ideal for applications such as printing, paper, packaging, handling, labelling, textile industry, scanning, food and beverages. This product is certified by CUL, TUV, CE and UL. It meets EN/IEC 50178, EN/IEC 61800-3 environment 1, EN/IEC 61800-3 environment 1, EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. The SD3 is an universally applicable stepper motor drive. The package is ready for operation within a very short period of time. Connect the stepper motor to the drive, set the current and step resolution. Stepper drives and stepper motors for motion control.

Products specifications

Attribute name Attribute value
Main
Device short name SD328
Bus type fieldbus
Supply voltage limits 100-120 V, 200-240 V
Range of product Lexium SD3
Product or component type motion stepper drive
Complementary
Input voltage 24 V -15 %/+20 % for 24 V control voltage
Maximum output frequency 200 kHz for pulse/direction interface pulse/direction, 400 kHz for pulse/direction interface A/B
Compatibility code SD328
Type of cooling natural convection
Supply voltage description single phase 115 V, single phase 230 V
Maximum input frequency 400 kHz for signal input ENC_A, ENC_B, ENC_I - control type A/B, 200 kHz for signal input ENC_A, ENC_B, ENC_I - control type pulse/direction
Associated fuse rating 6 A at 230 V, 6 A at 115 V
Communication interface Profibus DP fieldbus, integrated
Voltage state 0 guaranteed -3...5 V for 24 V input signals
Input current 10 mA for 24 V input signals
Maximum voltage drop <1 V 50 mA load for 24 V output signals
Output voltage 4.75...5.25 V (ENC+5V_OUT signal output), <= 30 V (24 V output signals)
Maximum switching current 50 mA (24 V output signals)
Height 145 mm
Maximum mechanical speed 3000 rpm
[Us] rated supply voltage 200...230 V - 15...10 %, 100...120 V - 15...10 %
Network number of phases 1, single phase
Power losses <= 26 W
Depth 140 mm
Nominal power 270 W at 230 V, 180 W at 115 V
Overvoltage category III
Width 72 mm
Resistance 5 kOhm (pulse/direction interface)
Safety function safe torque off safety function for system process conforming to IEC/EN 61800-5-2, safe torque off safety function for system process conforming to EN/IEC 61508 level SIL2, safe torque off safety function for machine conforming to ISO 13849-1 level d, safe torque off safety function for machine conforming to IEC/EN 61800-5-2
Network frequency limits 50-60 Hz (- 15...10 %)
Short-circuit current 0.5 kA
Voltage state 1 guaranteed 15...30 V for 24 V input signals
Maximum leakage current 30 mA <10 m IEC 60990-3
Net weight 1.1 kg
Residual ripple < 5 % (24 V control voltage)
Current consumption <= 0.2 mA 24 V control voltage, 4 A 115 V main supply, 3 A 230 V main supply
Supply voltage type AC/DC
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Format of the drive block
Maximum motor phase current 2.5 A
Inrush current 60 A
Physical interface RS422 - signal input ENC_A, ENC_B, ENC_I, RS422 - pulse/direction interface
Environment
IP degree of protection on upper part: IP40 (without removal of protective film), IP20
Relative humidity 5-85 % without condensation
Ambient air temperature for storage -25-70 °C
Ambient air temperature for operation 0-50 °C
Marking CE
Electromagnetic compatibility voltage/current impulse level 3 conforming to IEC 61000-4-5, immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, immunity to electrical transients level 4 conforming to IEC 61000-4-4, electrostatic discharge level 3 conforming to IEC 61000-4-2
Pollution degree level 2
Operating altitude > 1000...< 2000 m without derating (maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm), <= 1000 m without derating
Vibration resistance 1.5 mm (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6
Standards IEC 61800-3 environment 1, IEC 50178, EN/IEC 61800-3 environment 2, IEC 61800-5-1, IEC 61800-3
Product certifications cUL, TÜV, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.3 cm
Package 1 Width 16.8 cm
Package 1 Length 18.7 cm
Package 1 Weight 1.268 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 8.467 kg
