SKU:

SE7200C5045

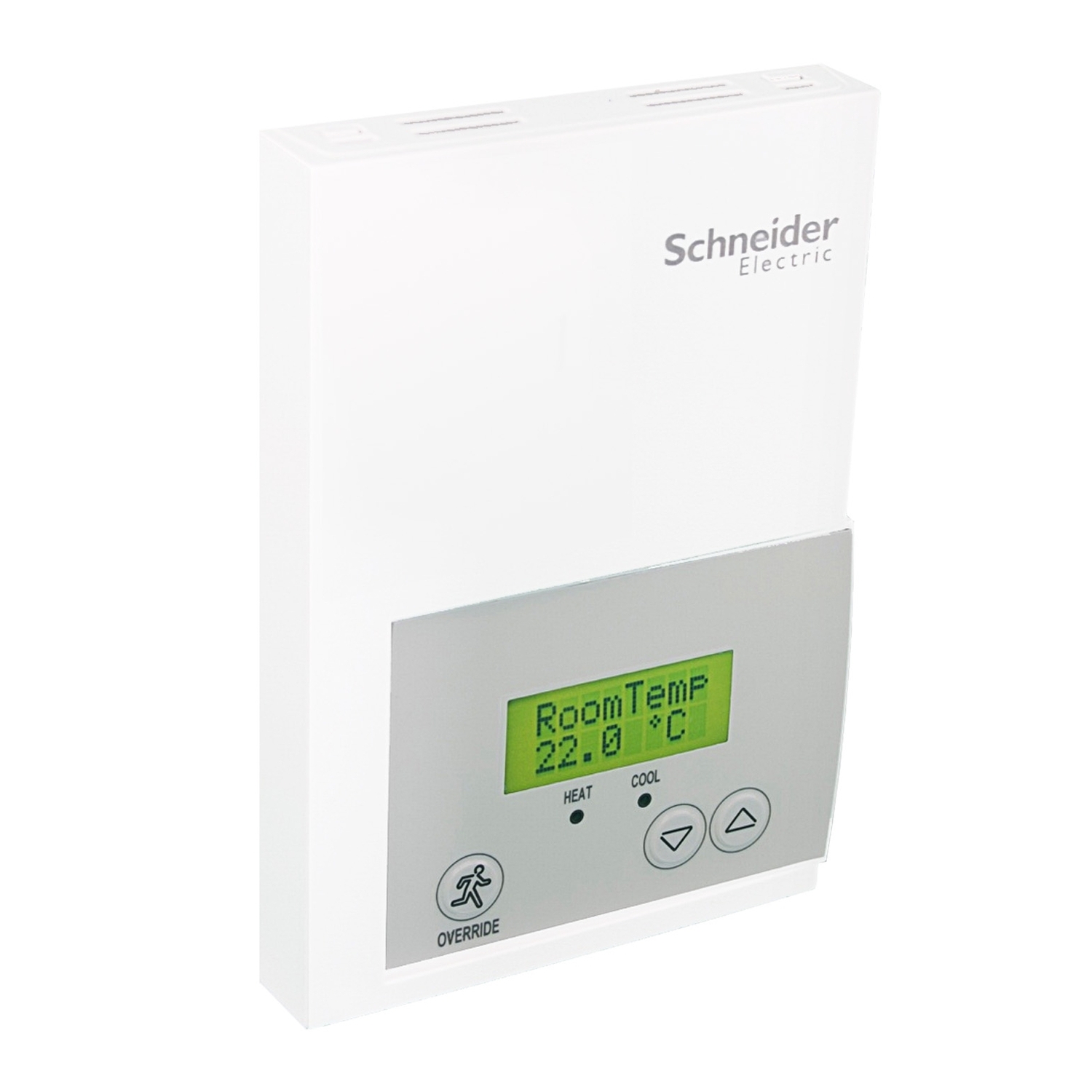

Zone Controller: Stand Alone, 1H/1C, Floating or on-off, Commercial/Override

$358.95 INC GST

Qty:

Available for Shipping : 19-Jan-2026

Zone Controller: Stand Alone, 1H/1C, Floating or on-off, Commercial/Override

Manufacturer: Schneider Electric

Delivery date: 19-Jan-2026

Brochure

Environmental Disclosure

Instruction sheet

Circularity Profile

Declaration of conformity

Product Page Link

Product Data Sheet

Zone Controller: Stand Alone, 1H/1C, Floating or on-off, Commercial/Override

Attribute name	Attribute value
Main
Device short name	SE7200
Device application	zone thermostat
Depth	1.18 in
Market segment	residential
Width	3.42 in
Temperature setting range	54-100 °F cooling, 0.9-0.9 °F per step, 40-90 °F heating
Relative humidity	0-95 % RH, non-condensing
Sensor type	10 kOhm T2 NTC thermistor
Output current	3 A (inrush), 1 A (maximum)
Ambient air temperature for storage	-22-122 °F
AWG gauge	AWG 22...AWG 18
Directives	89/336/EEC - electromagnetic compatibility
Communication port protocol	standalone (network ready)
Input type	2 x dry contact
Range	EcoStruxure Building Expert
Net weight	0.75 lb(US)
Product name	SE7000 Series
Output type	1 xdigital, 2 xuniversal
Product or component type	zone controller
Output voltage	30 V AC
Standards	CSA C22.2 No 24, ICES-003, UL 873, FCC part 15 Subpart B
Ambient air temperature for operation	32-122 °F
Height	4.92 in
Complementary
Device presentation	without cover
Rated operational power in VA	2 VA
Environment
Electrical insulation class	class II

Economizer	No
PIR cover	No
Humidity control	No
Scheduling	No
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	10.0 cm
Package 1 Width	15.0 cm
Package 1 Length	5.0 cm
Package 1 Weight	200.0 g
