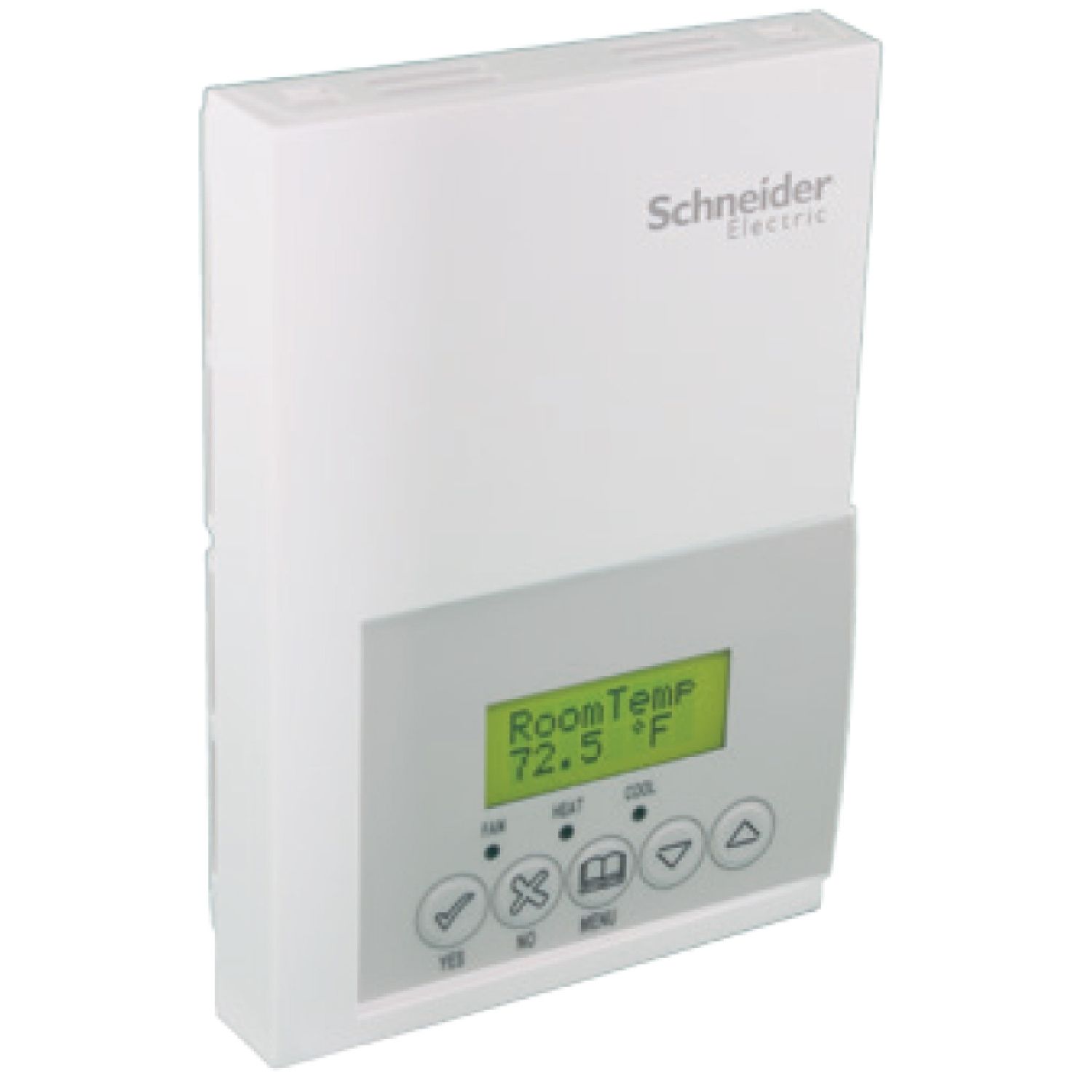

Picture of Water Source Heat Pump Controller: Stand Alone, 2H/2C, Local scheduling
SKU:

SE7652W5045

Water Source Heat Pump Controller: Stand Alone, 2H/2C, Local scheduling

$1,149.88 INC GST
Available for Shipping : 19-Jan-2026
Water Source Heat Pump Controller: Stand Alone, 2H/2C, Local scheduling
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 19-Jan-2026
Brochure
Circularity Profile
Environmental Disclosure
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
Water Source Heat Pump Controller: Stand Alone, 2H/2C, Local scheduling

Products specifications

Attribute name Attribute value
Main
Device short name SE7600W
Device application staging equipment (RTU/HP), low voltage heat pump
Depth 1.18 in
Humidity setting range humidification: 10-90 %, dehumidification: 30-95 %
Market segment residential
Width 3.42 in
Temperature setting range 54-100 °F cooling, 0.9-0.9 °F per step, 40-90 °F heating
Sensor type 10 kOhm T2 NTC thermistor, single point calibrated bulk polymer RH sensor
Relative humidity 0-95 % RH, non-condensing
Product specific application 2-stage cooling, 3-stage heating
Output current 3 A at 30 V digital output (inrush), 1 A at 30 V digital output (maximum)
Ambient air temperature for storage -22-122 °F
AWG gauge AWG 22...AWG 18
Directives 89/336/EEC - electromagnetic compatibility
Communication port protocol standalone (network ready)
Input type 2 x dry contact
Range EcoStruxure Building Expert
Net weight 0.75 lb(US)
Product name SE7000 Series
Output type 2 xuniversal
Product or component type room controller
Output voltage 30 V AC for digital output
Standards ICES-003, CSA C22.2 No 24, UL 873, FCC part 15 Subpart B
Calibration certificate 1 pt
Ambient air temperature for operation 32-122 °F
Height 4.92 in
Storage Relative Humidity 0-95 % RH, non-condensing
Complementary
Device presentation without cover
Rated operational power in VA 2 VA
Environment
Electrical insulation class class II
Economizer No
PIR cover No
Humidity control Yes
Scheduling Yes
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.2 cm
Package 1 Width 10.1 cm
Package 1 Length 5.2 cm
Package 1 Weight 45.0 g
