SKU:

SEA9BN12TNA

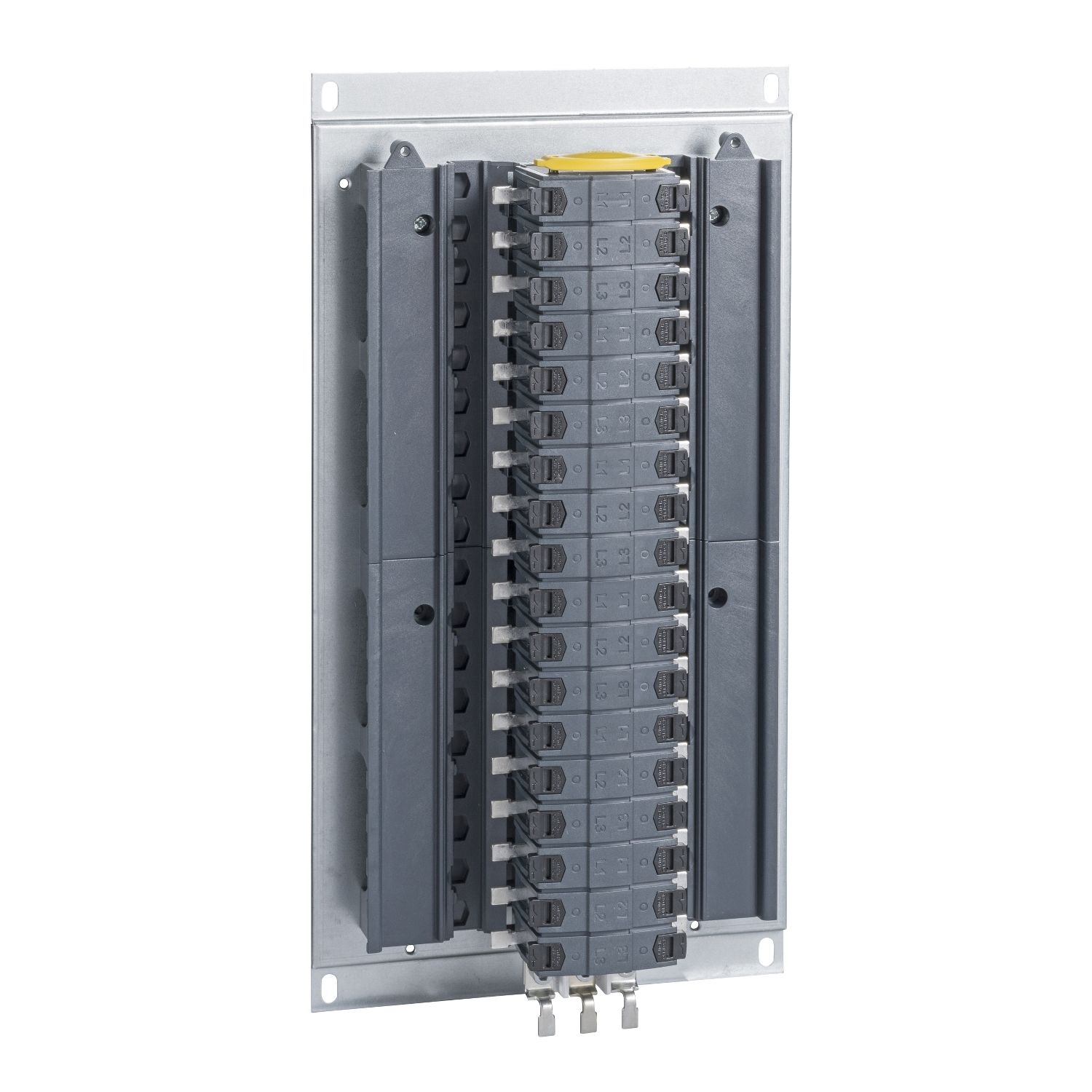

Acti9, Isobar B - panel fixing pan assembly - 12 ways TP&N

$452.52

Qty:

Acti9, Isobar B - panel fixing pan assembly - 12 ways TP&N

Acti9 Isobar Chassis , 250A, 36 ways

A three phase Chassis compliant to local standands and wiring regulations

Chassis fully compliant with Acti9 iC60 Circuit protection devices and system

Encapsulated chassis with isolation feature for additional safety

Be the first to review this product

Manufacturer: Schneider Electric

Estimated Delivery Date: 26-Sep-2024

Catalogue

Product environmental

Product Page Link

Product Data Sheet

This Acti9 product is a pan assembly and can be installed in the Acti9 Isobar B distribution board. It provides 12 ways (outgoer) of 3P+N. The In rated current is up to 250A. It is dedicated to 3 phase for switchboard mounting without earth and neutral bars, up to 63A. This pan assembly does not have the option to convert phase to neutral for outgoing poles and incomer connection kits. It contains a switch disconnector (3P), molded case circuit breaker (3P), and a terminal block (3P). It can protect a residual current circuit breaker with overcurrent protection (up to 45A) and a miniature circuit breaker (up to 63A). This pan assembly is provided with a mounting plate. The Ui rated insulation voltage is 500VAC. It has a Uimp rated impulse withstand voltage of 6kV. The rated voltage is up to 415VAC with an operating frequency of 50Hz to 60Hz. The Icw rated short-time withstand current is 25kA at 0.1s. The dimensions are (W) 210mm x (L) 398mm x (D) 90mm. This product complies with IEC 61439 standard.

Products specifications

Attribute name	Attribute value
Main
Device application	distribution
Range	Acti9
Product or component type	pan assembly
Complementary
Protection device type	miniature circuit breaker (MCB) 63 A max , residual current circuit breaker with overcurrent protection (RCBO) 45 A max
Depth	90 mm
Width	210 mm
Incomer device	3P MCCB, 3P terminal block, 3P switch disconnector
[In] rated current	250 A
Provided equipment	mounting plate
Rated voltage	415 V AC 50/60 Hz
Number of poles	36 x 18 mm
Short-circuit withstand	25 kA 0.1 s
Length	398 mm
[Ui] rated insulation voltage	500 V
Range compatibility	Acti9 Acti9 Isobar B distribution board
Number of ways	12 ways (outgoer), 1 way (incomer) - 3P + N
[Uimp] rated impulse withstand voltage	6 kV
Busbar pitch	18 mm
[Icw] rated short-time withstand current	25 kA
Environment
Standards	IEC 61439
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	11.0 cm
Package 1 Width	22.0 cm
Package 1 Length	40.0 cm
Package 1 Weight	5.722 kg
Unit Type of Package 2	2
Number of Units in Package 2	96
Package 2 Height	112.0 cm
Package 2 Width	100.0 cm
Package 2 Length	120.0 cm
Package 2 Weight	569.312 kg
