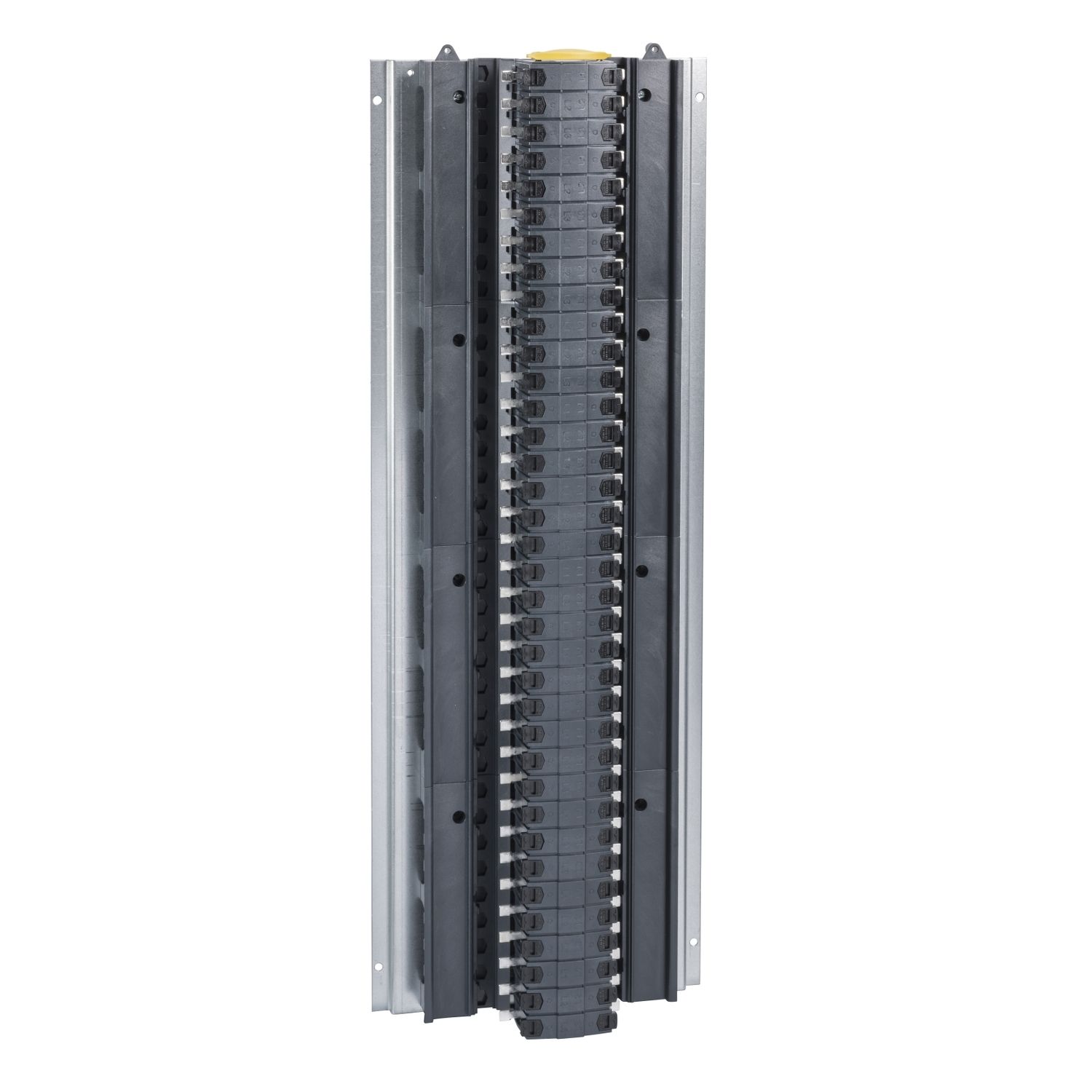

Acti9, Isobar B - panel fixing pan assembly - 24 ways TP&N

$881.51 INC GST
Available for Shipping : 23-Jan-2025
Acti9, Isobar B - panel fixing pan assembly - 24 ways TP&N
  • Acti9 Isobar Chassis , 250A, 72 ways
  • A three phase Chassis compliant to local standands and wiring regulations
  • Chassis fully compliant with Acti9 iC60 Circuit protection devices and system
  • Encapsulated chassis with isolation feature for additional safety
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product environmental
Product Page Link
Product Data Sheet
This Acti9 Isobar B is a pan assembly. It has 3P+N with 250A rated current. It is a 1 way incomer of 3 poles and 24 ways outgoer. It is suitable for a residual current circuit breaker with overcurrent protection up to 45A and a miniature circuit breaker up to 63A. The protection device options at outgoer is miniature circuit breaker (MCB) is 63A maximum. The dimensions are (W) 210mm x (H) 722mm x (D) 90mm. The busbar pitch is 18mm, thickness is 2mm.

Products specifications

Attribute name Attribute value
Main
Device application distribution
Range Acti9
Product or component type pan assembly
Complementary
Protection device type miniature circuit breaker (MCB) 63 A max , residual current circuit breaker with overcurrent protection (RCBO) 45 A max
Depth 90 mm
Width 210 mm
Incomer device 3P MCCB,  3P terminal block,  3P switch disconnector
[In] rated current 250 A
Provided equipment mounting plate
Number of poles 72 x 18 mm
Length 722 mm
Range compatibility Acti 9 Acti9 Isobar B distribution board
Number of ways 24 ways (outgoer), 1 way (incomer) - 3P + N
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.000 cm
Package 1 Width 73.000 cm
Package 1 Length 22.000 cm
Package 1 Weight 9.465 kg
Unit Type of Package 2 2
Number of Units in Package 2 56
Package 2 Height 112.000 cm
Package 2 Width 100.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 541.530 kg
