SKU:

SEA9BN8PEV

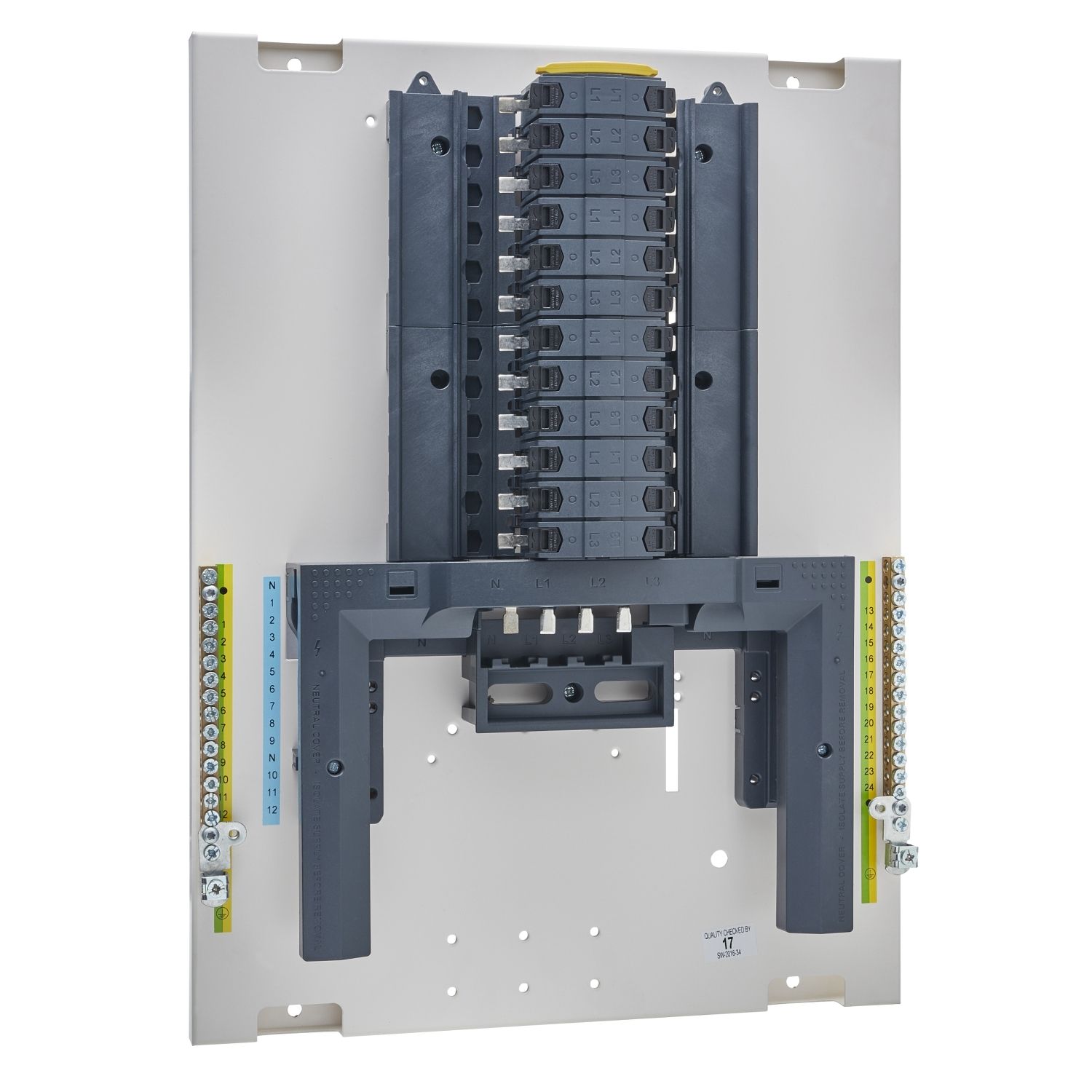

Acti9, Isobar B - pan assembly - 8 ways TP + earth + neutral

Old price: $939.40 INC GST

Price: $555.09 INC GST

Qty:

Available for Shipping : 08-Dec-2025

Acti9, Isobar B - pan assembly - 8 ways TP + earth + neutral

Non removable interlock to prevent operation unless an outgoing device is fitted

Manufacturer: Schneider Electric

Delivery date: 08-Dec-2025

Catalog

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device application	distribution
Range	Acti9
Product or component type	pan assembly
Complementary
Protection device type	miniature circuit breaker (MCB) 63 A max , residual current circuit breaker with overcurrent protection (RCBO) 45 A max
Depth	105 mm
Width	350 mm
Incomer device	4P contactor, 3P + N MCCB, 3P + N RCCB, 4P terminal block, 4P switch disconnector
[In] rated current	250 A
Provided equipment	mounting plate, DIN rail, grounding bar, neutral bar
Number of poles	24 x 18 mm
Length	471 mm
Range compatibility	Acti 9 Acti9 Isobar B distribution board
Number of ways	1 way (incomer) - 3P + N + E, 8 ways (outgoer)
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	11.0 cm
Package 1 Width	39.0 cm
Package 1 Length	49.0 cm
Package 1 Weight	4.246 kg
Unit Type of Package 2	2
Number of Units in Package 2	48
Package 2 Height	112.0 cm
Package 2 Width	100.0 cm
Package 2 Length	120.0 cm
Package 2 Weight	218.808 kg
