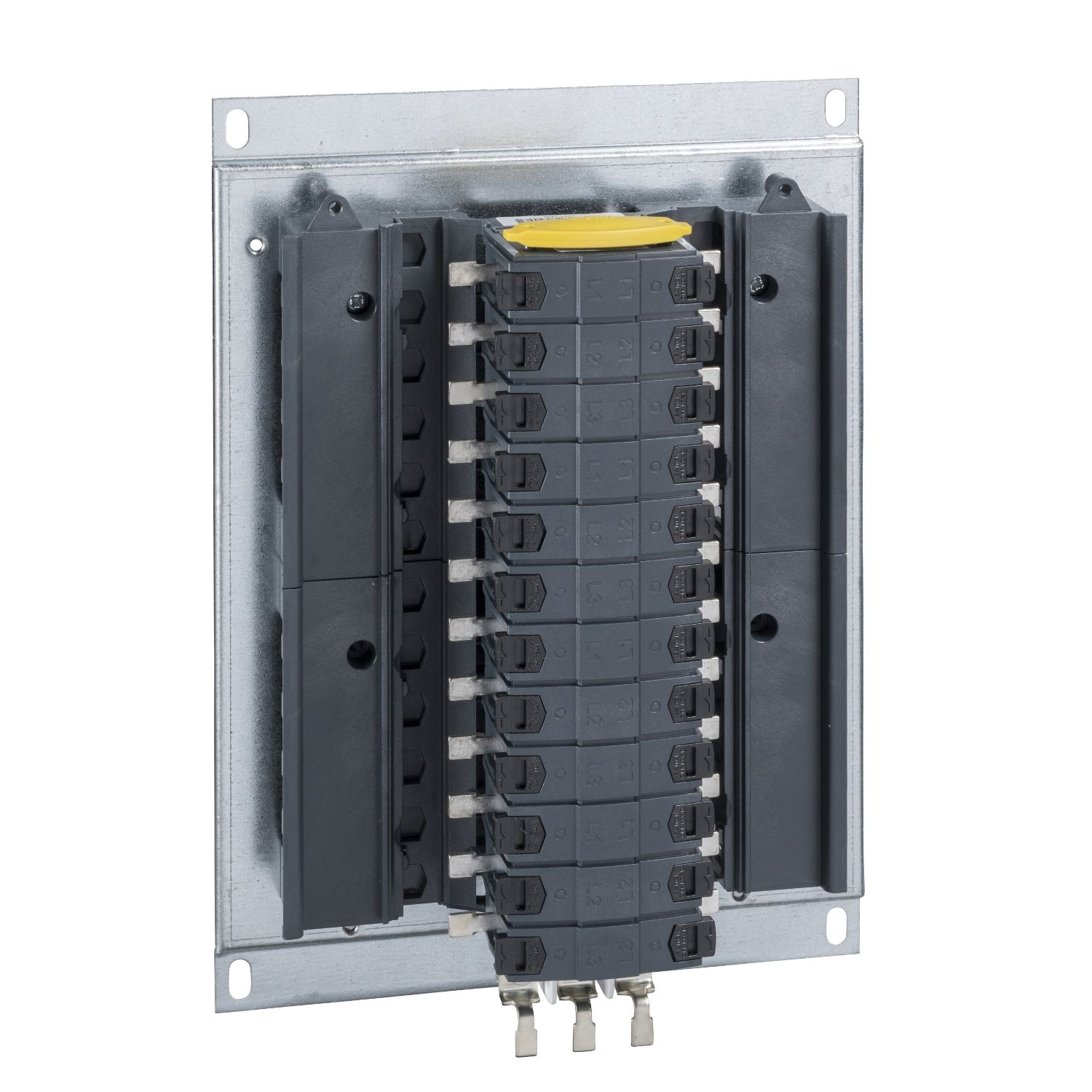

Picture of Acti9, Isobar B -panel fixing pan assembly - 8 ways TP&N
SKU:

SEA9BN8TNA

Acti9, Isobar B -panel fixing pan assembly - 8 ways TP&N

$351.49
Available for Shipping : 24-Nov-2024
Acti9, Isobar B -panel fixing pan assembly - 8 ways TP&N
  • Acti9 Isobar Chassis , 250A, 24 ways
  • A three phase Chassis compliant to local standands and wiring regulations
  • Chassis fully compliant with Acti9 iC60 Circuit protection devices and system
  • Encapsulated chassis with isolation feature for additional safety
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product environmental
Product Page Link
Product Data Sheet
This Acti9 product is a pan assembly and can be installed in the Acti9 Isobar B distribution board. It provides 8 ways (outgoer) of 3P+N. The In rated current is up to 250A. It is dedicated to 3 phase for switchboard mounting without earth and neutral bars, up to 63A. This pan assembly does not have the option to convert phase to neutral for outgoing poles and incomer connection kits. It contains a switch disconnector (3P), molded case circuit breaker (3P), and a terminal block (3P). It can protect a residual current circuit breaker with overcurrent protection (up to 45A) and a miniature circuit breaker (up to 63A). This pan assembly is provided with a mounting plate. The Ui rated insulation voltage is 500VAC. It has a Uimp rated impulse withstand voltage of 6kV. The rated voltage is up to 415VAC with an operating frequency of 50Hz to 60Hz. The Icw rated short-time withstand current is 25kA at 0.1s. The dimensions are (W) 210mm x (L) 290mm x (D) 90mm. This product complies with IEC 61439 standard.

Products specifications

Attribute name Attribute value
Main
Device application distribution
Range Acti9
Product or component type pan assembly
Complementary
Protection device type miniature circuit breaker (MCB) 63 A max , residual current circuit breaker with overcurrent protection (RCBO) 45 A max
Depth 90 mm
Width 210 mm
Incomer device 3P MCCB,  3P terminal block,  3P switch disconnector
[In] rated current 250 A
Provided equipment mounting plate
Rated voltage 415 V AC 50/60 Hz
Number of poles 24 x 18 mm
Short-circuit withstand 25 kA 0.1 s
Length 290 mm
[Ui] rated insulation voltage 500 V
Range compatibility Acti9 Acti9 Isobar B distribution board
Number of ways 1 way (incomer) - 3P + N, 8 ways (outgoer)
[Uimp] rated impulse withstand voltage 6 kV
Busbar pitch 18 mm
[Icw] rated short-time withstand current 25 kA
Environment
Standards IEC 61439
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.500 cm
Package 1 Width 22.000 cm
Package 1 Length 30.000 cm
Package 1 Weight 1.875 kg
Unit Type of Package 2 2
Number of Units in Package 2 120
Package 2 Height 100.000 cm
Package 2 Width 100.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 245.000 kg

Related products

Picture of Acti9, Residual current breaker with overcurrent protection (RCBO), Acti9 iC60H RCBO, 1P + Ns, 10A, 30mA, A type, 10000A

Acti9, Residual current breaker with overcurrent protection (RCBO), Acti9 iC60H RCBO, 1P + Ns, 10A, 30mA, A type, 10000A

A9D11810
$87.60
View Detail
Picture of Acti9, Residual current breaker with overcurrent protection (RCBO), Acti9 iC60H RCBO, 1P + Ns, 16A, 30mA, A type, 10000A

Acti9, Residual current breaker with overcurrent protection (RCBO), Acti9 iC60H RCBO, 1P + Ns, 16A, 30mA, A type, 10000A

A9D11816
$87.60
View Detail
Picture of Acti9, Miniature circuit breaker (MCB), Acti9 iC60H Disbo, 3P, 16A, C curve, 10000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)

Acti9, Miniature circuit breaker (MCB), Acti9 iC60H Disbo, 3P, 16A, C curve, 10000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)

A9F54316
$76.67
View Detail
Picture of Acti9, Miniature circuit breaker (MCB), Acti9 iC60H Disbo, 3P, 20A, C curve, 10000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)

Acti9, Miniature circuit breaker (MCB), Acti9 iC60H Disbo, 3P, 20A, C curve, 10000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)

A9F54320
$76.67
View Detail

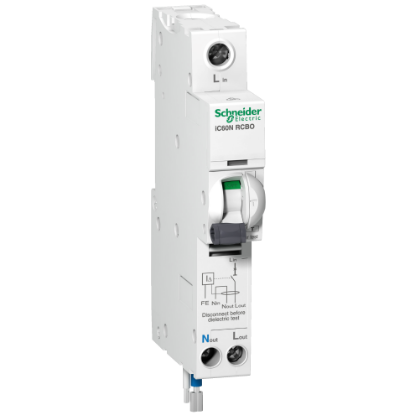

Picture of Acti9, Residual current breaker with overcurrent protection (RCBO), Acti9 iC60H RCBO, 1P + Ns, 20A, 30mA, A type, 10000A
