SKU:

SED-TRH-G-5045

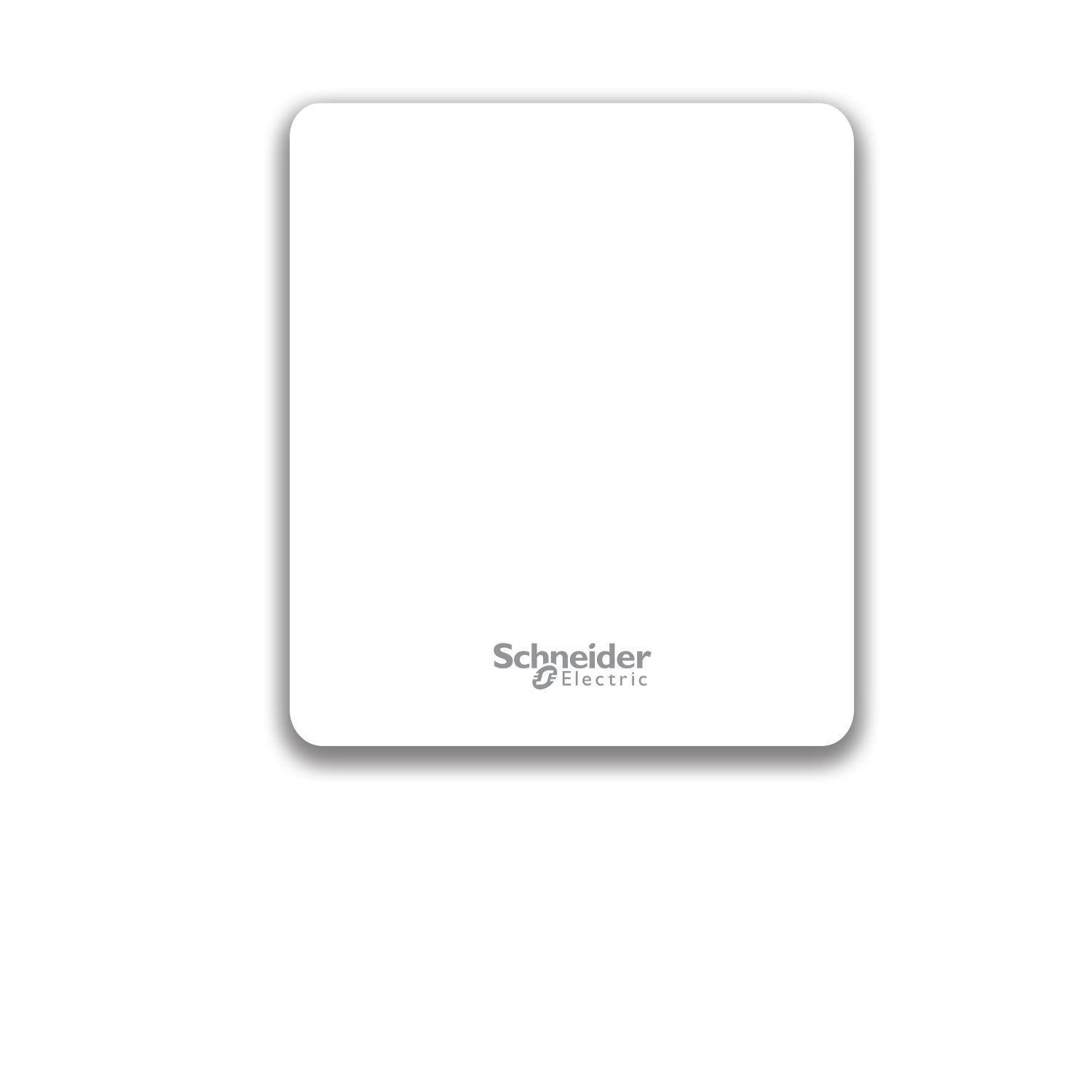

Wireless sensor with room temperature and humidity for SE8000 Series, zigbee communication protocol

$272.40

Qty:

Available for Shipping : 29-Jan-2025

Wireless sensor with room temperature and humidity for SE8000 Series, zigbee communication protocol

Manufacturer: Schneider Electric

User guide

Instruction sheet

Brochure

Declaration of conformity

Product Page Link

Product Data Sheet

This is a Wireless Zigbee Temprature and Humidty to sensor connect with SE8000 Room Controllers or Wireless Connectivity Advanced Module.

Attribute name	Attribute value
Main
IP degree of protection	IP20
Device application	HVAC
Depth	18.4 mm
Width	72.4 mm
Relative humidity	0-100 % without condensation
Response time	2.5 min
Ambient air temperature for storage	-30-70 °C
Communication port protocol	Zigbee
Range	EcoStruxure Building Expert
CO2 measurement range	0...100 % RH, 0...50 °C temperature
Product name	SE8000 Series
Product or component type	sensor
Type of measurement	humidity, temperature
Mounting support	surface mount
Ambient air temperature for operation	0-50 °C
Height	82.9 mm
[Us] rated supply voltage	36 V
Complementary
Function available	with temperature sensor, with humidity sensor
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	4.5 cm
Package 1 Width	9.1 cm
Package 1 Length	12.5 cm
Package 1 Weight	130.0 g
Unit Type of Package 2	2
Number of Units in Package 2	54
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	7.66 kg
Unit Type of Package 3	3
Number of Units in Package 3	648
Package 3 Height	105.0 cm
Package 3 Width	60.0 cm
Package 3 Length	80.0 cm
Package 3 Weight	100.42 kg
