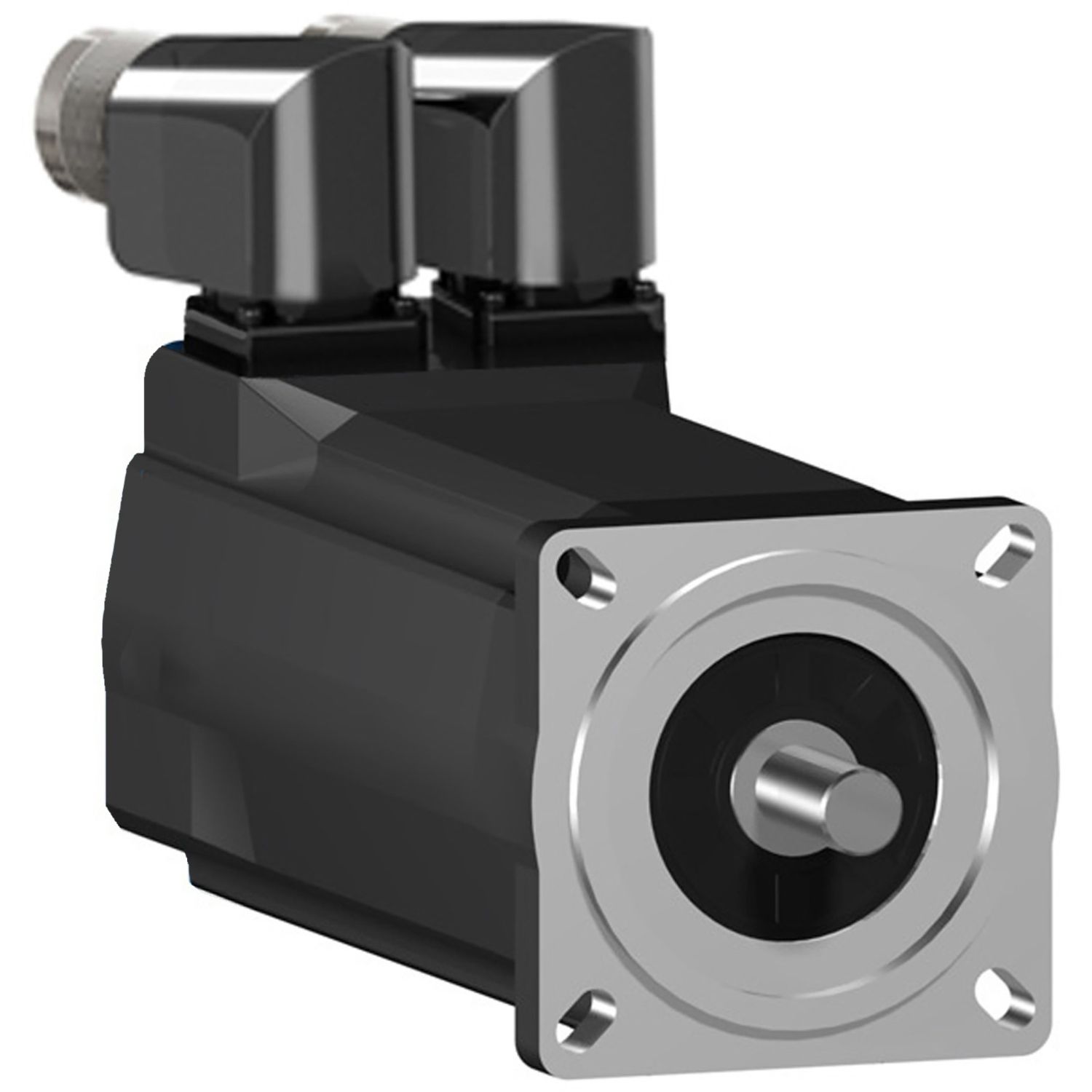

servo motor SH3 070 2,94Nm,key,multi,brake,90°conn.IP54/IP65,8k RPM

Please Contact Sales to buy this Product. click here
servo motor SH3 070 2,94Nm,key,multi,brake,90°conn.IP54/IP65,8k RPM
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 02-Nov-2024
User guide
Declaration of conformity
Catalogue
Product environmental
Product Page Link
Product Data Sheet
This product is part of the Lexium 52 & Motors range, an offer of servo motors for PacDrive 3. The 3-pole servo motor features maximum mechanical speed of 8000RPM and parallel key shaft end with holding brake. It is an equipped with an absolute multi-turn SinCos Hiperface® encoder with 128 periods speed feedback resolution. It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 4.1A and a continuous power of 1330W. The shaft dimensions are 14mm (diameter) x 30mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP54 and IP65 rated product. The length of this product is 254mm and the centering collar dimensions are 2.5mm (depth) x 60mm (diameter) with 82mm mounting hole. It weighs 3.8kg. This range is compatible with PacDrive 3 for motion centric machines. It supports 70mm international standard flange mount with a natural convection cooling system. Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.

Products specifications

Attribute nameAttribute value
Main
Device short nameSH3.....P
Range compatibilityPacDrive 3
Product or component typeservo motor
Complementary
Temperature copper hot130 °C
Continuous stall torque2.94 N.m at 115...480 V three phase
Nominal speed7200 rpm at 480 V three phase, 6000 rpm at 400 V three phase, 3000 rpm at 230 V single phase, 1500 rpm at 115 V single phase
IP degree of protectionIP65 shaft bushing: conforming to IEC 60034-5, IP65 motor: conforming to IEC 60034-5, IP54 shaft bushing without shaft seal ring: conforming to IEC 60034-5
Type of coolingnatural convection
Nominal output power1550 W at 480 V three phase, 1450 W at 400 V three phase, 880 W at 230 V single phase, 460 W at 115 V single phase
Peak stall torque11.3 N.m at 115...480 V three phase
Number of mounting holes4
[Us] rated supply voltage115...480 V
Motor flange size70 mm
Stator inductance20.3 mH
Output current 3s peak 26 A
Speed feedback resolution128 periods
Centring collar depth2.5 mm
Back emf constant49 V/krpm at 20 °C
Maximum radial force Fr400 N at 6000 rpm, 430 N at 5000 rpm, 460 N at 4000 rpm, 510 N at 3000 rpm, 580 N at 2000 rpm, 730 N at 1000 rpm
Maximum mechanical speed8000 rpm
Electrical connectionrotatable right angled connector
Continuous power1330 W
Circle diameter of the mounting holes82 mm
Torque constant0.72 N.m/A at 120 °C
Network number of phases3, three phase
Nominal torque2.1 N.m at 480 V three phase, 2.1 N.m at 400 V three phase, 2.8 N.m at 230 V single phase, 2.95 N.m at 115 V single phase
Continuous stall current4.1 A
Stator resistance2.7 Ohm
Shaft endparallel key
Mounting holes diameter5.5 mm
Shaft diameter14 mm
Key width5 mm
Centring collar diameter60 mm
Sizing referenceSH30703P
Maximum current Irms17 A
Net weight3.8 kg
Length254 mm
Shaft length30 mm
Holding brakewith
Maximum axial force Fa80 N
Number of motor poles3
Rotor inertia0.807 kg.cm²
Mounting supportinternational standard flange
Encoder typeabsolute multiturn SinCos Hiperface
Holding torque3 N.m
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height11.5 cm
Package 1 Width19.0 cm
Package 1 Length39.5 cm
Package 1 Weight4.493 kg
