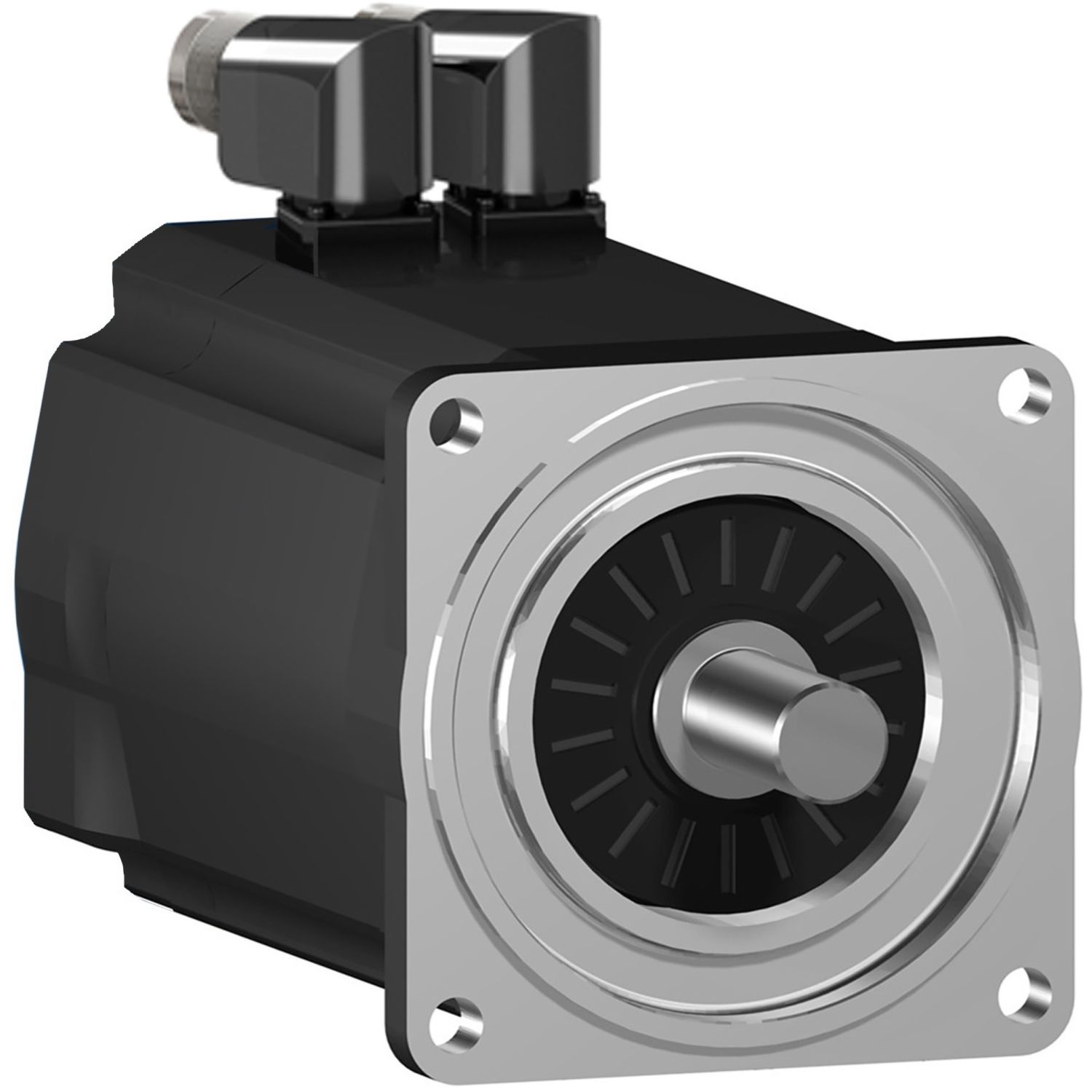

Picture of servo motor SH3 100 8Nm,nokey,single,nobrake,90°conn.IP54/IP65,6k RPM
SKU:

SH31003P01A2000

servo motor SH3 100 8Nm,nokey,single,nobrake,90°conn.IP54/IP65,6k RPM

Please Contact Sales to buy this Product. click here
servo motor SH3 100 8Nm,nokey,single,nobrake,90°conn.IP54/IP65,6k RPM
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 02-Nov-2024
User guide
Catalogue
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet

Products specifications

Attribute nameAttribute value
Main
Device short nameSH3.....P
Range compatibilityPacDrive 3
Product or component typeservo motor
Complementary
Temperature copper hot130 °C
Continuous stall torque8 N.m at 115...480 V three phase
Torque constant1.22 N.m/A at 120 °C
Network number of phases3, three phase
Nominal torque5.7 N.m at 400 V three phase, 7 N.m at 230 V single phase, 7.5 N.m at 115 V single phase, 5.1 N.m at 480 V three phase
Continuous stall current6.6 A
Stator resistance1.43 Ohm
Electrical connectionstraight connector,  rotatable right angled connector
Nominal speed4800 rpm at 480 V three phase, 4000 rpm at 400 V three phase, 2000 rpm at 230 V single phase, 1000 rpm at 115 V single phase
IP degree of protectionIP65 shaft bushing: conforming to IEC 60034-5, IP65 motor: conforming to IEC 60034-5, IP54 shaft bushing without shaft seal ring: conforming to IEC 60034-5
Shaft endsmooth shaft
Type of coolingnatural convection
Mounting holes diameter9.0 mm
Nominal output power2560 W at 480 V three phase, 2390 W at 400 V three phase, 1470 W at 230 V single phase, 790 W at 115 V single phase
Shaft diameter19 mm
Peak stall torque28.3 N.m at 115...480 V three phase
Number of mounting holes4
[Us] rated supply voltage115...480 V
Motor flange size100 mm
Stator inductance13.45 mH
Centring collar diameter95 mm
Sizing referenceSH31003P
Maximum current Irms28.3 A
Net weight7.5 kg
Length240.5 mm
Output current 3s peak 215 A
Shaft length40 mm
Speed feedback resolution128 periods
Holding brakewithout
Centring collar depth3.5 mm
Maximum axial force Fa160 N
Back emf constant77 V/krpm at 20 °C
Number of motor poles4
Rotor inertia3.22 kg.cm²
Mounting supportinternational standard flange
Encoder typeabsolute single turn SinCos Hiperface
Maximum radial force Fr660 N at 4000 rpm, 730 N at 3000 rpm, 830 N at 2000 rpm, 1050 N at 1000 rpm
Maximum mechanical speed6000 rpm
Continuous power2400 W
Circle diameter of the mounting holes115 mm
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height21.0 cm
Package 1 Width18.0 cm
Package 1 Length35.6 cm
Package 1 Weight8.278 kg
