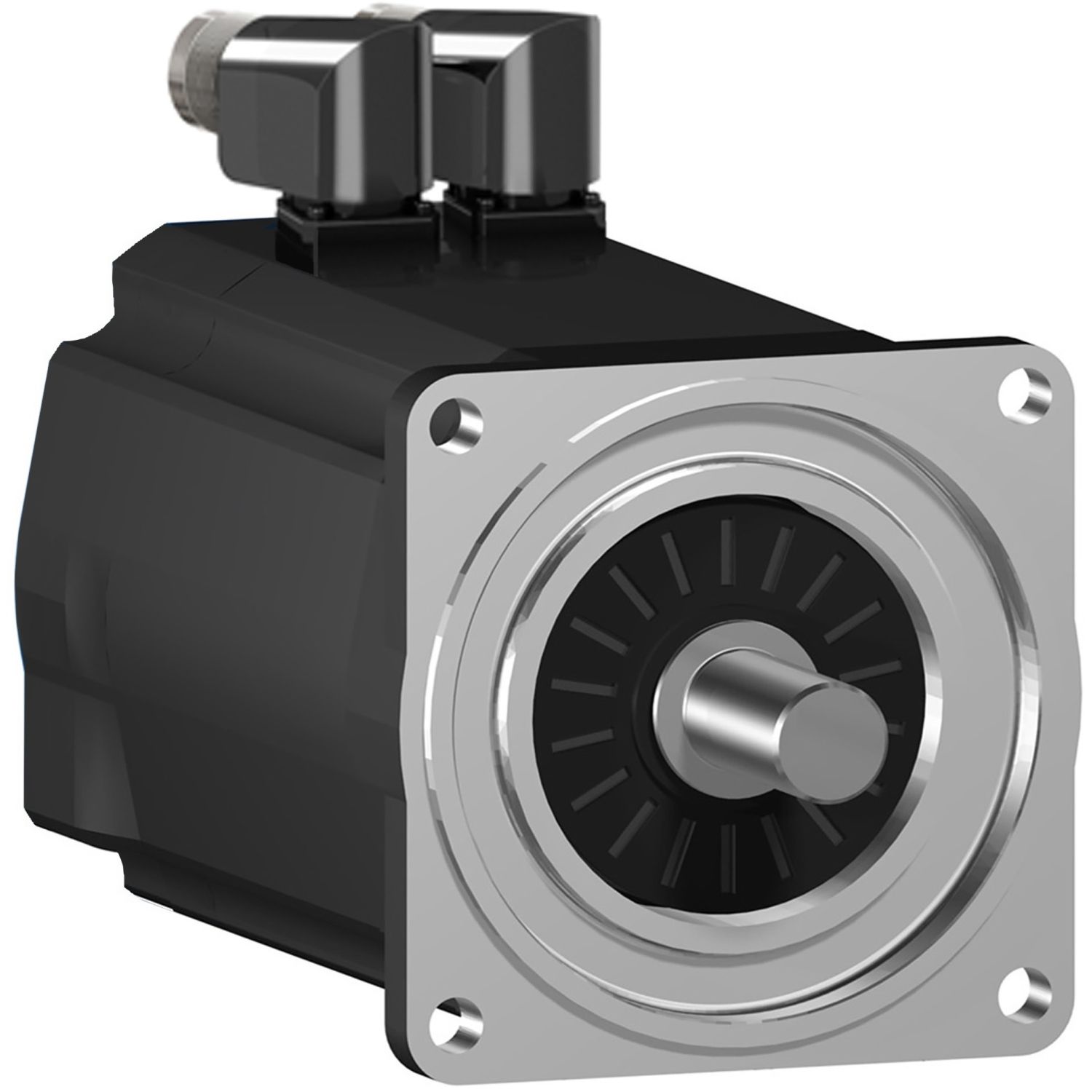

Picture of servo motor SH3 100 8Nm,nokey,multi,nobrake,90°conn.IP54/IP65,6k RPM
SKU:

SH31003P02A2000

servo motor SH3 100 8Nm,nokey,multi,nobrake,90°conn.IP54/IP65,6k RPM

Please Contact Sales to buy this Product. click here
servo motor SH3 100 8Nm,nokey,multi,nobrake,90°conn.IP54/IP65,6k RPM
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 02-Nov-2024
User guide
Declaration of conformity
Catalogue
Product environmental
Product Page Link
Product Data Sheet
This product is part of the Lexium 52 & Motors range, an offer of servo motors for PacDrive 3. The 4-pole servo motor features maximum mechanical speed of 6000RPM and smooth shaft end without holding brake. It is an equipped with an absolute multi-turn SinCos Hiperface® encoder with 128 periods speed feedback resolution. It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 6.6A and a continuous power of 2400W. The shaft dimensions are 19mm (diameter) x 40mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP54 and IP65 rated product. The length of this product is 240.5mm and the centering collar dimensions are 3.5mm (depth) x 95mm (diameter) with 115mm mounting hole. It weighs 7.5kg. This range is compatible with PacDrive 3 for motion centric machines. It supports 100mm international standard flange mount with a natural convection cooling system. Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.

Products specifications

Attribute nameAttribute value
Main
Device short nameSH3.....P
Range compatibilityPacDrive 3
Product or component typeservo motor
Complementary
Temperature copper hot130 °C
Continuous stall torque8 N.m at 115...480 V three phase
Nominal speed4800 rpm at 480 V three phase, 4000 rpm at 400 V three phase, 2000 rpm at 230 V single phase, 1000 rpm at 115 V single phase
IP degree of protectionIP65 shaft bushing: conforming to EN/IEC 60034-5, IP65 motor: conforming to EN/IEC 60034-5, IP54 shaft bushing without shaft seal ring: conforming to EN/IEC 60034-5
Type of coolingnatural convection
Nominal output power2560 W at 480 V three phase, 2390 W at 400 V three phase, 1470 W at 230 V single phase, 790 W at 115 V single phase
Peak stall torque28.3 N.m at 115...480 V three phase
Number of mounting holes4
[Us] rated supply voltage115...480 V
Motor flange size100 mm
Stator inductance13.45 mH
Output current 3s peak 215 A
Speed feedback resolution128 periods
Centring collar depth3.5 mm
Back emf constant77 V/krpm at 20 °C
Maximum radial force Fr660 N at 4000 rpm, 730 N at 3000 rpm, 830 N at 2000 rpm, 1050 N at 1000 rpm
Maximum mechanical speed6000 rpm
Electrical connectionrotatable right angled connector, straight connector
Continuous power2400 W
Circle diameter of the mounting holes115 mm
Torque constant1.22 N.m/A at 120 °C
Network number of phases3, three phase
Nominal torque5.7 N.m at 400 V three phase, 7 N.m at 230 V single phase, 7.5 N.m at 115 V single phase, 5.1 N.m at 480 V three phase
Continuous stall current6.6 A
Stator resistance1.43 Ohm
Shaft endsmooth shaft
Mounting holes diameter9.0 mm
Shaft diameter19 mm
Centring collar diameter95 mm
Sizing referenceSH31003P
Maximum current Irms28.3 A
Net weight7.5 kg
Length240.5 mm
Shaft length40 mm
Holding brakewithout
Maximum axial force Fa160 N
Number of motor poles4
Rotor inertia3.22 kg.cm²
Mounting supportinternational standard flange
Encoder typeabsolute multiturn SinCos Hiperface
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height22.2 cm
Package 1 Width39.8 cm
Package 1 Length19.6 cm
Package 1 Weight8.438 kg
Unit Type of Package 22
Number of Units in Package 26
Package 2 Height45.0 cm
Package 2 Width80.0 cm
Package 2 Length60.0 cm
Package 2 Weight59.254 kg

Related products

Picture of Encoder cable SH3/MH3 servo motor and Lexium 52/Lexium 62 servo drive, 5 m

Encoder cable SH3/MH3 servo motor and Lexium 52/Lexium 62 servo drive, 5 m

VW3E2094R050
Please Contact Sales to buy this Product. click here
View Detail
Picture of Power Cable for Axis 1 for STS40/60/80; 5 meter

Power Cable for Axis 1 for STS40/60/80; 5 meter

VW3E1143R050
Please Contact Sales to buy this Product. click here
View Detail
