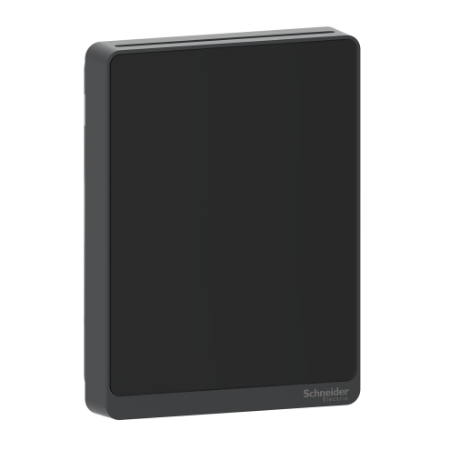

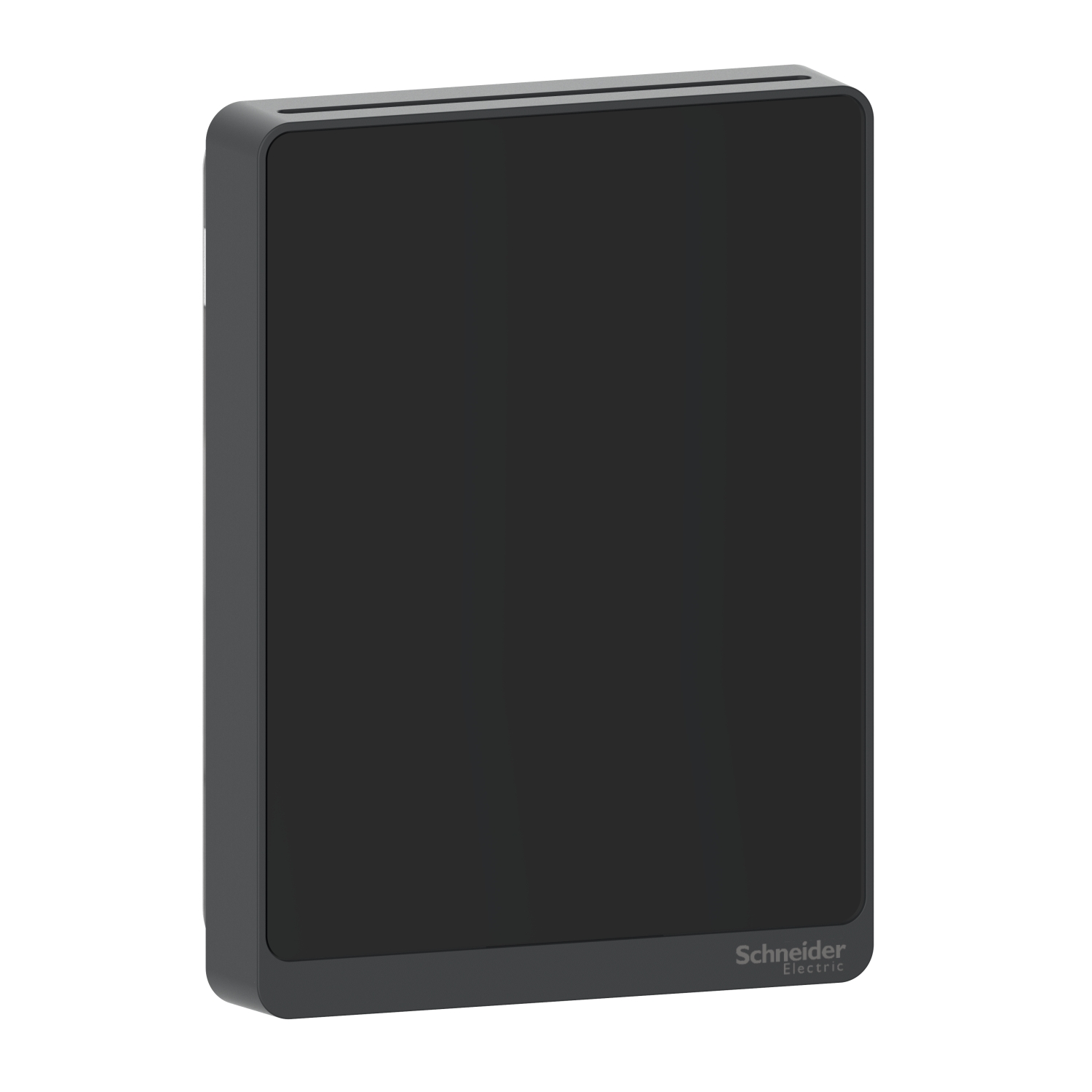

Picture of Sensor, SpaceLogic SLA Series, air quality, CO2, temperature, room, analog outputs, optimum black housing
SKU:

SLABXCX

Sensor, SpaceLogic SLA Series, air quality, CO2, temperature, room, analog outputs, optimum black housing

Please Contact Sales to buy this Product. click here
Sensor, SpaceLogic SLA Series, air quality, CO2, temperature, room, analog outputs, optimum black housing
  • State-of-the-art technology to ensure reliability and accuracy
  • Flexible Multi-sensing platform
  • Contemporary aesthetic to easily blend with a variety of spaces.
  • User Interface
  • Easy to replace RH module
  • Easy to install large wiring terminals
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 15-Nov-2024
CAD
Catalogue
Declaration of conformity
Product environmental
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet
The SpaceLogic SLA Series of wall air quality sensors for rooms is a flexible multisensor platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs. The wall mounted sensor housing is optimum black. No user interface, the device is protected by a blank cover. This air quality sensor include a temperature and CO² elements. The dimensions of the device are 115 mm in height, 85 mm in width and 23.7 mm in depth.

Products specifications

Attribute nameAttribute value
Main
Device applicationfan speed controller, temperature control, HVAC
Depth23.7 mm
Colourblack
Display typewithout display
Width115 mm
Sensor typeNDIR (non-dispersive infrared), transmitter
Device presentationcomplete product
RangeSpaceLogic
Locationliving space
Product nameSpaceLogic Room Unit
Product or component typesensor
Type of measurementtemperature, carbon dioxide (CO2)
Surface finishglossy
Product certificationscULus, ICES-003, EAC, RCM, CE conforming to EN 61326-1, CE conforming to EN 61000-6-3, CE conforming to EN 61000-6-2
StandardsFCC part 15 class B, UL 916
Mounting supportwall-mount
Ambient air temperature for operation0-50 °C
Height85 mm
[Us] rated supply voltage20...30 V DC, 24 V AC
Network frequency60 Hz, 50 Hz
Complementary
MaterialABS (acrylonitrile butadiene-styrene)
Function availablewith CO2 sensor, with temperature sensor
Connections - terminalsscrew terminal - 2 cable(s) (AWG 24...AWG 18)
Output typeanalog
Range compatibilityEcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
Repeat accuracy+/- 20 ppm
Number of outputs1 configurable, 1 fan
Output voltage0...10 V for configurable analog output, 0...5 V for configurable analog output, 0...10 V for fan speed
Communication network typewired
Environment
Temperature setting range0-50 °C, 10-35 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height4.8 cm
Package 1 Width9.67 cm
Package 1 Length14.0 cm
Package 1 Weight181.82 g
