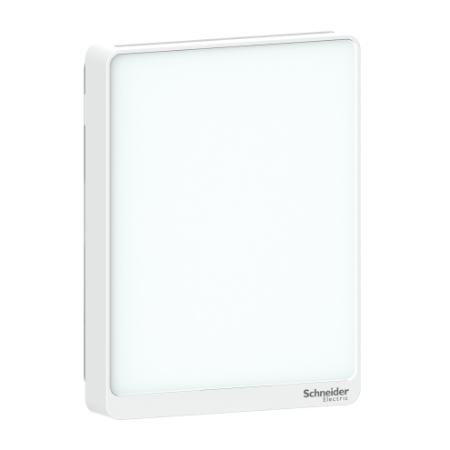

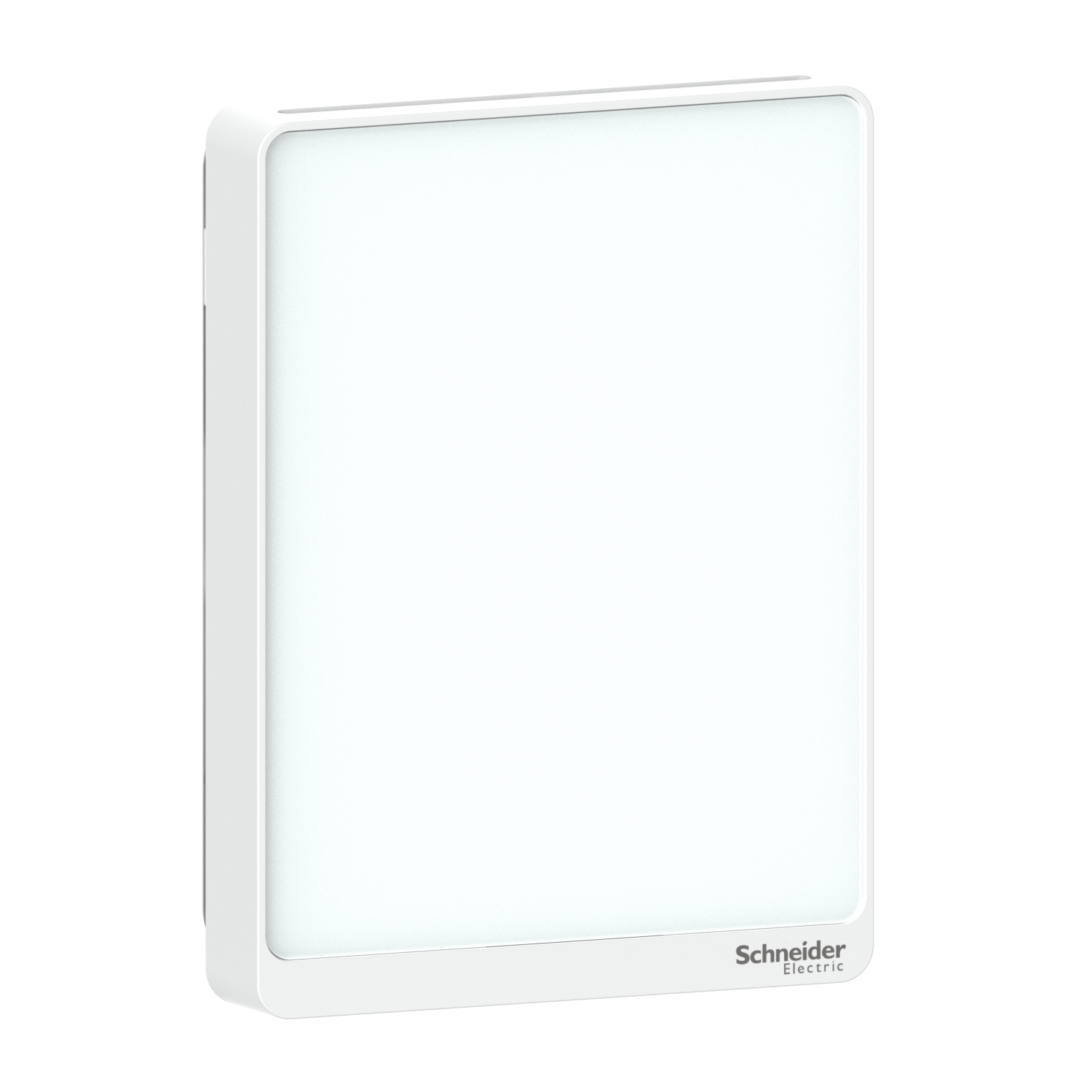

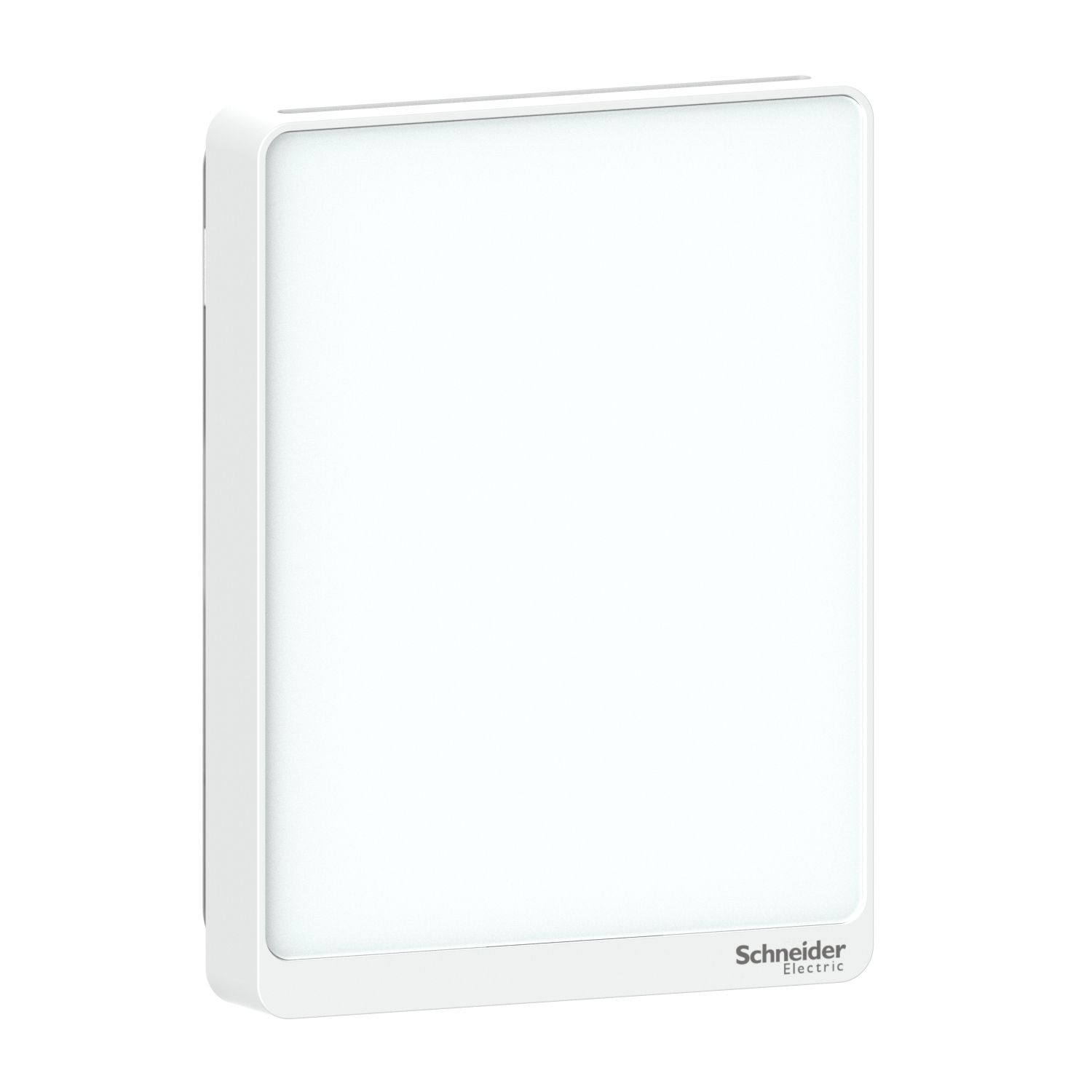

Picture of Sensor, SpaceLogic SLA Series, air quality, CO2, temperature, room, analog outputs, optimum white housing
SKU:

SLAWXCX

Sensor, SpaceLogic SLA Series, air quality, CO2, temperature, room, analog outputs, optimum white housing

$748.84
Available for Shipping : 10-Dec-2024
Sensor, SpaceLogic SLA Series, air quality, CO2, temperature, room, analog outputs, optimum white housing
  • State-of-the-art technology to ensure reliability and accuracy
  • Flexible Multi-sensing platform
  • Contemporary aesthetic to easily blend with a variety of spaces.
  • User Interface with visual CO2 indication
  • Easy to replace RH module
  • Easy to install large wiring terminals
Be the first to review this product
Manufacturer: Schneider Electric
CAD
Catalogue
Declaration of conformity
Product environmental
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet
The SpaceLogic SLA Series of wall air quality sensors for rooms is a flexible multisensor platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs. The wall mounted sensor housing is optimum white. No user interface, the device is protected by a blank cover. This air quality sensor include a temperature and CO² elements. The dimensions of the device are 115 mm in height, 85 mm in width and 23.7 mm in depth.

Products specifications

Attribute name Attribute value
Main
Device application fan speed controller, temperature control, HVAC
Depth 23.7 mm
Colour white
Display type without display
Width 115 mm
Sensor type NDIR (non-dispersive infrared), transmitter
Device presentation complete product
Range SpaceLogic
Location living space
Product name SpaceLogic Room Unit
Product or component type sensor
Type of measurement temperature, carbon dioxide (CO2)
Surface finish glossy
Product certifications cULus, ICES-003, EAC, RCM, CE conforming to EN 61326-1, CE conforming to EN 61000-6-3, CE conforming to EN 61000-6-2
Standards FCC part 15 class B, UL 916
Mounting support wall-mount
Ambient air temperature for operation 0-50 °C
Height 85 mm
[Us] rated supply voltage 20...30 V DC, 24 V AC
Network frequency 60 Hz, 50 Hz
Complementary
Material ABS (acrylonitrile butadiene-styrene)
Function available with CO2 sensor, with temperature sensor
Connections - terminals screw terminal - 2 cable(s) (AWG 24...AWG 18)
Output type analog
Range compatibility EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
Repeat accuracy +/- 20 ppm
Number of outputs 1 configurable, 1 fan
Output voltage 0...10 V for configurable analog output, 0...5 V for configurable analog output, 0...10 V for fan speed
Communication network type wired
Environment
Temperature setting range 0-50 °C, 10-35 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.8 cm
Package 1 Width 9.67 cm
Package 1 Length 14.0 cm
Package 1 Weight 181.82 g
