SKU:

SLABXXX

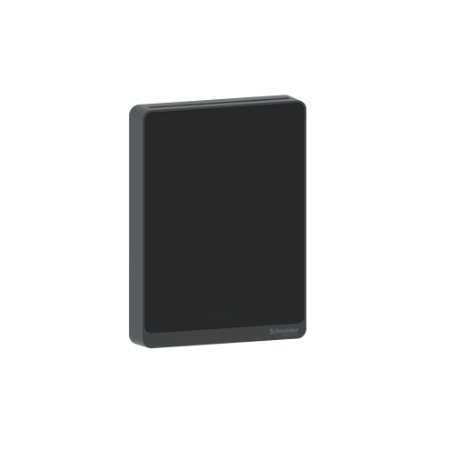

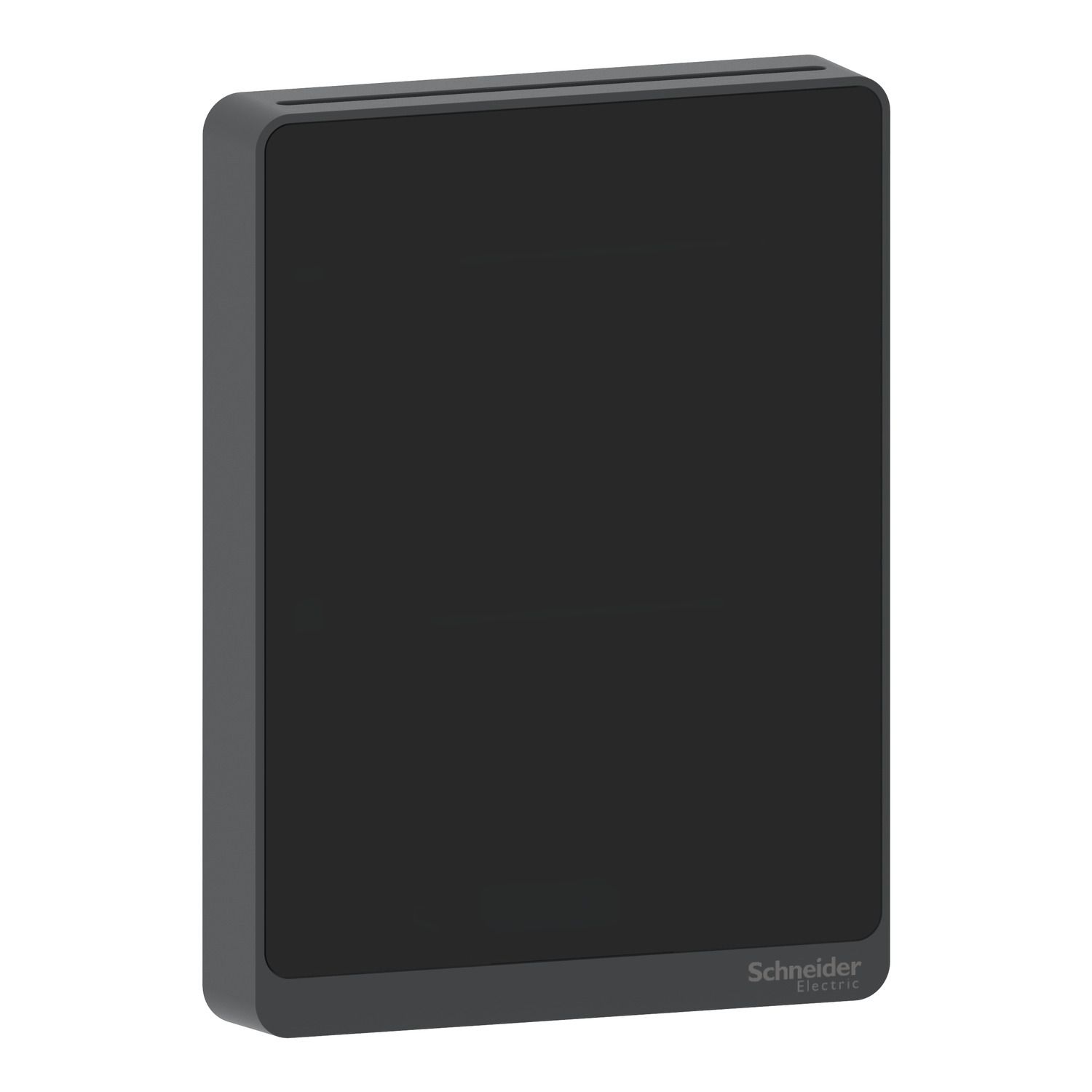

SmartX Temperature Sensor, Resistive 10K Type 3 Thermistor, Blank, with Optimum Black Cover

$128.88
Availability: Please contact our sales team on 1300 724 622.
SmartX Temperature Sensor, Resistive 10K Type 3 Thermistor, Blank, with Optimum Black Cover
Manufacturer: Schneider Electric
SLA Series Living Space Resistive Temperature Sensors offer a reliable 10K Type 3 thermistor and the same look and feel as communicating SmartX sensors. The SLA Series sensors provide a low cost option for measuring temperature in a living space application.

Products specifications

Attribute name Attribute value
Main
IP degree of protection IP20
Device application temperature control, HVAC
Depth 24 mm
Colour black
Width 85 mm
Sensor type 10 kOhm T3 thermistor
Relative humidity 0-95 %
Flame retardance UL94-V0
Range SpaceLogic
Location living space
Product name SmartX Living Space Sensor
Ambient air temperature for operation 0-50 °C
Product or component type sensor
Type of measurement temperature
Surface finish glossy
Standards FCC part 15 class B, UL 916
Height 115 mm
Complementary
Material ABS (acrylonitrile butadiene-styrene)
Device presentation complete product
Connections - terminals screw - 2 cable(s) (AWG 24...AWG 18)
Display type without display
Communication port protocol - - 2 wires
Range compatibility EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
Environment
Product certifications ICES-003, EAC, RCM, CE conforming to EN 61000-6-3
Measurement range 0...50 °C temperature
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.8 cm
Package 1 Width 9.7 cm
Package 1 Length 14.0 cm
Package 1 Weight 181.82 g
