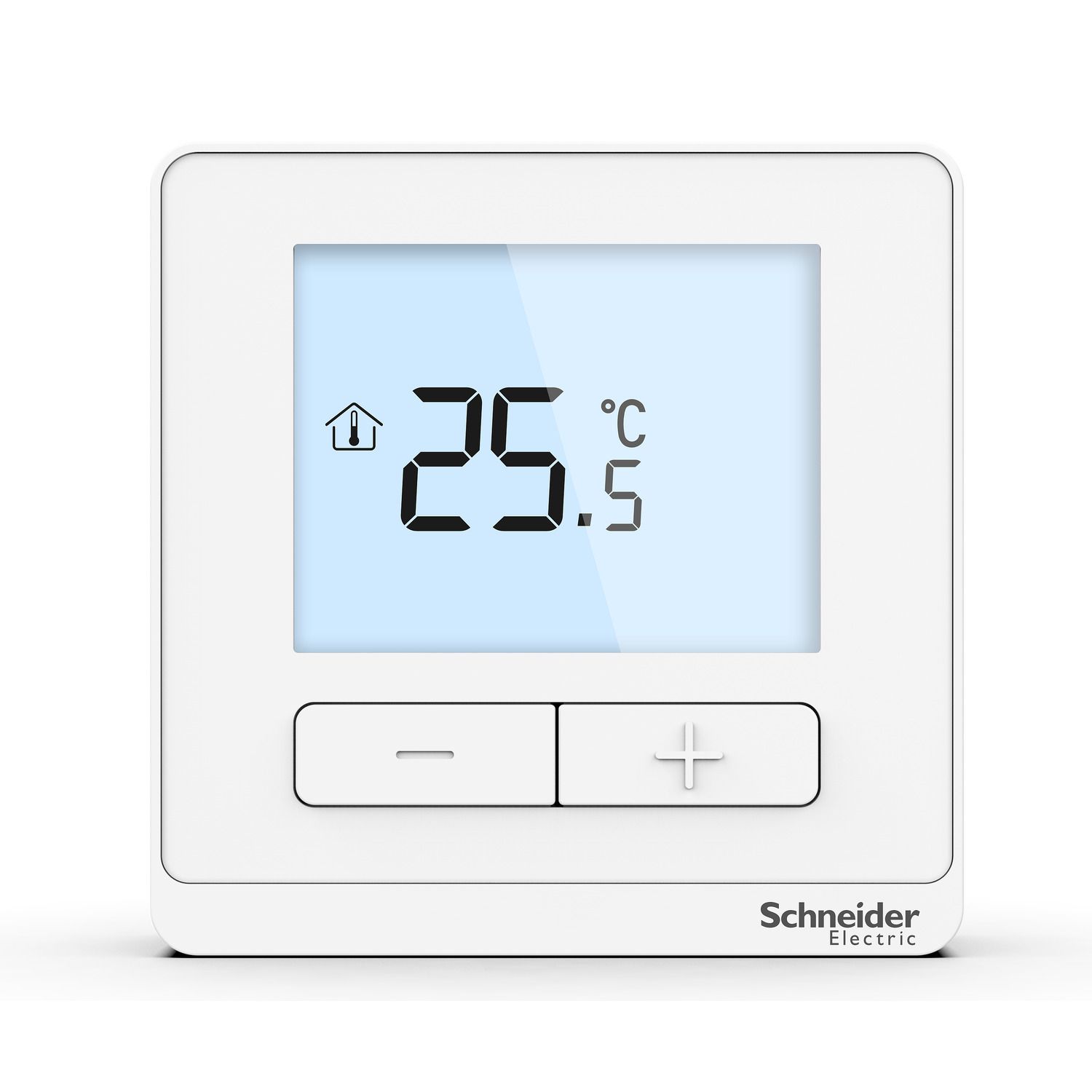

Picture of Temperature sensor, EasyLogic, LCD display, push-button, white

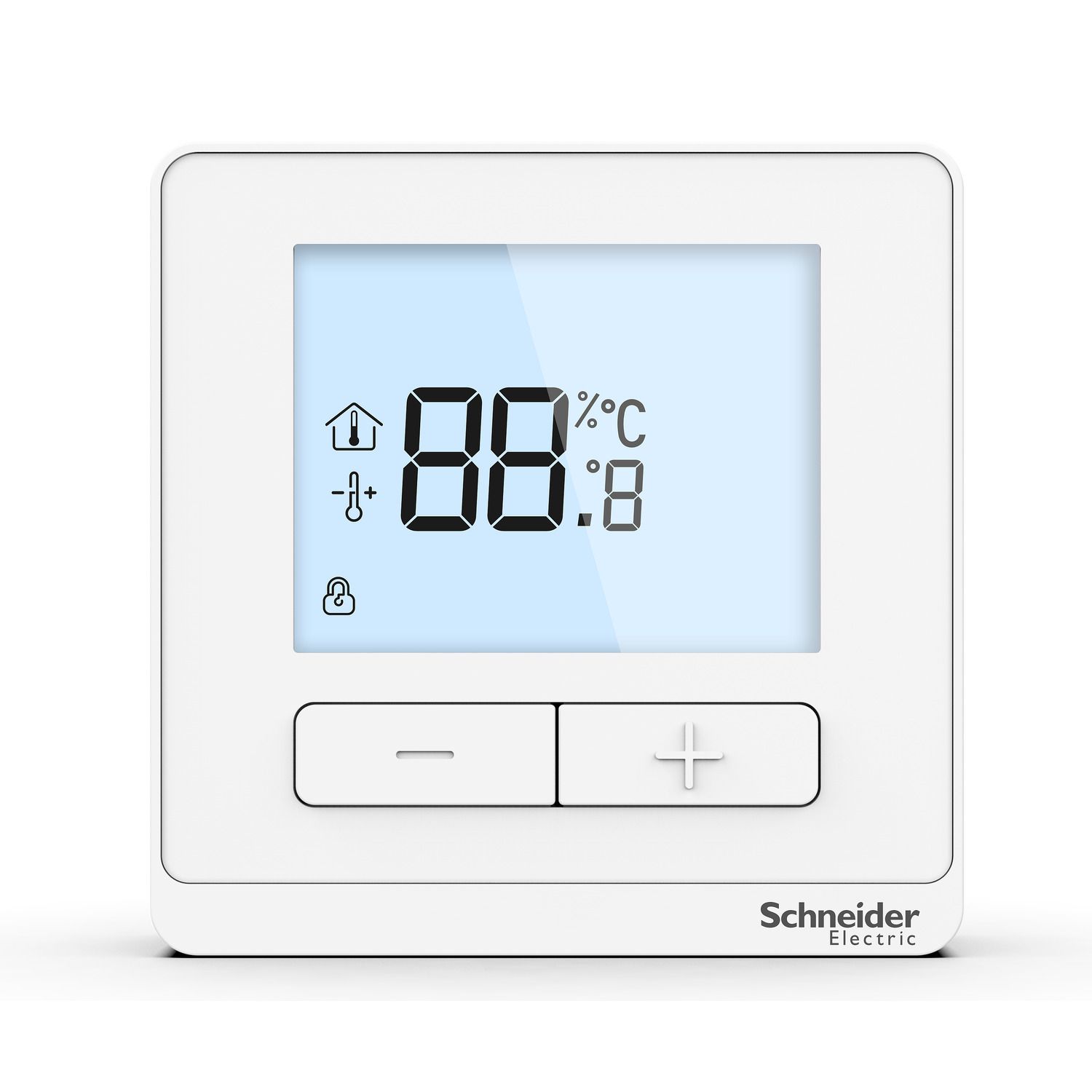

Picture of Temperature sensor, EasyLogic, LCD display, push-button, white

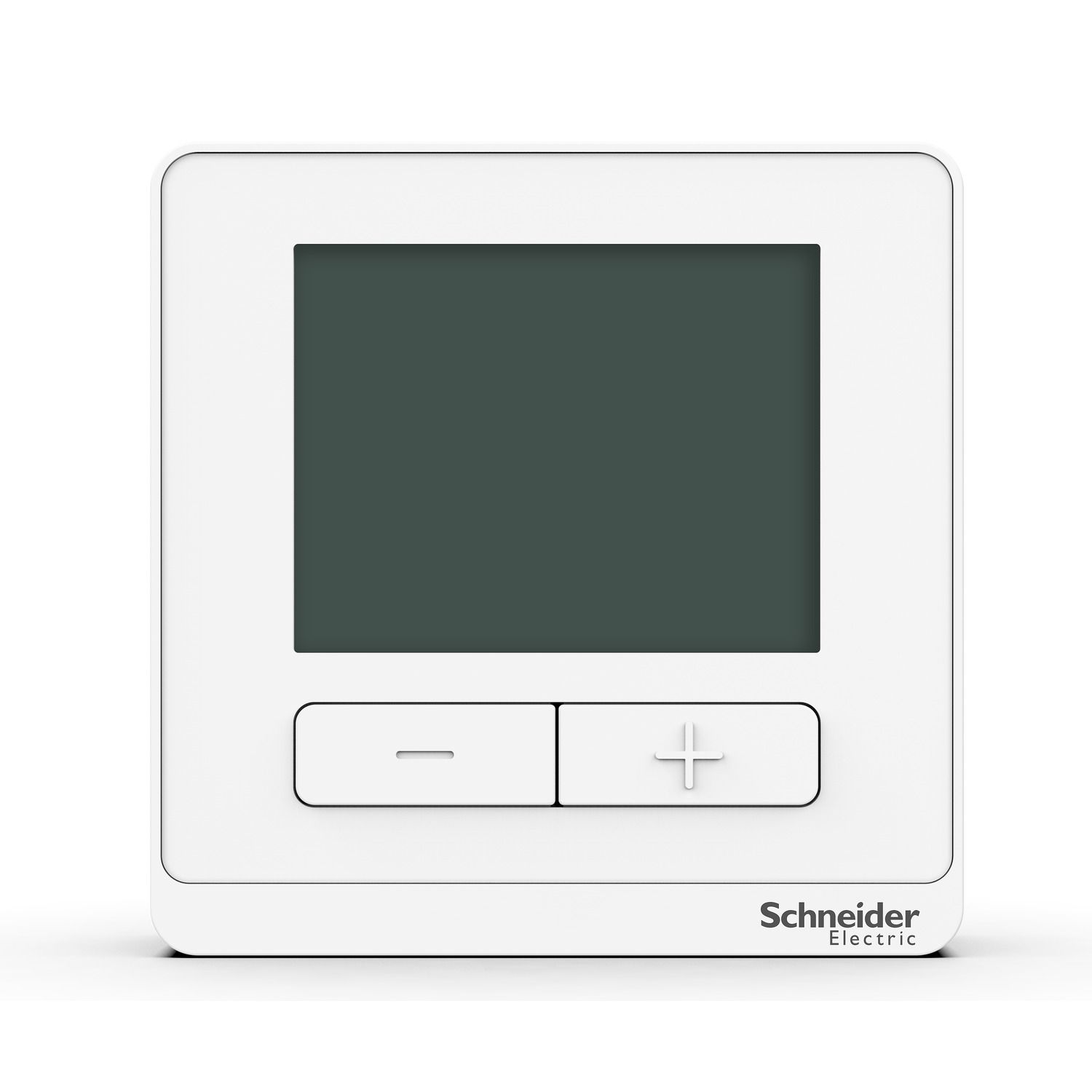

Picture of Temperature sensor, EasyLogic, LCD display, push-button, white
Picture of Temperature sensor, EasyLogic, LCD display, push-button, white
SKU:

SLEASLXXB

Temperature sensor, EasyLogic, LCD display, push-button, white

Please Contact Sales to buy this Product. click here
Temperature sensor, EasyLogic, LCD display, push-button, white
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 12-Oct-2024
Image of product
Declaration of conformity
CAD
End of life manual
Instruction sheet
Image of product
Product environmental
Product Page Link
Product Data Sheet
Schneider EasyLogic living space sensors provides a cost-effective solution for living space temperature information. The EasyLogic sensors measure, control and communicate temperature information. The products can be easily integrated with Schneider Electric BAS controllers as analog input. Cost effective solution for temperature information and control with ±0.5 °C accuracy. The living space sensor has LCD for setpoint display and control with 2 push buttons. The EasyLogic sensors are CE, ROHS, Reach and Green Premium certified. These sensors are designed for hassle free installation with screw terminals. The sensors are delivered with Schneider Electric brown box packaging inline with Schneider's commitment to sustainability.

Products specifications

Attribute nameAttribute value
Main
IP degree of protectionIP20
Depth21.6 mm
Colourwhite
Output typeanalog
Width86 mm
Relative humidity5-95 % RH, non-condensing
Display size55.4 mm
Setpoint range5...30 °C
Function availablewith temperature sensor
RangeEasyLogic
Product nameEasyLogic living space sensor
Ambient air temperature for operation0-50 °C
Product or component typesensor
Type of measurementtemperature
StandardsEN/IEC 60730-2-9, EN/IEC 60730-1
Mounting supportsurface mount
Height86 mm
Network frequency60 Hz, 50 Hz
Complementary
Measurement accuracyNTC 10k type 3 0...50 °C +/- 0.5 °C
MaterialABS + PC
Control type- button, + button
[Us] rated supply voltage24 V DC +/- 15 %, 24 V AC 50...60 Hz +/- 15 %
Connections - terminalsscrew terminal (AWG 24...AWG 18)
Display typeLCD display
Range compatibilitySpaceLogic RP-V
Environment
Product certificationsCE
SetpointYes
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height5.5 cm
Package 1 Width10.5 cm
Package 1 Length12.3 cm
Package 1 Weight167 g
Unit Type of Package 22
Number of Units in Package 236
Package 2 Height30 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight6.453 kg
Unit Type of Package 33
Number of Units in Package 3864
Package 3 Height105 cm
Package 3 Width80 cm
Package 3 Length120 cm
Package 3 Weight166.872 kg
