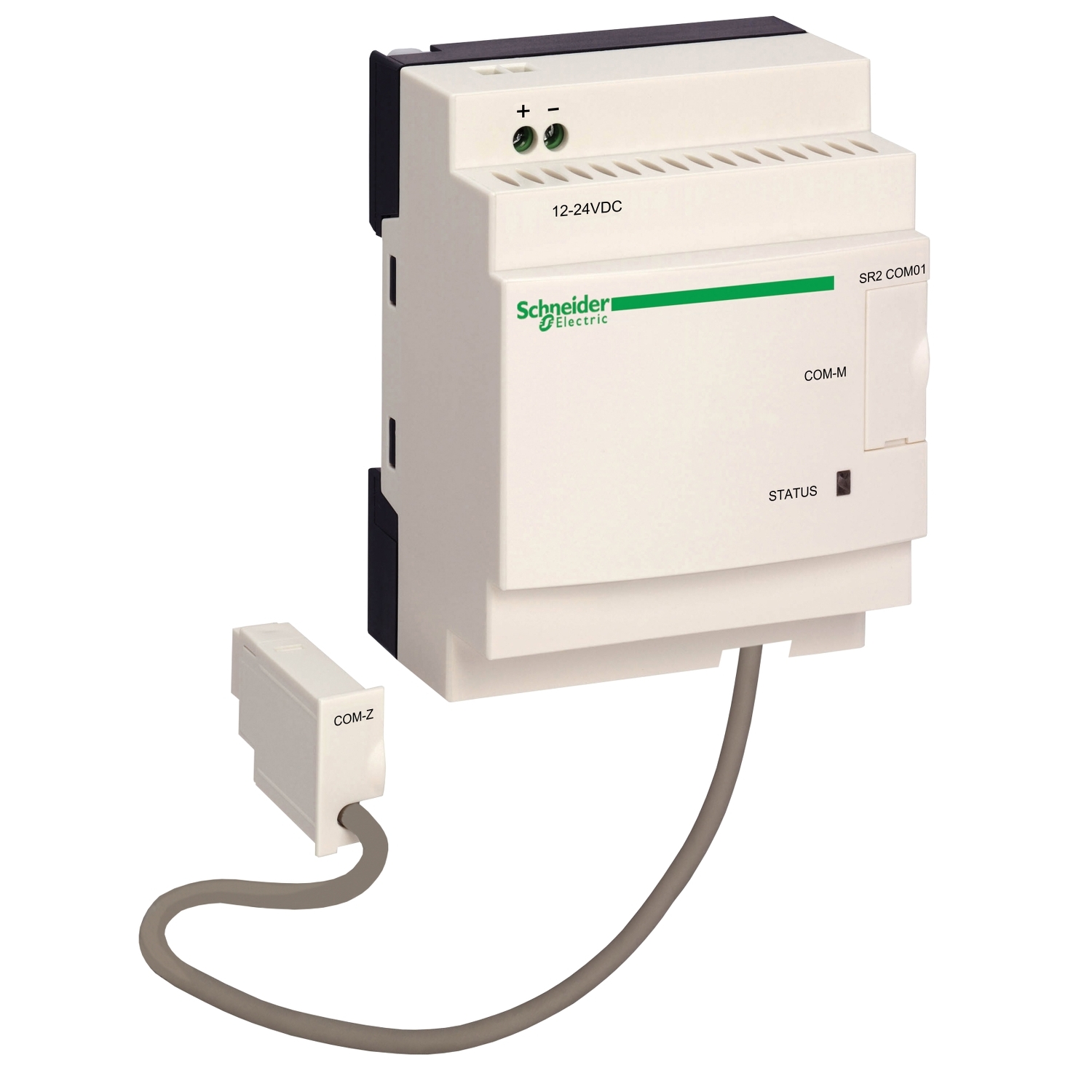

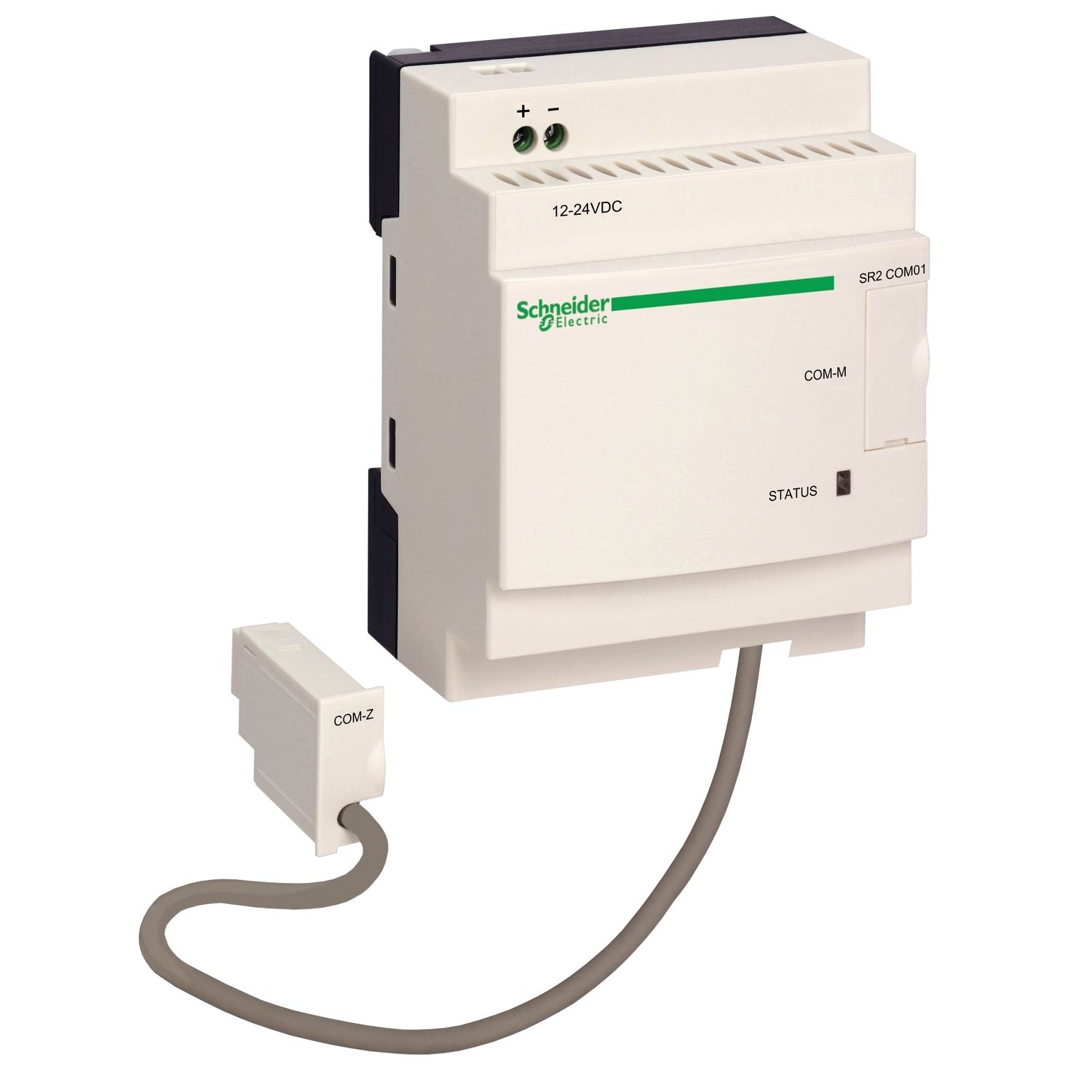

Picture of Zelio Logic, Modem communication interface, for smart relay
SKU:

SR2COM01

Zelio Logic, Modem communication interface, for smart relay

$476.92
Available for Shipping : 27-Feb-2025
Zelio Logic, Modem communication interface, for smart relay
Be the first to review this product
Manufacturer: Telemecanique
Catalogue
User guide
Declaration of conformity
Product environmental
Instruction sheet
End of life manual
Product Page Link
Product Data Sheet
This SR2 communication interface has a coil control voltage of 12V-24V DC. It can transfer program, send alarm to e-mail,and send alarm/receive instruction. It monitors or remotes control of machine or installation that operate without personnel. Communication interface allows messages, telephone numbers, and calling. It has flexibility design for space-saving with retractable mounting lug, spring for clip-on.

Products specifications

Attribute name Attribute value
Main
Range of product Zelio Logic
Data backed up flash memory
Product or component type modem communication interface
Complementary
Insulation by the cable SR2 CBL07, connector type: Com-M specific to Zelio, 1780 V optocoupler, connector type: Com-Z specific to Zelio
Number of messages 28
Product compatibility SR.B....., SR2E.....
Tightening torque 0.5 N.m
Power dissipation in W 1.1 W
Supply voltage limits 10-28.8 V
Function available transfer program, send alarm/receive instruction, send alarm to e-mail address, update firmware monitoring
[Us] rated supply voltage 12...24 V DC
Associated fuse rating 1 A
Reverse polarity protection with
Kit composition modem communication interface, 1 x SR2CBL07
Maximum supply current 550 A, 30 mA 24 V, 30 mA 12 V
Connections - terminals screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid
Electrical data recording date and time, telephone/e-mail, discrete and digital value
Net weight 0.2 kg
Electrical connection 1 cable Com-Z specific to Zelio, specific Zelio communication protocol for Zelio Logic smart relays SR.B..... and SR2 E..... Version (>= V3.1), 1 cable Com-M specific to Zelio, RS232 serial, specific Zelio communication protocol for link with the modem, AT commands
Environment
Relative humidity 95-95 % without condensation or dripping water
Ambient air temperature for storage -40-70 °C
Pollution degree 2 conforming to IEC 61131-2
IP degree of protection IP40 (front panel) conforming to IEC 60529, IP20 (terminal block) conforming to IEC 60529
Ambient air temperature for operation -20-55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C conforming to IEC 60068-2-1 and IEC 60068-2-2
Disturbance radiated/conducted class B conforming to IEC 55022-11 Group 1
Operating altitude 2000 m
Maximum altitude transport 3048 m
Environmental characteristic low voltage directive conforming to IEC 61131-2, EMC directive conforming to IEC 61131-2 zone B, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-2
Standards IEC 60068-2-6 Fc, IEC 61000-4-6 level 3, IEC 61000-4-2 level 3, IEC 61000-4-5, IEC 61000-4-12, IEC 61000-4-4 level 3, IEC 60068-2-27 Ea, IEC 61000-4-3, IEC 61000-4-11
Product certifications UL, C-Tick, CSA, GOST
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.858 cm
Package 1 Width 10.414 cm
Package 1 Length 13.462 cm
Package 1 Weight 208.655 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 4.826 kg
