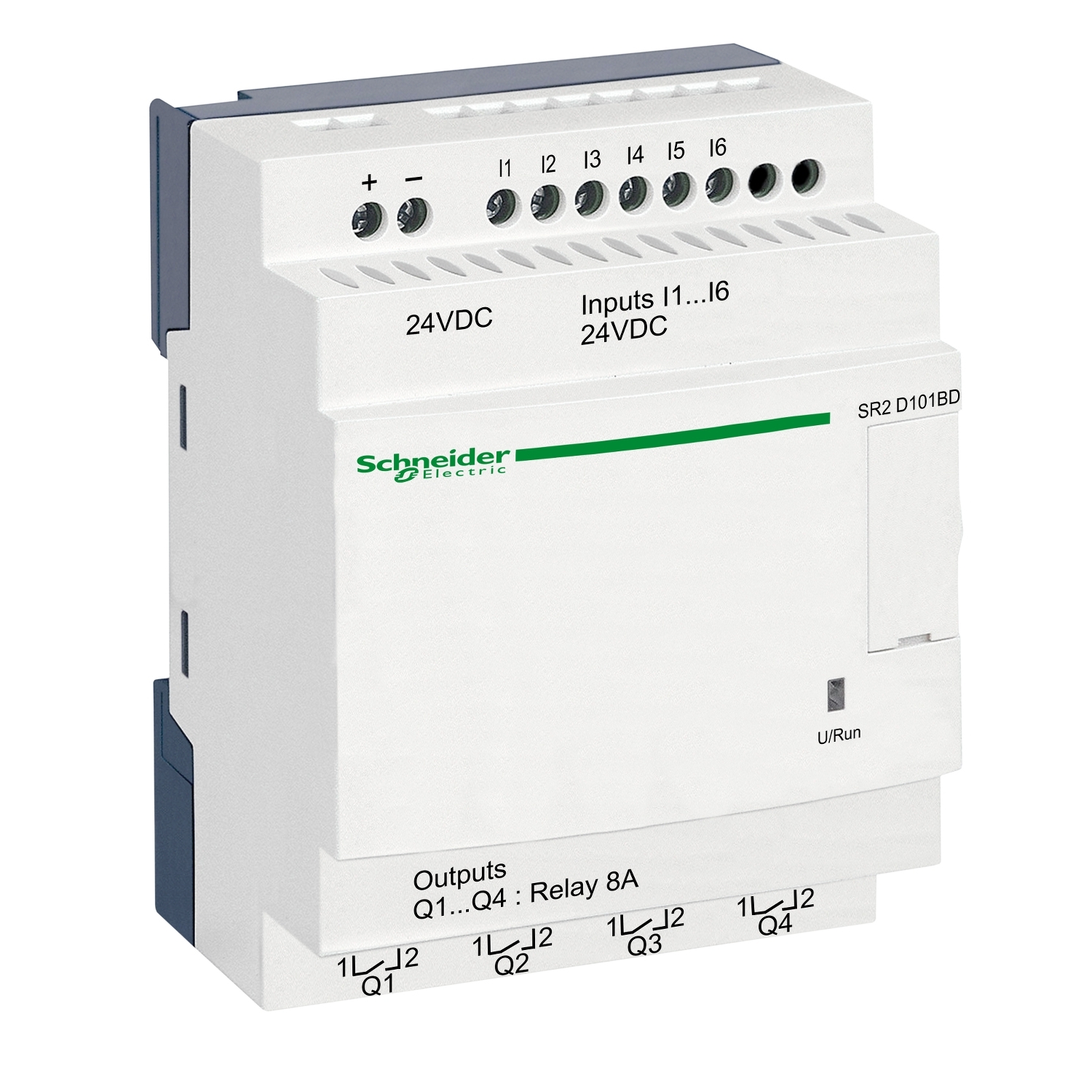

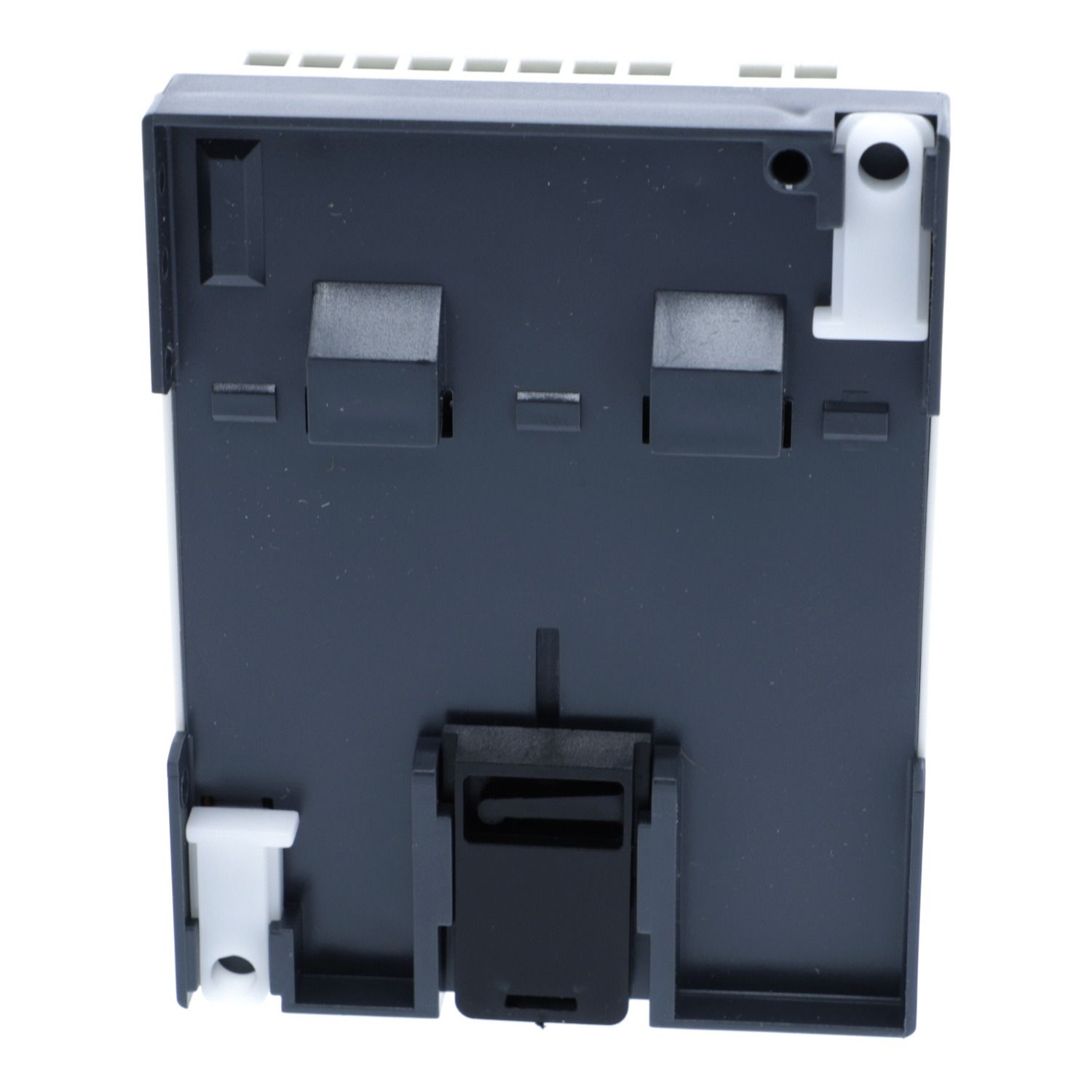

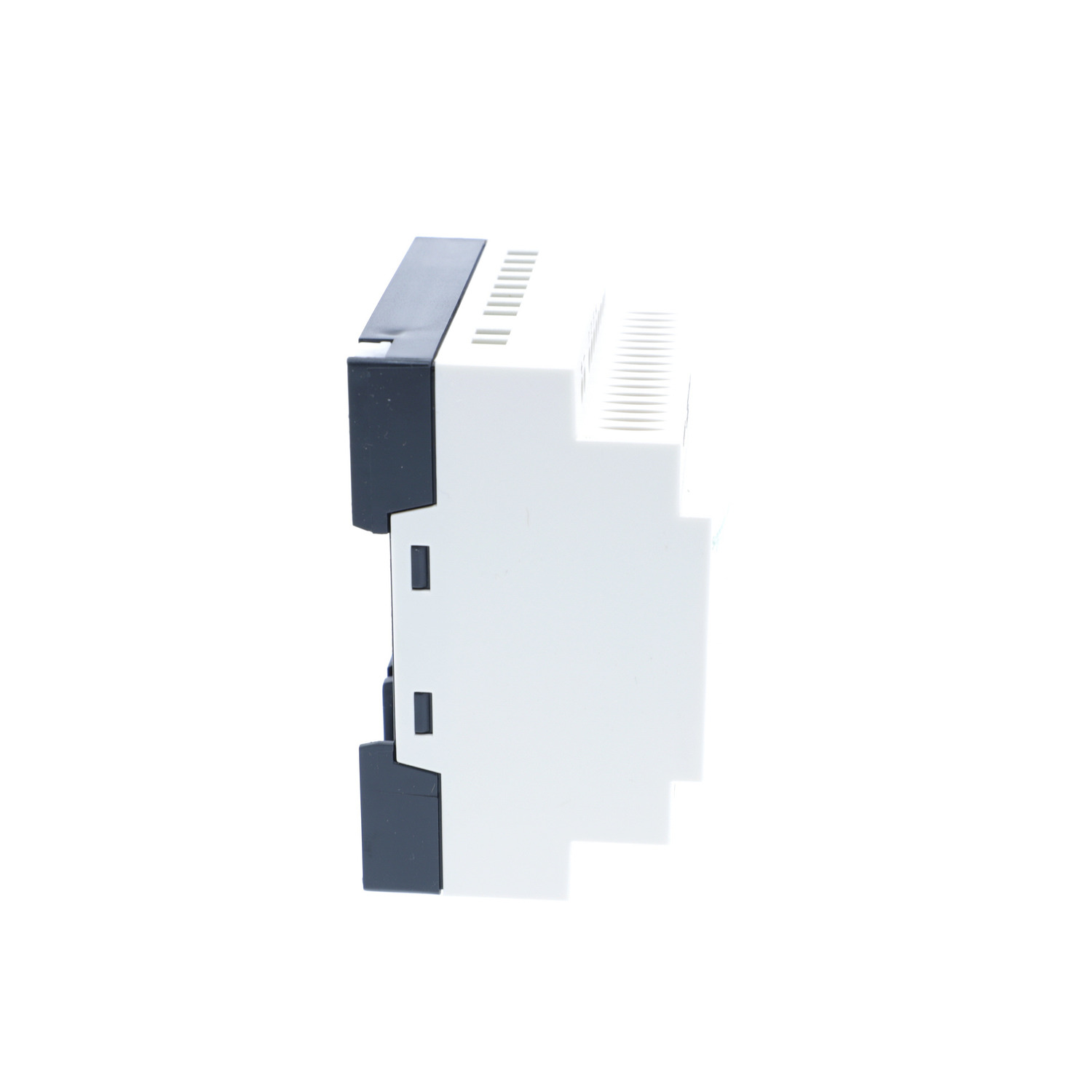

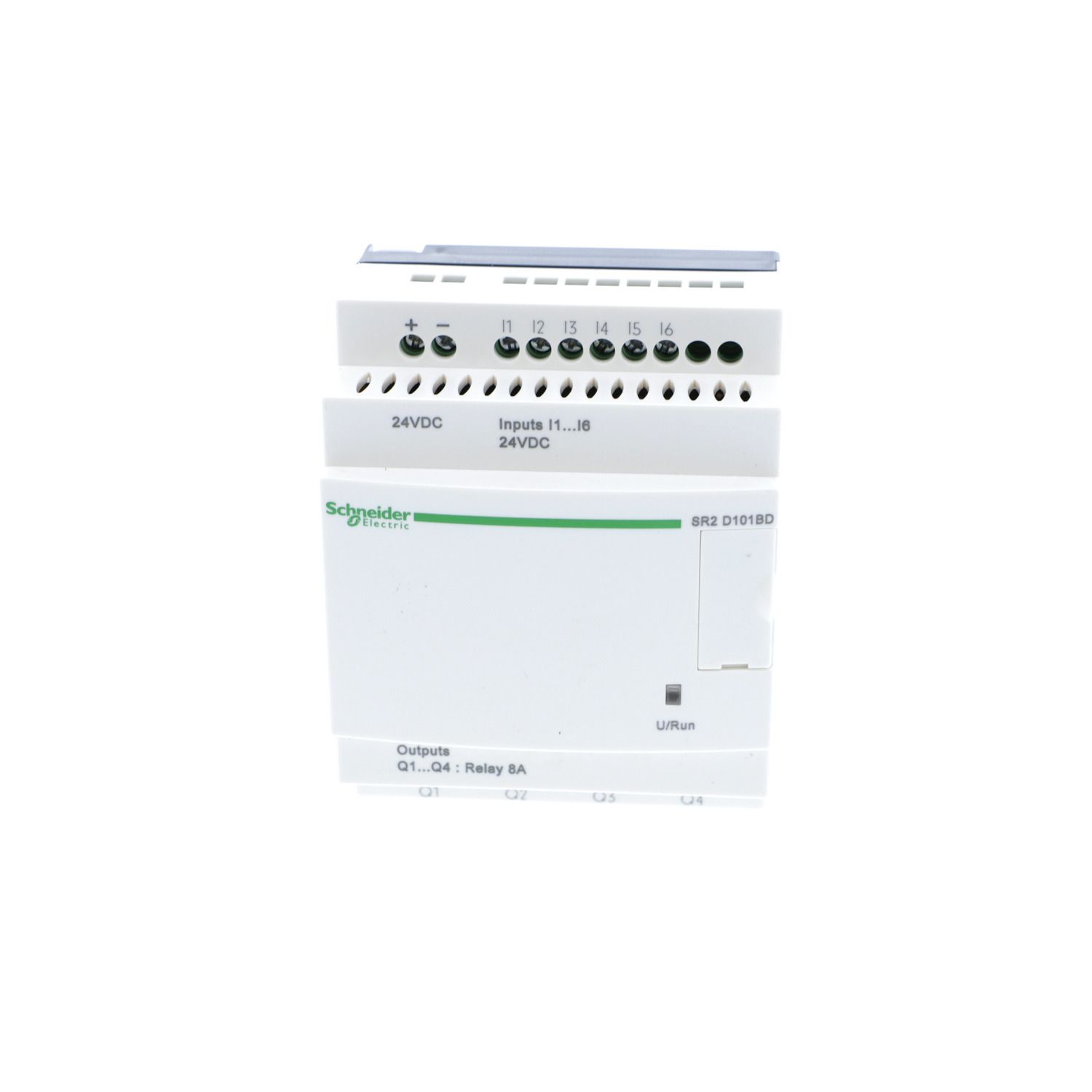

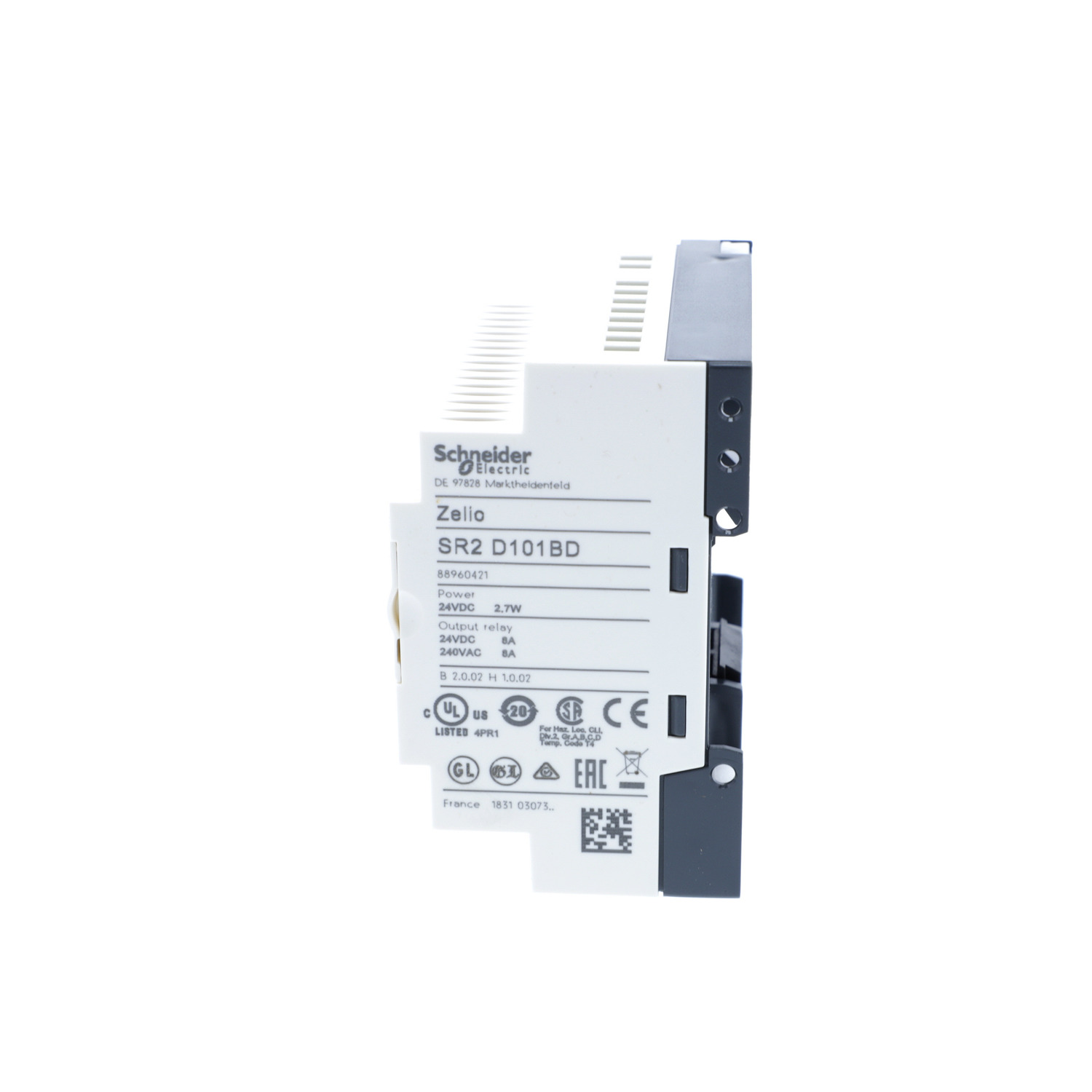

Picture of compact smart relay, Zelio Logic SR2 SR3, 10 IO, 24V DC, no clock, no display
SKU:

SR2D101BD

compact smart relay, Zelio Logic SR2 SR3, 10 IO, 24V DC, no clock, no display

$332.33
Available for Shipping : 28-Nov-2024
Product Selector
compact smart relay, Zelio Logic SR2 SR3, 10 IO, 24V DC, no clock, no display
Be the first to review this product
Manufacturer: Telemecanique
Catalogue
Product environmental
Declaration of conformity
User guide
Instruction sheet
End of life manual
Product Page Link
Product Data Sheet
This product is part of Smart Relay - Zelio Logic SR2/SR3, an offer of simple automation systems from 10 to 40 I/Os. This Zelio Logic compact smart relay features 10 I/Os, local display and 240 with ladder programming control scheme lines. It is a module with rated supply voltage of 12V DC and cycle time of 6ms to 90ms. It offers 6 resistive discrete inputs with voltage of 12V DC and 4 relay outputs with voltage range from 24V to 250V AC and 5V to 30V DC. It is an IP20 and IP40 rated product. It weighs 0.22kg. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-6 Fc and EN/IEC 61000-4-11 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.

Products specifications

Attribute name Attribute value
Main
Range of product Zelio Logic
Product or component type compact smart relay
Complementary
Discrete input number 6 conforming to IEC 61131-2 Type 1
Counting frequency 1 kHz for discrete input
Operating rate in Hz 10 Hz (no load) for relay output, 0.1 Hz (at Ie) for relay output
Tightening torque 0.5 N.m
Supply voltage limits 19.2-30 V
Current state 0 guaranteed <= 0.75 mA (I1...IA and IH...IR discrete input circuit), <= 0.5 mA (IB...IG used as discrete input circuit)
Input compatibility 3-wire proximity sensors PNP for discrete input
Electrical durability DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1, DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1, AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1, AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1
Voltage state 0 guaranteed <= 5 V for IB...IG used as discrete input circuit, <= 5 V for I1...IA and IH...IR discrete input circuit
Local display without
Power dissipation in W 3 W without extension
Clock without
Backup time 10 years at 25 °C
Discrete input voltage 24 V DC
Output thermal current 8 A for all 4 outputs for relay output
Discrete input type resistive
Contacts type and composition NO for relay output
[Us] rated supply voltage 24 V DC
Checks program memory on each power up
Reverse polarity protection with
Cycle time 6-90 ms
Switching capacity in mA >= 10 mA at 12 V (relay output)
Maximum supply current 100 mA (without extension)
Mechanical durability 10000000 cycles for relay output
Overvoltage category III conforming to IEC 60664-1
Voltage state 1 guaranteed >= 15 V for IB...IG used as discrete input circuit, >= 15 V for I1...IA and IH...IR discrete input circuit
Connections - terminals screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid
Analogue input number 0
Output voltage limits 5...30 V DC (relay output), 24...250 V AC (relay output)
[Uimp] rated impulse withstand voltage 4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
Net weight 0.22 kg
Response time 5 ms (from state 1 to state 0) for relay output, 10 ms (from state 0 to state 1) for relay output
Current state 1 guaranteed >= 2.2 mA (I1...IA and IH...IR discrete input circuit), >= 1.2 mA (IB...IG used as discrete input circuit)
Discrete input current 4 mA
Clock drift 6 s/month at 25-25 °C, 12 min/year at 0-55 °C
Number or control scheme lines 240-240 with ladder programming
Number of outputs 4 relay
Input impedance 7.4 kOhm for I1...IA and IH...IR discrete input circuit, 12 kOhm for IB...IG used as discrete input circuit, 12 kOhm for IB...IG used as analogue input circuit
Environment
Relative humidity 95-95 % without condensation or dripping water
Ambient air temperature for storage -40-70 °C
Pollution degree 2 conforming to IEC 61131-2
IP degree of protection IP40 (front panel) conforming to IEC 60529, IP20 (terminal block) conforming to IEC 60529
Ambient air temperature for operation -20-55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2
Disturbance radiated/conducted class B conforming to EN 55022-11 group 1
Operating altitude 2000 m
Maximum altitude transport 3048 m
Environmental characteristic low voltage directive conforming to IEC 61131-2, EMC directive conforming to IEC 61131-2 zone B, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-2
Immunity to microbreaks 1 ms
Standards IEC 61000-4-3, IEC 61000-4-6 level 3, IEC 61000-4-4 level 3, IEC 61000-4-11, IEC 60068-2-6 Fc, IEC 61000-4-2 level 3, IEC 60068-2-27 Ea, IEC 61000-4-12, IEC 61000-4-5
Product certifications C-Tick, GOST, GL, UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.9 cm
Package 1 Width 9.0 cm
Package 1 Length 10.0 cm
Package 1 Weight 199.0 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.456 kg
