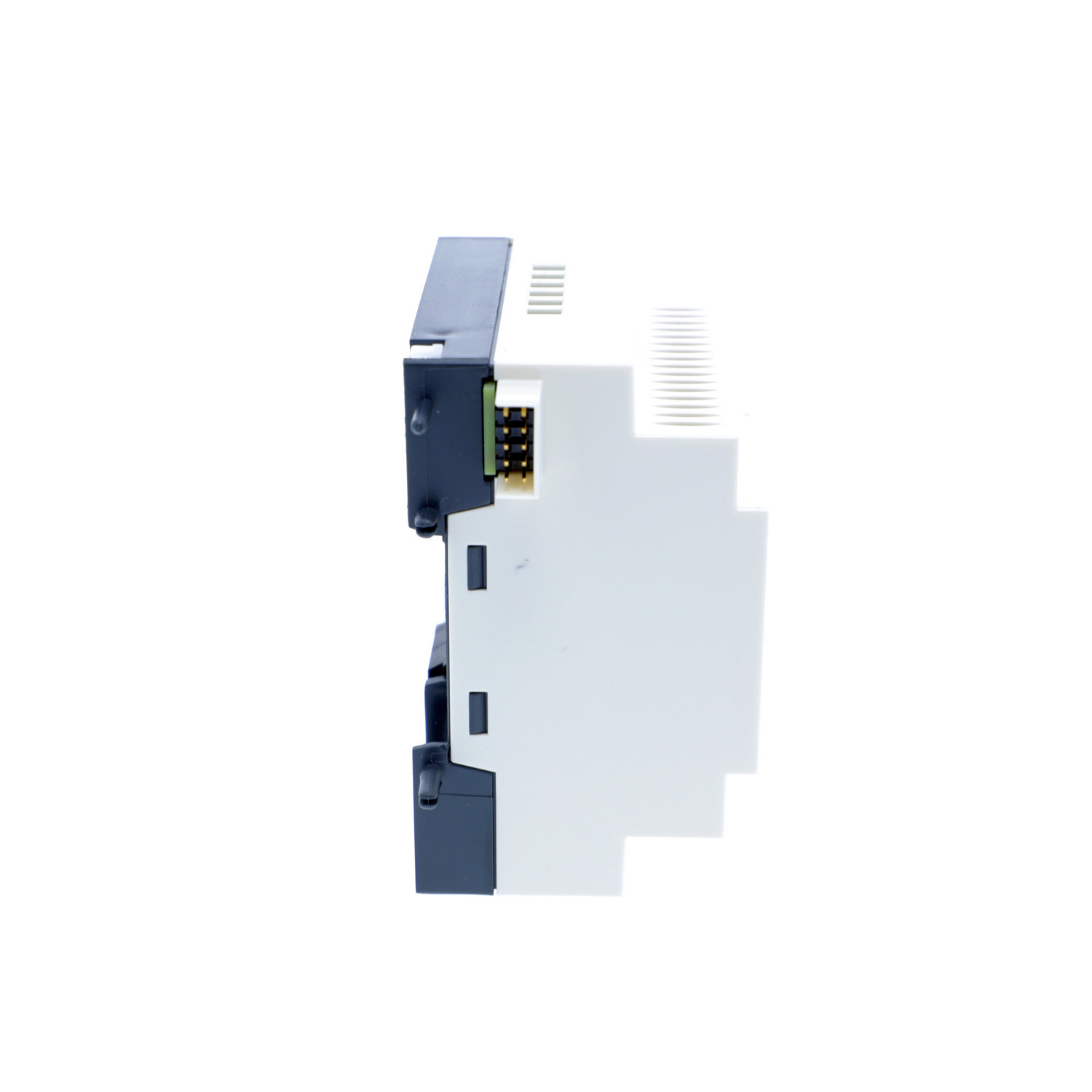

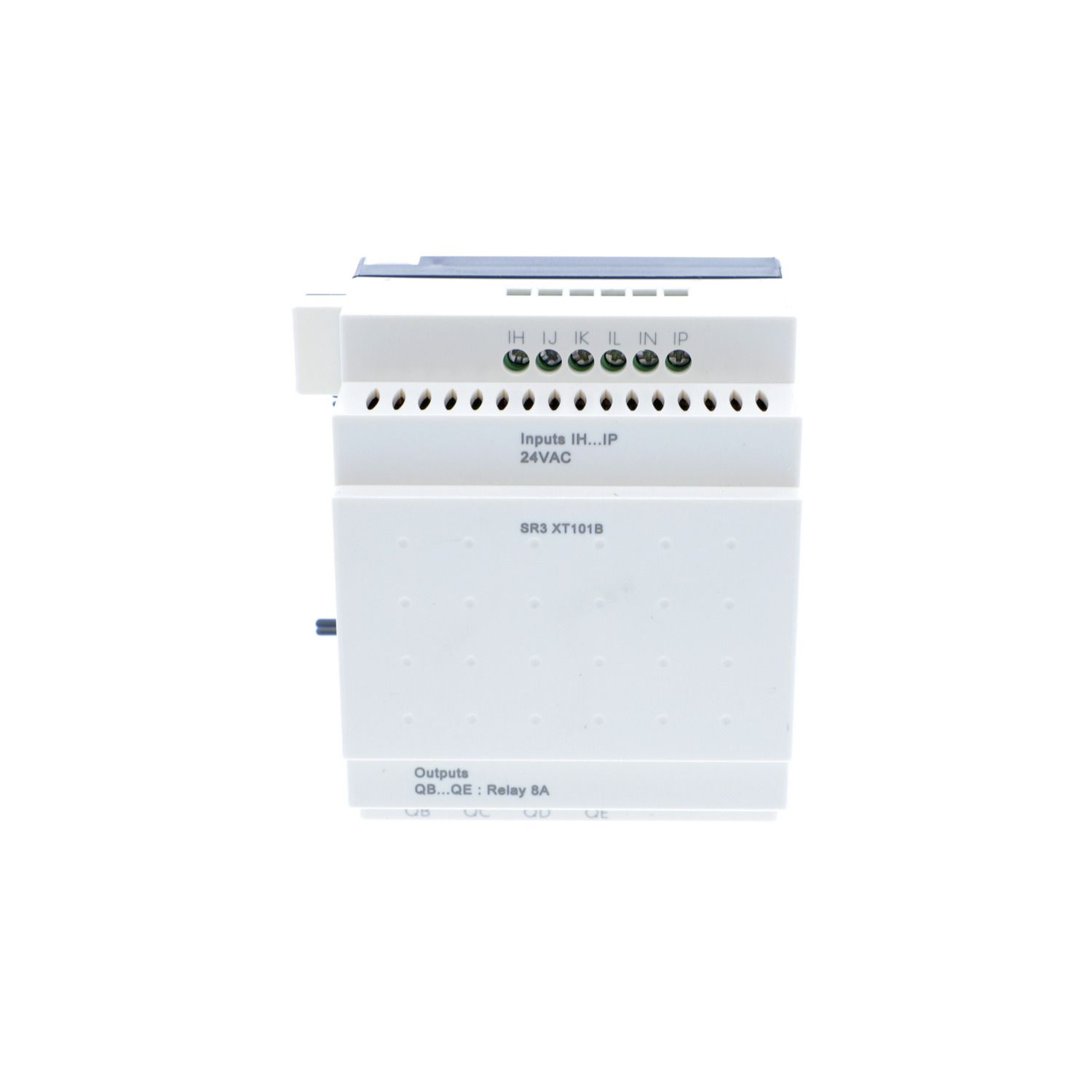

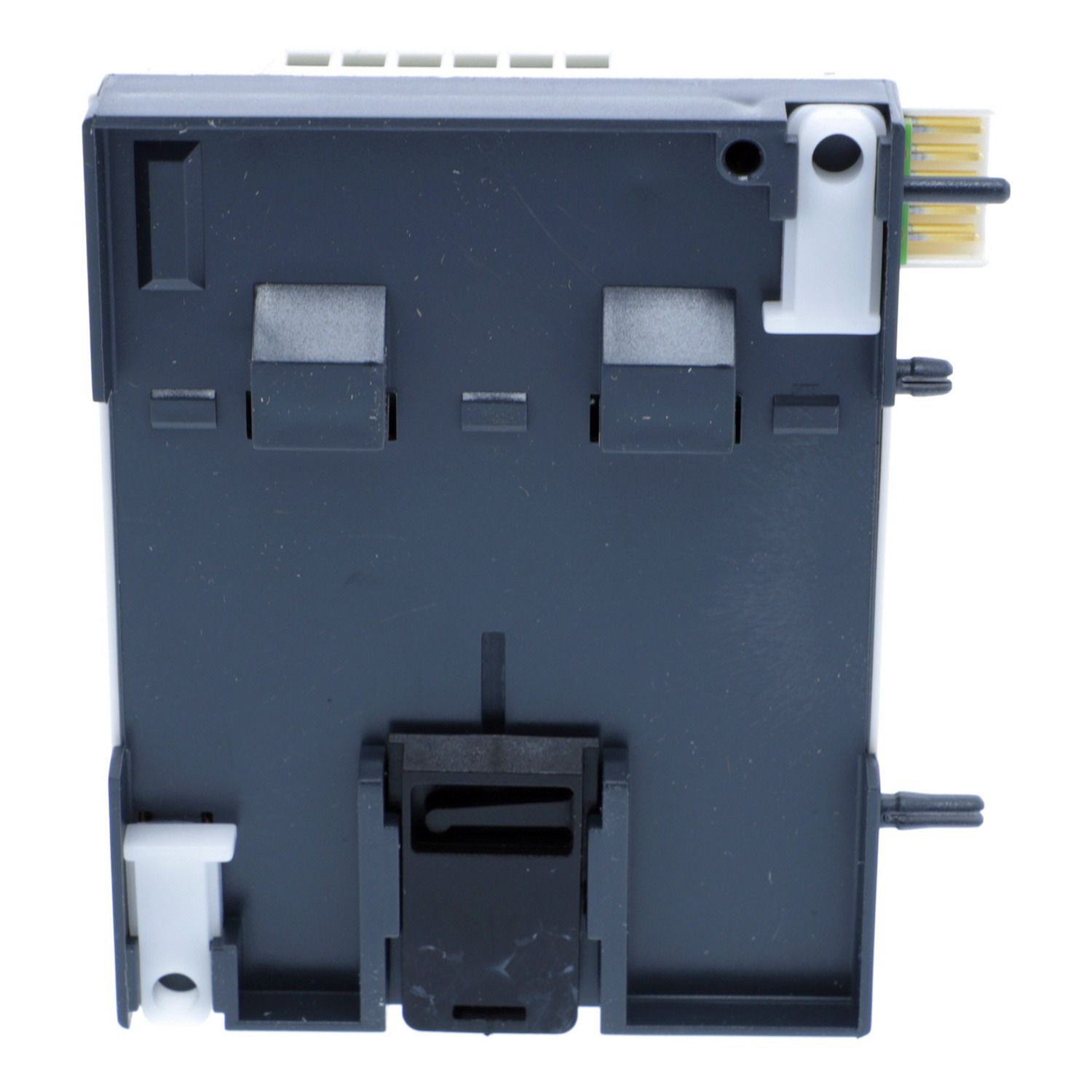

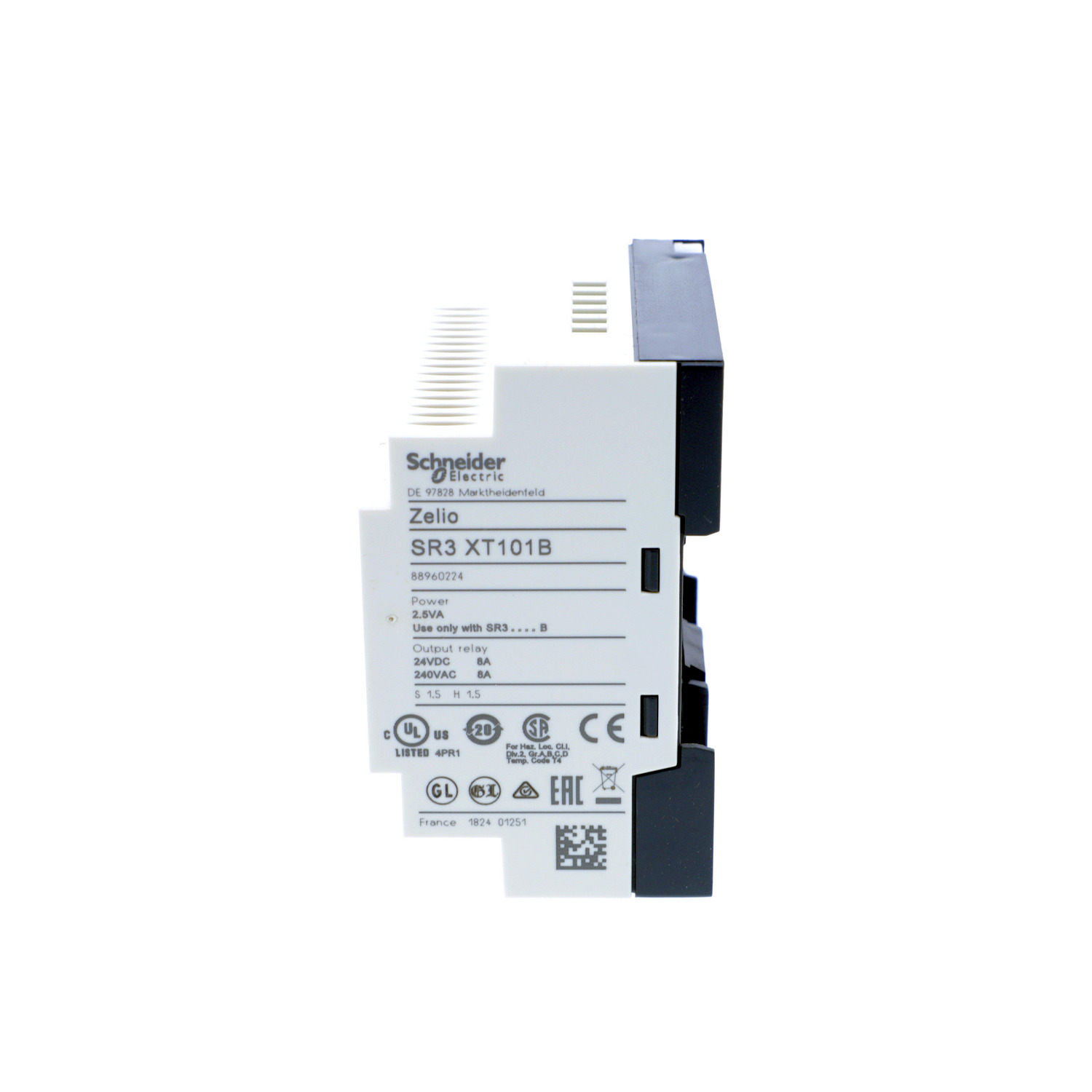

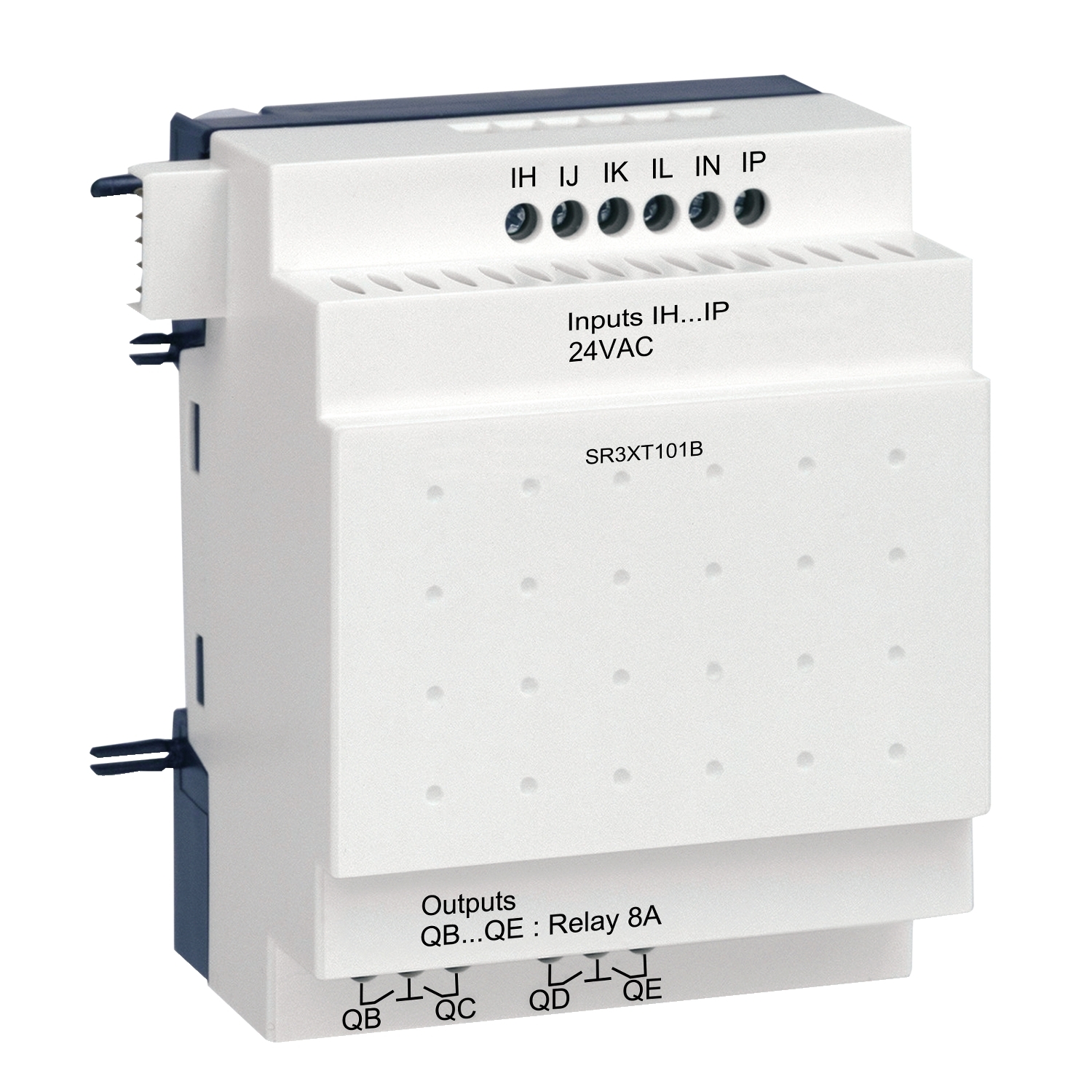

Picture of Zelio Logic, Discrete I/O extension module, 10 I/O, 24 V AC
SKU:

SR3XT101B

Zelio Logic, Discrete I/O extension module, 10 I/O, 24 V AC

$194.30
Zelio Logic, Discrete I/O extension module, 10 I/O, 24 V AC
Be the first to review this product
Manufacturer: Telemecanique
Estimated Delivery Date: 18-Oct-2024
Instruction sheet
Image of product
Declaration of conformity
Image of product
Catalogue
Image of product
Product environmental
End of life manual
Image of product
User guide
Product Page Link
Product Data Sheet
This product is part of Zelio Logic SR2/SR3, an offer of smart relays for simple automation systems from 10 to 40 I/Os. This discrete I/O extension module offers 6 discrete inputs with 4 relay outputs. It is a module with discrete input voltage of 24V AC with discrete input frequency of 47Hz to 53Hz, 57Hz to 63Hz. It is an IP20 and IP40 rated product. It weighs 0.2kg. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 61000-4-2 L3, EN/IEC 61000-4-5, EN/IEC 61000-4-6 L3 and EN/IEC 60068-2-6 Fc standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.

Products specifications

Attribute nameAttribute value
Main
Range of productZelio Logic
Product or component typediscrete I/O extension module
Complementary
Supply frequency50/60 Hz
Discrete input number6
Operating rate in Hz10 Hz (no load) for relay output, 0.1 Hz (at Ie) for relay output
Tightening torque0.5 N.m
Supply voltage limits20.4-28.8 V
Current state 0 guaranteed<= 0.5 mA (discrete input)
Electrical durabilityDC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1, DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1, AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1, AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1
Voltage state 0 guaranteed<= 5 V for discrete input
Backup time10 years at 25 °C
Discrete input voltage24 V AC
Output thermal current8 A for all 4 outputs for relay output
Discrete input frequency57...63 Hz, 47...53 Hz
Contacts type and compositionNO for relay output
[Us] rated supply voltage24 V AC
Checksprogram memory on each power up
Reverse polarity protectionwith
Cycle time6-90 ms
Switching capacity in mA>= 10 mA at 12 V (relay output)
Mechanical durability10000000 cycles for relay output
Overvoltage categoryIII conforming to IEC 60664-1
Voltage state 1 guaranteed>= 14 V for discrete input
Connections - terminalsscrew terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid, screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end
Output voltage limits24...250 V AC, 5...30 V DC (relay output)
[Uimp] rated impulse withstand voltage4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
Net weight0.2 kg
Response time5 ms (from state 1 to state 0) for relay output, 10 ms (from state 0 to state 1) for relay output, 50...255 ms with FBD programming (from state 1 to state 0) for discrete input, 50...255 ms with FBD programming (from state 0 to state 1) for discrete input, 50 ms with ladder programming (from state 1 to state 0) for discrete input, 50 ms with ladder programming (from state 0 to state 1) for discrete input
Current state 1 guaranteed>= 2 mA (discrete input)
Discrete input current4.4 mA
Clock drift12 min/year at 0-55 °C
Number or control scheme lines120-120 with ladder programming
Number of outputs4 relay
Input impedance4.6 kOhm for discrete input
Environment
Relative humidity95-95 % without condensation or dripping water
Ambient air temperature for storage-40-70 °C
Pollution degree2 conforming to IEC 61131-2
IP degree of protectionIP40 (front panel) conforming to IEC 60529, IP20 (terminal block) conforming to IEC 60529
Ambient air temperature for operation-20-55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2
Disturbance radiated/conductedclass B conforming to EN 55022-11 group 1
Operating altitude2000 m
Maximum altitude transport3048 m
Environmental characteristiclow voltage directive conforming to IEC 61131-2, EMC directive conforming to IEC 61131-2 zone B, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-2
StandardsIEC 61000-4-4 level 3, IEC 61000-4-12, IEC 61000-4-3, IEC 61000-4-11, IEC 60068-2-27 Ea, IEC 60068-2-6 Fc, IEC 61000-4-6 level 3, IEC 61000-4-5, IEC 61000-4-2 level 3
Product certificationsUL, CSA, C-Tick, GL, GOST
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height6.8 cm
Package 1 Width9.0 cm
Package 1 Length10.0 cm
Package 1 Weight178.0 g
Unit Type of Package 22
Number of Units in Package 230
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight5.988 kg
