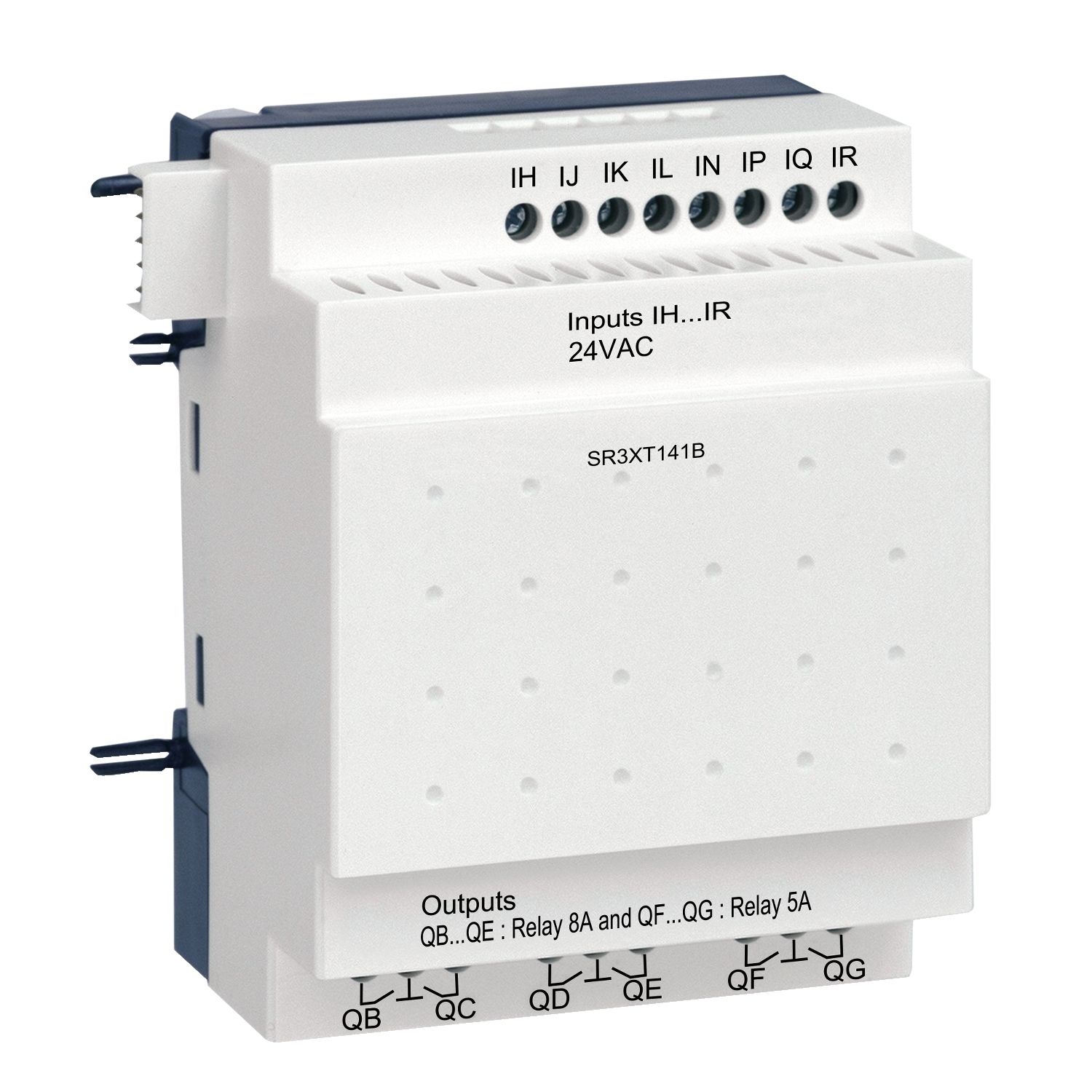

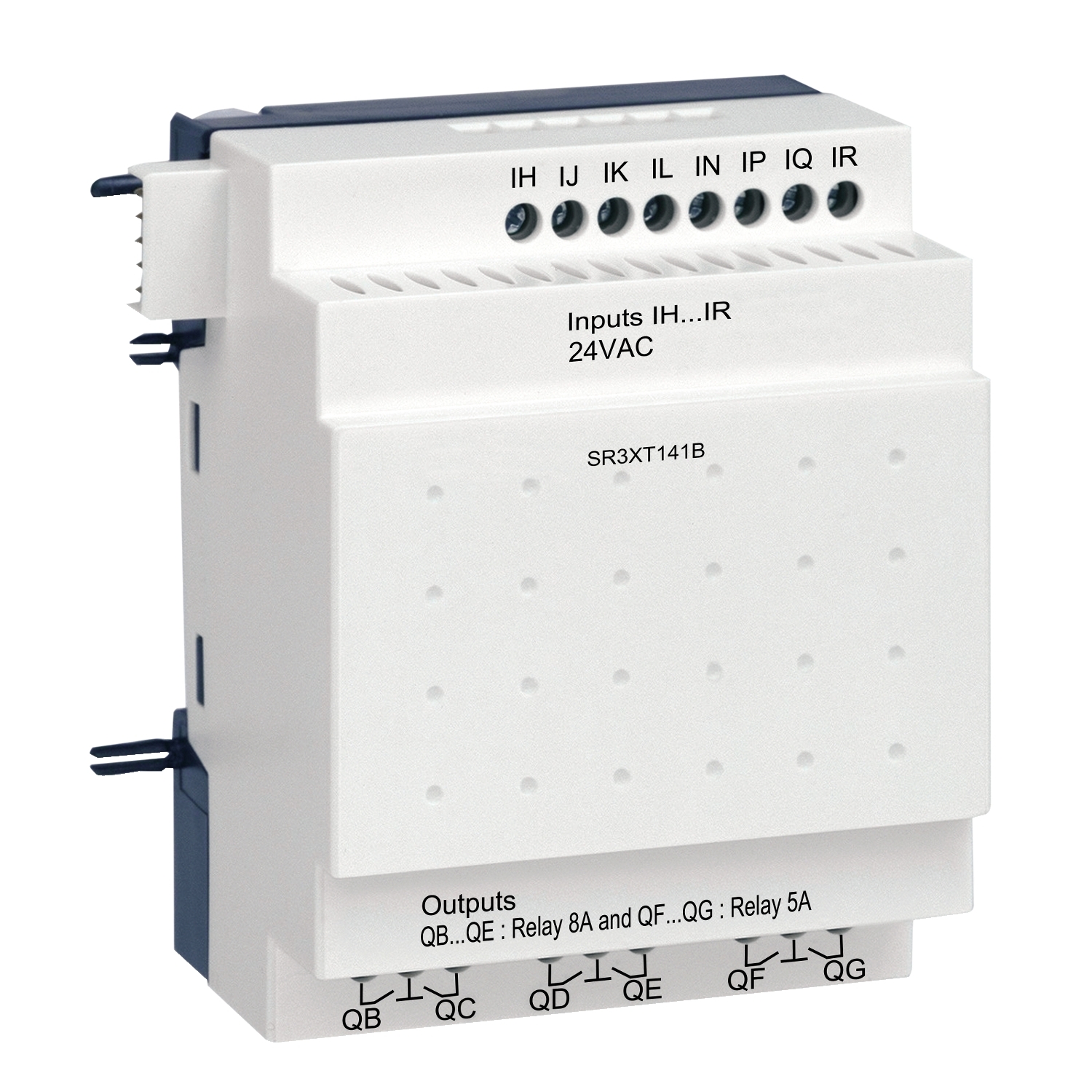

Zelio Logic, Discrete I/O extension module, 14 I/O, 24 V AC

$265.76 INC GST
Available for Shipping : 12-Mar-2025
Zelio Logic, Discrete I/O extension module, 14 I/O, 24 V AC
Be the first to review this product
Manufacturer: Telemecanique
Catalogue
Instruction sheet
End of life manual
Product environmental
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of Smart Relay Zelio Logic SR2/SR3, an offer of simple automation systems from 10 to 40 I/Os. This discrete I/O extension module offers 8 discrete inputs with 6 relay outputs. It is a module with discrete input voltage of 24V AC. It is an IP20 and IP40 rated product. It weighs 0.22kg. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-5, EN/IEC 61000-4-12 and EN/IEC 61000-4-4 L3 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.

Products specifications

Attribute name Attribute value
Main
Range of product Zelio Logic
Product or component type discrete I/O extension module
Complementary
Supply frequency 50/60 Hz
Discrete input number 8
Operating rate in Hz 10 Hz (no load) for relay output, 0.1 Hz (at Ie) for relay output
Tightening torque 0.5 N.m
Supply voltage limits 20.4-28.8 V
Current state 0 guaranteed <= 0.5 mA (discrete input)
Electrical durability DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1, DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1, AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1, AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1
Voltage state 0 guaranteed <= 5 V for discrete input
Backup time 10 years at 25 °C
Discrete input voltage 24 V AC
Output thermal current 8 A for 4 outputs for relay output, 5 A for 2 outputs for relay output
Discrete input frequency 47...53 Hz, 57...63 Hz
Contacts type and composition NO for relay output
[Us] rated supply voltage 24 V AC
Checks program memory on each power up
Reverse polarity protection with
Cycle time 6-90 ms
Switching capacity in mA >= 10 mA at 12 V (relay output)
Mechanical durability 10000000 cycles for relay output
Overvoltage category III conforming to IEC 60664-1
Voltage state 1 guaranteed >= 14 V for discrete input
Connections - terminals screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid, screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end
Output voltage limits 24...250 V AC, 5...30 V DC (relay output)
[Uimp] rated impulse withstand voltage 4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
Net weight 0.22 kg
Response time 5 ms (from state 1 to state 0) for relay output, 10 ms (from state 0 to state 1) for relay output, 50...255 ms with FBD programming (from state 1 to state 0) for discrete input, 50...255 ms with FBD programming (from state 0 to state 1) for discrete input, 50 ms with ladder programming (from state 1 to state 0) for discrete input, 50 ms with ladder programming (from state 0 to state 1) for discrete input
Current state 1 guaranteed >= 2 mA (discrete input)
Discrete input current 4.4 mA
Clock drift 12 min/year at 0-55 °C
Number or control scheme lines 120-120 with ladder programming
Number of outputs 6 relay
Input impedance 4.6 kOhm for discrete input
Environment
Relative humidity 95-95 % without condensation or dripping water
Ambient air temperature for storage -40-70 °C
Pollution degree 2 conforming to IEC 61131-2
IP degree of protection IP40 (front panel) conforming to IEC 60529, IP20 (terminal block) conforming to IEC 60529
Ambient air temperature for operation -20-55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2
Disturbance radiated/conducted class B conforming to EN 55022-11 group 1
Operating altitude 2000 m
Maximum altitude transport 3048 m
Environmental characteristic low voltage directive conforming to IEC 61131-2, EMC directive conforming to IEC 61131-2 zone B, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-2
Standards IEC 61000-4-12, IEC 60068-2-6 Fc, IEC 61000-4-2 level 3, IEC 61000-4-3, IEC 61000-4-11, IEC 60068-2-27 Ea, IEC 61000-4-6 level 3, IEC 61000-4-4 level 3, IEC 61000-4-5
Product certifications GOST, UL, CSA, GL, C-Tick
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.8 cm
Package 1 Width 9.0 cm
Package 1 Length 10.0 cm
Package 1 Weight 201.0 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.506 kg
