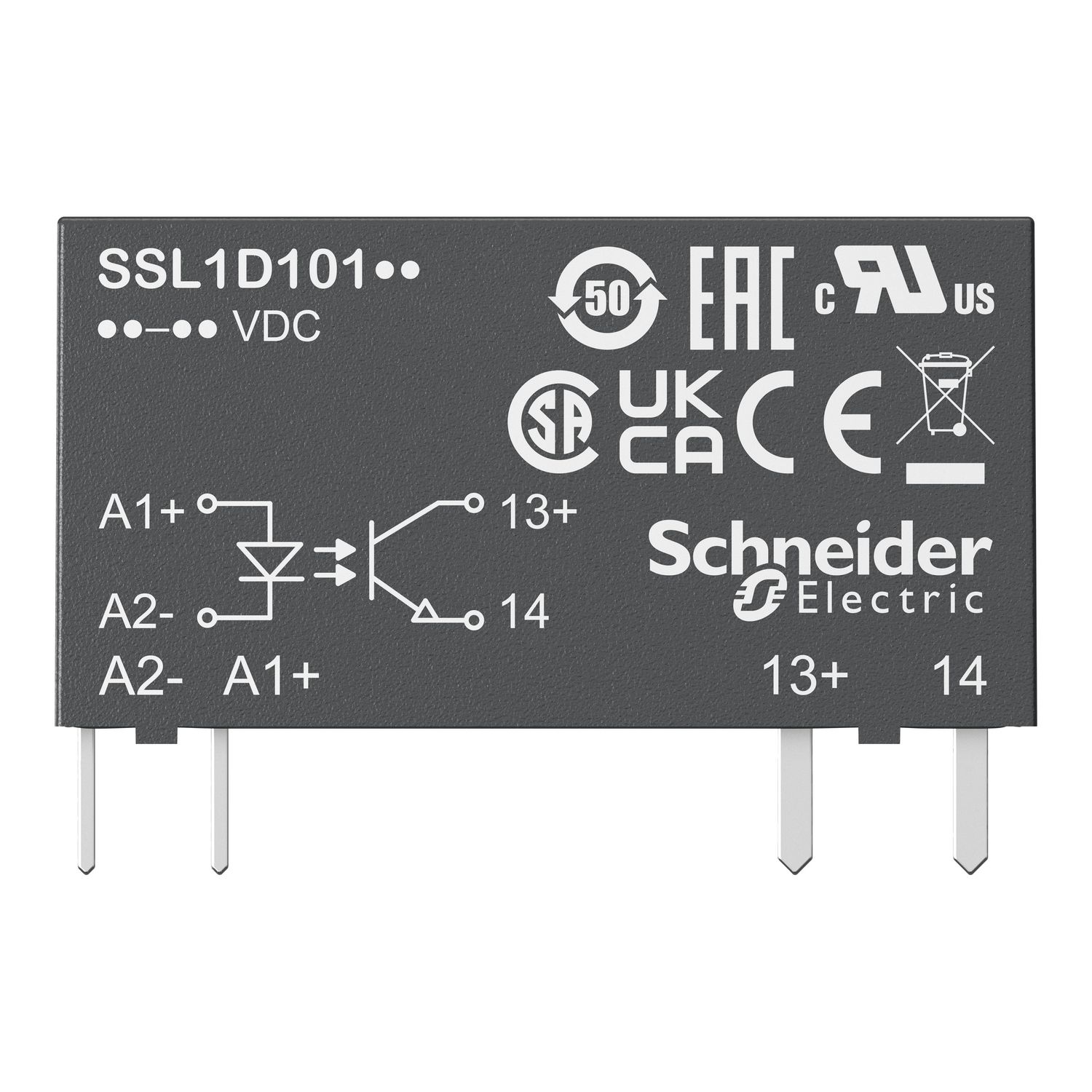

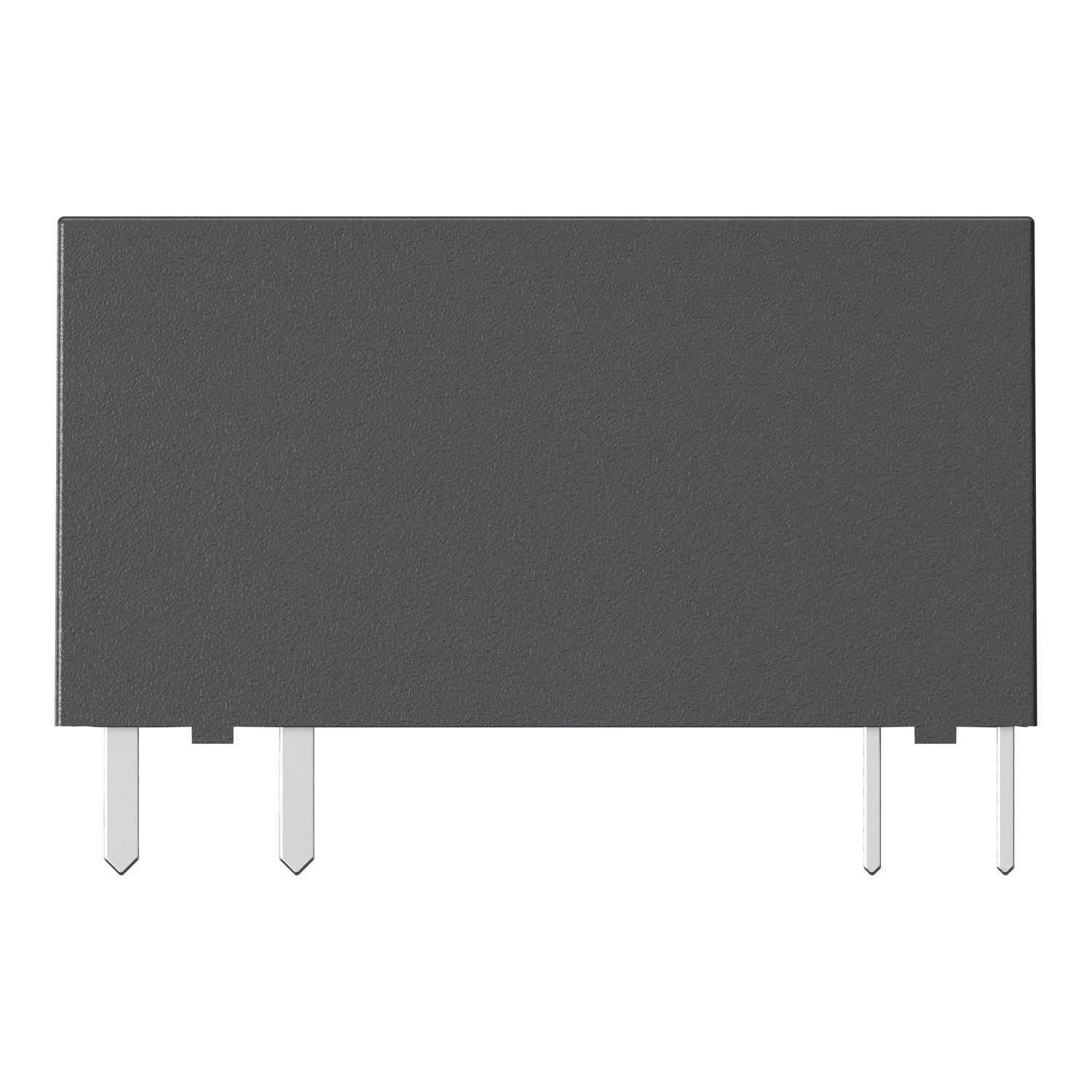

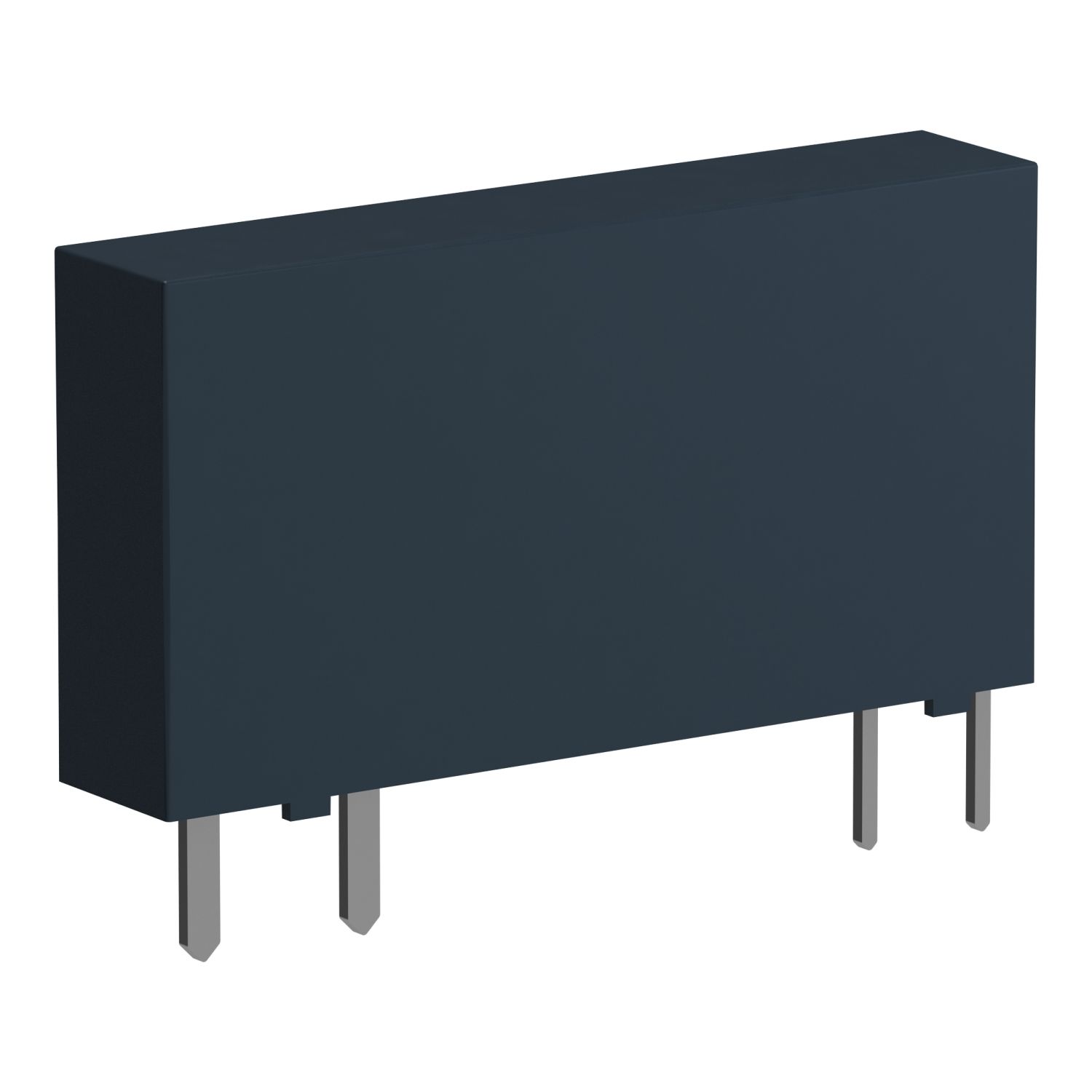

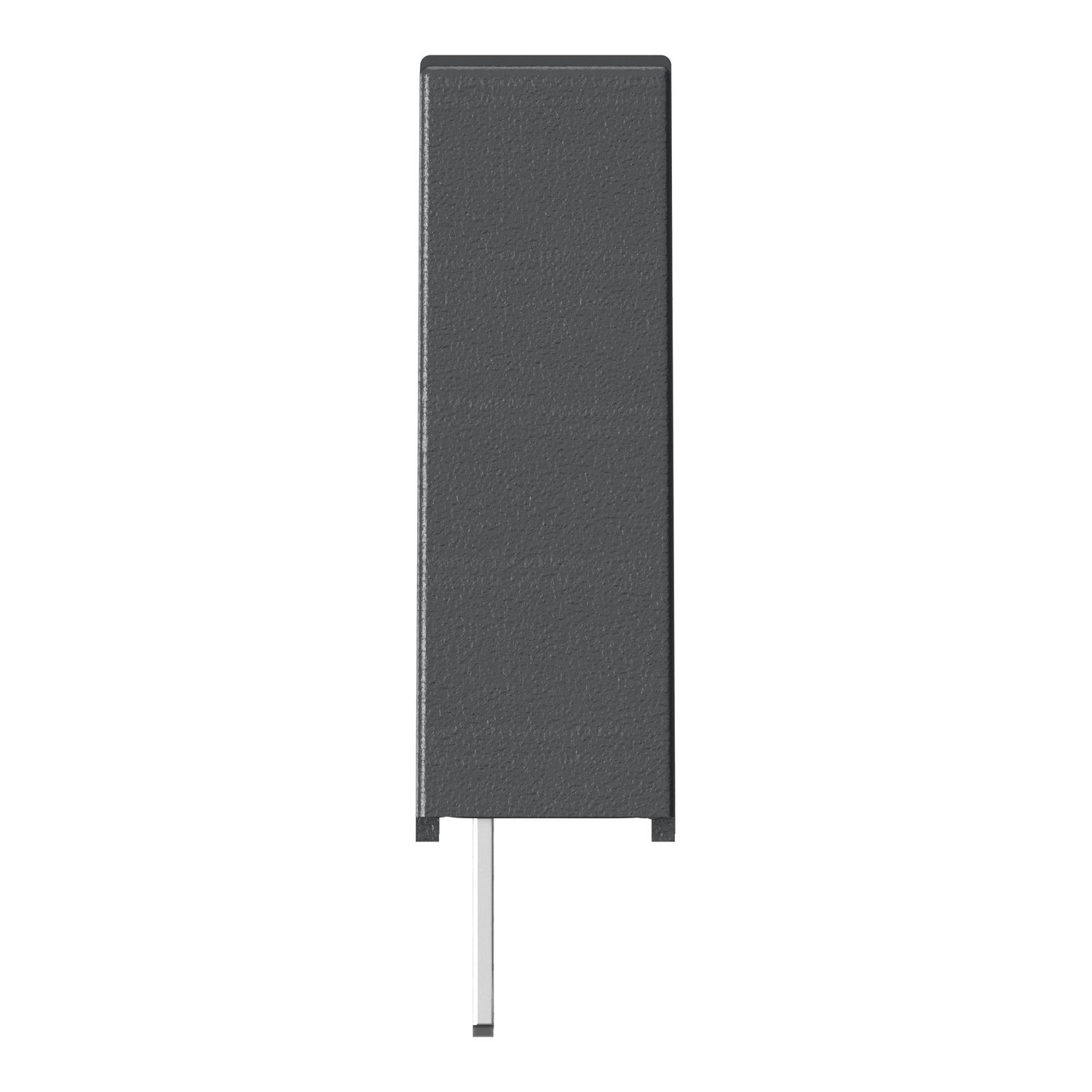

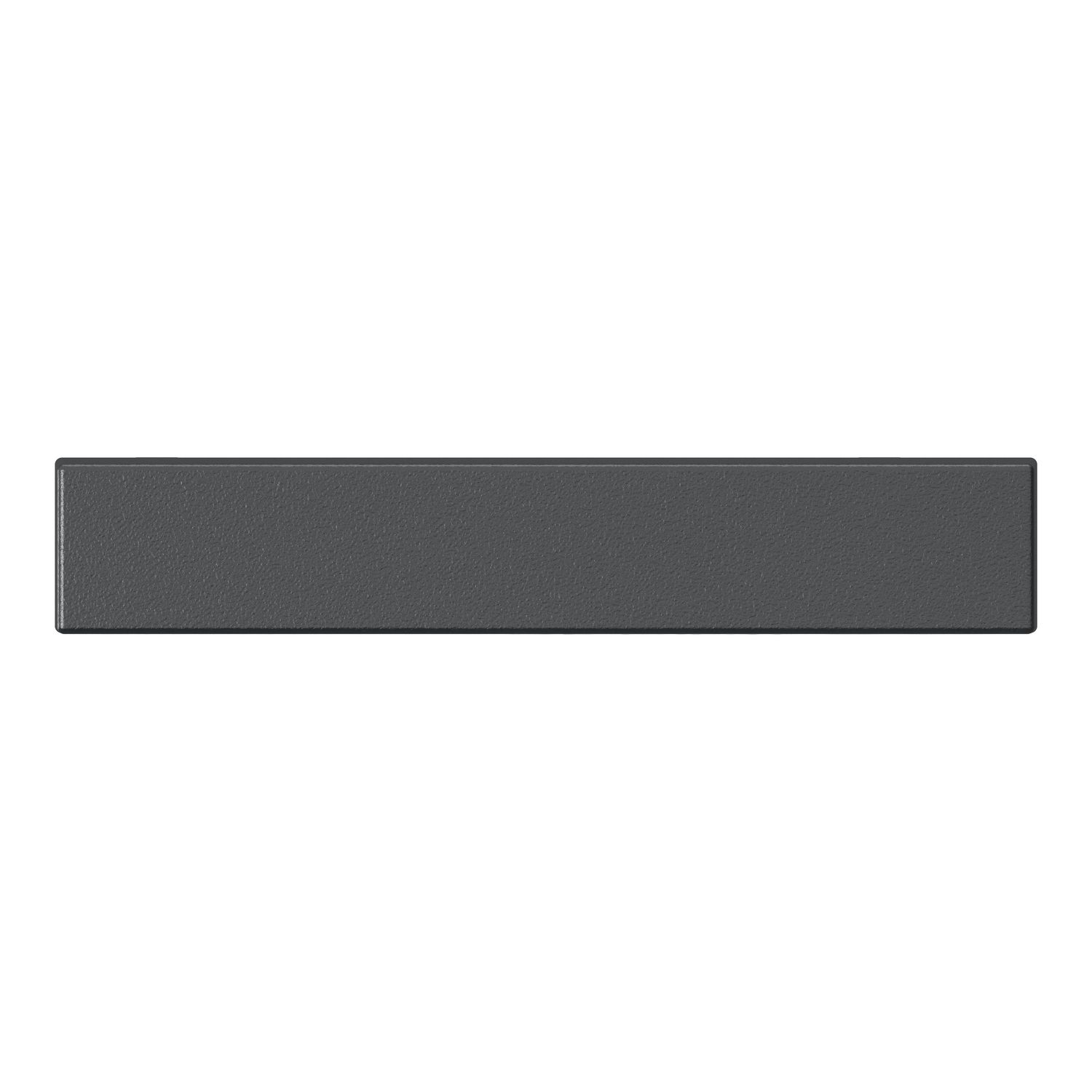

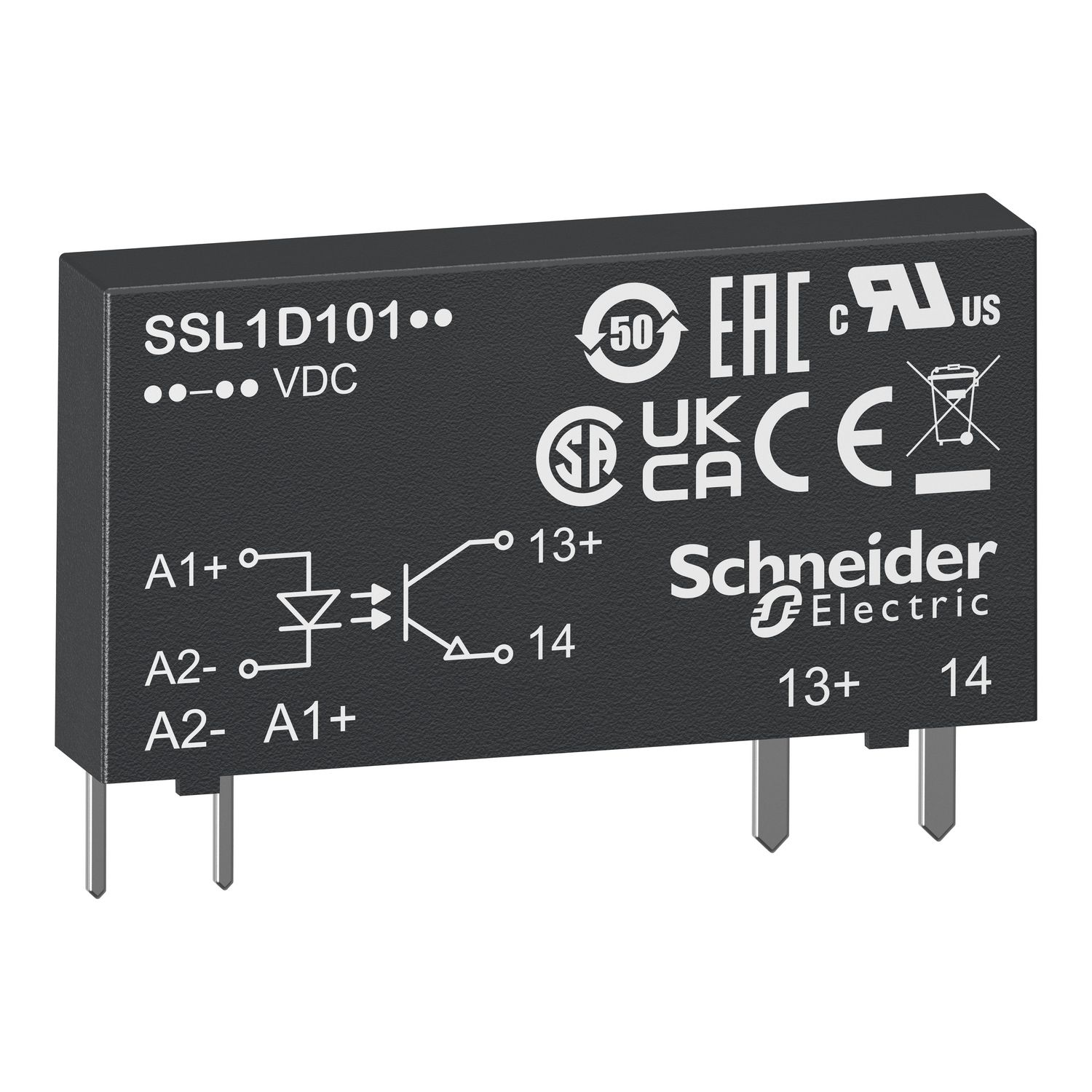

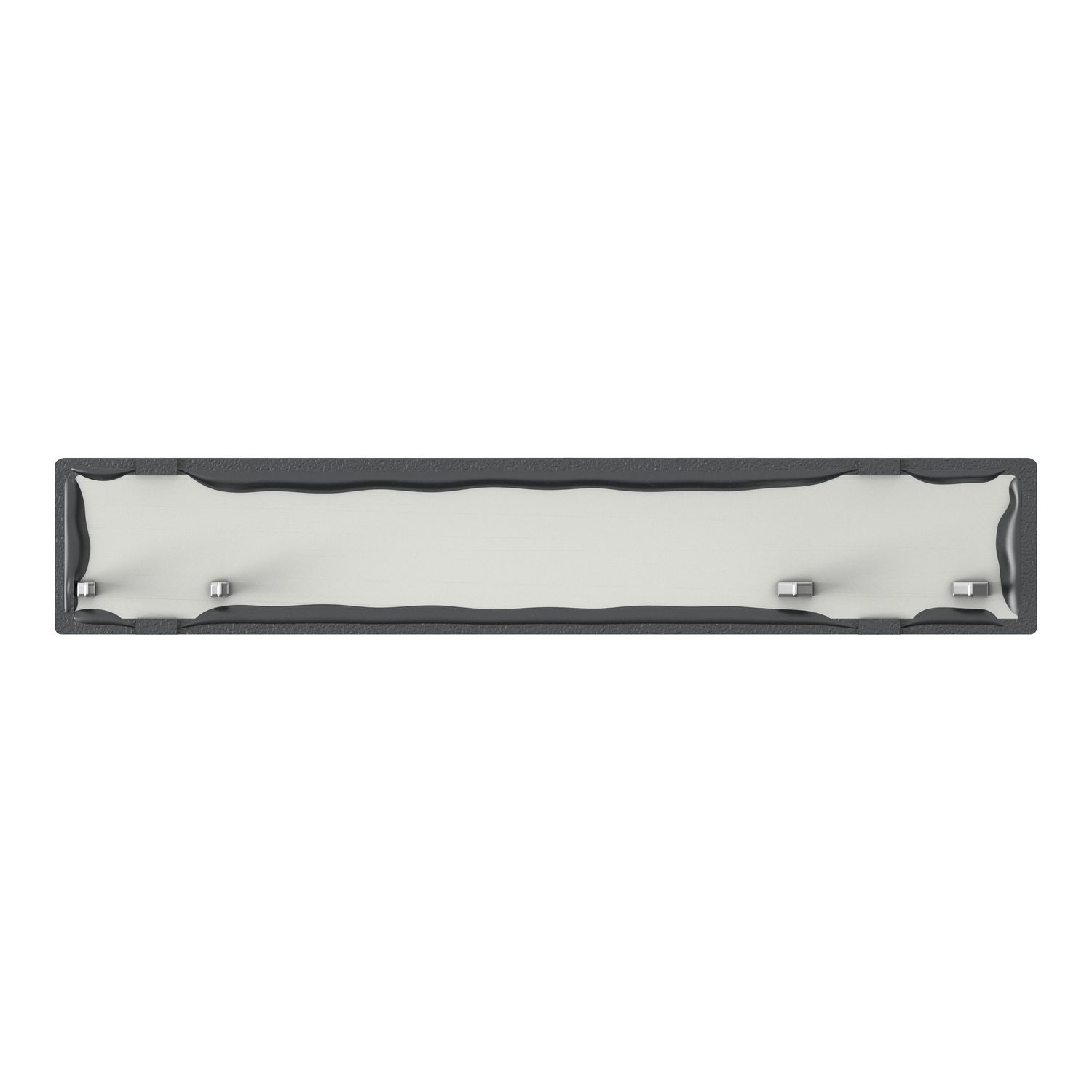

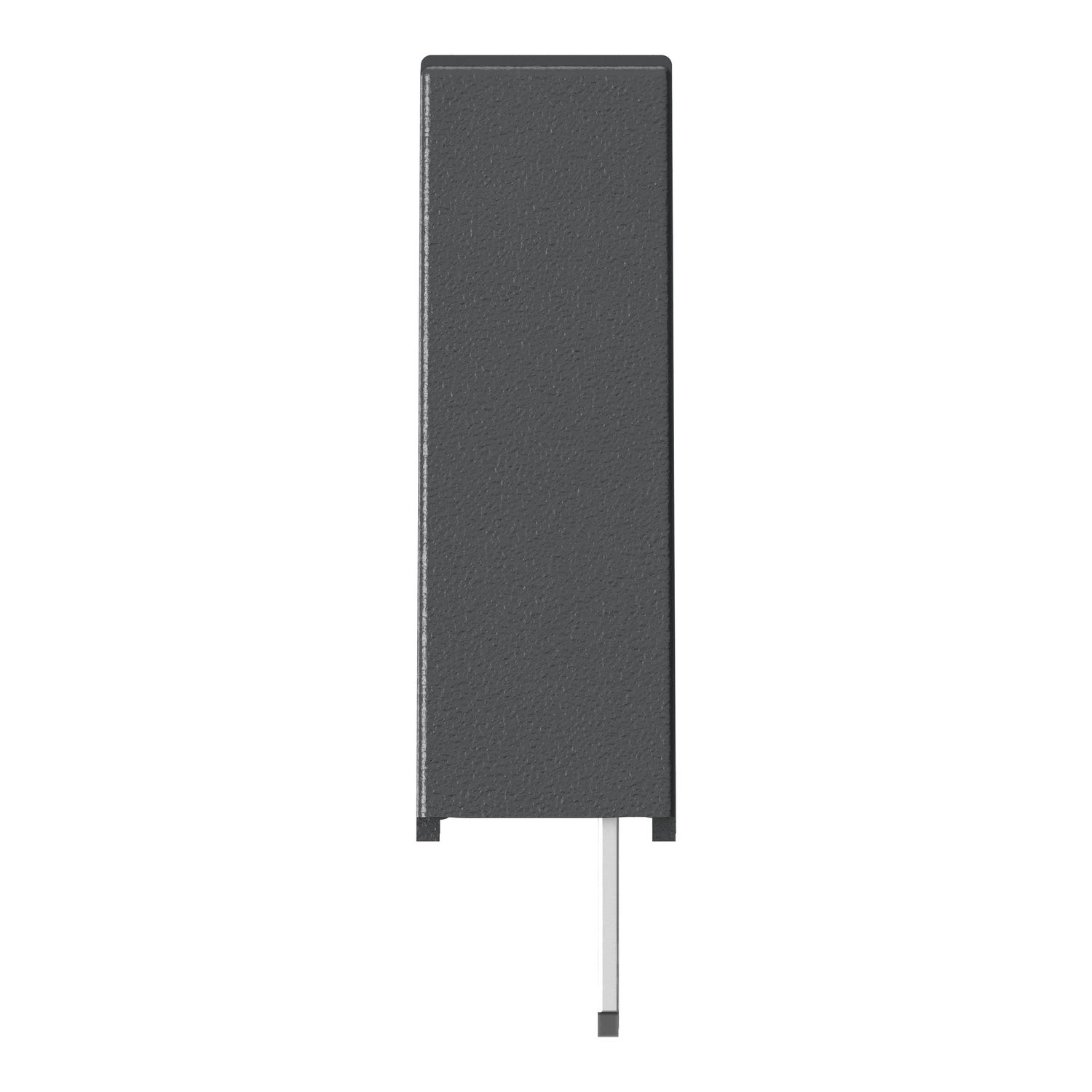

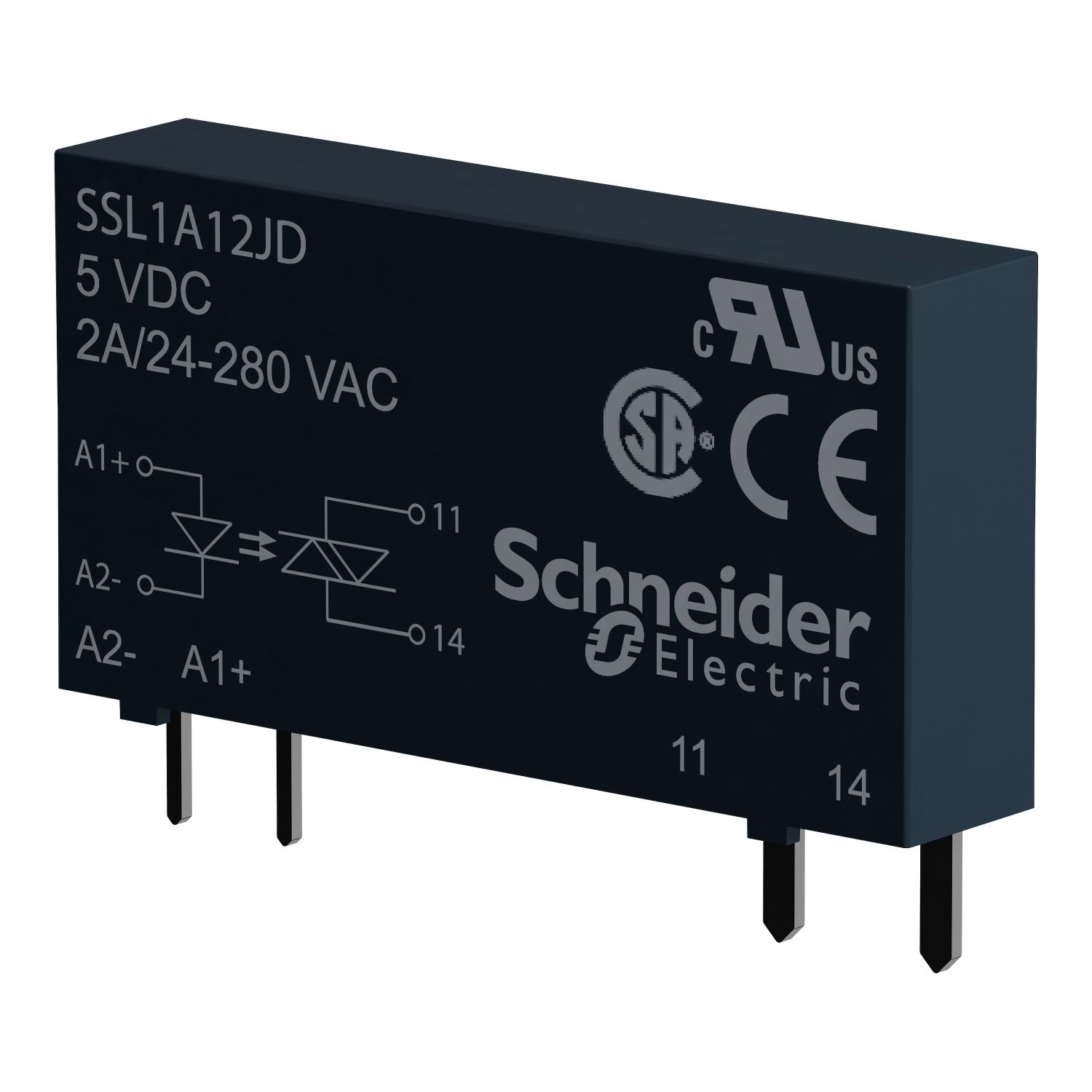

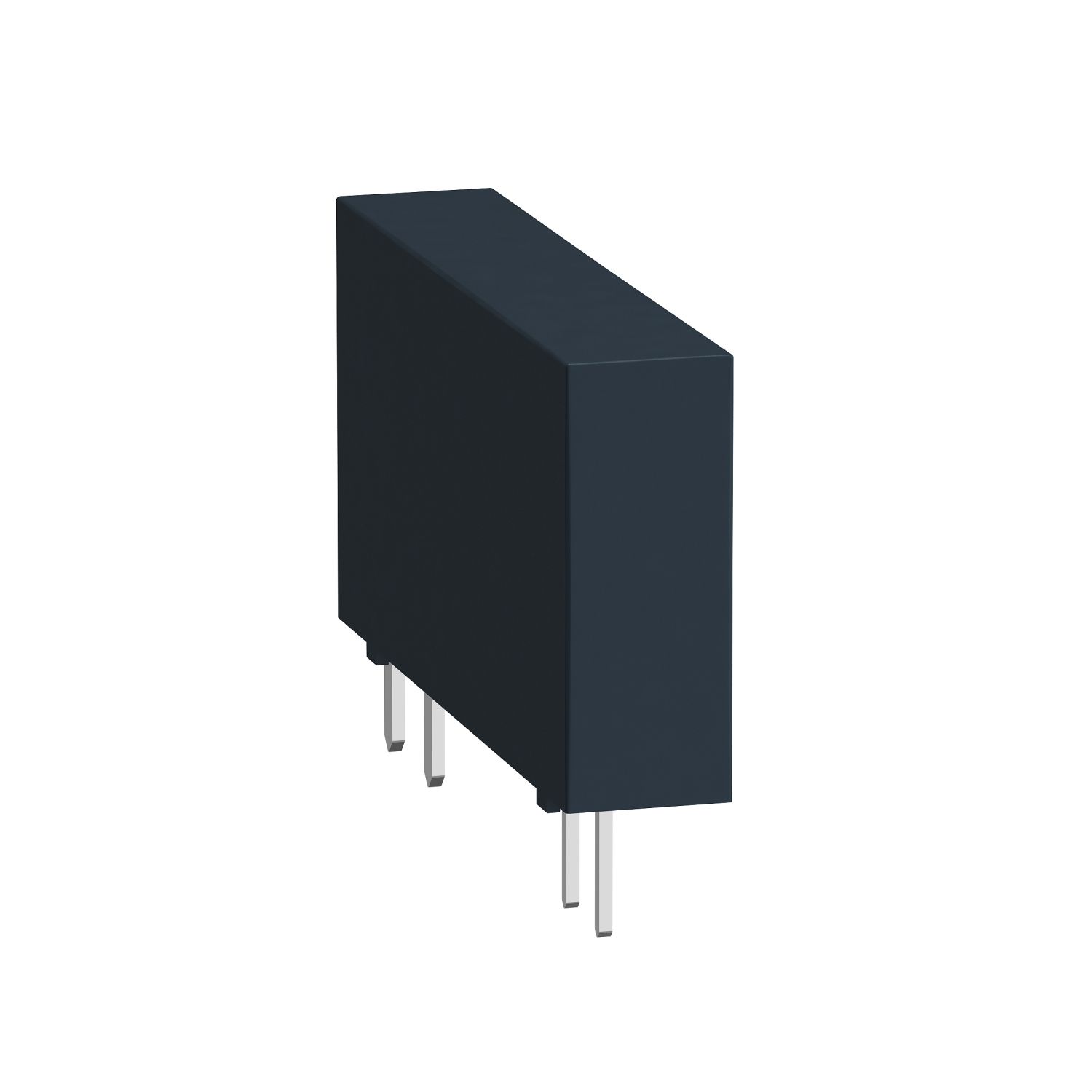

Harmony Solid State Relays, Solid state slim relay, 2A, zero voltage switching, input 3…12V DC, output 24...280V AC

$24.11
Available for Shipping : 24-Nov-2024
Product Selector
Harmony Solid State Relays, Solid state slim relay, 2A, zero voltage switching, input 3…12V DC, output 24...280V AC
Be the first to review this product
Manufacturer: Schneider Electric
Technical illustration
Declaration of conformity
End of life manual
Product environmental
Catalogue
Product Page Link
Product Data Sheet
This Harmony SSL slim interfacing solid state plug-in relay is rated 2A, is controlled with a 3V to 12V DC input, has a rated load voltage of 24V to 280V AC with zero voltage switching, ideal for resistive loads. It is 6mm width, including socket, to save space in your control cabinets. It is also silent and reliable thanks to the absence of moving contacts. It is shock, vibration and pollution resistant thanks to its IP67, it makes it ideal for harsh industrial environments. 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name SSL
[Uc] control circuit voltage 3...12 V
Range of product Harmony Solid State Relays
Network number of phases 1 phase
Product or component type solid state relay up to 10 A
Output switching mode zero voltage switching
Complementary
Maximum switching voltage 1 V DC turn-off
DV/dt 500 V/µs off-state at maximum voltage
Input current limits 15-15 mA
Device presentation complete product
Minimum switching voltage 3 V DC turn-on
Maximum voltage drop <1.1 V on-state
Output voltage 24...280 V AC
Height 28 mm
Depth 15 mm
Overvoltage category III
Width 5 mm
[In] rated current 2 A
Capacitance unbalance 1.5 pF input/output
Solid state output type SCR output, random voltage switching
Input impedance 333 kOhm
Absolute maximum voltage 600 V AC
Maximum leakage current 4 mA off-state
Net weight 0.0041 kg
Load current 0.07-2 A
Surge current 115 A for 20 ms, 120 A for 16.6 ms
Response time 0.5 cycle (turn-off), 0.5 cycle (turn-on)
Maximum I²t for fusing 60 A².s for 8.3 ms at 60 Hz, 66 A².s for 10 ms at 50 Hz
Mounting support socket
[Uc] control circuit voltage 3...12 V DC
Environment
Ambient air temperature for storage -20-85 °C
Marking CE
Pollution degree 2
Ambient air temperature for operation -20-80 °C
Flame retardance V0 conforming to UL 94
Dielectric strength 2500 V for input/output
Product certifications UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.5 cm
Package 1 Width 2 cm
Package 1 Length 2.8 cm
Package 1 Weight 4 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 0.7 cm
Package 2 Width 2.5 cm
Package 2 Length 37 cm
Package 2 Weight 61 g
Unit Type of Package 3 3
Number of Units in Package 3 1080
Package 3 Height 15 cm
Package 3 Width 15 cm
Package 3 Length 40 cm
Package 3 Weight 5.74 kg

Related products

Harmony Solid State Relays, Socket equipped with LED and protection circuit, for SSL relays, screw connectors, 5 24V DC

SSLZVA1
$14.44
View Detail
