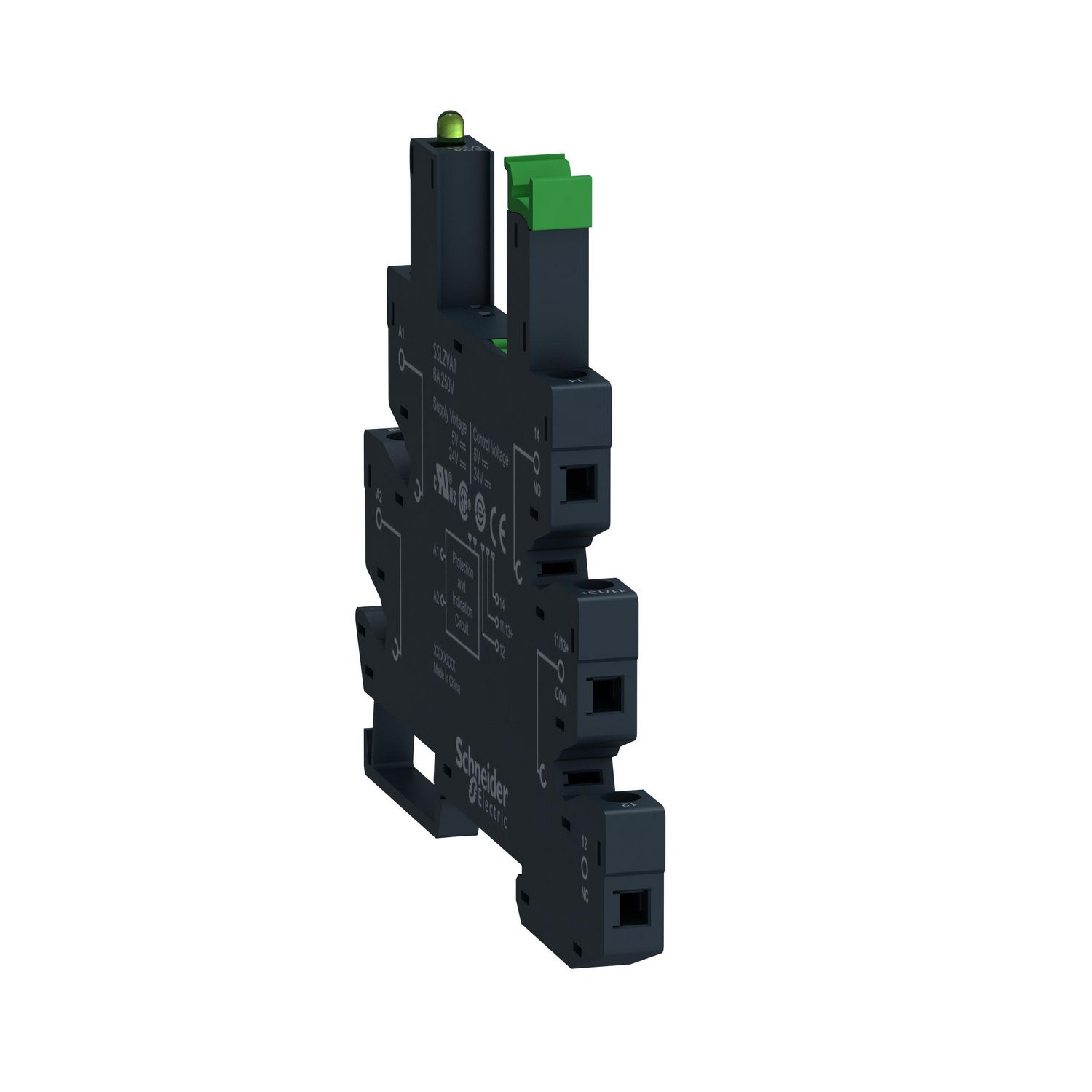

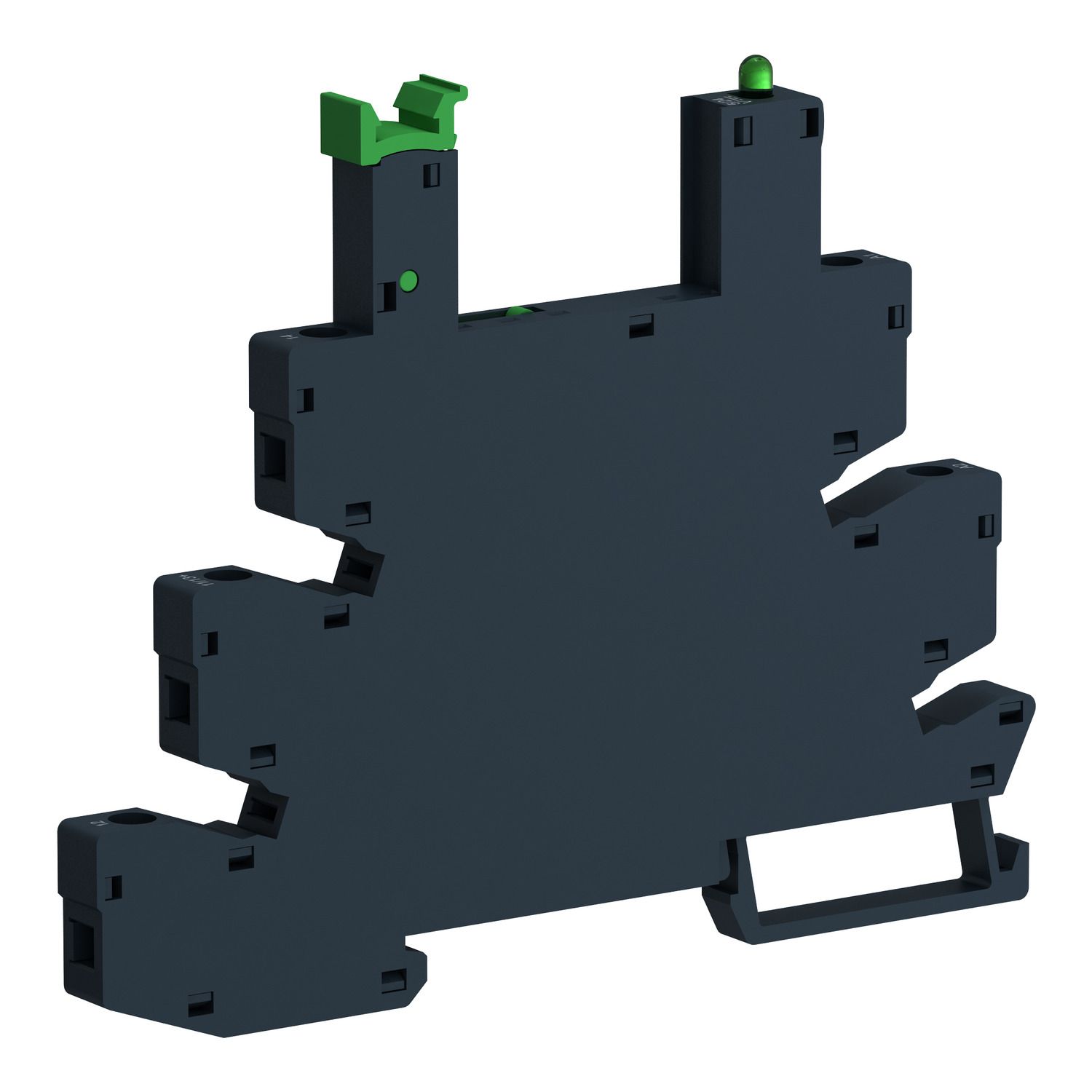

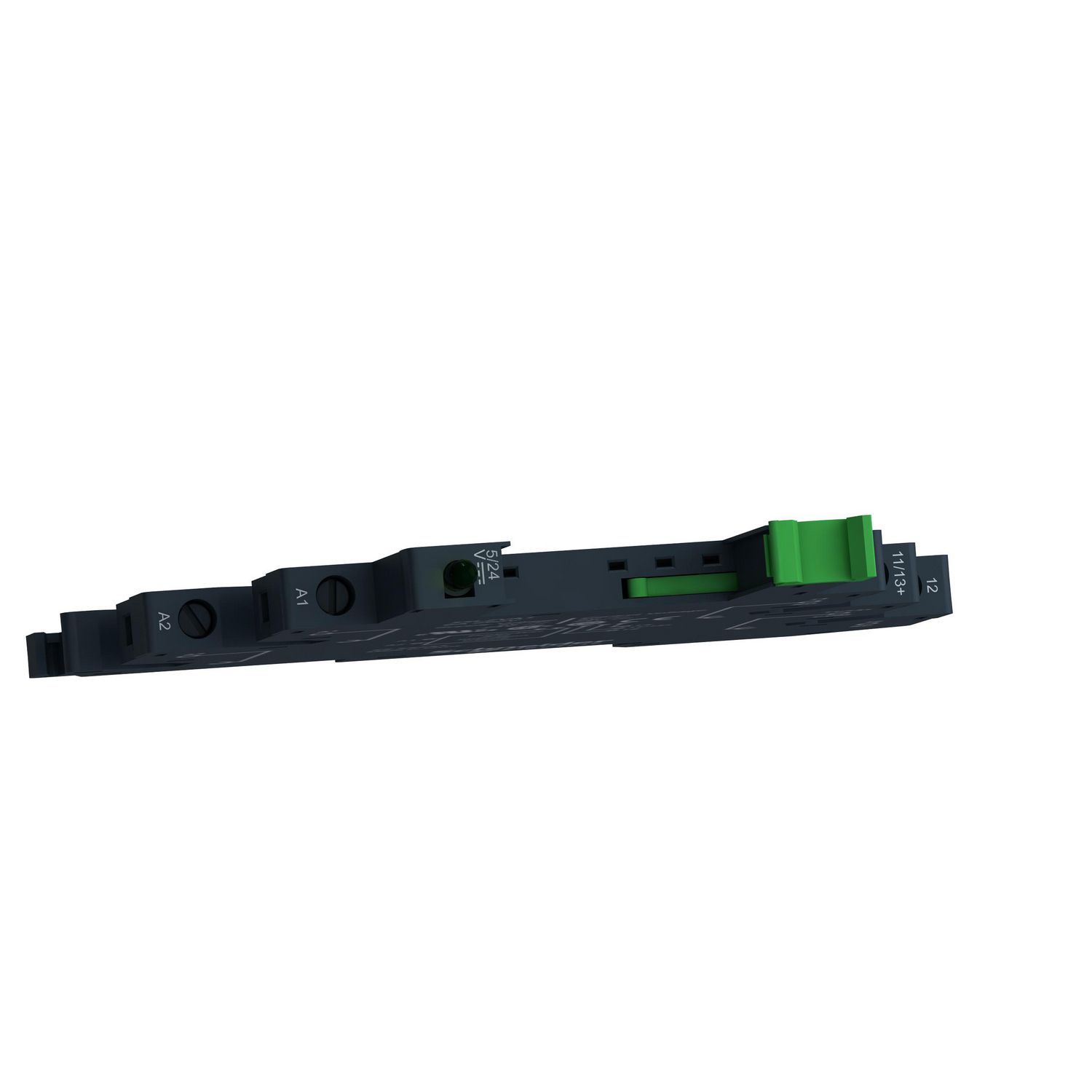

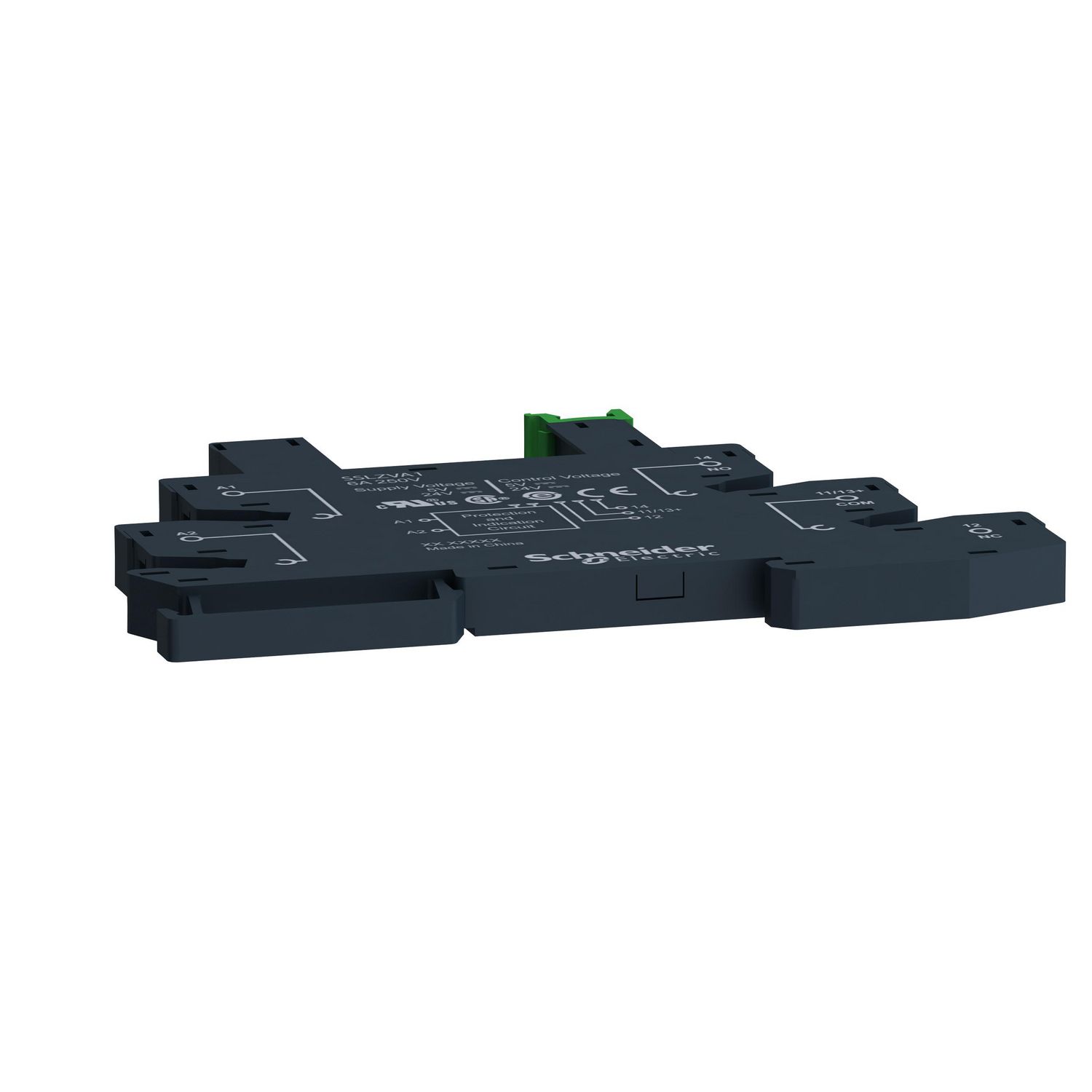

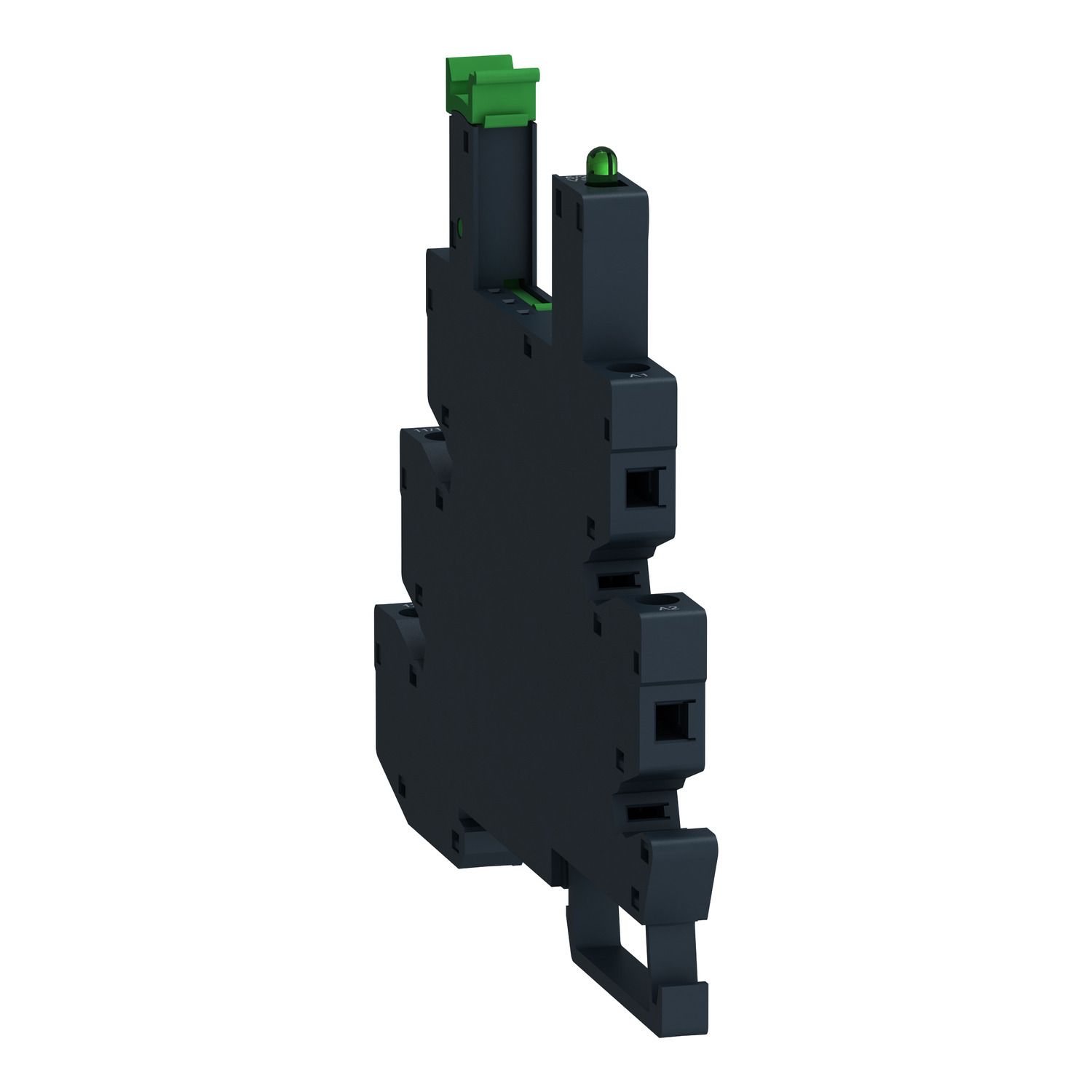

Picture of Harmony Solid State Relays, Socket equipped with LED and protection circuit, for SSL relays, screw connectors, 5 24V DC
Picture of Harmony Solid State Relays, Socket equipped with LED and protection circuit, for SSL relays, screw connectors, 5 24V DC
Picture of Harmony Solid State Relays, Socket equipped with LED and protection circuit, for SSL relays, screw connectors, 5 24V DC
Picture of Harmony Solid State Relays, Socket equipped with LED and protection circuit, for SSL relays, screw connectors, 5 24V DC
Picture of Harmony Solid State Relays, Socket equipped with LED and protection circuit, for SSL relays, screw connectors, 5 24V DC
SKU:

SSLZVA1

Harmony Solid State Relays, Socket equipped with LED and protection circuit, for SSL relays, screw connectors, 5 24V DC

$14.44
Product Selector
Harmony Solid State Relays, Socket equipped with LED and protection circuit, for SSL relays, screw connectors, 5 24V DC
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Declaration of conformity
End of life manual
Technical illustration
Image of product
Product environmental
Image of product
CAD
Image of product
Catalogue
Product Page Link
Product Data Sheet

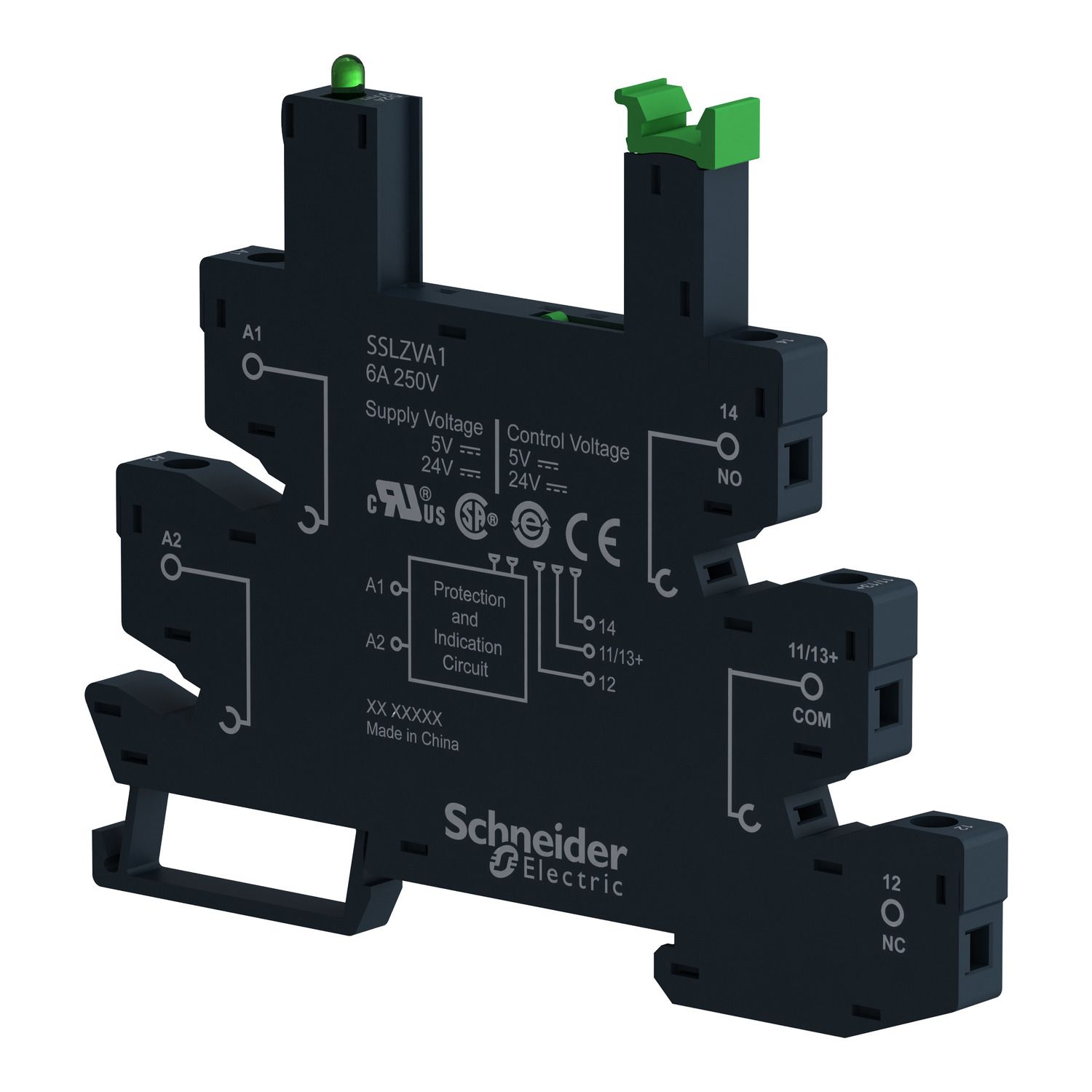

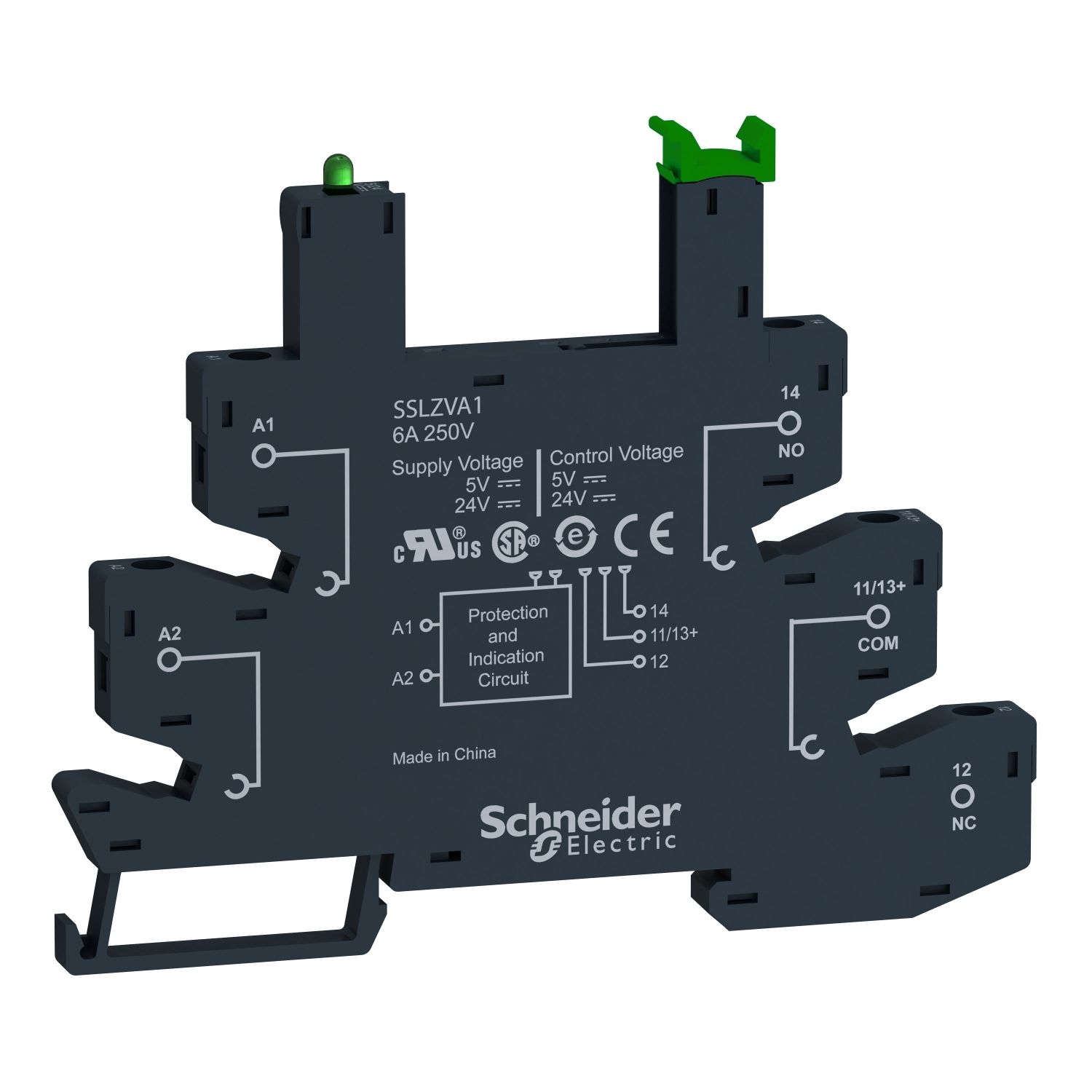

This Harmony SSL socket for solid state slim interfacing relay has screw clamp terminals and a rated voltage of 5V DC. It also offers clear circuit labelling on the sides to facilitate installation and maintenance. It features a visual indicator LED for a simpler troubleshooting and commissioning. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute nameAttribute value
Main
Device short nameSSLZ
[Uc] control circuit voltage24 V, 5 V
Product compatibilitysolid state relay SSL with NO contact at 5 V DC, solid state relay SSL with NO contact at 24 V DC
Range of productHarmony Solid State Relays
[Ith] conventional free air thermal current6 A
[Ue] rated operational voltage< 250 V DC
Switching voltage24 V DC, 5 V DC
[In] rated current6 A
Product or component typesocket for SSL1
Complementary
Group of productSSL_NO_SEP_FLAT_SCREW_5-24
Compatibility codeSSLZ
Sale per indivisible quantity10
Fixing modeclip-on (35 mm DIN rail)
Contact terminal arrangementseparate
Shape of pinflat
Height101 mm
Depth78.6 mm
Width6.2 mm
Local signallingLED (green) for input status
Connections - terminalsscrew clamp terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw clamp terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) solid without cable end, screw connectors
Net weight0.0285 kg
Tightening torque< 0.4 N.m for M2.5 screw(s)
Environment
IP degree of protectionIP20
Ambient air temperature for storage-40-85 °C
MarkingCE
Ambient air temperature for operation-40-70 °C
Flame retardanceV0 conforming to UL 94
StandardsIEC 61984
Product certificationsUL 508, CSA C22-2 No 14
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height9.6 cm
Package 1 Width0.62 cm
Package 1 Length7.9 cm
Package 1 Weight31.0 g
Unit Type of Package 22
Number of Units in Package 210
Package 2 Height7.0 cm
Package 2 Width8.6 cm
Package 2 Length10.3 cm
Package 2 Weight340.0 g
Unit Type of Package 33
Number of Units in Package 3300
Package 3 Height30.0 cm
Package 3 Width30.0 cm
Package 3 Length40.0 cm
Package 3 Weight9.2 kg
