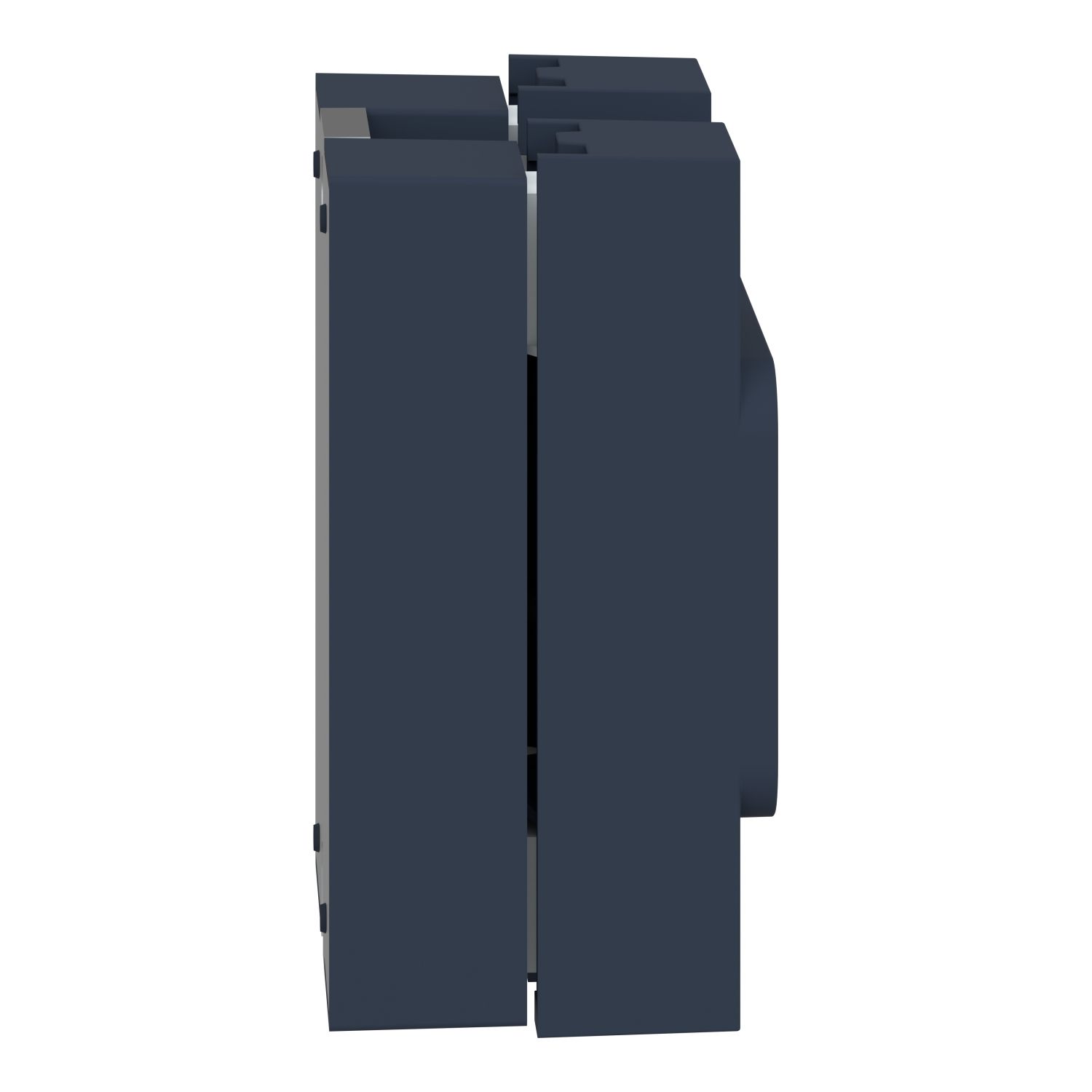

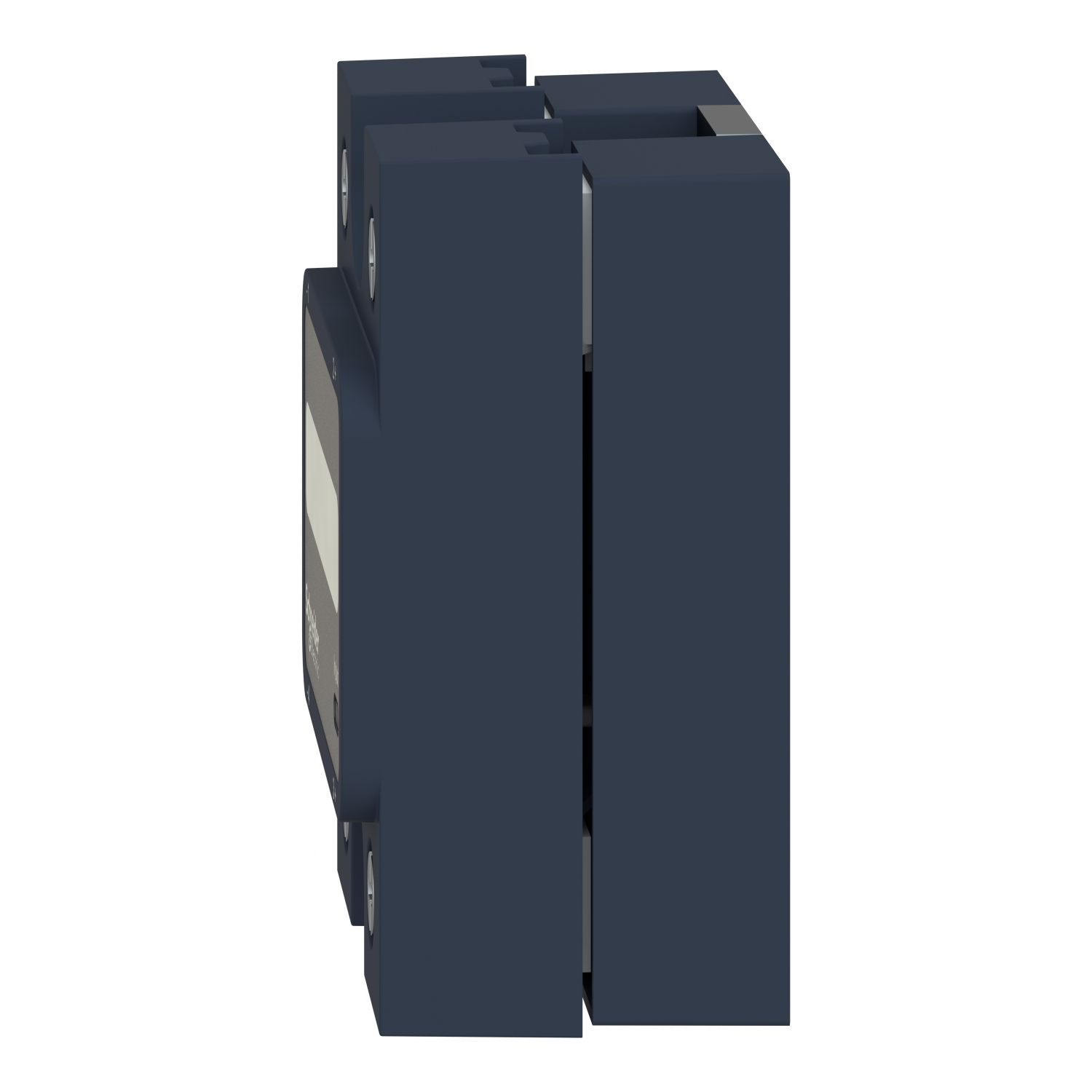

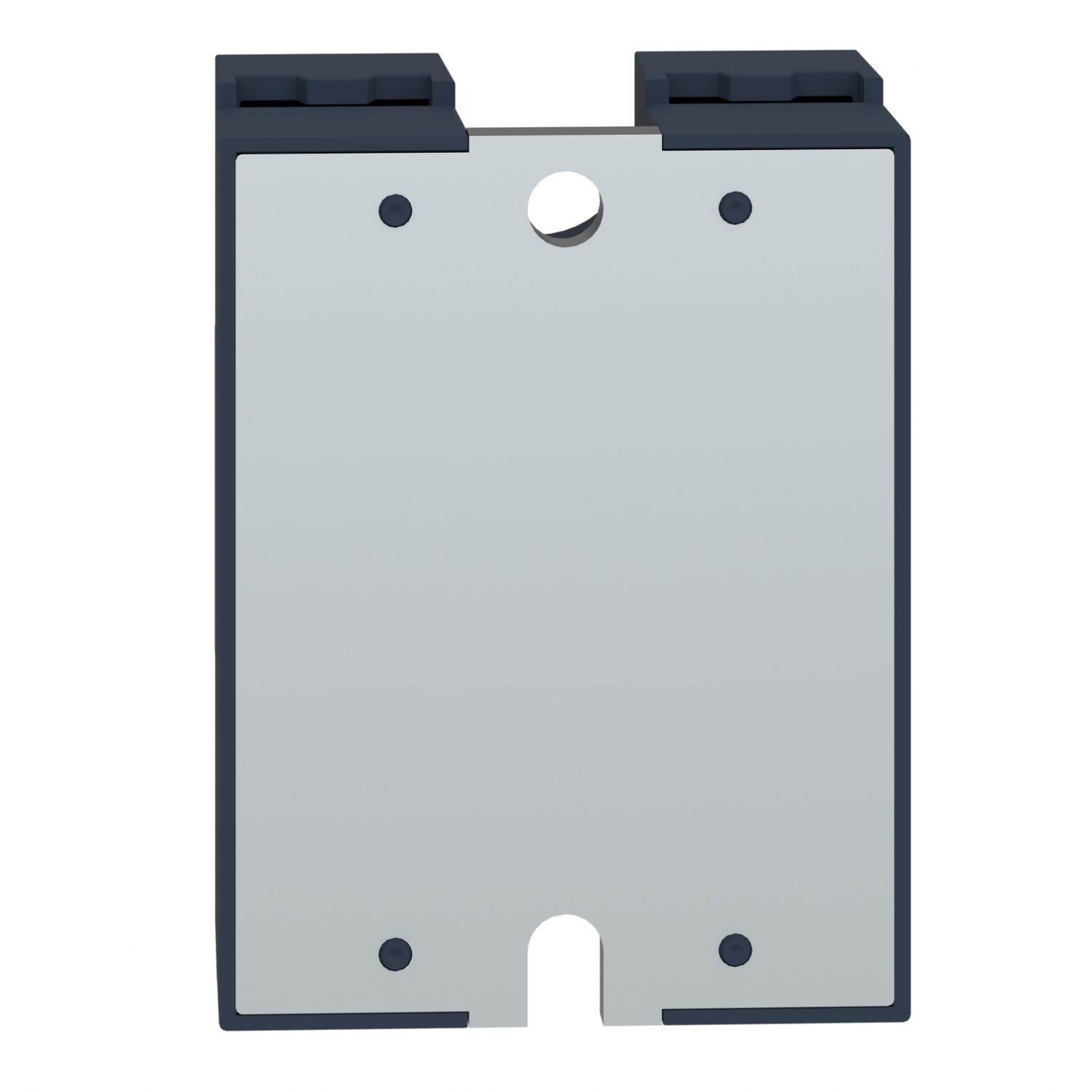

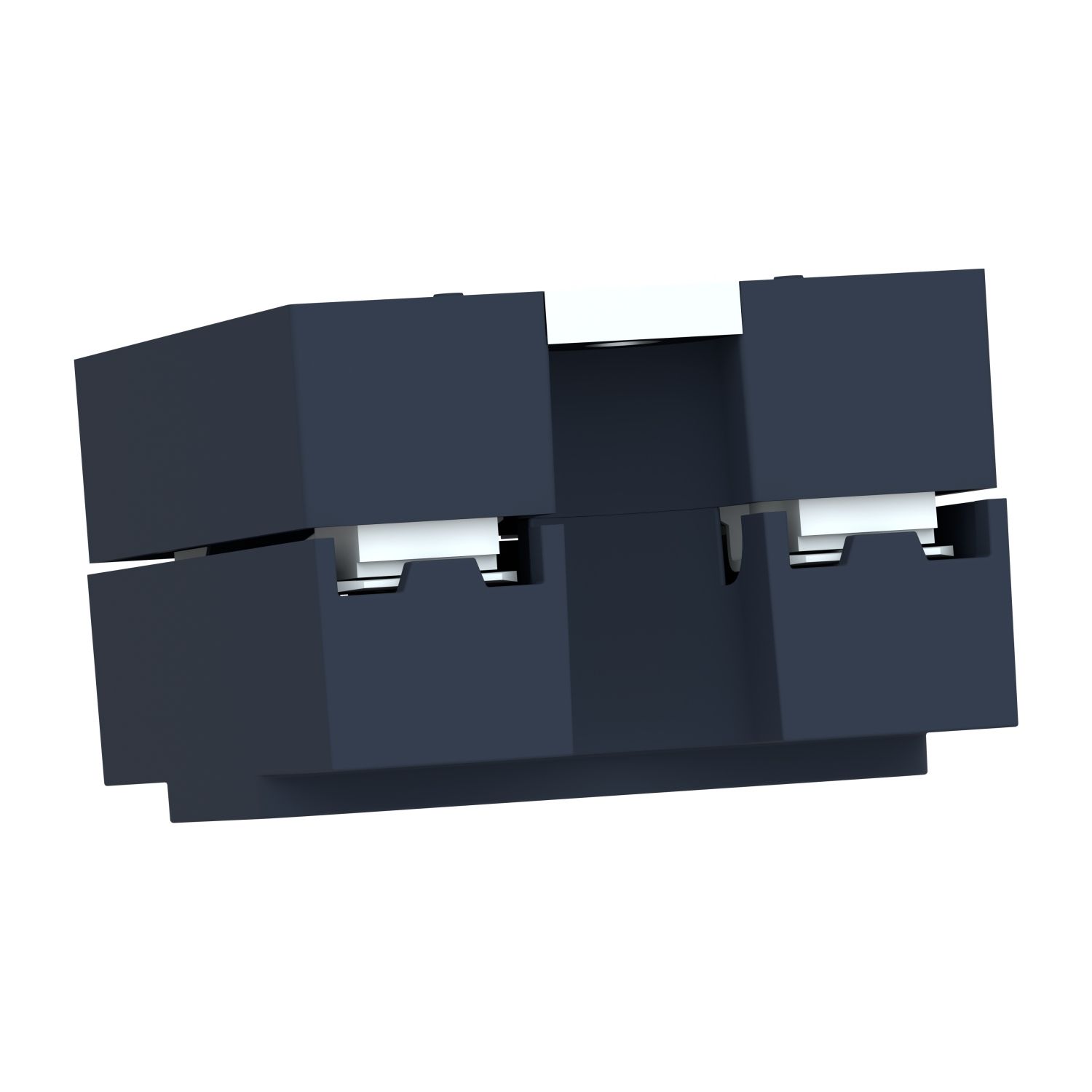

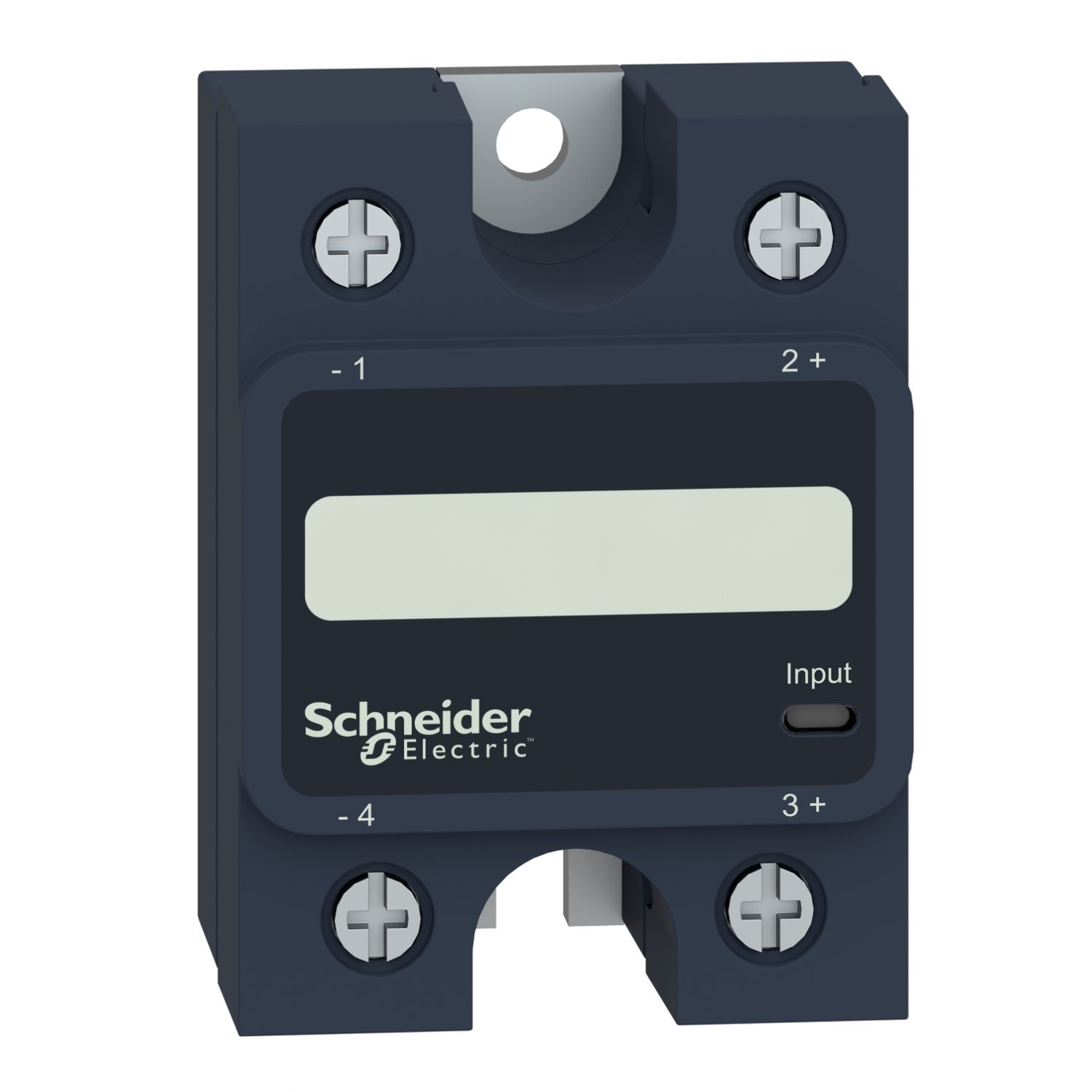

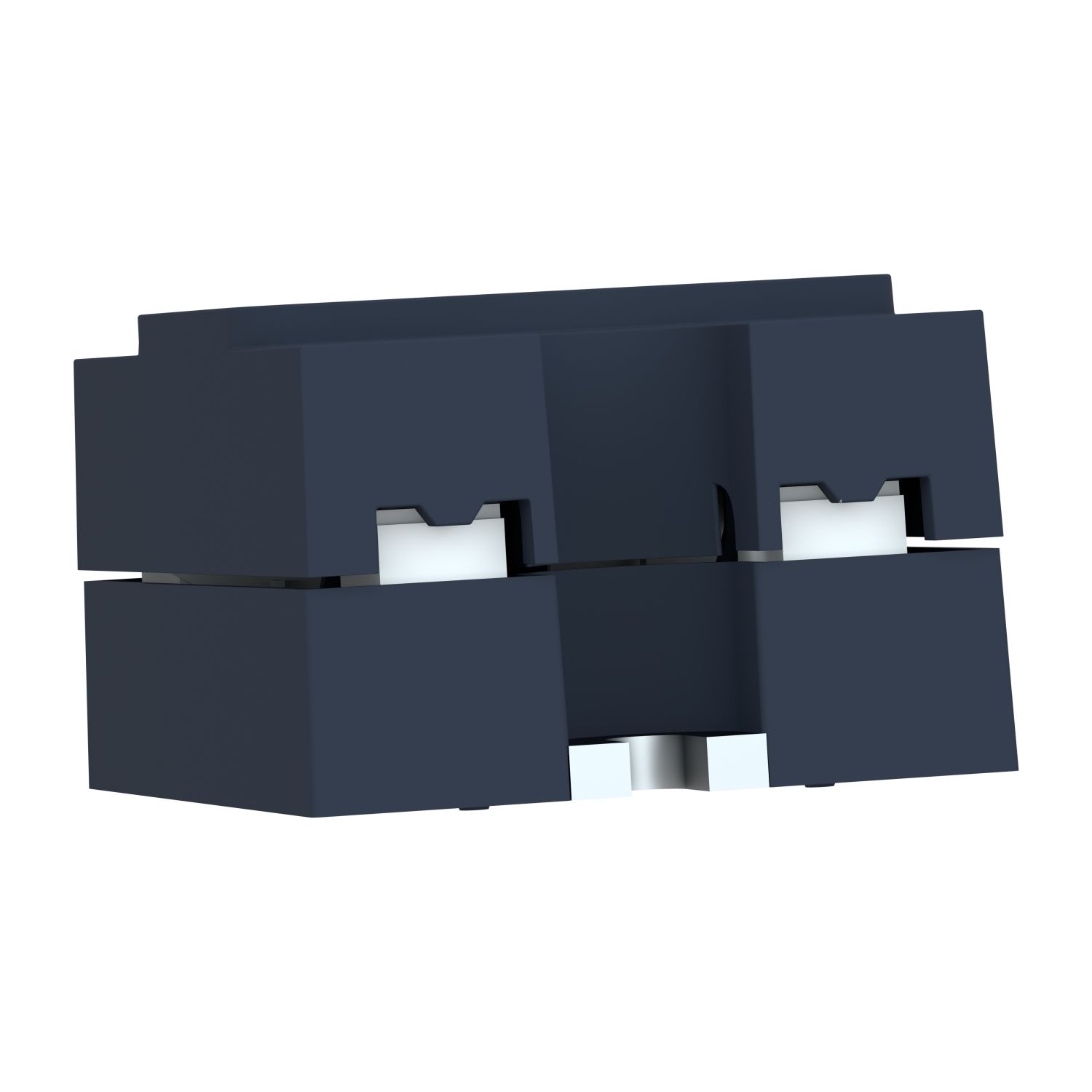

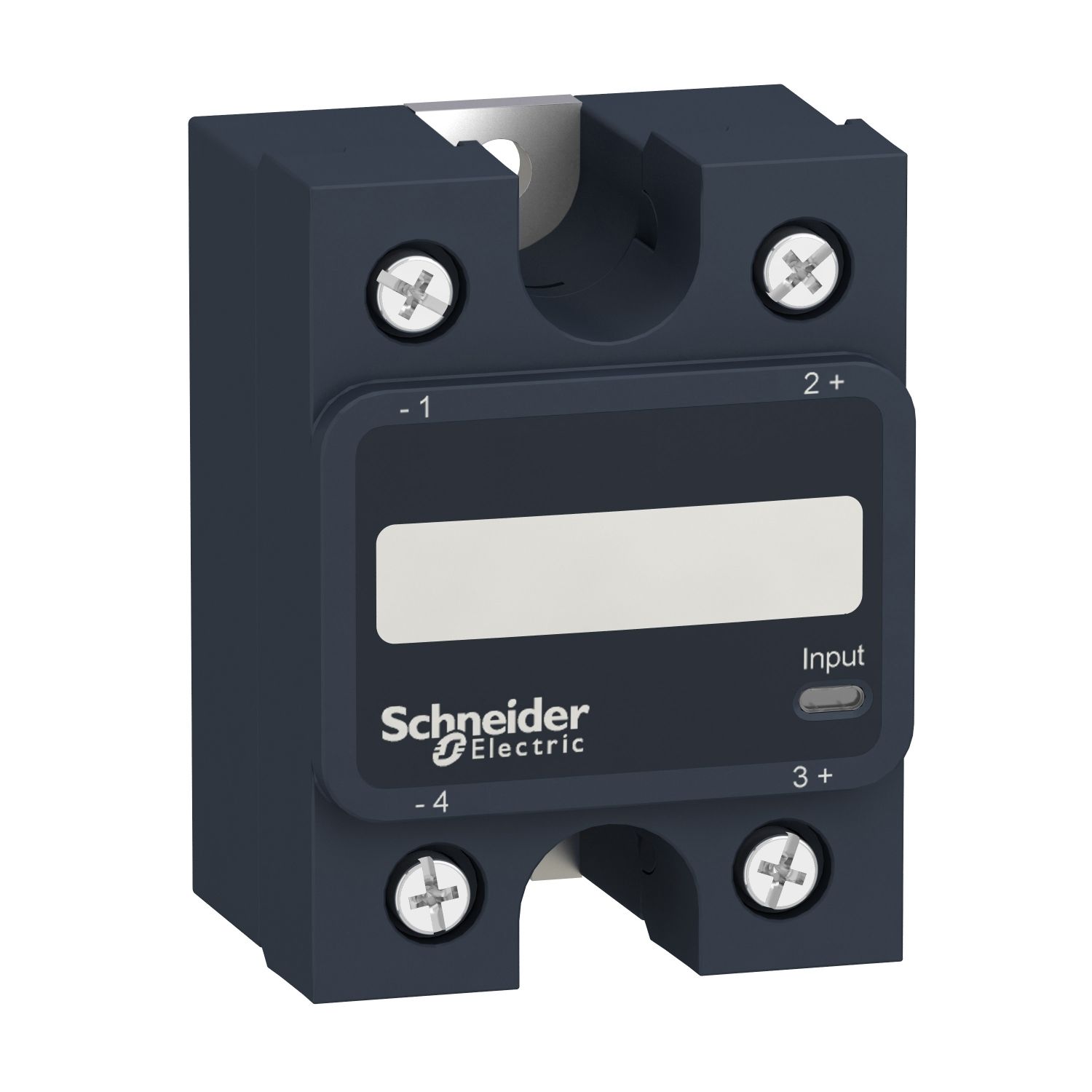

Picture of single phase relay, Harmony Solid State Relays, 50A, panel mount, zero voltage switching, thermal pad, input 3 to 32V DC, output 24 to 300V AC
Picture of single phase relay, Harmony Solid State Relays, 50A, panel mount, zero voltage switching, thermal pad, input 3 to 32V DC, output 24 to 300V AC
Picture of single phase relay, Harmony Solid State Relays, 50A, panel mount, zero voltage switching, thermal pad, input 3 to 32V DC, output 24 to 300V AC
Picture of single phase relay, Harmony Solid State Relays, 50A, panel mount, zero voltage switching, thermal pad, input 3 to 32V DC, output 24 to 300V AC
Picture of single phase relay, Harmony Solid State Relays, 50A, panel mount, zero voltage switching, thermal pad, input 3 to 32V DC, output 24 to 300V AC
Picture of single phase relay, Harmony Solid State Relays, 50A, panel mount, zero voltage switching, thermal pad, input 3 to 32V DC, output 24 to 300V AC
Picture of single phase relay, Harmony Solid State Relays, 50A, panel mount, zero voltage switching, thermal pad, input 3 to 32V DC, output 24 to 300V AC
Picture of single phase relay, Harmony Solid State Relays, 50A, panel mount, zero voltage switching, thermal pad, input 3 to 32V DC, output 24 to 300V AC
Picture of single phase relay, Harmony Solid State Relays, 50A, panel mount, zero voltage switching, thermal pad, input 3 to 32V DC, output 24 to 300V AC
SKU:

SSP1A150BDT

single phase relay, Harmony Solid State Relays, 50A, panel mount, zero voltage switching, thermal pad, input 3 to 32V DC, output 24 to 300V AC

Old price: $112.64 INC GST
$107.01 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
single phase relay, Harmony Solid State Relays, 50A, panel mount, zero voltage switching, thermal pad, input 3 to 32V DC, output 24 to 300V AC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Environmental Disclosure
Instruction sheet
Catalog
Declaration of conformity

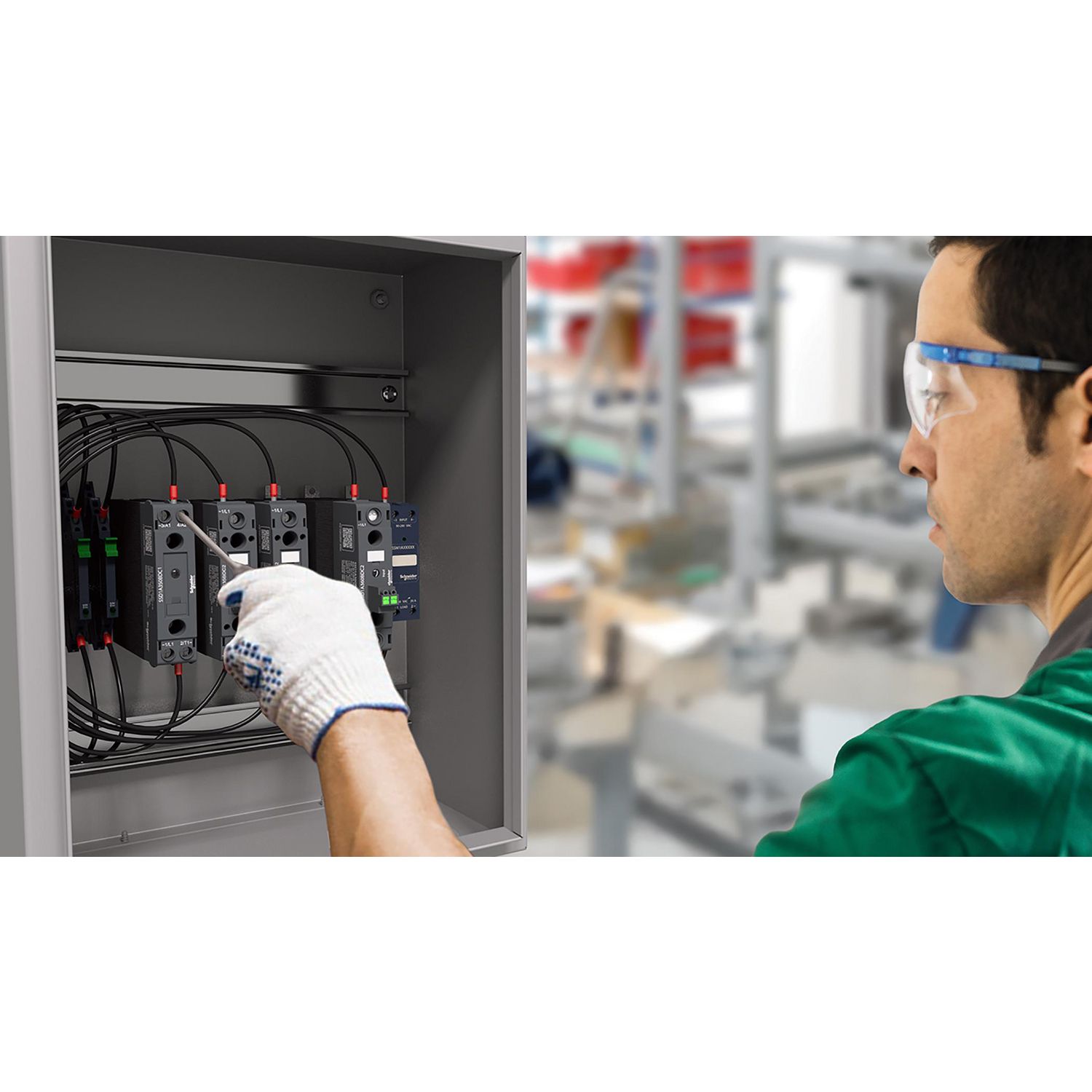

Image of product in real life situation
Circularity Profile
Product Page Link
Product Data Sheet
This Harmony SSP solid state panel mount single-phase relay is rated 50A, is controlled with a 3V to 32V DC input, has a rated load voltage of 24V to 300V AC with zero voltage switching, ideal for resistive loads. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name SSP1
[Uc] control circuit voltage 3...32 V
[In] rated current 50 A
Provided equipment thermal pad
Solid state output type SCR output, zero voltage switching
Network number of phases 1 phase
Product or component type solid state relay up to 50 A
Output switching mode zero voltage switching
Mounting support panel
Range of product Harmony Solid State Relays
Connections - terminals screw connectors
Complementary
Protection device type type 2 - 32 A miniature circuit breaker (MCB) - curve B, type 1 - 40 A miniature circuit breaker (MCB) - curve B
Input current limits 10-10 mA at 12 V DC
Capacitance unbalance 10 pF for input/output
Maximum switching voltage 1 V DC turn-off
DV/dt 500 V/µs off-state at maximum voltage
Absolute maximum voltage 600 V
Device presentation complete product
Thermal impedance 0.48 °C-in²/W at 25 psi
IP degree of protection IP20
Maximum leakage current 1 mA off-state
Minimum switching voltage 3 V DC turn-on
[Uimp] rated impulse withstand voltage 6 kV input to output, 6 kV output to case
Net weight 89.2 g
Local signalling LED, green for input
Load current 0.15-50 A
Surge current 625 A for 16.6 ms
Response time 0.5 cycle (turn-off), 0.5 cycle (turn-on)
Dielectric strength 4 kV AC for input or output to case, 4 kV AC for input/output
Connections - terminals ring lugs: 11.7 x 4.5 mm for output, forked type tag connectors: 11.7 x 4.5 mm for output, ring lugs: 9.2 x 4 mm for input, forked type tag connectors: 9.2 x 4 mm for input, screw terminals: 0.5...8.26 mm², (AWG 20...AWG 8) without cable end for output, screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) without cable end for input, screw terminals: 0.5...5.26 mm², (AWG 20...AWG 10) with cable end for output, screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) with cable end for input
Maximum voltage drop <1.15 V on-state
Maximum I²t for fusing 1770 A².s for 10 ms at 50 Hz, 1621 A².s for 8.33 ms at 60 Hz
Thermal resitance 0.45 °C/W junction to case
Insulation resistance 1000 MOhm at 500 V DC
Tightening torque 2...2.2 N.m for output, 1.5...1.7 N.m for input
Motor power hp 2 hp 240 V AC, 0.75 hp 120 V AC
Cos phi 0.5-0.5 (with maximum load)
Safety reliability data B10d = 1731395, MTTFd = 1875.9 years
Environment
Overvoltage category III
Ambient air temperature for storage -40-125 °C
Marking UL, CSA, EAC, CE
Pollution degree 2
Standards UL 508, IEC 60950-1, CSA C22.2 No 14-13, IEC 62314
Ambient air temperature for operation -40-80 °C
Product certifications CSA, EAC, UL, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.800 cm
Package 1 Width 4.800 cm
Package 1 Length 6.500 cm
Package 1 Weight 97.000 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.243 kg
