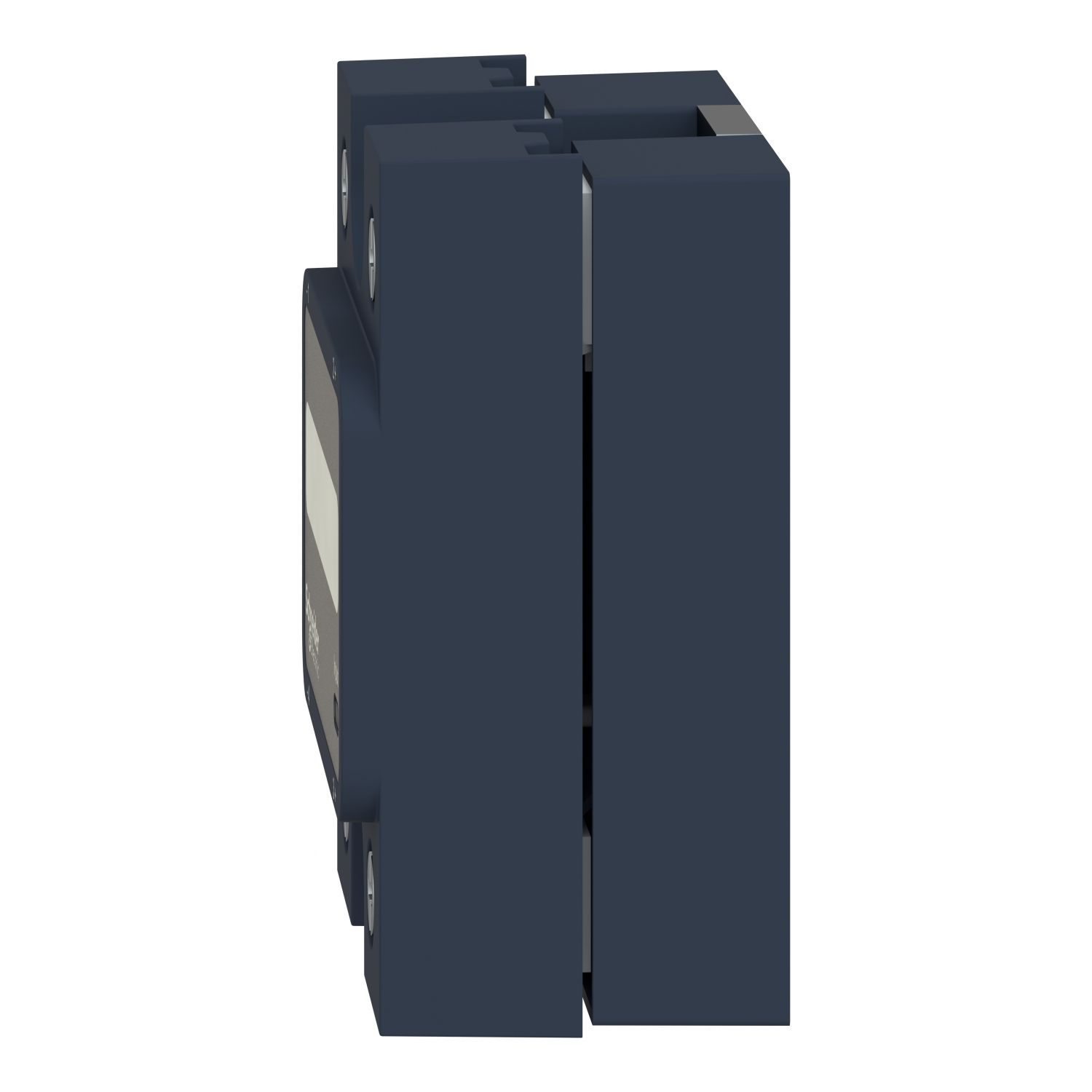

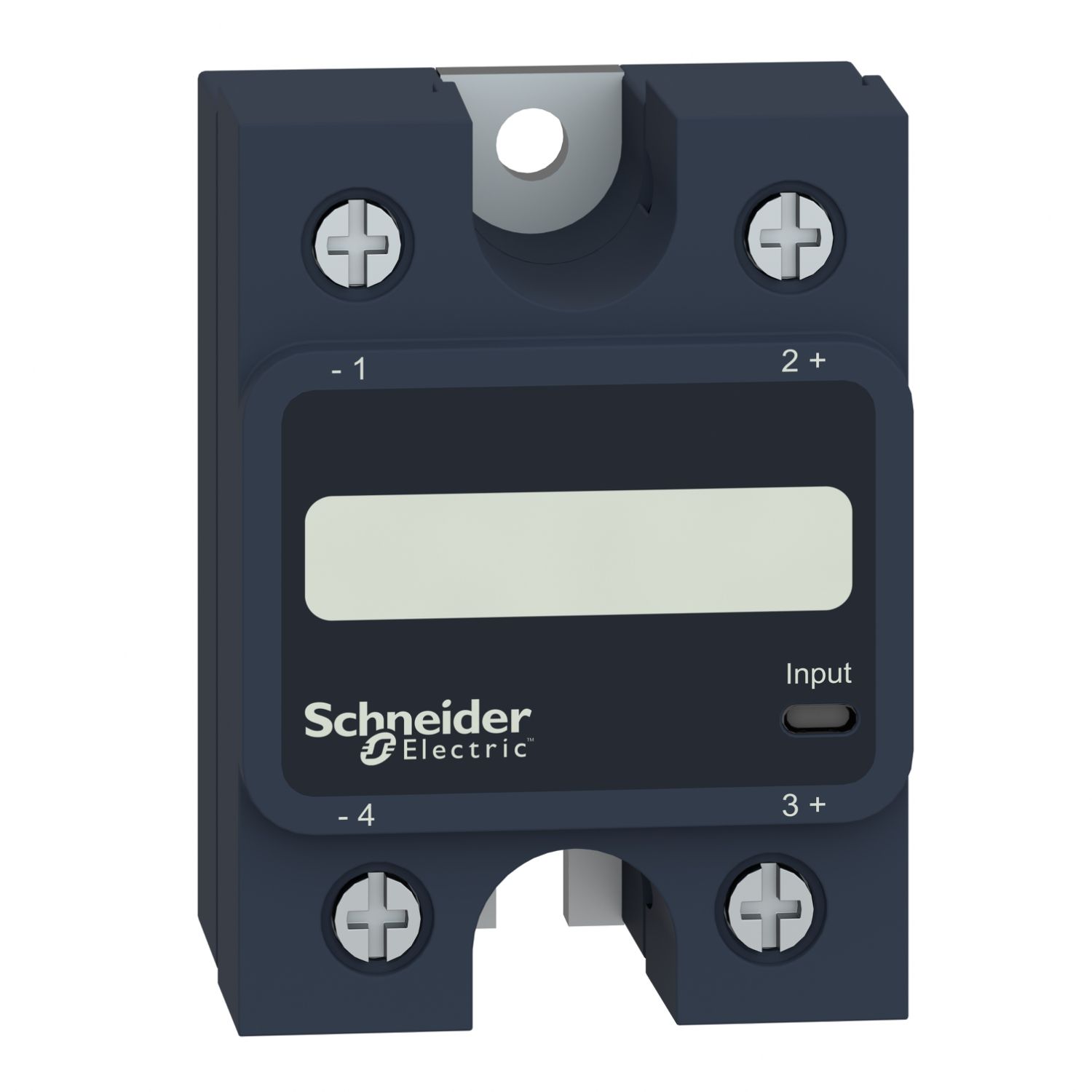

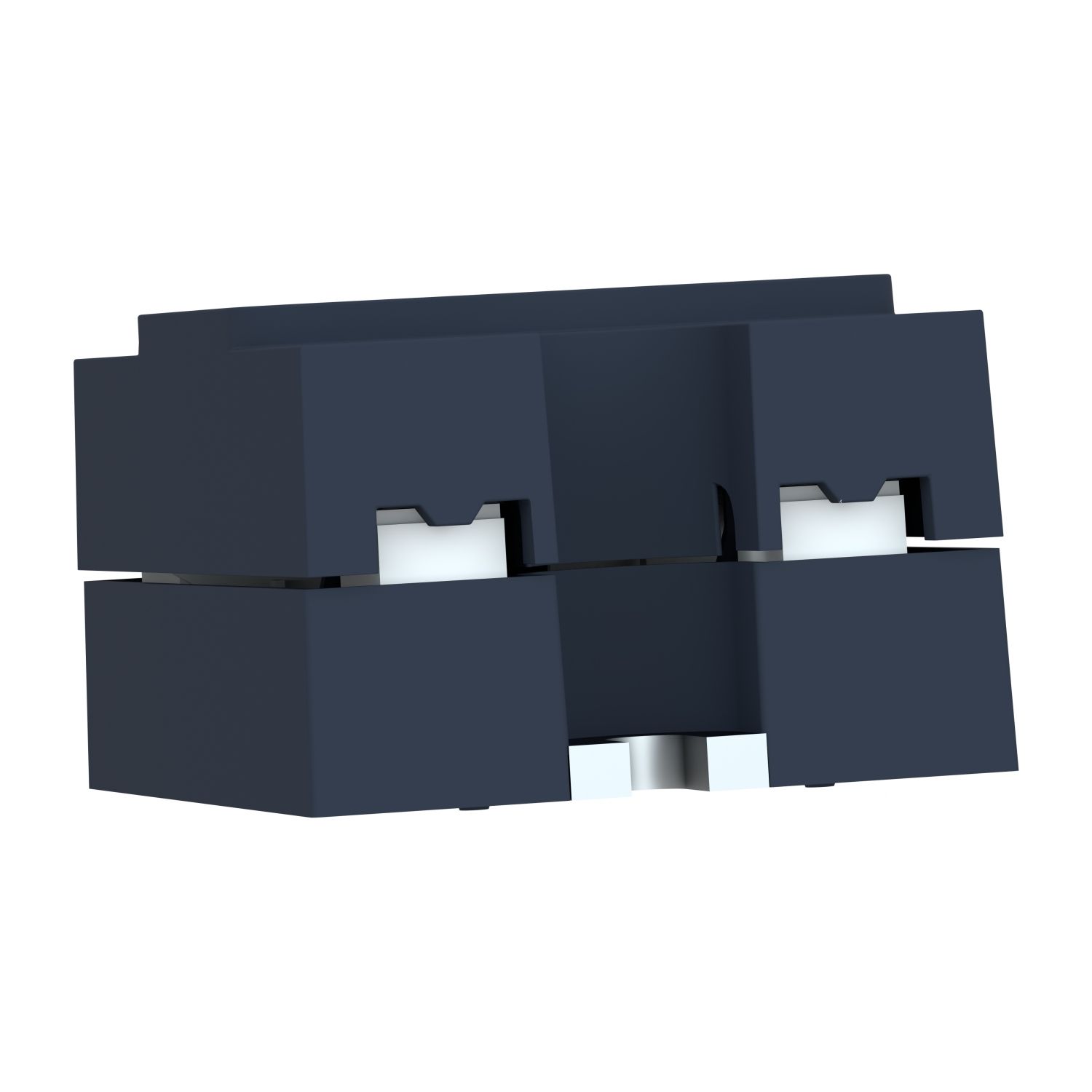

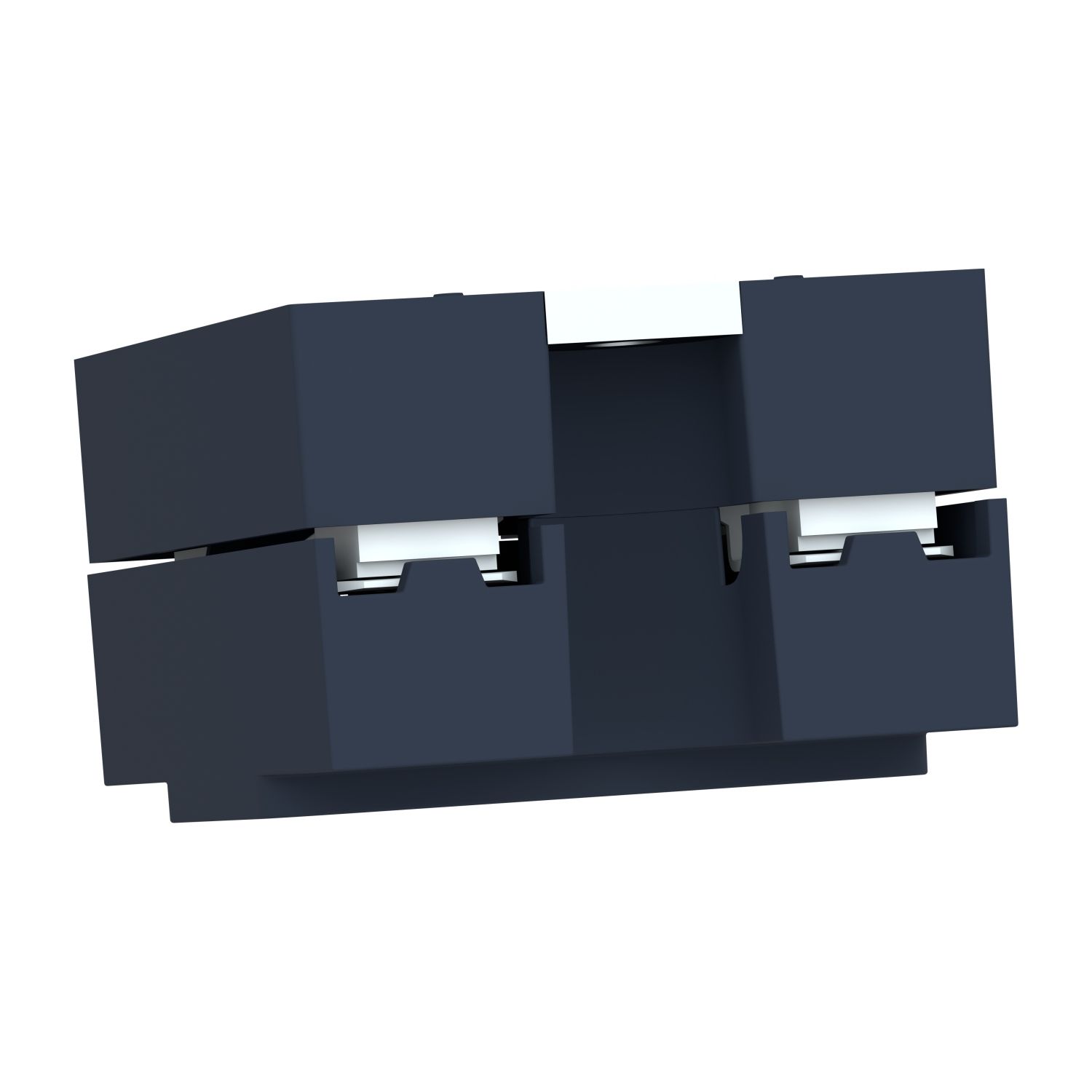

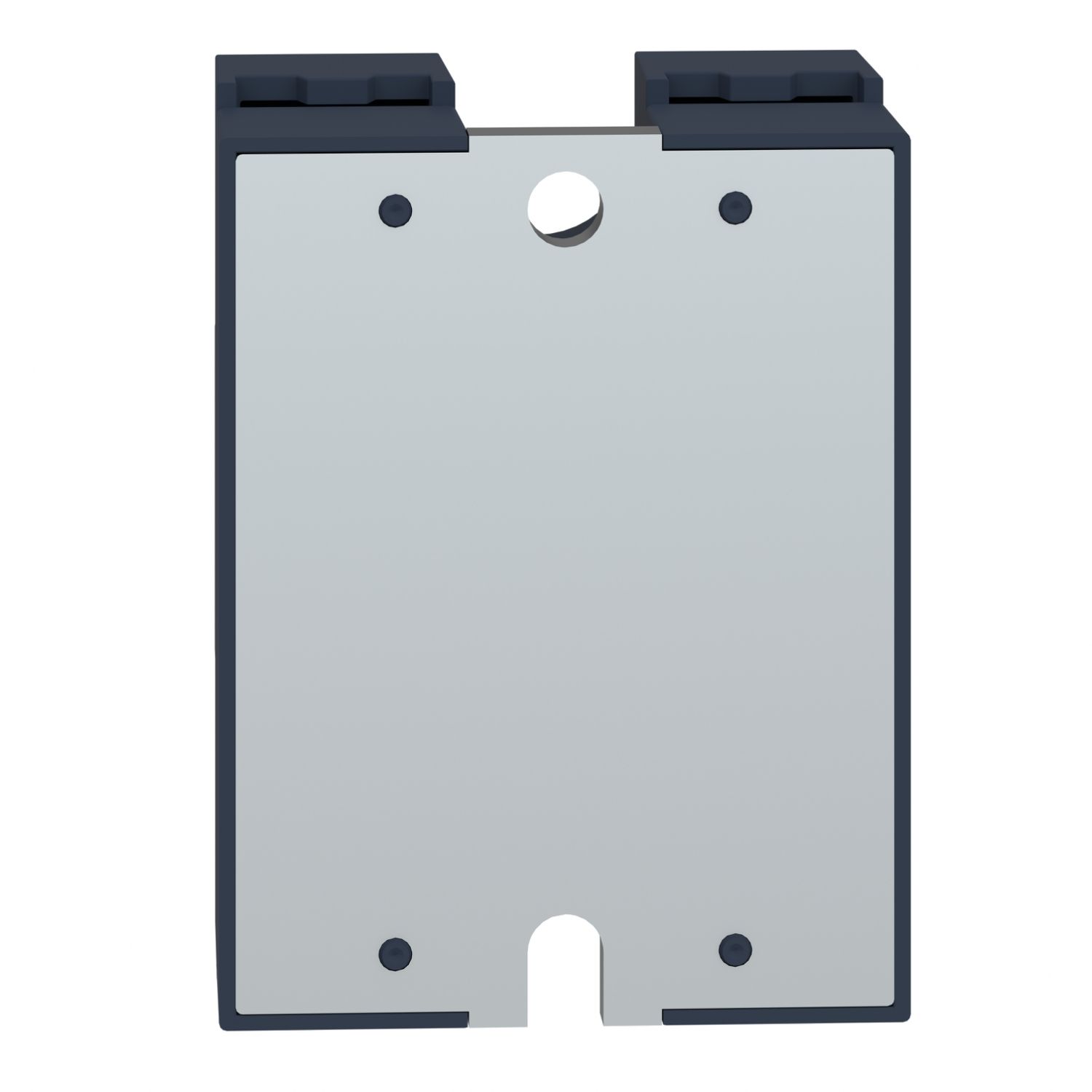

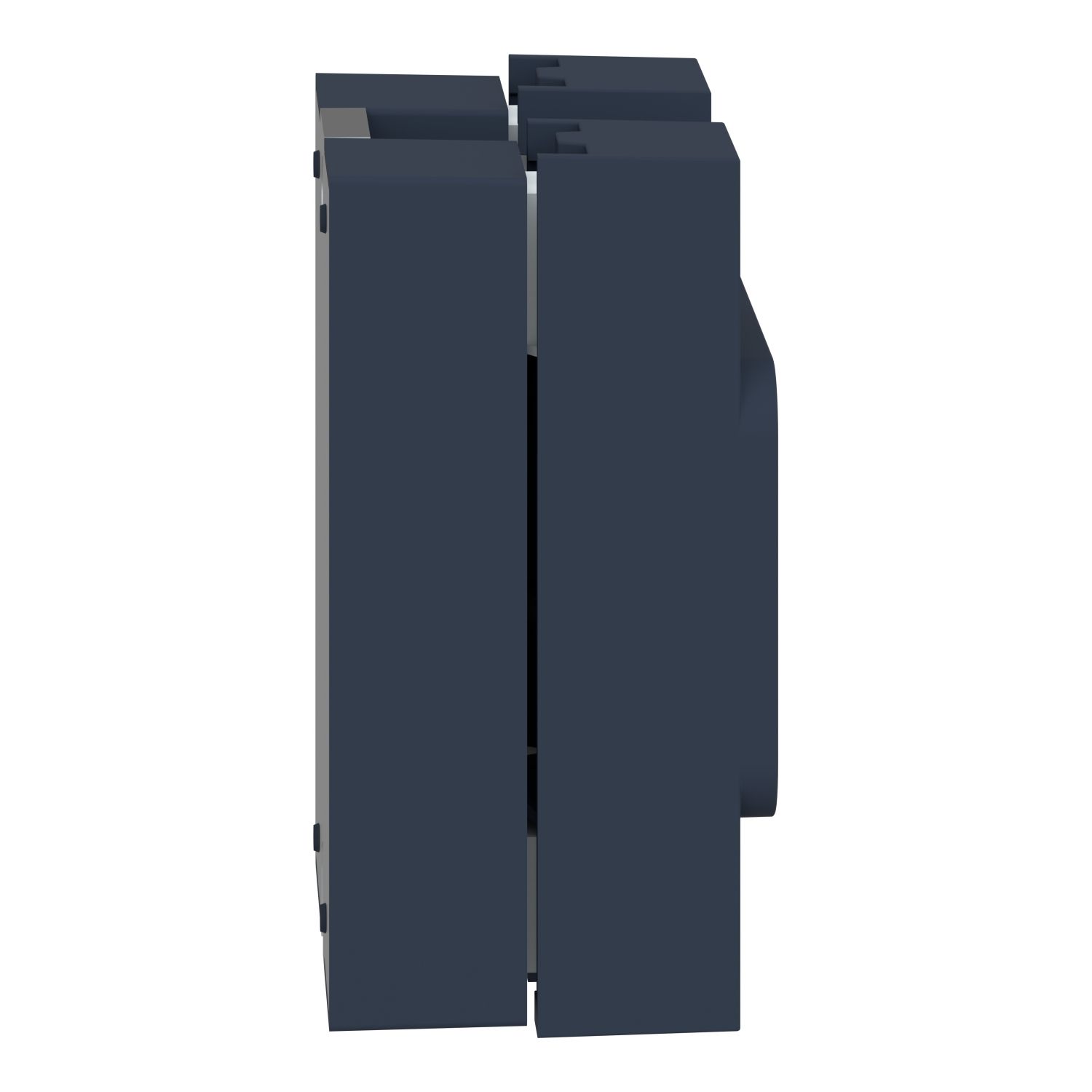

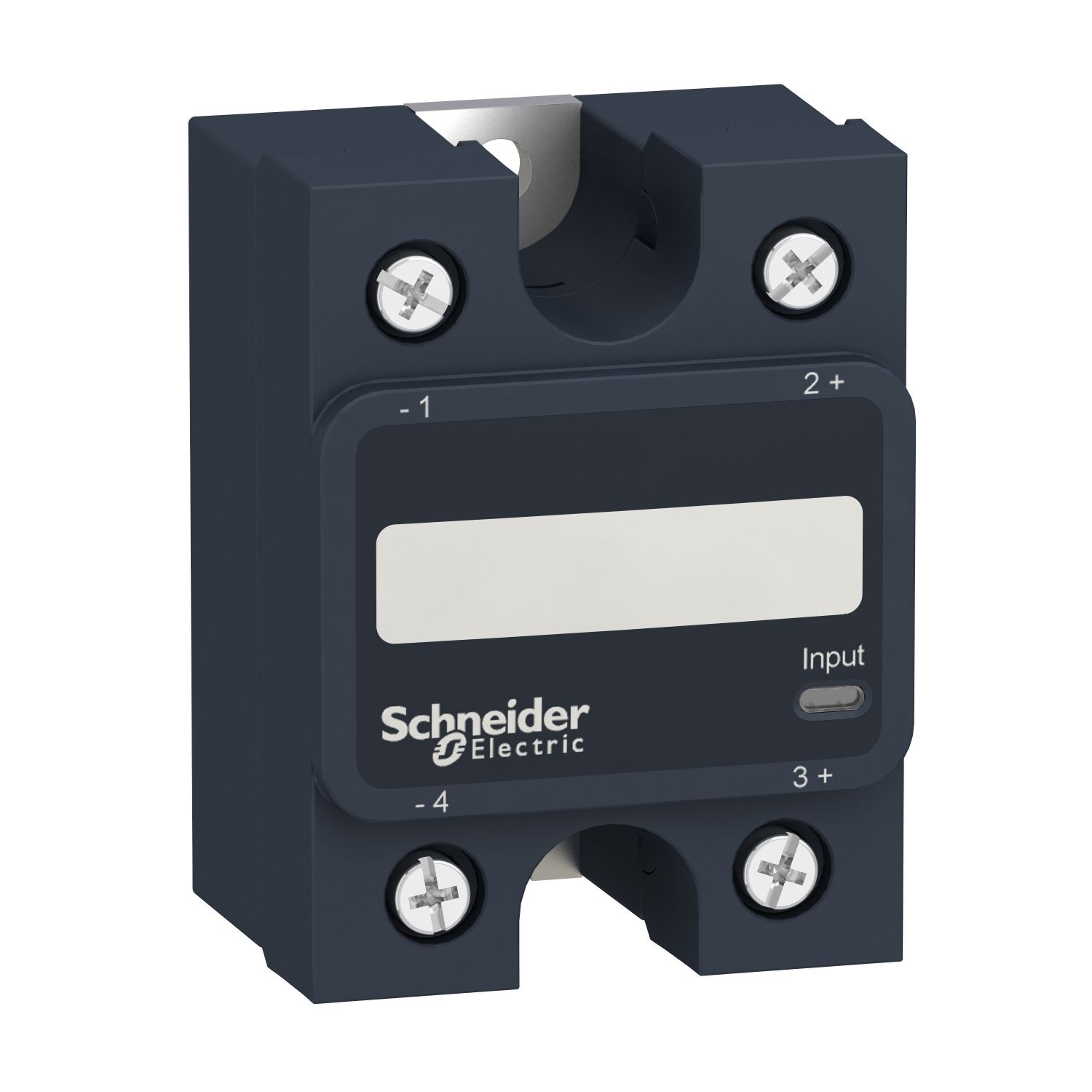

Picture of single phase relay, Harmony Solid State Relays, 25A, panel mount, DC switching, thermal pad, input 3.5 to 32V DC, output 1 to 150V DC, 1NO
Picture of single phase relay, Harmony Solid State Relays, 25A, panel mount, DC switching, thermal pad, input 3.5 to 32V DC, output 1 to 150V DC, 1NO
Picture of single phase relay, Harmony Solid State Relays, 25A, panel mount, DC switching, thermal pad, input 3.5 to 32V DC, output 1 to 150V DC, 1NO
Picture of single phase relay, Harmony Solid State Relays, 25A, panel mount, DC switching, thermal pad, input 3.5 to 32V DC, output 1 to 150V DC, 1NO
Picture of single phase relay, Harmony Solid State Relays, 25A, panel mount, DC switching, thermal pad, input 3.5 to 32V DC, output 1 to 150V DC, 1NO
Picture of single phase relay, Harmony Solid State Relays, 25A, panel mount, DC switching, thermal pad, input 3.5 to 32V DC, output 1 to 150V DC, 1NO
Picture of single phase relay, Harmony Solid State Relays, 25A, panel mount, DC switching, thermal pad, input 3.5 to 32V DC, output 1 to 150V DC, 1NO
Picture of single phase relay, Harmony Solid State Relays, 25A, panel mount, DC switching, thermal pad, input 3.5 to 32V DC, output 1 to 150V DC, 1NO
Picture of single phase relay, Harmony Solid State Relays, 25A, panel mount, DC switching, thermal pad, input 3.5 to 32V DC, output 1 to 150V DC, 1NO
SKU:

SSP1D425BDT

single phase relay, Harmony Solid State Relays, 25A, panel mount, DC switching, thermal pad, input 3.5 to 32V DC, output 1 to 150V DC, 1NO

Old price: $126.72 INC GST
$120.38 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
single phase relay, Harmony Solid State Relays, 25A, panel mount, DC switching, thermal pad, input 3.5 to 32V DC, output 1 to 150V DC, 1NO
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Environmental Disclosure
Catalog
Instruction sheet
Declaration of conformity

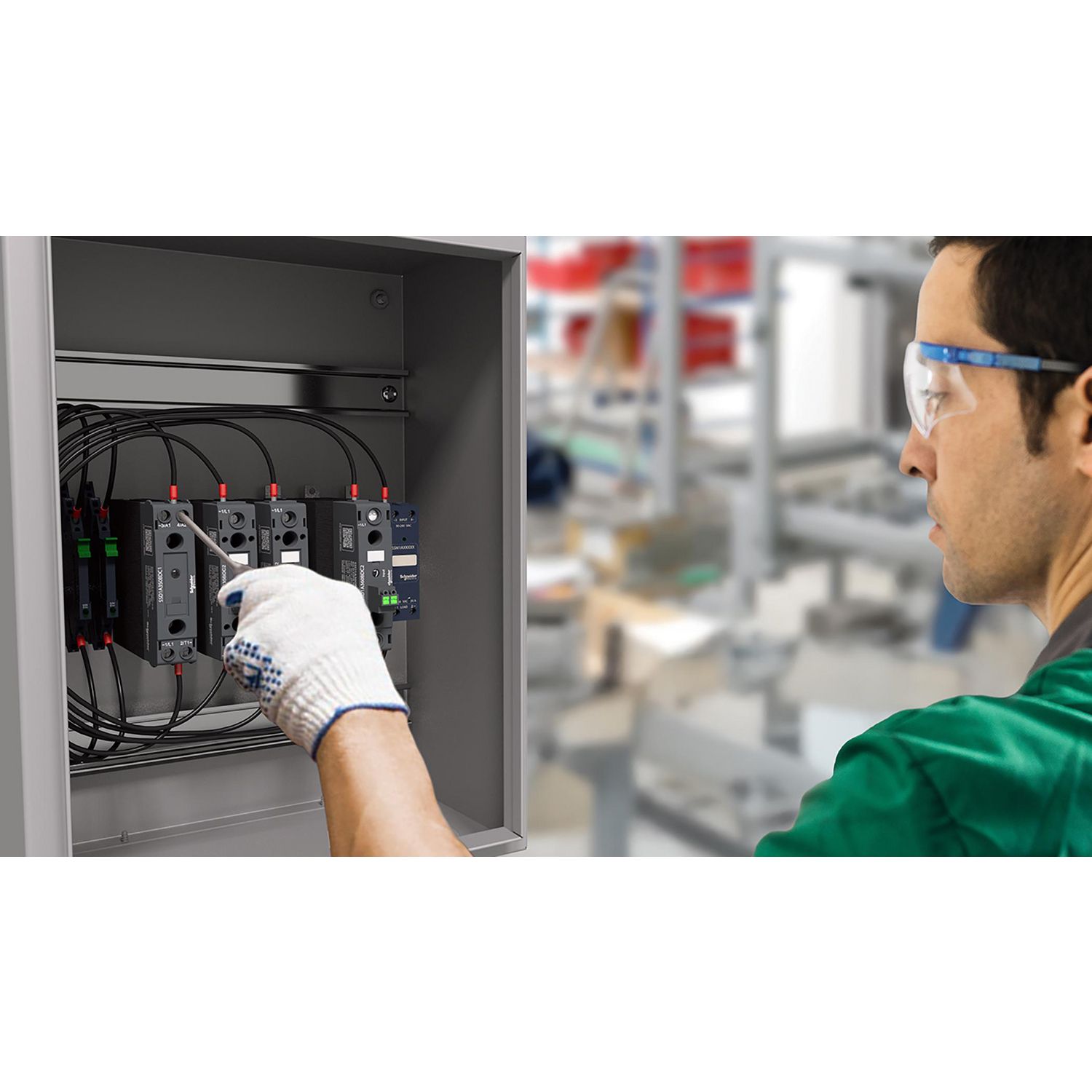

Image of product in real life situation
Circularity Profile
Product Page Link
Product Data Sheet
This Harmony SSP solid state panel mount single-phase relay is rated 25A, is controlled with a 3.5V to 32V DC input, has a rated load voltage of 1V to 150V DC with DC switching. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name SSP1
[Uc] control circuit voltage 3.5...32 V
[In] rated current 25 A
Provided equipment thermal pad
Solid state output type DC switching, Mosfet output
Network number of phases 1 phase
Product or component type solid state relay up to 30 A
Output switching mode DC switching
Mounting support panel
Range of product Harmony Solid State Relays
Connections - terminals screw connectors
Complementary
Protection device type type 2 - 13 A miniature circuit breaker (MCB) - curve B, type 1 - 25 A miniature circuit breaker (MCB) - curve B
Input current limits 10-15 mA
Capacitance unbalance 50 pF for input/output
Maximum switching voltage 1 V DC turn-off
Device presentation complete product
Thermal impedance 0.48 °C-in²/W at 25 psi
IP degree of protection IP20
Maximum leakage current 0.3 mA off-state
Minimum switching voltage 3.5 V DC turn-on
[Uimp] rated impulse withstand voltage 2.5 kV output to case
Net weight 89.2 g
Local signalling LED, green for input
Load current 0.001-25 A
Surge current 106 A for 10 ms
Response time 0.1 ms (turn-off), 0.1 ms (turn-on)
Dielectric strength 2.5 kV AC for input or output to case, 2.5 kV AC for input/output
Connections - terminals ring lugs: 11.7 x 4.5 mm for output, forked type tag connectors: 11.7 x 4.5 mm for output, ring lugs: 9.2 x 4 mm for input, forked type tag connectors: 9.2 x 4 mm for input, screw terminals: 0.5...8.26 mm², (AWG 20...AWG 8) without cable end for output, screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) without cable end for input, screw terminals: 0.5...5.26 mm², (AWG 20...AWG 10) with cable end for output, screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) with cable end for input
Maximum voltage drop <2.1 V on-state
Thermal resitance 0.22 °C/W junction to case
Insulation resistance 1000 MOhm at 500 V DC
Tightening torque 2...2.2 N.m for output, 1.5...1.7 N.m for input
Safety reliability data MTTFd = 1875.9 years, B10d = 1731395
Environment
Overvoltage category III
Ambient air temperature for storage -40-125 °C
Marking CSA, EAC, CE, UL
Pollution degree 2
Standards UL 508, IEC 60950-1, IEC 62314, CSA C22.2 No 14-13
Ambient air temperature for operation -40-80 °C
Product certifications CSA, UL, CE, EAC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.800 cm
Package 1 Width 4.800 cm
Package 1 Length 6.500 cm
Package 1 Weight 106.000 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.592 kg

Related products

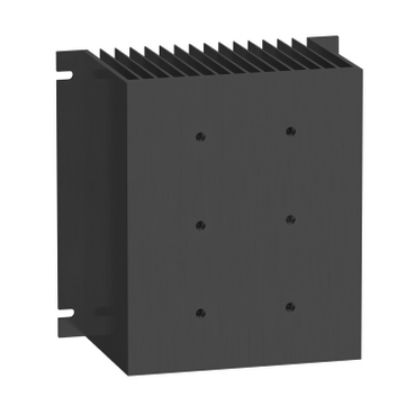

Harmony Solid State Relays, Heat sink, panel mount, thermal resistance 0.5 degree C W
