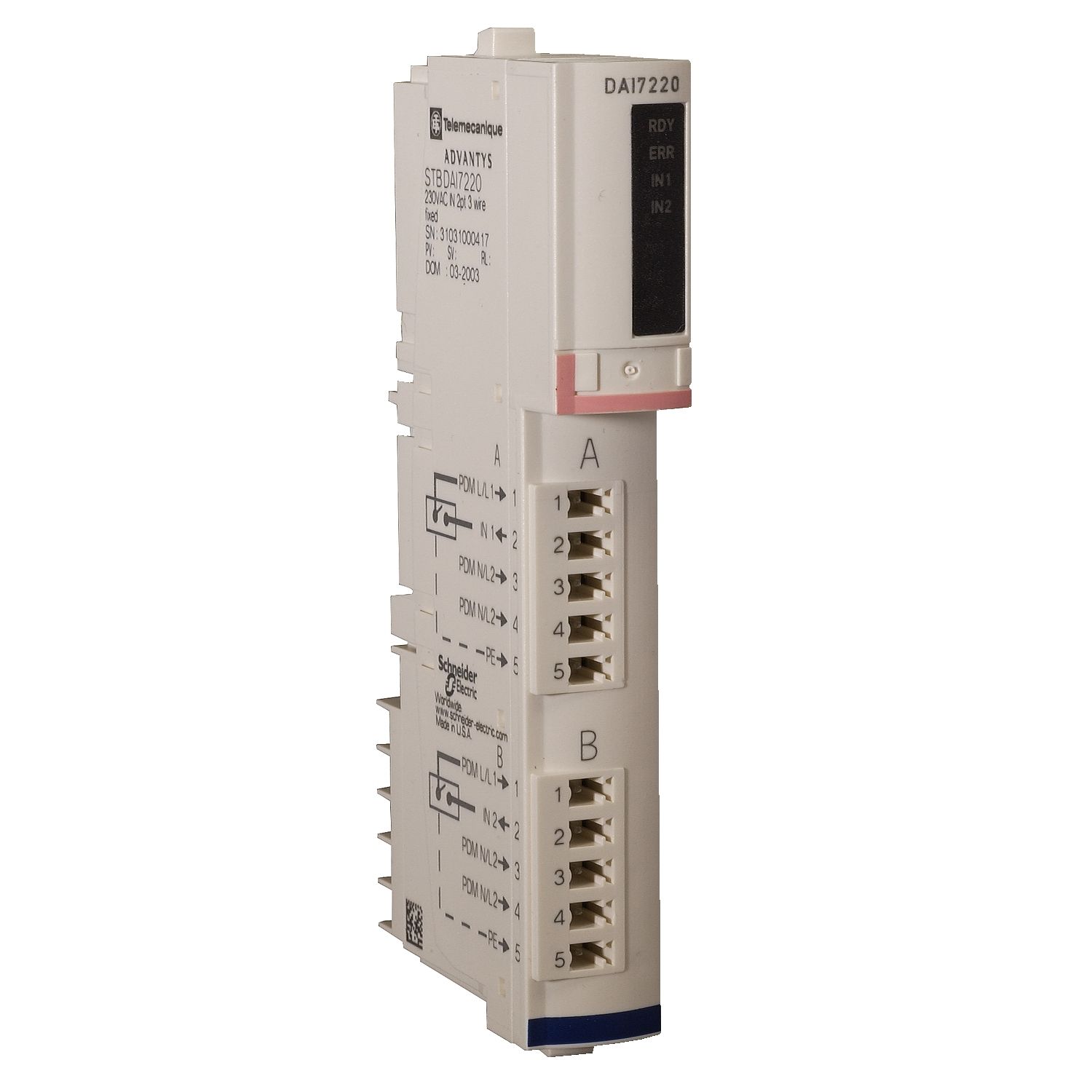

Picture of standard digital input kit - Modicon STB - 230 V AC - 2 I
SKU:

STBDAI7220K

standard digital input kit - Modicon STB - 230 V AC - 2 I

$458.21
Available for Shipping : 01-Jan-2025
standard digital input kit - Modicon STB - 230 V AC - 2 I
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
End of life manual
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Range of product Modicon STB distributed I/O solution
Kit composition STBXBA2000 base, STBXTS2110, 5-terminal spring clamp connector, STBDAI7220 module, STBXTS1110, 5-terminal screw type connector
Discrete input number 2
Product or component type standard digital input kit
Discrete input voltage type AC
Discrete input voltage 230 V
Complementary
Product compatibility I/O base STBXBA2000, power distribution module STBPDT2100/2105
Input voltage limits 159...256 V at state 1, 0...40 V at state 0
Current state 1 guaranteed >= 4 mA
Marking CE
Network frequency limits 47-63 Hz
Protection type input protection resistor-limited, power protection integrated fuse on PDM time lag 10 A
Permissible voltage 265 V
Hot swapping fallback yes for standard NIMs
Status LED 1 LED (red) module error (ERR), 1 LED per channel (green) channel status (IN1 to IN2), 1 LED (green) module status (RDY)
Height 18.4 mm
Cold swapping yes
Insulation between channels and logic bus 1780 V for 1 minute
[Us] rated supply voltage 115/230 V AC
Depth 65.1 mm
Overvoltage category II
Width 125 mm
Response time 1.5 ms on-to-off, 1.5 ms off-to-on
Net weight 0.122 kg
Current state 0 guaranteed <= 2 mA
Current consumption 40 mA at 5 V DC for logic bus
Supply power distribution module
Absolute maximum voltage 400 V 20 ms
Network frequency 50/60 Hz
Environment
Ambient air temperature for operation 32...140 °F without derating, 0-60 °C (without derating)
Relative humidity 95-95 % at 60-60 °C without condensation
Ambient air temperature for storage -40-85 °C without derating, -40...185 °F without derating
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 conforming to IEC 61131-2 class 1
Operating altitude <= 2000 m
Vibration resistance +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail
Shock resistance 30 gn for 11 ms conforming to IEC 88 reference 2-27
Standards EN/IEC 61131-2 type 1
Product certifications FM Class 1 Division 2, UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.7 cm
Package 1 Width 8.0 cm
Package 1 Length 13.0 cm
Package 1 Weight 139.0 g
Unit Type of Package 2 2
Number of Units in Package 2 28
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.318 kg
Unit Type of Package 3 3
Number of Units in Package 3 448
Package 3 Height 60.0 cm
Package 3 Width 80.0 cm
Package 3 Length 448.0 cm
Package 3 Weight 62.272 kg
