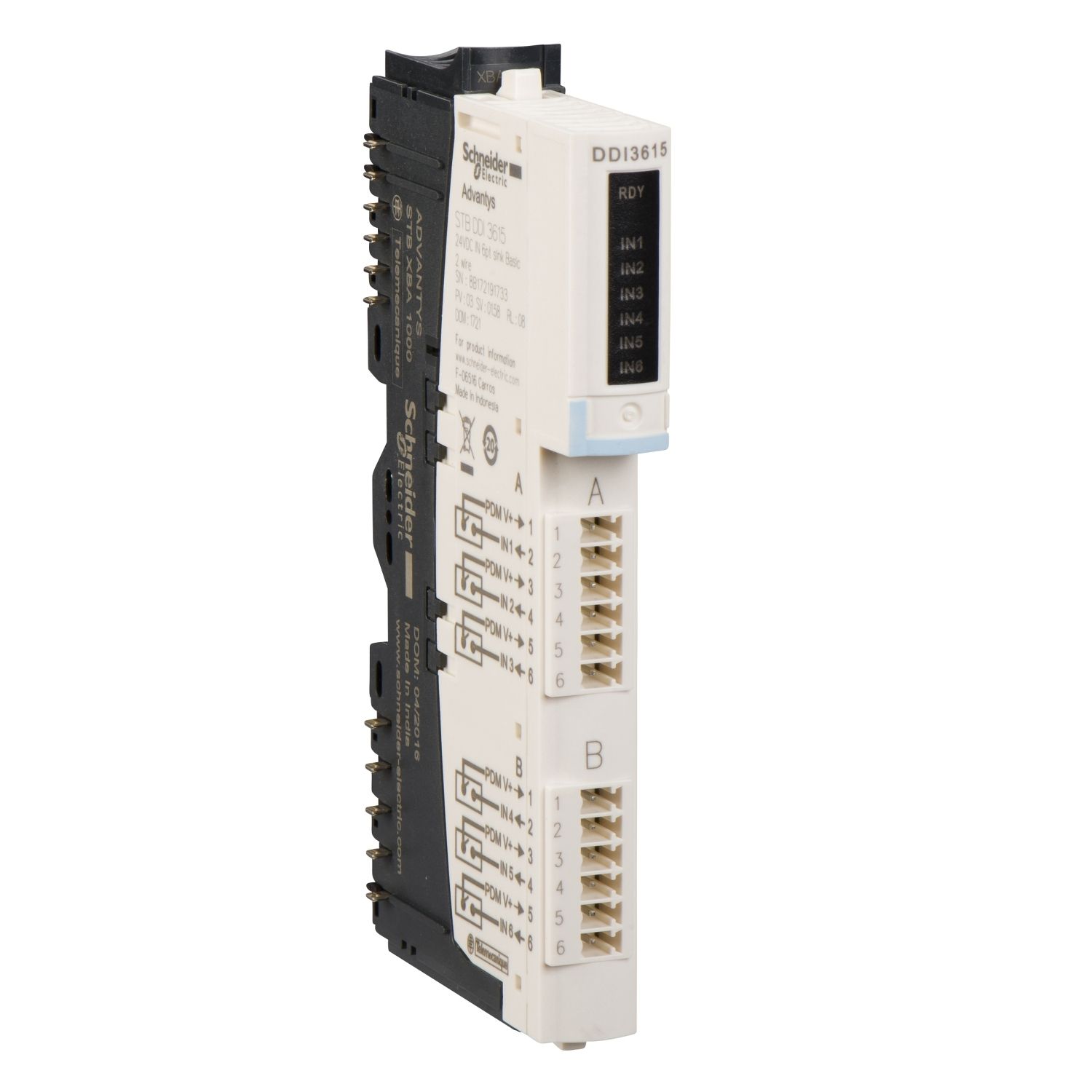

Picture of digital input kit, Modicon STB, basic, 24V DC, 4 I
SKU:

STBDDI3425K

digital input kit, Modicon STB, basic, 24V DC, 4 I

Please Contact Sales to buy this Product. click here
digital input kit, Modicon STB, basic, 24V DC, 4 I
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 25-Oct-2024
Product environmental
Catalogue
End of life manual
Declaration of conformity
Product Page Link
Product Data Sheet
This input kit is part of the Modicon STB range, an offer of modular distributed I/O. This basic digital input kit is an accessory kit for Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). The kit has 4 digital inputs. Setting can be done via Advantys STB configuration software. It weighs 0.11kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. These islands can be used to connect TeSys U or TeSys T motor starters, Altivar speed drives, encoders, Harmony HMI, etc. The kit includes STBXBA1000 base, STBDDI3425 module, STBXTS2100 6-terminal spring clamp connector, and STBXTS1100 6-terminal screw type connector. The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a primary controller via a bus or communication network.

Products specifications

Attribute nameAttribute value
Main
Range of productModicon STB distributed I/O solution
Kit compositionSTBXTS1100, 6-terminal screw type connector, STBXTS2100, 6-terminal spring clamp connector, STBDDI3425 module, STBXBA1000 base
Discrete input number4
Product or component typebasic digital input kit
Discrete input voltage typeDC
Discrete input voltage24 V
Complementary
Product compatibilitypower distribution module STBPDT3100/3105, I/O base STBXBA1000
Discrete input logicpositive
Input voltage limits-3...5 V at state 0, 11...30 V at state 1
Current state 1 guaranteed>= 2.5 mA
MarkingCE
Protection typereverse polarity protection, input protection resistor-limited, power protection integrated fuse on PDM time lag 5 A
Permissible voltage30 V
Hot swapping fallbackyes for basic NIMs
Status LED1 LED per channel (green) channel status (IN1 to IN4), 1 LED (green) module status (RDY)
Current supplied by sensor50 mA per channel
Height18.4 mm
Cold swappingyes
Insulation between channels and logic bus1500 V for 1 minute
Input filtering3 ms
[Us] rated supply voltage24 V DC
Depth65.1 mm
Overvoltage categoryII
Width125 mm
Response time3.8 ms on-to-off, 3.5 ms off-to-on
Net weight0.111 kg
Current state 0 guaranteed<= 1.2 mA
Discrete input current8 mA
Current consumption45 mA at 5 V DC for logic bus
Supplypower distribution module
Absolute maximum voltage56 V 1.3 ms
Environment
Ambient air temperature for operation32...140 °F without derating, 0-60 °C (without derating)
Relative humidity95-95 % at 60-60 °C without condensation
Ambient air temperature for storage-40-85 °C without derating, -40...185 °F without derating
Pollution degree2 conforming to IEC 60664-1
IP degree of protectionIP20 conforming to IEC 61131-2 class 1
Operating altitude<= 2000 m
Vibration resistance+/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail
Shock resistance30 gn for 11 ms conforming to IEC 88 reference 2-27
StandardsIEC 61131-2 Type 1
Product certificationsCSA, FM Class 1 Division 2, UL
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height2.5 cm
Package 1 Width8.0 cm
Package 1 Length13.0 cm
Package 1 Weight133.0 g
Unit Type of Package 22
Number of Units in Package 228
Package 2 Height15.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight4.15 kg
Unit Type of Package 33
Number of Units in Package 3448
Package 3 Height60.0 cm
Package 3 Width80.0 cm
Package 3 Length448.0 cm
Package 3 Weight59.584 kg
