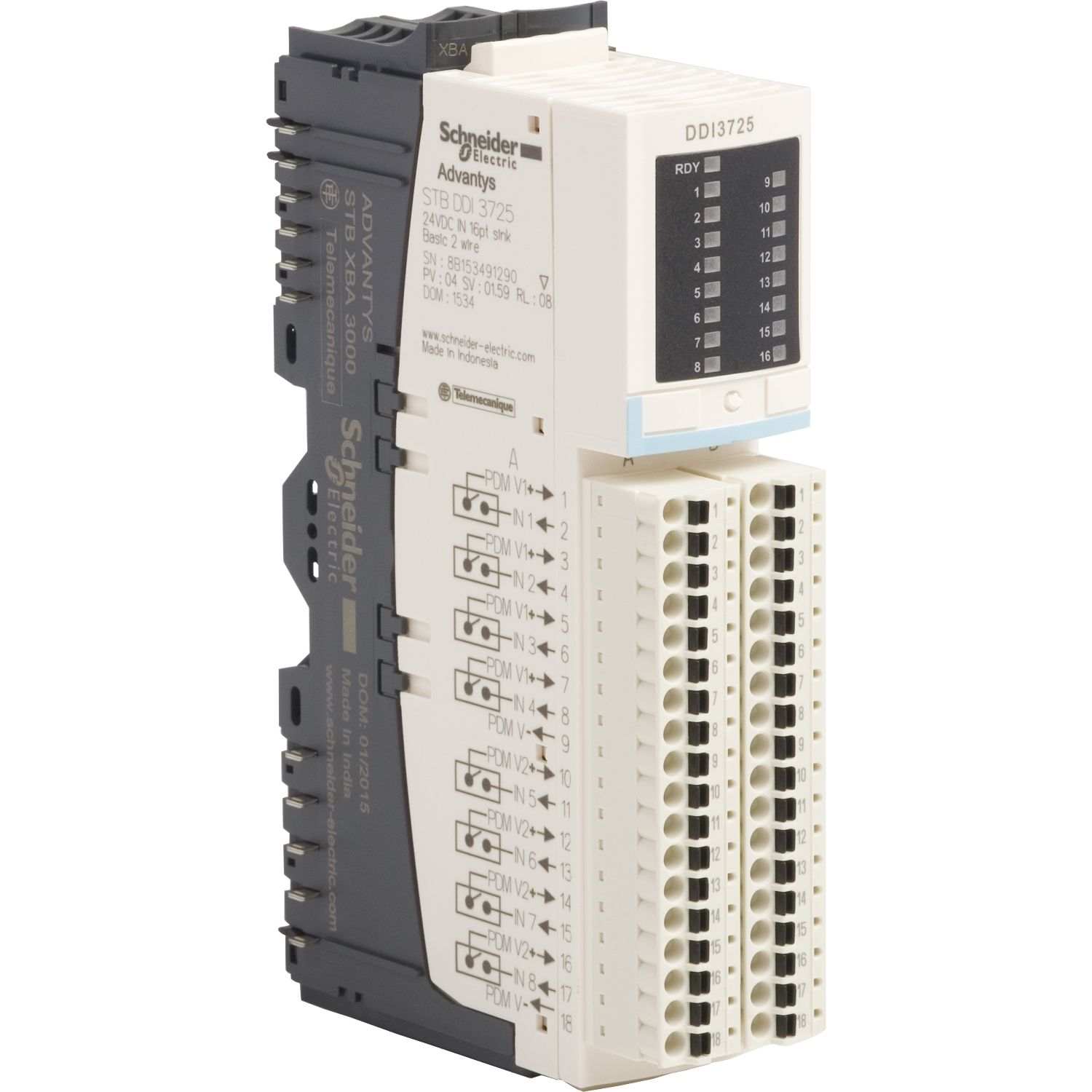

Picture of basic digital input kit, Modicon STB, 24V DC, 16I, spring clamp connector
SKU:

STBDDI3725KC

basic digital input kit, Modicon STB, 24V DC, 16I, spring clamp connector

Please Contact Sales to buy this Product. click here
basic digital input kit, Modicon STB, 24V DC, 16I, spring clamp connector
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 13-Oct-2024
Product environmental
End of life manual
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic discrete input kit has 16 discrete inputs with positive logic. It is a discrete input kit with a rated supply voltage of 24V DC and a current consumption of 100mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 28.1mm (Length) x 65.1mm (width) x 125mm (depth) and weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with I/O base STBXBA3000 and power distribution module STBPDT3100/3105. The kit includes STBXTS2180, 18-terminal spring clamp connector, STBDDI3725 module and STBXBA3000 base. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.

Products specifications

Attribute nameAttribute value
Main
Range of productModicon STB distributed I/O solution
Kit compositionSTBXBA3000 base, STBDDI3725 module, STBXTS2180, 18-terminal spring clamp connector
Discrete input number16
Product or component typebasic digital input kit
Discrete input voltage typeDC
Discrete input voltage24 V
Complementary
Product compatibilitypower distribution module STBPDT3100/3105, I/O base STBXBA3000
Discrete input logicpositive
Input voltage limits-3...5 V at state 0, 11...30 V at state 1
Current state 1 guaranteed>= 2.5 mA
MarkingCE
Protection typereverse polarity protection, input protection resistor-limited, power protection integrated fuse on PDM time lag 5 A
Permissible voltage30 V
Hot swapping fallbackyes for basic NIMs
Status LED1 LED per channel (green) channel status (IN1 to IN16), 1 LED (green) module status (RDY)
Height125 mm
Cold swappingyes
Insulation between channels and logic bus1500 V for 1 minute
[Us] rated supply voltage24 V DC
Depth65.1 mm
Overvoltage categoryII
Width28.1 mm
Response time2 ms on-to-off, 2 ms off-to-on
Net weight0.086 kg
Current state 0 guaranteed<= 1.5 mA
Discrete input current4.5 mA
Current consumption100 mA at 5 V DC for logic bus
Supplypower distribution module
Environment
Ambient air temperature for operation32...140 °F without derating, -25-70 °C (without derating)
Relative humidity95-95 % at 60-60 °C without condensation
Ambient air temperature for storage-40-85 °C without derating, -40...185 °F without derating
Pollution degree2 conforming to IEC 60664-1
IP degree of protectionIP20 conforming to EN 61131-2 class 1
Operating altitude<= 2000 m
Vibration resistance+/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail
Shock resistance30 gn for 11 ms conforming to IEC 88 reference 2-27
StandardsEN/IEC 61131-2 type 3
Product certificationsCSA, UL, FM Class 1 Division 2
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height3.5 cm
Package 1 Width7.8 cm
Package 1 Length13 cm
Package 1 Weight188 g
Unit Type of Package 22
Number of Units in Package 220
Package 2 Height15 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight4.246 kg
Unit Type of Package 33
Number of Units in Package 3320
Package 3 Height75.0 cm
Package 3 Width60.0 cm
Package 3 Length80.0 cm
Package 3 Weight78.96 kg
