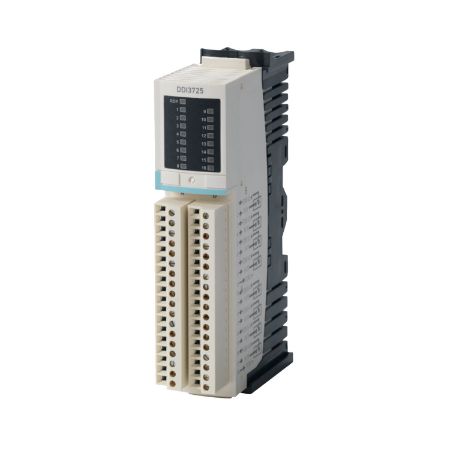

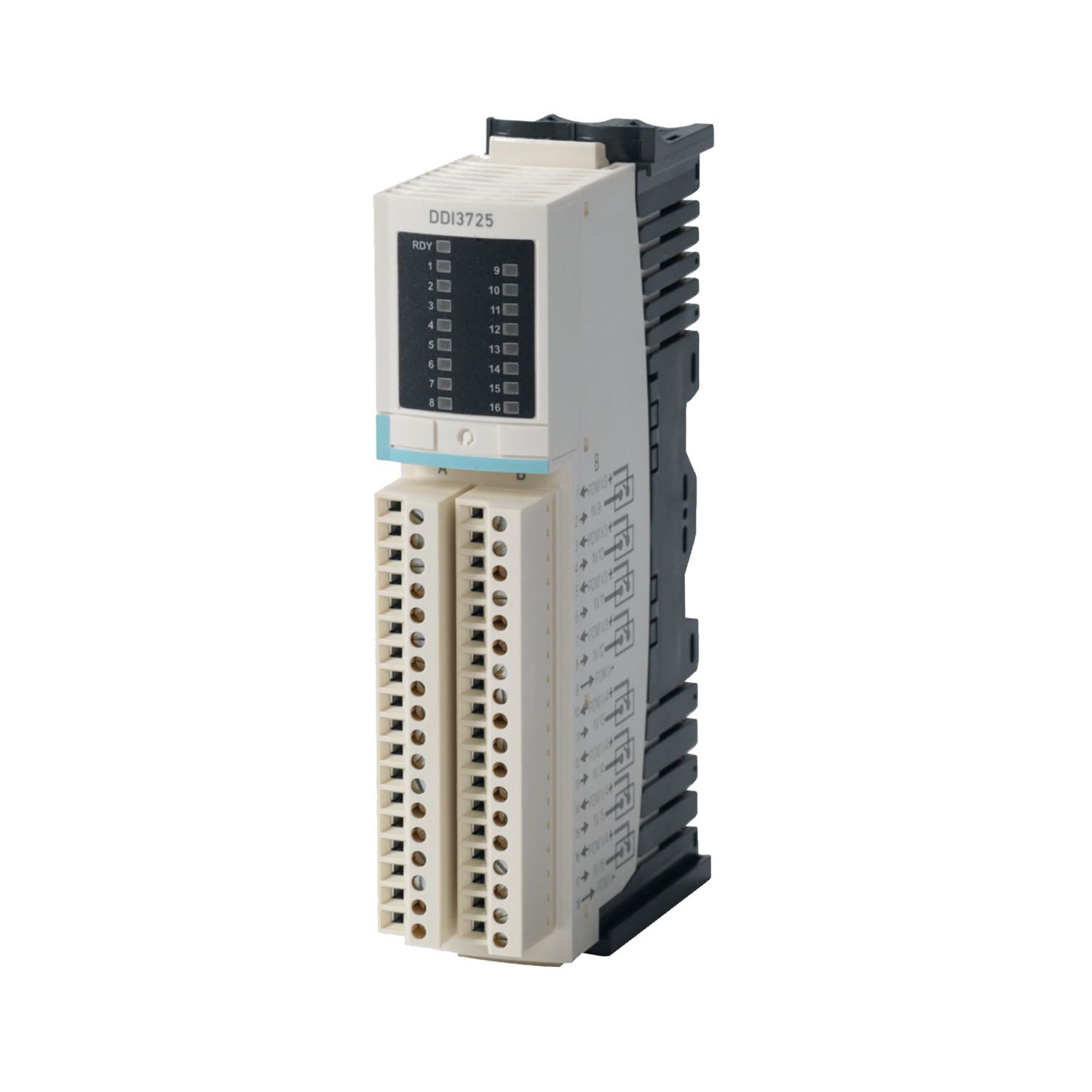

Picture of basic digital input kit, Modicon STB, 24V DC, 16I, screw connector
SKU:

STBDDI3725KS

basic digital input kit, Modicon STB, 24V DC, 16I, screw connector

$715.54 INC GST
Available for Shipping : 23-Jan-2025
basic digital input kit, Modicon STB, 24V DC, 16I, screw connector
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Catalogue
End of life manual
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic discrete input kit has 16 discrete inputs with positive logic. It is a discrete input kit with a rated supply voltage of 24V DC and a current consumption of 100mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 125mm (width) x 65.1mm (depth) x 18.4mm (height) and weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with I/O base STBXBA3000 and power distribution module STBPDT3100/3105. The kit includes STBXTS1180, 18-terminal screw type connector, STBDDI3725 module and STBXBA3000 base. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.

Products specifications

Attribute name Attribute value
Main
Range of product Modicon STB distributed I/O solution
Kit composition STBXBA3000 base, STBDDI3725 module, STBXTS1180, 18-terminal screw type connector
Discrete input number 16
Product or component type basic digital input kit
Discrete input voltage type DC
Discrete input voltage 24 V
Complementary
Product compatibility power distribution module STBPDT3100/3105, I/O base STBXBA3000
Discrete input logic positive
Input voltage limits -3...5 V at state 0, 11...30 V at state 1
Current state 1 guaranteed >= 2.5 mA
Marking CE
Protection type reverse polarity protection, input protection resistor-limited, power protection integrated fuse on PDM time lag 5 A
Permissible voltage 30 V
Hot swapping fallback yes for basic NIMs
Status LED 1 LED per channel (green) channel status (IN1 to IN16), 1 LED (green) module status (RDY)
Height 18.4 mm
Cold swapping yes
Insulation between channels and logic bus 1500 V for 1 minute
[Us] rated supply voltage 24 V DC
Depth 65.1 mm
Overvoltage category II
Width 125 mm
Response time 2 ms on-to-off, 2 ms off-to-on
Net weight 0.086 kg
Current state 0 guaranteed <= 1.5 mA
Discrete input current 4.5 mA
Current consumption 100 mA at 5 V DC for logic bus
Supply power distribution module
Environment
Ambient air temperature for operation 32...140 °F without derating, -25-70 °C (without derating)
Relative humidity 95-95 % at 60-60 °C without condensation
Ambient air temperature for storage -40-85 °C without derating, -40...185 °F without derating
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 conforming to IEC 61131-2 class 1
Operating altitude <= 2000 m
Vibration resistance +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail
Shock resistance 30 gn for 11 ms conforming to IEC 88 reference 2-27
Standards IEC 61131-2 type 3
Product certifications CSA, FM Class 1 Division 2, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.54 cm
Package 1 Width 8.002 cm
Package 1 Length 13.128 cm
Package 1 Weight 210.0 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 4.72 kg
Unit Type of Package 3 3
Number of Units in Package 3 320
Package 3 Height 75.0 cm
Package 3 Width 60.0 cm
Package 3 Length 80.0 cm
Package 3 Weight 83 kg

Related products

Picture of mounting base, Modicon STB, for IO module, 28.1mm

mounting base, Modicon STB, for IO module, 28.1mm

STBXBA3000
$122.34 INC GST
View Detail

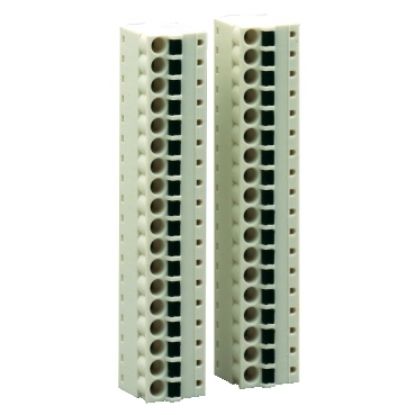

Picture of Modicon STB - 18 pin removable connector - for digital I/O module
