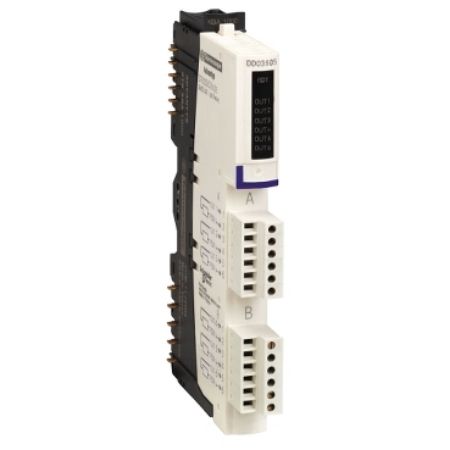

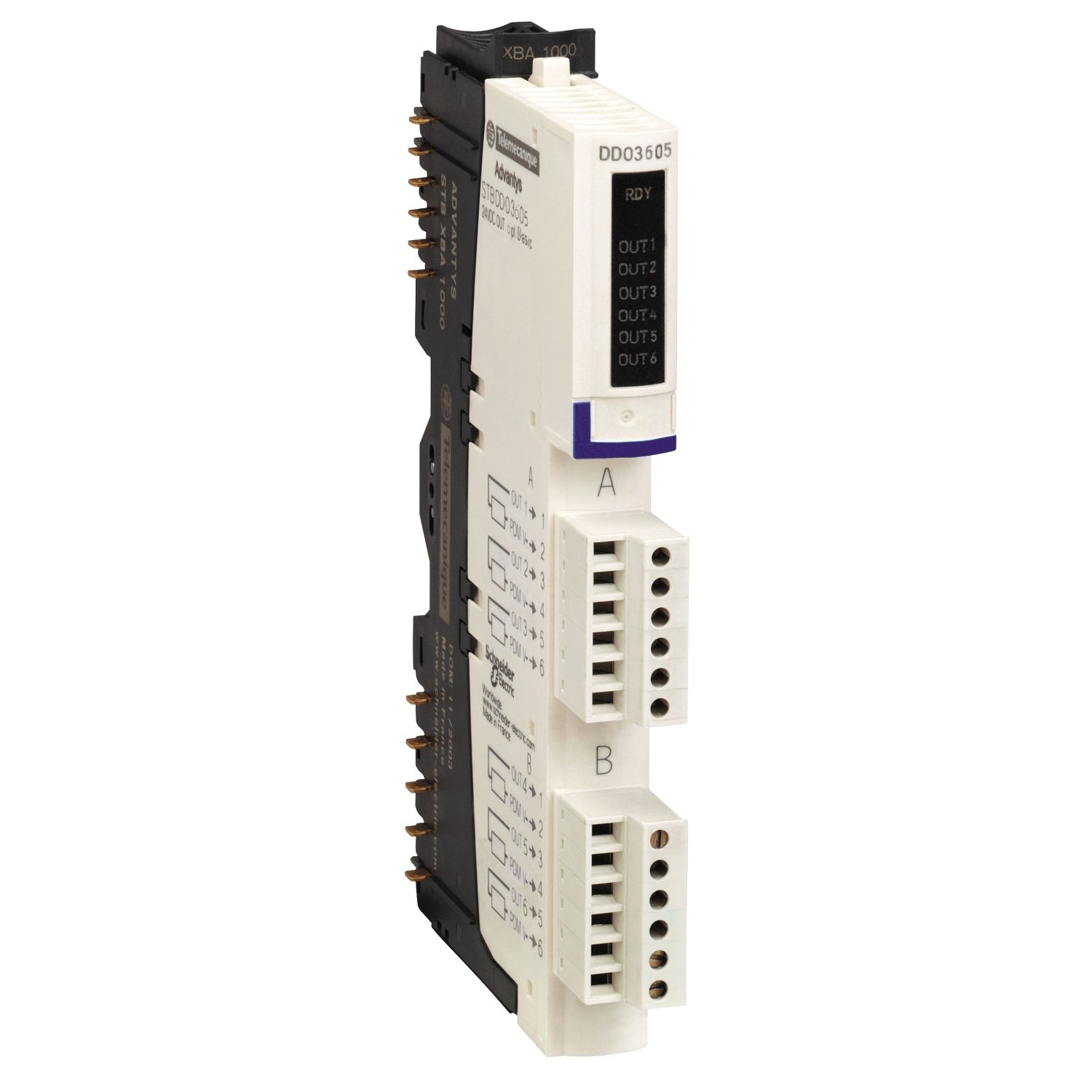

Picture of digital output kit, Modicon STB, basic, 24V DC, 6 O
SKU:

STBDDO3605K

digital output kit, Modicon STB, basic, 24V DC, 6 O

Please Contact Sales to buy this Product. click here
digital output kit, Modicon STB, basic, 24V DC, 6 O
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 25-Oct-2024
Product environmental
Catalogue
End of life manual
Declaration of conformity
Product Page Link
Product Data Sheet
This output kit is part of the Modicon STB range, an offer of modular distributed I/O. This basic digital output kit is an accessory kit for Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). The kit has 6 digital outputs. Setting can be done via Advantys STB configuration software. It weighs 0.11kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. The kit includes STBXBA1000 base, STBDDO3605 module, STBXTS2100, 6-terminal spring clamp connector, and STBXTS1100 6-terminal screw type connector. The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a primary controller via a bus or communication network.

Products specifications

Attribute nameAttribute value
Main
Discrete output voltage typeDC
Range of productModicon STB distributed I/O solution
Discrete output typesolid state
Kit compositionSTBXTS1100, 6-terminal screw type connector, STBXBA1000 base, STBXTS2100, 6-terminal spring clamp connector, STBDDO3605 module
Discrete output number6
Discrete output voltage24 V
Product or component typebasic digital output kit
Complementary
Maximum load capacitance50 µF
Product compatibilitypower distribution module STBPDT3100/3105, I/O base STBXBA1000
Discrete output current250 mA
MarkingCE
Protection typethermal overload protection, short-circuit protection,  reverse polarity protection, power protection integrated fuse on PDM time lag 5 A
Response time900 µs on-to-off, 550 µs off-to-on
Maximum load inductance500 mH at 4 Hz
Hot swapping fallbackno for basic NIMs
Output voltage19.2...30 V DC
Status LED1 LED per channel (green) channel status (OUT1 to OUT6), 1 LED (green) module status (RDY)
Discrete output logicpositive
Height13.9 mm
Cold swappingyes
Insulation between channels and logic bus1500 V for 1 minute
[Us] rated supply voltage24 V DC
Maximum leakage current0.4 mA at state 0 30 V
Depth70 mm
Overvoltage categoryII
Width128.3 mm
Net weight0.114 kg
Current consumption90 mA at 5 V DC for logic bus
Surge current2.5 A 0.5 ms
Supplypower distribution module
Absolute maximum voltage56 V 1.3 ms
Resetmanual or automatic reset COM fault
Environment
Ambient air temperature for operation32...140 °F without derating, 0-60 °C (without derating)
Relative humidity95-95 % at 60-60 °C without condensation
Ambient air temperature for storage-40-85 °C without derating, -40...185 °F without derating
Pollution degree2 conforming to IEC 60664-1
IP degree of protectionIP20 conforming to IEC 61131-2 class 1
Operating altitude<= 2000 m
Vibration resistance+/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail
Shock resistance30 gn for 11 ms conforming to IEC 88 reference 2-27
StandardsIEC 61131-2
Product certificationsFM Class 1 Division 2, CSA, UL
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height2.7 cm
Package 1 Width8 cm
Package 1 Length13 cm
Package 1 Weight137 g
Unit Type of Package 22
Number of Units in Package 228
Package 2 Height15 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight4.262 kg
Unit Type of Package 33
Number of Units in Package 3448
Package 3 Height75.0 cm
Package 3 Width40.0 cm
Package 3 Length80.0 cm
Package 3 Weight86.376 kg

Related products

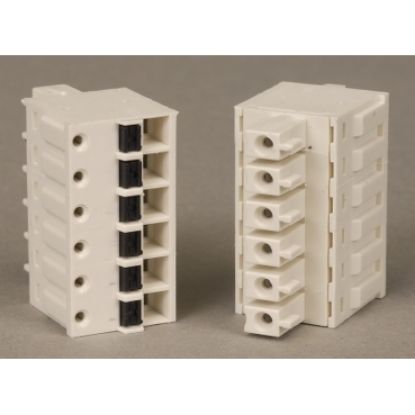

Picture of Modicon STB - 6 pin removable connector - for digital I/O module

Modicon STB - 6 pin removable connector - for digital I/O module

STBXTS2100
Please Contact Sales to buy this Product. click here
View Detail

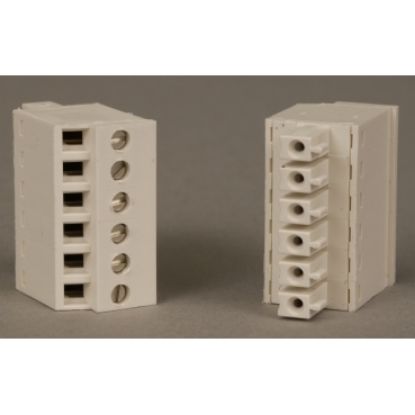

Picture of Modicon STB - 6 pin removable connector - for digital I/O module

Modicon STB - 6 pin removable connector - for digital I/O module

STBXTS1100
Please Contact Sales to buy this Product. click here
View Detail

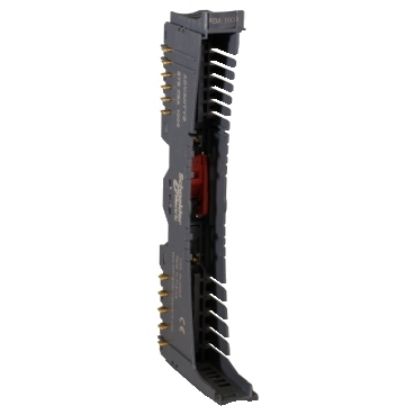

Picture of Modicon STB - mounting base - for I/O module - 13.9 mm
