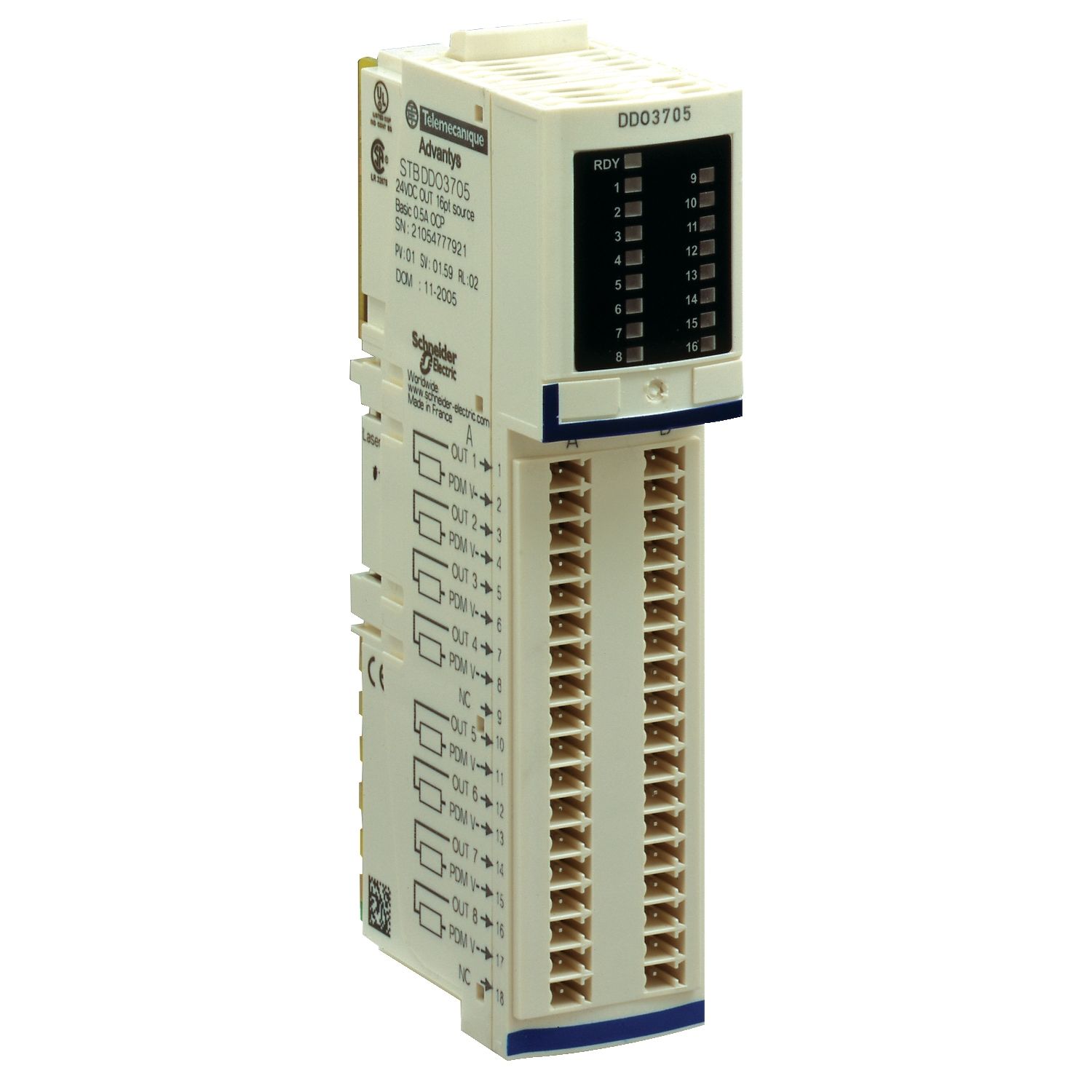

basic digital output module STB - 24 V DC - 16 O

$775.34 INC GST
Availability: Please contact our sales team on 1300 724 622.
basic digital output module STB - 24 V DC - 16 O
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
User guide
End of life manual
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet
This output module is part of the Modicon STB range, an offer of IP20 modular distributed I/Os on multiple networks and fieldbus. This basic digital output module offers 16 outputs with positive discrete output logic. It offers discrete output voltage of 24V DC with solid state discrete output. There is an insulation between channels and logic bus at 1500V for 1 minute. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height). It weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It meets EN/IEC 61131-2 standard. It is compatible with I/O base STBXBA3000 and power distribution module STBPDT3100/3105. Advantys distributed I/O solutions are simple, open and flexible, meeting needs in every stage of the product life cycle. For distributed connection to sensors and actuators from a PLC with prefabricated cables.

Products specifications

Attribute name Attribute value
Main
Discrete output voltage type DC
Range of product Modicon STB distributed I/O solution
Discrete output type solid state
Discrete output number 16
Discrete output voltage 24 V
Product or component type basic digital output module
Complementary
Maximum load capacitance 10 µF
Product compatibility I/O base STBXBA3000, power distribution module STBPDT3100/3105
Discrete output current 500 mA
Marking CE
Protection type thermal overload protection, short-circuit protection,  reverse polarity protection, power protection integrated fuse on PDM time lag 5 A
Response time 2 ms on-to-off, 2 ms off-to-on
Maximum load inductance 1000 mH at 4 Hz
Hot swapping fallback no for basic NIMs
Output voltage 19.2...30 V DC
Status LED 1 LED per channel (green) channel status (OUT1 to OUT16), 1 LED (green) module status (RDY)
Discrete output logic positive
Height 13.9 mm
Cold swapping yes
Insulation between channels and logic bus 1500 V for 1 minute
[Us] rated supply voltage 24 V DC
Maximum leakage current 0.4 mA at state 0 30 V
Depth 70 mm
Overvoltage category II
Width 128.3 mm
Net weight 0.086 kg
Current consumption 135 mA at 5 V DC for logic bus
Supply power distribution module
Absolute maximum voltage 35 V 1.3 ms
Reset manual reset COM fault
Environment
Ambient air temperature for operation 32...140 °F without derating, 0-60 °C (without derating)
Relative humidity 95-95 % at 60-60 °C without condensation
Ambient air temperature for storage -40-85 °C without derating, -40...185 °F without derating
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 conforming to IEC 61131-2 class 1
Operating altitude <= 2000 m
Vibration resistance +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail
Shock resistance 30 gn for 11 ms conforming to IEC 88 reference 2-27
Standards IEC 61131-2
Product certifications FM Class 1 Division 2, CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.05 cm
Package 1 Width 6.6 cm
Package 1 Length 12.95 cm
Package 1 Weight 100 g
Unit Type of Package 2 2
Number of Units in Package 2 48
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 5.322 kg
Unit Type of Package 3 3
Number of Units in Package 3 768
Package 3 Height 75.0 cm
Package 3 Width 60.0 cm
Package 3 Length 80.0 cm
Package 3 Weight 95.1 kg
