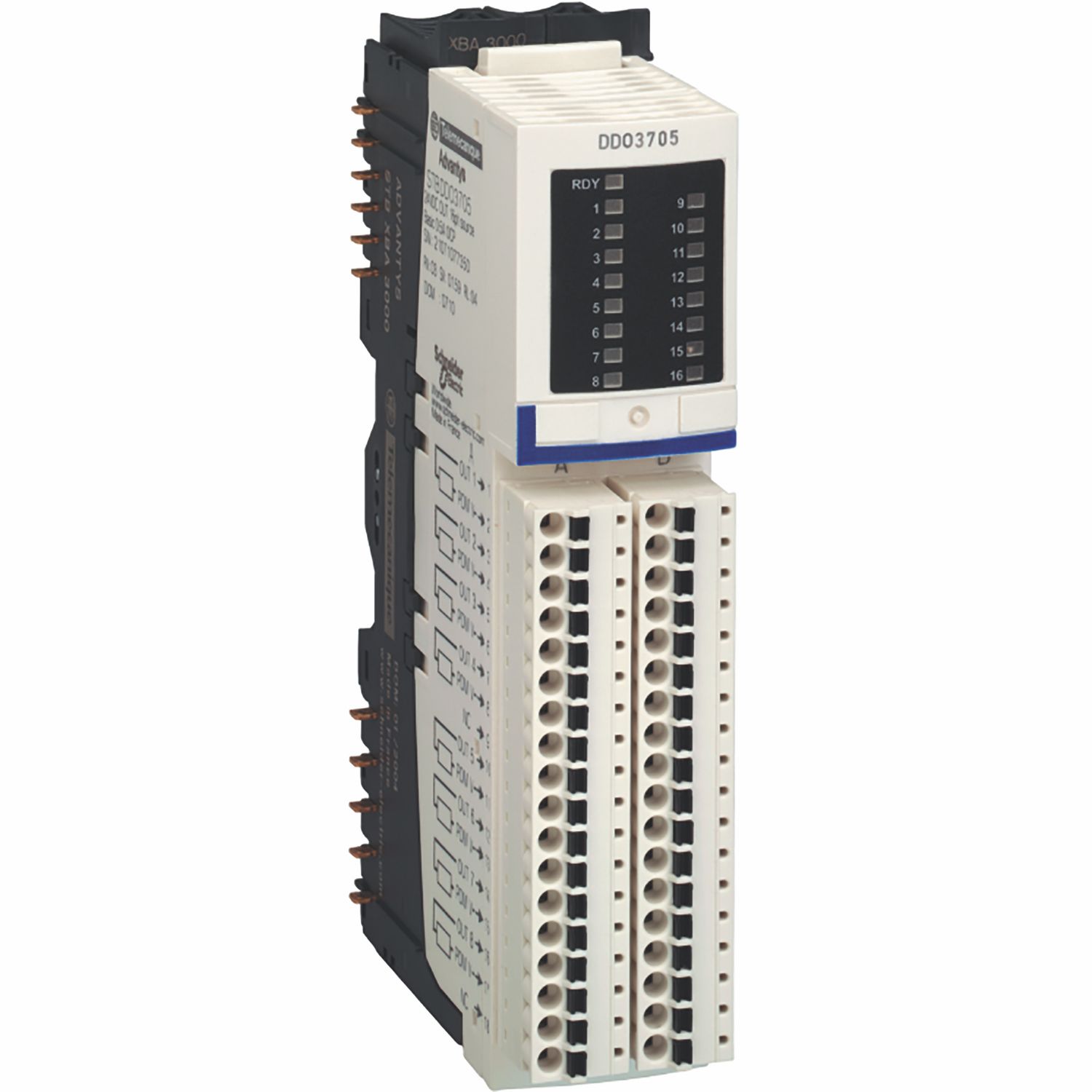

Picture of basic digital output kit, Modicon STB, 24V DC, 16O, spring clamp connector
SKU:

STBDDO3705KC

basic digital output kit, Modicon STB, 24V DC, 16O, spring clamp connector

Please Contact Sales to buy this Product. click here
basic digital output kit, Modicon STB, 24V DC, 16O, spring clamp connector
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 13-Oct-2024
Declaration of conformity
Product environmental
End of life manual
Catalogue
Product Page Link
Product Data Sheet
This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic discrete output kit has 16 discrete outputs with solid state output. It is a discrete output kit with a rated supply voltage of 24V DC and a current consumption of 135mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height) and weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with power distribution module STBPDT3100/3105 and I/O base STBXBA3000. The kit includes STBXBA3000 base, STBXTS2180, 18-terminal spring clamp connector and STBDDO3705 module. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.

Products specifications

Attribute nameAttribute value
Main
Discrete output voltage typeDC
Range of productModicon STB distributed I/O solution
Discrete output typesolid state
Kit compositionSTBDDO3705 module, STBXTS2180, 18-terminal spring clamp connector, STBXBA3000 base
Discrete output number16
Discrete output voltage24 V
Product or component typebasic digital output kit
Complementary
Maximum load capacitance10 µF
Product compatibilityI/O base STBXBA3000, power distribution module STBPDT3100/3105
Discrete output current500 mA
MarkingCE
Protection typethermal overload protection, short-circuit protection,  reverse polarity protection, power protection integrated fuse on PDM time lag 5 A
Response time2 ms on-to-off, 2 ms off-to-on
Maximum load inductance1000 mH at 4 Hz
Hot swapping fallbackno for basic NIMs
Output voltage19.2...30 V DC
Status LED1 LED per channel (green) channel status (OUT1 to OUT16), 1 LED (green) module status (RDY)
Discrete output logicpositive
Height13.9 mm
Cold swappingyes
Insulation between channels and logic bus1500 V for 1 minute
[Us] rated supply voltage24 V DC
Maximum leakage current0.4 mA at state 0 30 V
Depth70 mm
Overvoltage categoryII
Width128.3 mm
Net weight0.086 kg
Current consumption135 mA at 5 V DC for logic bus
Supplypower distribution module
Absolute maximum voltage35 V 1.3 ms
Resetmanual reset COM fault
Environment
Ambient air temperature for operation32...140 °F without derating, 0-60 °C (without derating)
Relative humidity95-95 % at 60-60 °C without condensation
Ambient air temperature for storage-40-85 °C without derating, -40...185 °F without derating
Pollution degree2 conforming to IEC 60664-1
IP degree of protectionIP20 conforming to IEC 61131-2 class 1
Operating altitude<= 2000 m
Vibration resistance+/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail
Shock resistance30 gn for 11 ms conforming to IEC 88 reference 2-27
StandardsIEC 61131-2
Product certificationsUL, CSA, FM Class 1 Division 2
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height3.8 cm
Package 1 Width8.1 cm
Package 1 Length13.1 cm
Package 1 Weight194 g
Unit Type of Package 22
Number of Units in Package 220
Package 2 Height15 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight4.412 kg
Unit Type of Package 33
Number of Units in Package 3320
Package 3 Height75.0 cm
Package 3 Width60.0 cm
Package 3 Length80.0 cm
Package 3 Weight80 kg

Related products

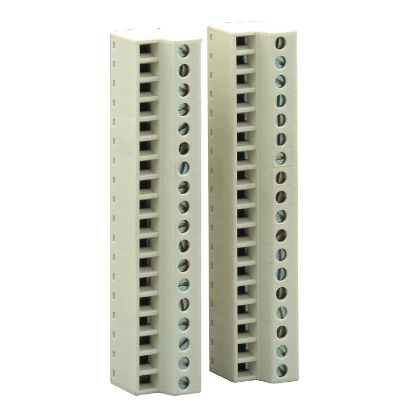

Picture of Modicon STB - 18 pin removable connector - for digital I/O module

Modicon STB - 18 pin removable connector - for digital I/O module

STBXTS2180
Please Contact Sales to buy this Product. click here
View Detail

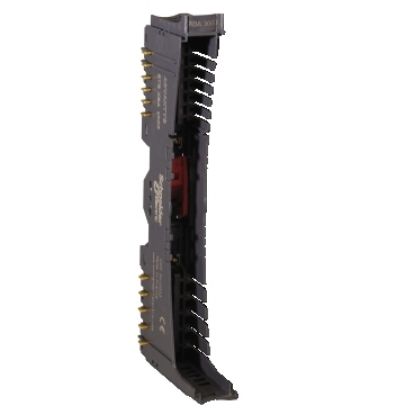

Picture of mounting base, Modicon STB, for IO module, 28.1mm
