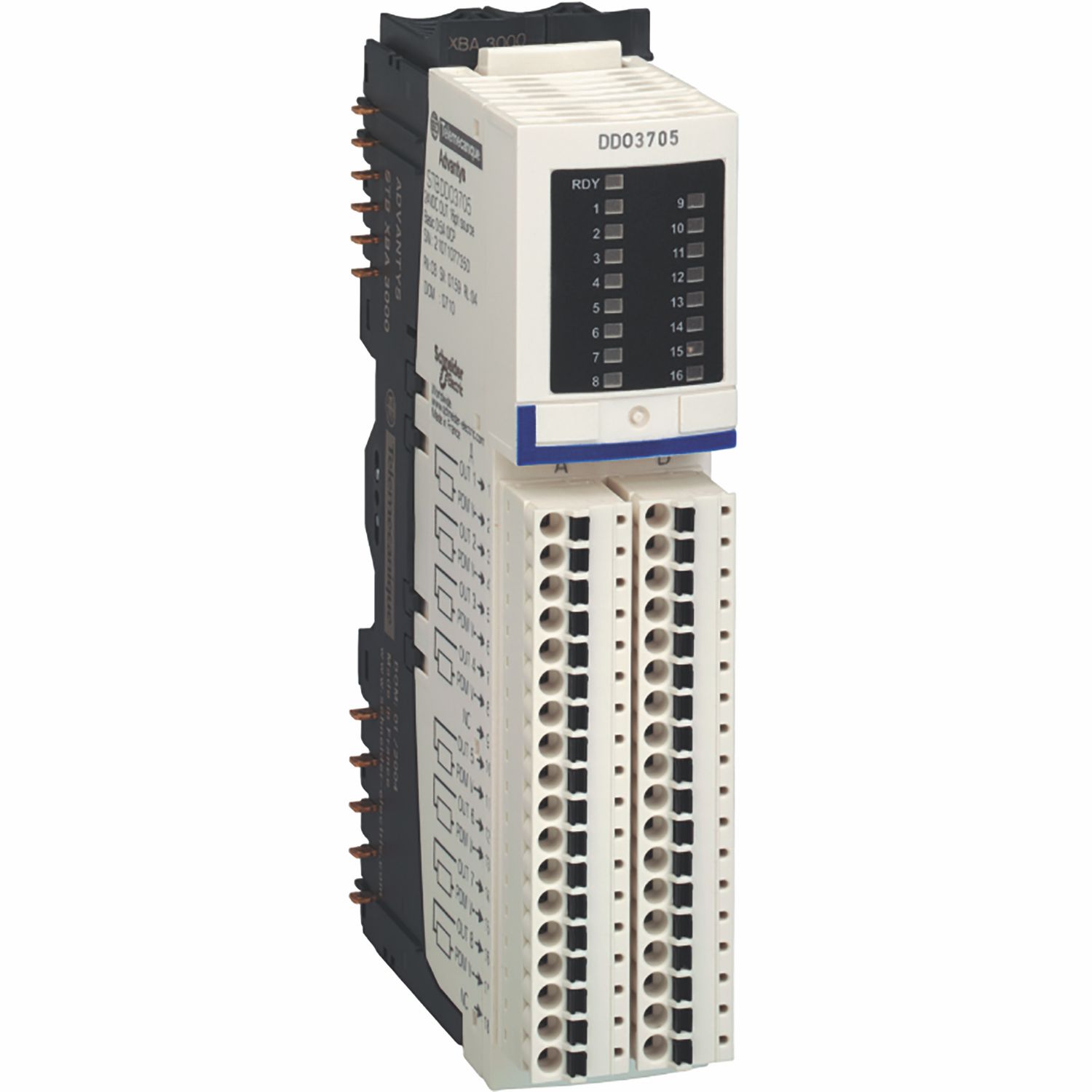

Picture of basic digital output kit, Modicon STB, 24V DC, 16O, screw type connector
SKU:

STBDDO3705KS

basic digital output kit, Modicon STB, 24V DC, 16O, screw type connector

$799.04
Available for Shipping : 18-Feb-2025
basic digital output kit, Modicon STB, 24V DC, 16O, screw type connector
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Product environmental
Catalogue
End of life manual
Product Page Link
Product Data Sheet
This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic discrete output kit has 16 discrete outputs with solid state output. It is a discrete output kit with a rated supply voltage of 24V DC and a current consumption of 135mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height) and weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with power distribution module STBPDT3100/3105 and I/O base STBXBA3000. The kit includes STBDDO3705 module, STBXBA3000 base and STBXTS1180, 18-terminal screw type connector. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.

Products specifications

Attribute name Attribute value
Main
Discrete output voltage type DC
Range of product Modicon STB distributed I/O solution
Discrete output type solid state
Kit composition STBXTS1180, 18-terminal screw type connector, STBXBA3000 base, STBDDO3705 module
Discrete output number 16
Discrete output voltage 24 V
Product or component type basic digital output kit
Complementary
Maximum load capacitance 10 µF
Product compatibility I/O base STBXBA3000, power distribution module STBPDT3100/3105
Discrete output current 500 mA
Marking CE
Protection type thermal overload protection, short-circuit protection,  reverse polarity protection, power protection integrated fuse on PDM time lag 5 A
Response time 2 ms on-to-off, 2 ms off-to-on
Maximum load inductance 1000 mH at 4 Hz
Hot swapping fallback no for basic NIMs
Output voltage 19.2...30 V DC
Status LED 1 LED per channel (green) channel status (OUT1 to OUT16), 1 LED (green) module status (RDY)
Discrete output logic positive
Height 13.9 mm
Cold swapping yes
Insulation between channels and logic bus 1500 V for 1 minute
[Us] rated supply voltage 24 V DC
Maximum leakage current 0.4 mA at state 0 30 V
Depth 70 mm
Overvoltage category II
Width 128.3 mm
Net weight 0.086 kg
Current consumption 135 mA at 5 V DC for logic bus
Supply power distribution module
Absolute maximum voltage 35 V 1.3 ms
Reset manual reset COM fault
Environment
Ambient air temperature for operation 32...140 °F without derating, 0-60 °C (without derating)
Relative humidity 95-95 % at 60-60 °C without condensation
Ambient air temperature for storage -40-85 °C without derating, -40...185 °F without derating
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 conforming to IEC 61131-2 class 1
Operating altitude <= 2000 m
Vibration resistance +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail
Shock resistance 30 gn for 11 ms conforming to IEC 88 reference 2-27
Standards IEC 61131-2
Product certifications FM Class 1 Division 2, CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.622 cm
Package 1 Width 7.947 cm
Package 1 Length 13.052 cm
Package 1 Weight 210.0 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 4.77 kg
Unit Type of Package 3 3
Number of Units in Package 3 320
Package 3 Height 75.0 cm
Package 3 Width 60.0 cm
Package 3 Length 80.0 cm
Package 3 Weight 86 kg
