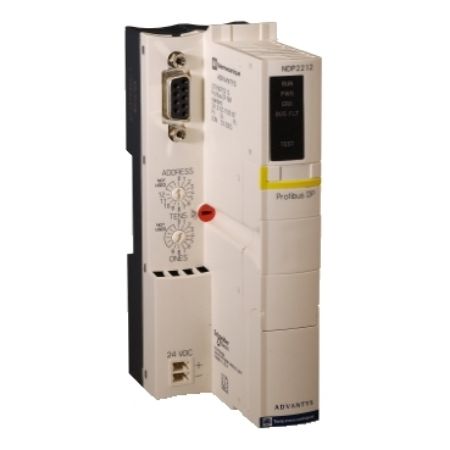

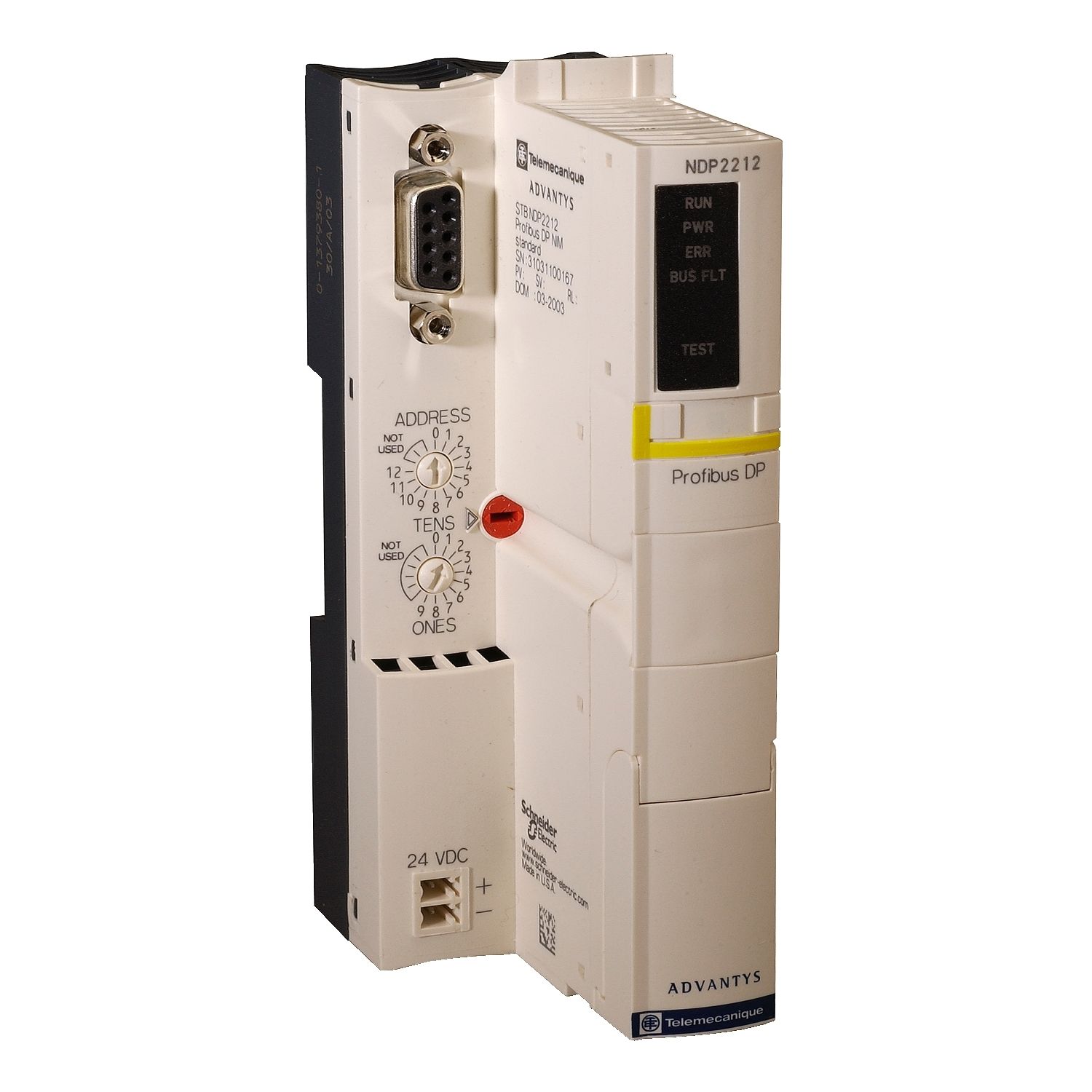

Picture of standard Network Interface Module STB - Profibus DP - 9.6 kbit/s
SKU:

STBNDP2212

standard Network Interface Module STB - Profibus DP - 9.6 kbit/s

$1,540.77 INC GST
Available for Shipping : 12-Jan-2026
standard Network Interface Module STB - Profibus DP - 9.6 kbit/s
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Declaration of conformity
Environmental Disclosure
Catalog
User guide
Quick start guide
Product Page Link
Product Data Sheet
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 125 slaves with 1 primary, maximum 6 extensions segments. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and an output current of 1.2A. Communication services are diagnostics, read/write DP slave I/O data etc. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 40mm (height). It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, ATEX, UL, C-Tick and CSA.

Products specifications

Attribute name Attribute value
Main
Number of slave 125
Structure type industrial field bus DP V.0
Transmission rate 9.6 kbit/s for bus length of 0-1200 m, 12 Mbit/s for bus length of 0-200 m, 9.6 kbit/s for bus length of 0-4800 m with 3 repeaters, 12 Mbit/s for bus length of 0-800 m with 3 repeaters
Range of product Modicon STB distributed I/O solution
Integrated connection type Profibus DP conforming to DIN 19245 part 1 and 3 8-way female (RS232 port), Profibus DP conforming to DIN 19245 part 1 and 3 HE-13 (RS232 port), Profibus DP conforming to DIN 19245 part 1 and 3 9-way female RS485 SUB-D 1 twisted shielded pair (bus)
Product or component type standard Network Interface Module
Number of segments 1 primary, maximum 6 extensions
Complementary
Maximum output impedance 0.05 Ohm at 100000 kHz
Maximum supply current 700 A
Supply voltage limits 19.2-30 V
Input current 430 mA for supply circuit
Marking CE
Communication service slave configuration, configuration control, read/write DP slave I/O data, diagnostics
Output voltage 5.25 V DC (tolerance: +/- 0.21 %) for logic bus
Status LED 1 LED (yellow) test mode, 1 LED (red) module error (ERR), 1 LED (green) power supply (PWR), 1 LED (green) island state (RUN), 1 LED (green) BUSFLT
Height 40 mm
Nominal output current 1.2 A, 0.575 A at 60-70 °C
[Us] rated supply voltage 24 V DC
Depth 70 mm
Overvoltage category II
Width 128.3 mm
Power supply type SELV
Number of addressable I/O module 0-32 per island
Environment
Relative humidity 95-95 % at 60-60 °C without condensation
Ambient air temperature for storage -40-85 °C
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 conforming to IEC 61131-2 class 1
Electromagnetic compatibility immunity to electromagnetic interference conforming to IEC 61131-2
Ambient air temperature for operation -25-70 °C (with derating factor), 0-60 °C (without derating)
Operating altitude <= 2000 m
Vibration resistance +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail
Shock resistance 30 gn for 11 ms conforming to IEC 88 reference 2-27
Product certifications UL, FM Class 1 Division 2, ATEX Cat 3G, CSA, C-Tick
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.0 cm
Package 1 Width 4.7 cm
Package 1 Length 13.0 cm
Package 1 Weight 177.0 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 5.588 kg
