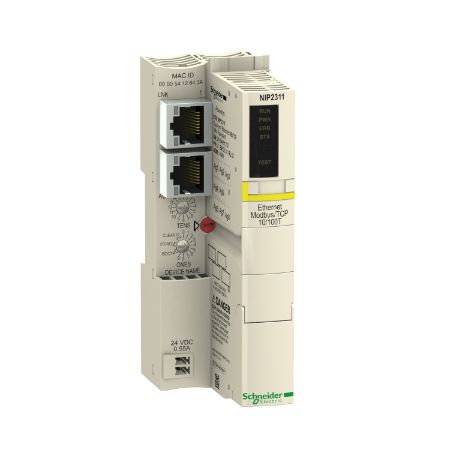

Picture of network interface module, Modicon STB, standard, Ethernet, modbus TCP/IP, 10-100Mbits
SKU:

STBNIP2311

network interface module, Modicon STB, standard, Ethernet, modbus TCP/IP, 10-100Mbits

$1,571.13 INC GST
Available for Shipping : 09-Dec-2025
network interface module, Modicon STB, standard, Ethernet, modbus TCP/IP, 10-100Mbits
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 09-Dec-2025
Declaration of conformity
Environmental Disclosure
Catalog
User guide
Product Page Link
Product Data Sheet
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 1 primary, maximum 6 extensions segments. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and an output current of 1.2A. Communication services are embedded web, BootP/DHCP protocol etc. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 130mm (width) x 70mm (depth) x 40.5mm (height) and weighs 0.145kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, CSA, ATEX category 3G, ODVA, C-Tick, UL, it meets IEC 61131-2 2003 and FM Class 1 division 2, groups A, B, C and D T4A standards. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.

Products specifications

Attribute name Attribute value
Main
Structure type Ethernet Modbus TCP/IP network, industrial LAN
Transmission rate 10/100 Mbit/s for bus length of 0-100 m per segment
Exchange mode half or full duplex
Range of product Modicon STB distributed I/O solution
Port Ethernet 10BASE-T/100BASE-T
Integrated connection type Ethernet Modbus TCP/IP conforming to IEEE 802.3 8-way female (RS232 port), Ethernet Modbus TCP/IP conforming to IEEE 802.3 HE-13 (RS232 port), Ethernet Modbus TCP/IP conforming to IEEE 802.3 2 female RJ45 double shielded twisted pair via Ethernet (network)
Product or component type standard Network Interface Module
Number of segments 1 primary, maximum 6 extensions
Complementary
Maximum supply current 700 A
Supply voltage limits 19.2-30 V
Input current 550 mA for supply circuit
Marking CE
Communication service embedded web (configuration,diagnostics and access to variable), Modbus TCP/IP messaging, BootP/DHCP protocol, SNMP agent
Output voltage 5.25 V DC (tolerance: +/- 0.21 %) for logic bus
Status LED 1 LED test mode (TEST), 1 LED power supply (PWR), 1 LED NS, 1 LED MS, 1 LED module error (ERR), 1 LED island state (RUN), 1 LED ACT
Height 40.5 mm
Nominal output current 1.2 A, 0.575 A at 60-70 °C
[Us] rated supply voltage 24 V DC
Depth 70 mm
Overvoltage category II
Width 130 mm
Net weight 0.145 kg
Power supply type SELV
Number of addressable I/O module 0-32 per island
Environment
Relative humidity 95-95 % at 60-60 °C without condensation
Ambient air temperature for storage -40-85 °C
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 conforming to IEC 61131-2 class 1
Ambient air temperature for operation -25-70 °C (with derating factor), 0-60 °C (without derating)
Operating altitude <= 2000 m
Vibration resistance +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail
Shock resistance 30 gn for 11 ms conforming to IEC 88 reference 2-27
Standards FM Class 1 division 2, groups A, B, C and D T4A with 70 °C, IEC 61131-2 : 2003
Product certifications CSA, ATEX Cat 3G, C-Tick, ODVA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.300 cm
Package 1 Width 7.300 cm
Package 1 Length 13.000 cm
Package 1 Weight 171.000 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.450 kg

Related products

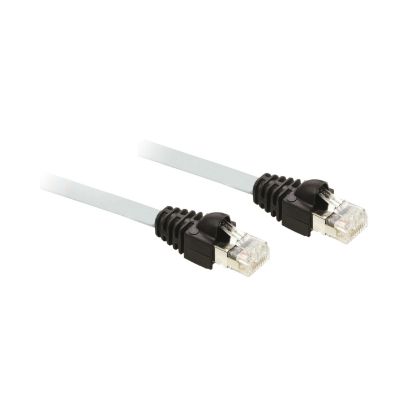

Picture of Ethernet ConneXium cable - shielded twisted pair crossed cord - 5 m - 2 x RJ45

Ethernet ConneXium cable - shielded twisted pair crossed cord - 5 m - 2 x RJ45

490NTC00005
$175.84 INC GST
View Detail
Picture of connecting cable, Modicon MCM, Ethernet, shielded twisted pair straight cord, 2m, 2 x RJ45

connecting cable, Modicon MCM, Ethernet, shielded twisted pair straight cord, 2m, 2 x RJ45

490NTW00002
$181.91 INC GST
View Detail

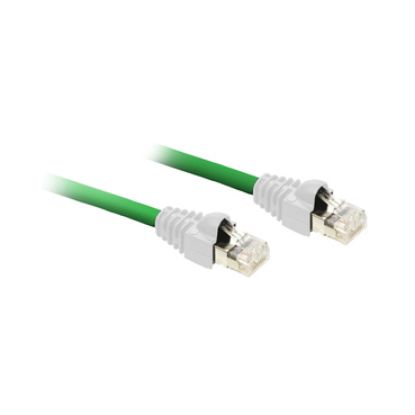

Picture of Ethernet ConneXium shielded twisted pair straight cord-2m-2connectorsRJ45-UL/CSA
