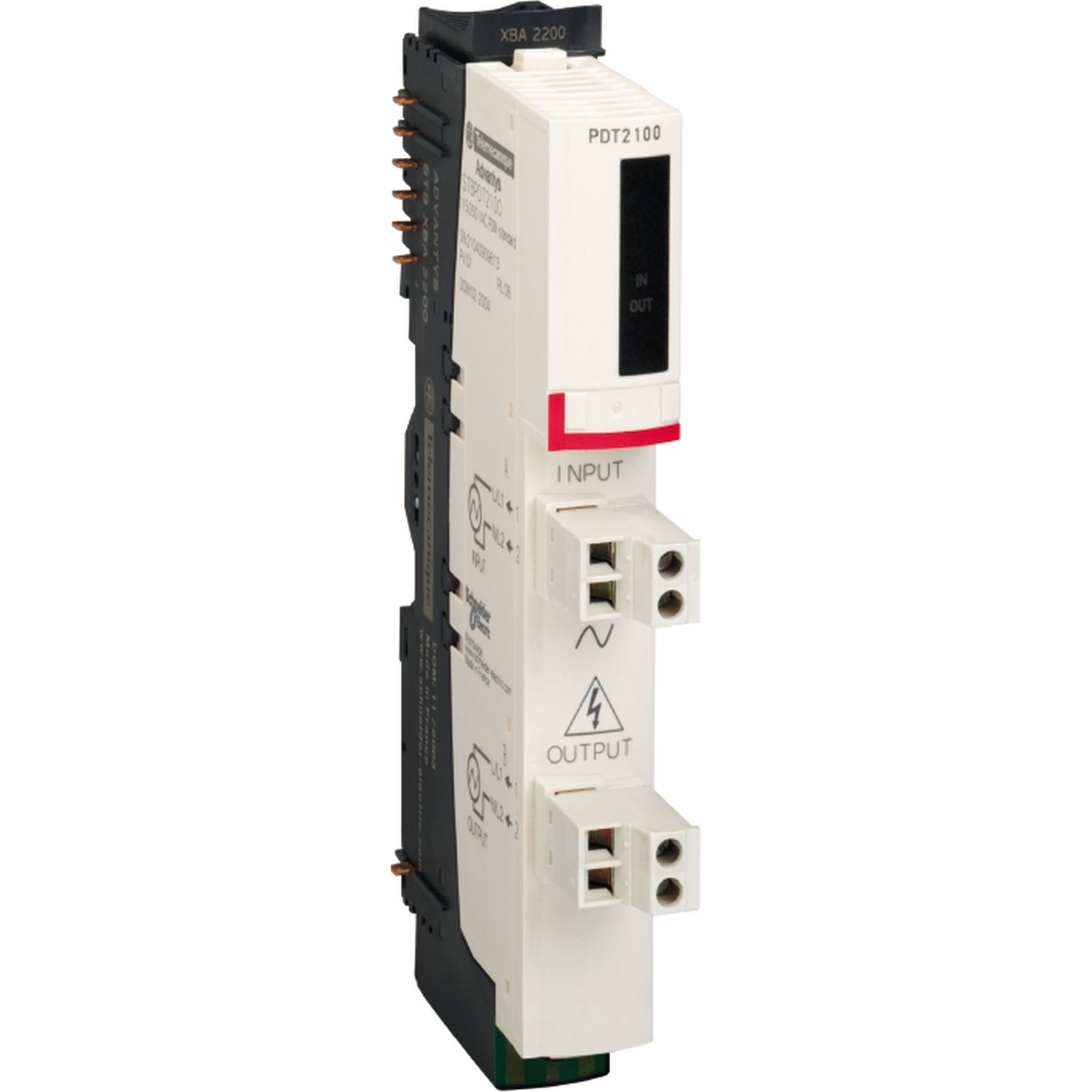

Picture of standard power distribution kit STB - 115..230 V AC
SKU:

STBPDT2100K

standard power distribution kit STB - 115..230 V AC

$349.77 INC GST
Available for Shipping : 27-Jan-2026
standard power distribution kit STB - 115..230 V AC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 27-Jan-2026
Declaration of conformity
Circularity Profile
Environmental Disclosure
User guide
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Product or component type standard power distribution kit
Range of product Modicon STB distributed I/O solution
Complementary
Supply frequency 50...60 Hz
Kit composition STBXTS1130, screw type connectors, STBXTS2130, spring type connectors, STBXBA2200 base, STBPDT2100 module
Product compatibility mounting base STBXBA2200
Depth 65.1 mm
Overvoltage category II
Width 125 mm
Supply circuit type AC
Permissible current 30 A for 2 minutes grounding terminal
Net weight 0.129 kg
Power supply output current 0-5 A at 60 °C (output circuit), 0-5 A at 30 °C (input circuit), 0-2.5 A at 60 °C (input circuit), 0-10 A at 30 °C (output circuit)
Marking CE
Protection type built-in overcurrent protection, 5 A time-lag fuse for input circuit, built-in overcurrent protection, 10 A time-lag fuse for output circuit
Voltage detection threshold > 70 V +/-5 AC IN/OUT LED lit, < 50 V +/-5 AC IN/OUT LED non lit
Hot swapping fallback hot swapping illegal
Status LED 1 LED (green) sensor bus power supply (IN), 1 LED (green) actuator bus power supply (OUT)
Height 18.4 mm
Voltage range 85...265 V AC sensor/actuator bus
[Us] rated supply voltage 115...230 V
Environment
Operating altitude <= 2000 m
Relative humidity 95-95 % at 60-60 °C without condensation
Ambient air temperature for storage -40-85 °C
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 conforming to EN 61131-2 class 1
Vibration resistance 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail, +/-0.35 mm at 10-58 Hz
Shock resistance 30 gn for 11 ms conforming to IEC 88 reference 2-27
Ambient air temperature for operation 0-60 °C (without)
Product certifications UL, FM Class 1 Division 2, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.700 cm
Package 1 Width 8.600 cm
Package 1 Length 14.000 cm
Package 1 Weight 148.000 g
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.930 kg
