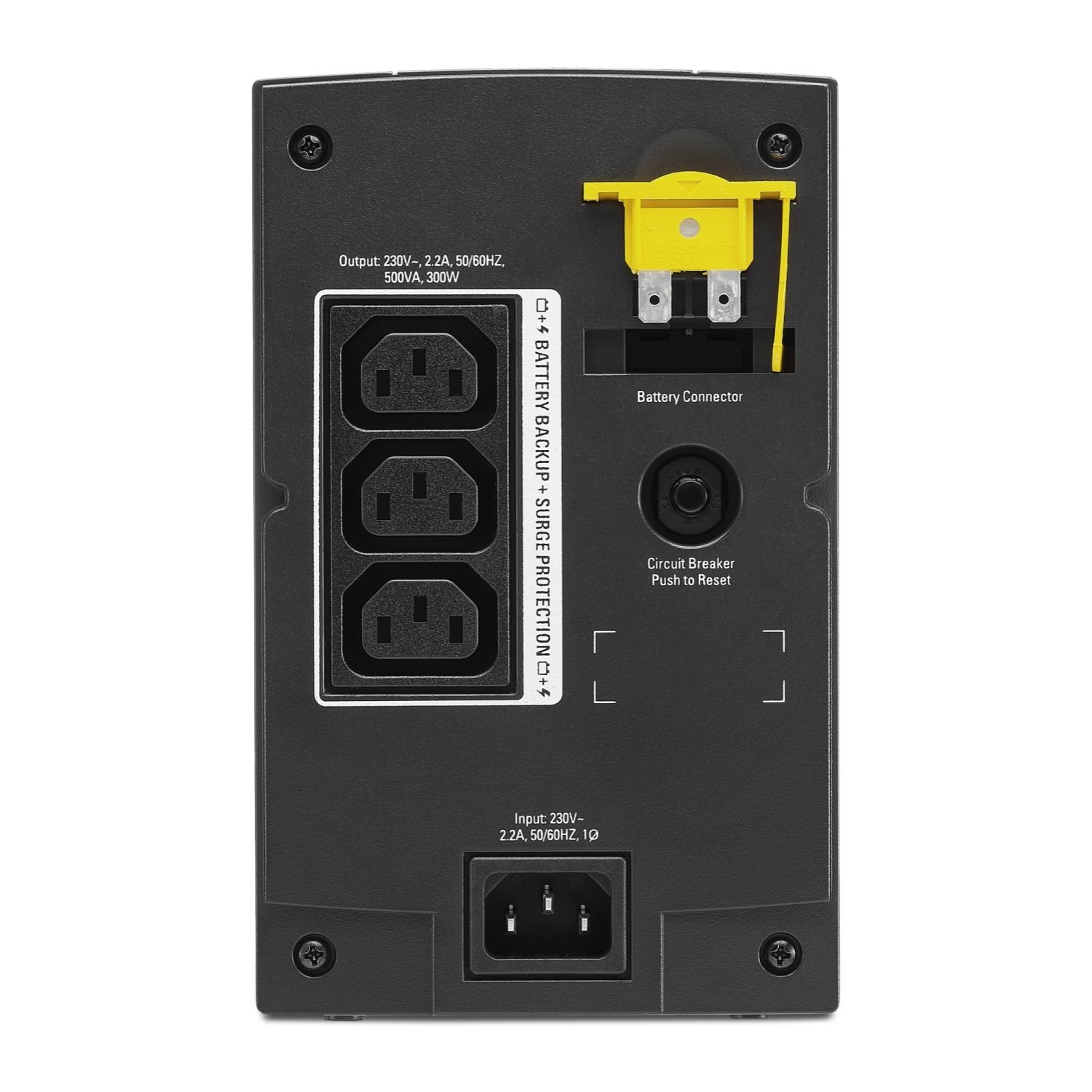

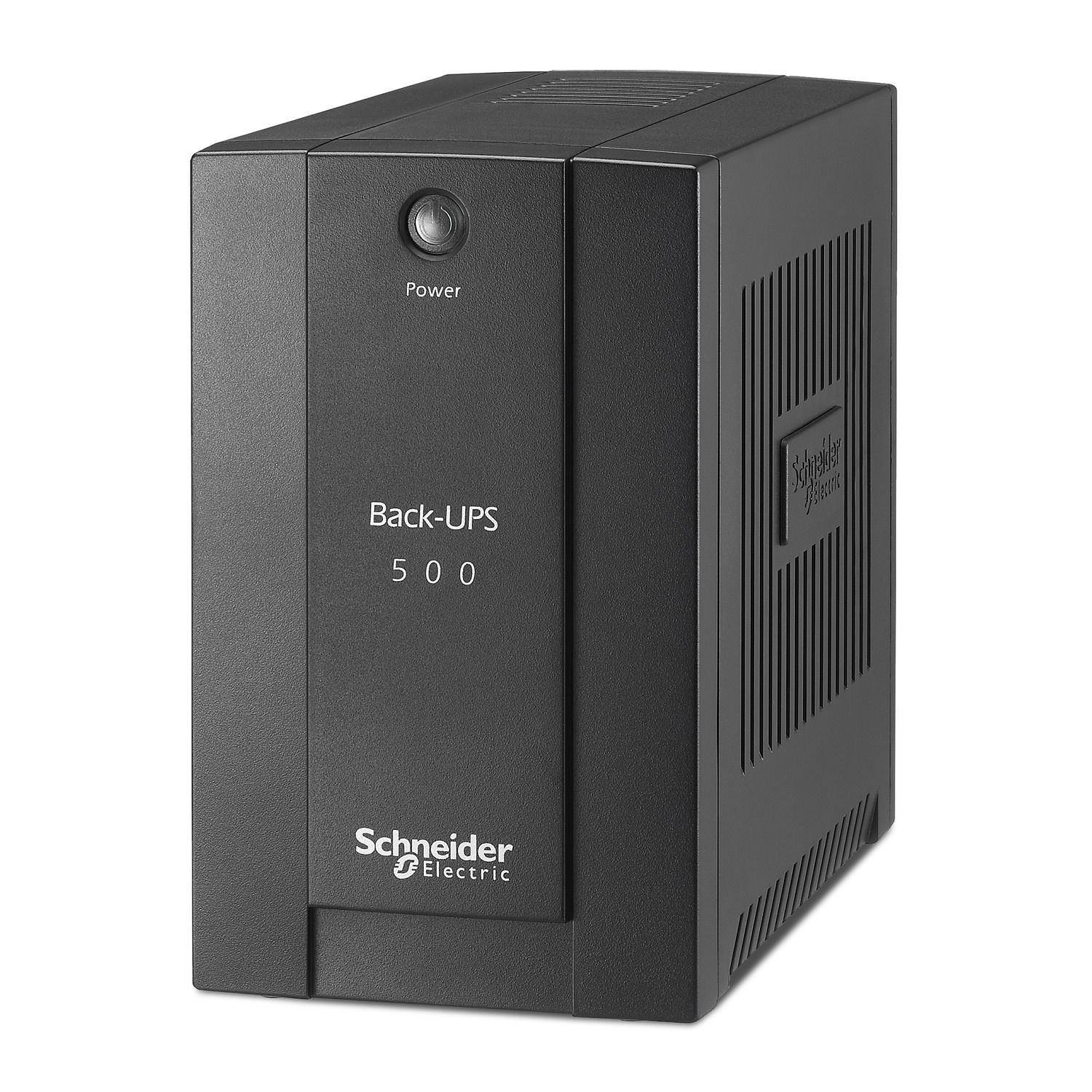

Picture of Industrial UPS, Back UPS, 500VA, 230V, AVR, IEC Sockets
SKU:

SX3500CI

Industrial UPS, Back UPS, 500VA, 230V, AVR, IEC Sockets

$145.20
Available for Shipping : 04-Feb-2025
Product Selector
Industrial UPS, Back UPS, 500VA, 230V, AVR, IEC Sockets
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Product environmental
End of life manual
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Rated power in W 300 W
Main Input Voltage 230 V
Rated power in VA 500 VA
Cable length 6 ft
Number of cables 1
Curve proportional loss 0
UPS type line interactive
Output voltage 230 V
Number of tare power 6 W
Curve load minimum 1 %
Number of battery free slots 0
Curve square loss 0.0038
Curve X-axis title load
Curve X-axis minimum 0 %
Curve Y-axis maximum 100 %
Curve Y-axis units percentage
Output connection type 1 IEC Jumpers , 3 IEC 60320 C13
Liquid value 0
Wave type stepped approximation to a sinewave
Mounting preference no preference
Battery charger power 4700 W rated
Maximum input current 2 A
Output frequency 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised , 50 Hz sync to mains
Number of battery filled slots 0
Surge energy rate 273 J
Curve Y-axis minimum 50 %
Battery power in VAH 47 VAh runtime
Curve fixed loss 0.0098
Curve X-axis maximum 100 %
Curve X-axis units percentage
Curve load maximum 100 %
Curve test cond ID Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with nominal electrical input and balanced resistive load (PF = 1.0) output.
UPS size WS
Number of power module filled slots 0
Two post mountable 0
Redundant No
Battery curve C
Curve Y-axis title efficiency
Extended runtime 0
Transfer time 6 ms typical : 10 ms maximum
Show note OP temperature No
Maximum configurable power in VA 500 VA
Maximum configurable power in W 300 W
Curve equation efficiency
Number of power module free slots 0
Environmental
Operating altitude 0...10000 ft
Acoustic level 45 dBA
Relative humidity 0-95 %
Ambient air temperature for storage -15-45 °C
Storage altitude 0-50000 ft
Ambient air temperature for operation 0-40 °C
Storage Relative Humidity 0-95 %
Physical
Depth 21.3 cm
Width 11.5 cm
Colour black
Mounting mode not rack-mountable
Net weight 5.2 kg
USB compatible No
Height 18.5 cm
Input
Input voltage limits 160...280 V
Network frequency 45...65 Hz
Switching current capacity 7 A
Output
Graph display 1
Conformance
Standards EN/IEC 62040-2:2018, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-1:2019/A11:2021
Product certifications NEMKO, GOST, CE
Communications & Management
Control panel LED Status display with on line : on battery
Alarm alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
General
Max runtime 28 min
Provided equipment user manual
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 25.7 cm
Package 1 Width 19 cm
Package 1 Length 29.1 cm
Package 1 Weight 5.68 kg
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 80 cm
Package 2 Width 80 cm
Package 2 Length 120 cm
Package 2 Weight 62 kg
