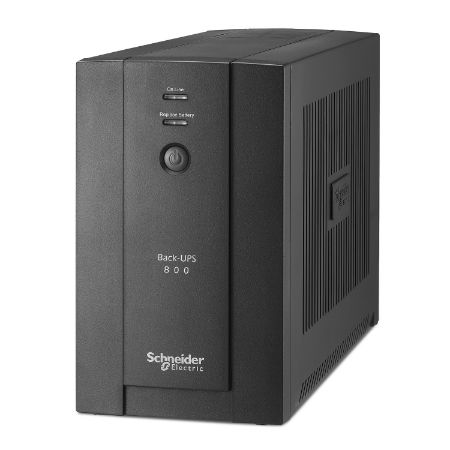

Picture of Back-UPS, Schneider Electric Back-UPS, 800VA, 230V, AVR, 7 IEC outlets
Picture of Back-UPS, Schneider Electric Back-UPS, 800VA, 230V, AVR, 7 IEC outlets
Picture of Back-UPS, Schneider Electric Back-UPS, 800VA, 230V, AVR, 7 IEC outlets
SKU:

SX3800CI

Back-UPS, Schneider Electric Back-UPS, 800VA, 230V, AVR, 7 IEC outlets

$230.64
Product Selector
Back-UPS, Schneider Electric Back-UPS, 800VA, 230V, AVR, 7 IEC outlets
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 11-Dec-2024
End of life manual
Declaration of conformity
Image of product
User guide
Product environmental
Product Page Link
Product Data Sheet

Products specifications

Attribute nameAttribute value
Main
Rated power in W480 W
Battery typelead-acid battery
Main Input Voltage230 V
Rated power in VA800 VA
Curve proportional loss0
UPS typeline interactive
Output voltage230 V
Number of tare power30 W
Number of battery replacement quantity1
Curve load minimum4 %
Number of battery free slots0
Curve square loss0.0064
Curve X-axis titleload
Curve X-axis minimum0 %
Curve Y-axis maximum100 %
Curve Y-axis unitspercentage
Output connection type1 IEC Jumpers , 6 IEC 60320 C13
Liquid value0
Wave typestepped approximation to a sinewave
Mounting preferenceno preference
Battery charger power11 W rated
Maximum input current3 A
Output frequency50/60 Hz +/- 1 Hz unsynchronised , 50/60 Hz +/- 3 Hz sync to mains
Number of battery filled slots0
Surge energy rate273 J
Curve Y-axis minimum50 %
Battery power in VAH88 VAh runtime
Curve fixed loss0.0301
Curve X-axis maximum100 %
Curve X-axis unitspercentage
Curve load maximum100 %
Curve test cond IDCurve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with nominal electrical input and balanced resistive load (PF = 1.0) output.
Battery recharge time8 h
UPS sizeWS
Number of power module filled slots0
Two post mountable0
RedundantNo
Battery curveC
Curve Y-axis titleefficiency
Extended runtime0
Transfer time8 ms typical : 12 ms maximum
Show note OP temperatureNo
Maximum configurable power in VA800 VA
Maximum configurable power in W480 W
Curve equationefficiency
Number of power module free slots0
Environmental
Operating altitude0...10000 ft
Acoustic level45 dBA
Relative humidity0-95 %
Ambient air temperature for storage-15-45 °C
Storage altitude0-30000 ft
Ambient air temperature for operation0-40 °C
Storage Relative Humidity0-95 %
Physical
Depth33.6 cm
Width13 cm
Colourblack
Mounting modenot rack-mountable
Net weight8 kg
USB compatibleNo
Height21.5 cm
Input
Input voltage limits150...280 V
Network frequency50/60 Hz +/- 3 Hz auto-sensing
Switching current capacity7 A
Output
Graph display1
Conformance
StandardsEN/IEC 62040-2:2018, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-1:2019/A11:2021
Product certificationsNEMKO, GOST, CE
Batteries & Runtime
Battery life3-5 year(s)
Communications & Management
Control panelLED Status display with on line : on battery
Alarmalarm when on battery : distinctive low battery alarm : overload continuous tone alarm
General
Provided equipmentuser manual
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height29.5 cm
Package 1 Width24.5 cm
Package 1 Length44 cm
Package 1 Weight8.772 kg
Unit Type of Package 22
Number of Units in Package 212
Package 2 Height50 cm
Package 2 Width80 cm
Package 2 Length120 cm
Package 2 Weight120 kg
