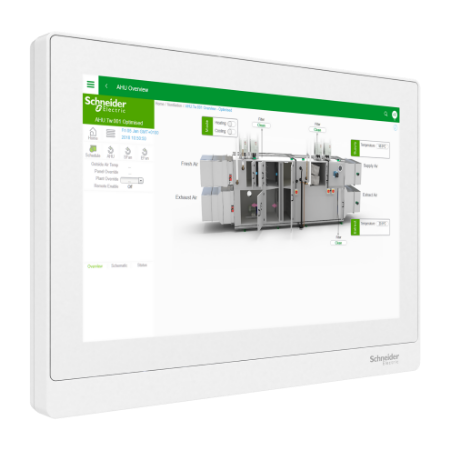

Picture of Advanced display, SpaceLogic HMI, v3, for AS/AS-B/AS-P, 10.1" high-resolution display, IP54
SKU:

SXWADBUND10003

Advanced display, SpaceLogic HMI, v3, for AS/AS-B/AS-P, 10.1" high-resolution display, IP54

$4,977.60 INC GST
Availability: Please contact our sales team on 1300 724 622.
Advanced Display, SpaceLogic HMI V3 for AS/AS-B/AS-P
  • 10.1" high-resolution display
  • Compatible with AS/AS-B/AS-P controllers
  • SpaceLogic HMI V3 interface
  • IP54 rated for dust and water resistance
  • High-quality display for clear visuals
  • User-friendly interface for easy operation
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
End of life manual
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet

The SpaceLogic Advanced Display V3 bundle is a reliable solution that comes with the HMI device, a cable fitting with a nut, and an earth ground screw with a washer. It’s designed to lock into applications like EcoStruxure Building Operation WebStation, making it a great tool for local operation of EcoStruxure BMS systems.

This display allows users to access EcoStruxure BMS servers locally through an HMI terminal that can be installed on a control cabinet. Built on an Android platform, it features a sharp high-resolution touchscreen display (1280 x 800 pixels). Its compact design includes dimensions of 195.6 mm (7.7 in.) in height, 258 mm (10.2 in.) in width, and 25 mm (1.0 in.) in depth, with a display size of 255 mm (10.1 in.).

The SXWADBUND10003 HMI is built to last, with a plastic flame rating of UL94 V-0 and an IP54 ingress protection rating. Communication with SpaceLogic servers is supported through Y-shaped USB cables (SXWADUSBC10002 or SXWADUSBC10003), ensuring seamless integration.

Products specifications

Attribute name Attribute value
Main
Range compatibility SpaceLogic AS-B, SpaceLogic AS-P, SpaceLogic AS
Display type TFT LCD touchscreen
Relative humidity 0-95 % RH, non-condensing
Display size 10.1 inch
Ambient air temperature for storage -20-60 °C
Colour white
Processor name Intel Celeron N3350 dual core at 1.1 GHz
Mounting mode panel-mounted
Flame retardance UL94-V0
Standards FCC part 15 Subpart B class B, EN 55024:2010, CSA C22.2 No. 60950-1-07:ed. 2:2014, UL 60950-1:ed. 2:2014, IEC 60950-1:ed. 2:2005+Am1:2009+Am2:2013, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Communication port protocol USBNet: USB 2.0
Ambient air temperature for operation 0-40 °C
Height 195.6 mm
[Us] rated supply voltage 15...24 V DC +/- 10 %, 24 V DC +/- 10 %
Number of port 1 , connector type: USB type C
Depth 25 mm
Width 258 mm
Enclosure material ABS/PC
[In] rated current 1 A
Communication network type Wi-Fi IEEE 802.11 b/g/n at 2.4 GHz
Memory type 2 GB RAM
Current consumption 1.27 A
Net weight 0.933 kg
Operating system Android 8.1
Product or component type HMI
Display resolution 1280 x 800 pixels
Embedding depth 0.6 in
Product certifications RCM, UL 60950, FCC, CE
Range SpaceLogic
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.500 cm
Package 1 Width 29.000 cm
Package 1 Length 36.500 cm
Package 1 Weight 1.333 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 3.086 kg
Unit Type of Package 3 3
Number of Units in Package 3 16
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 32.688 kg

Related products

Picture of USB-C cable, SpaceLogic HMI, straight, 2.4m (7.87ft), power only, 15/20VDC, for SpaceLogic Wi-Fi card only

USB-C cable, SpaceLogic HMI, straight, 2.4m (7.87ft), power only, 15/20VDC, for SpaceLogic Wi-Fi card only

SXWADUSBC10001
$169.20 INC GST
View Detail

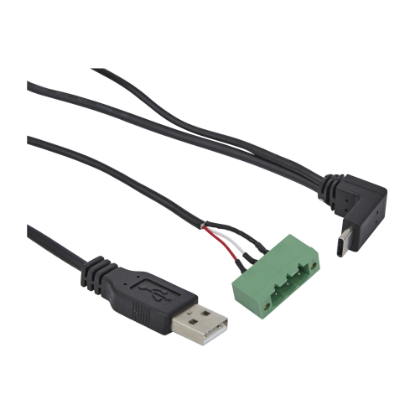

Picture of USB-C cable, SpaceLogic HMI, Y-shaped, 1.35m (4.43ft), 24VDC, for AS/AS-P/AS-B

USB-C cable, SpaceLogic HMI, Y-shaped, 1.35m (4.43ft), 24VDC, for AS/AS-P/AS-B

SXWADUSBC10002
$226.32 INC GST
View Detail

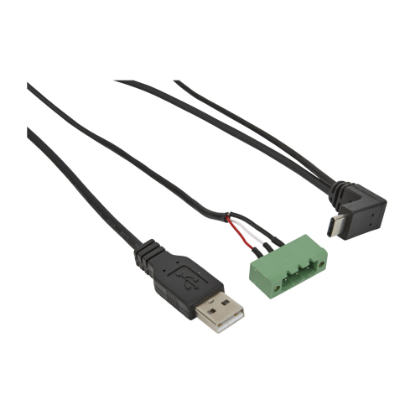

Picture of USB-C cable, SpaceLogic HMI, Y-shaped, 2.85m (9.35ft), 24VDC, for AS/AS-P/AS-B

USB-C cable, SpaceLogic HMI, Y-shaped, 2.85m (9.35ft), 24VDC, for AS/AS-P/AS-B

SXWADUSBC10003
$262.20 INC GST
View Detail

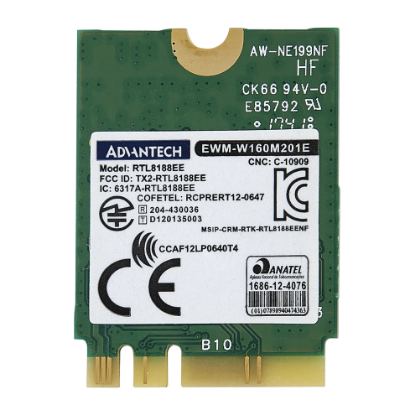

Picture of Wi-Fi card, SpaceLogic HMI, optional, for SpaceLogic HMI Advanced Display v3

Wi-Fi card, SpaceLogic HMI, optional, for SpaceLogic HMI Advanced Display v3

SXWADWIFI10001
$321.60 INC GST
View Detail
