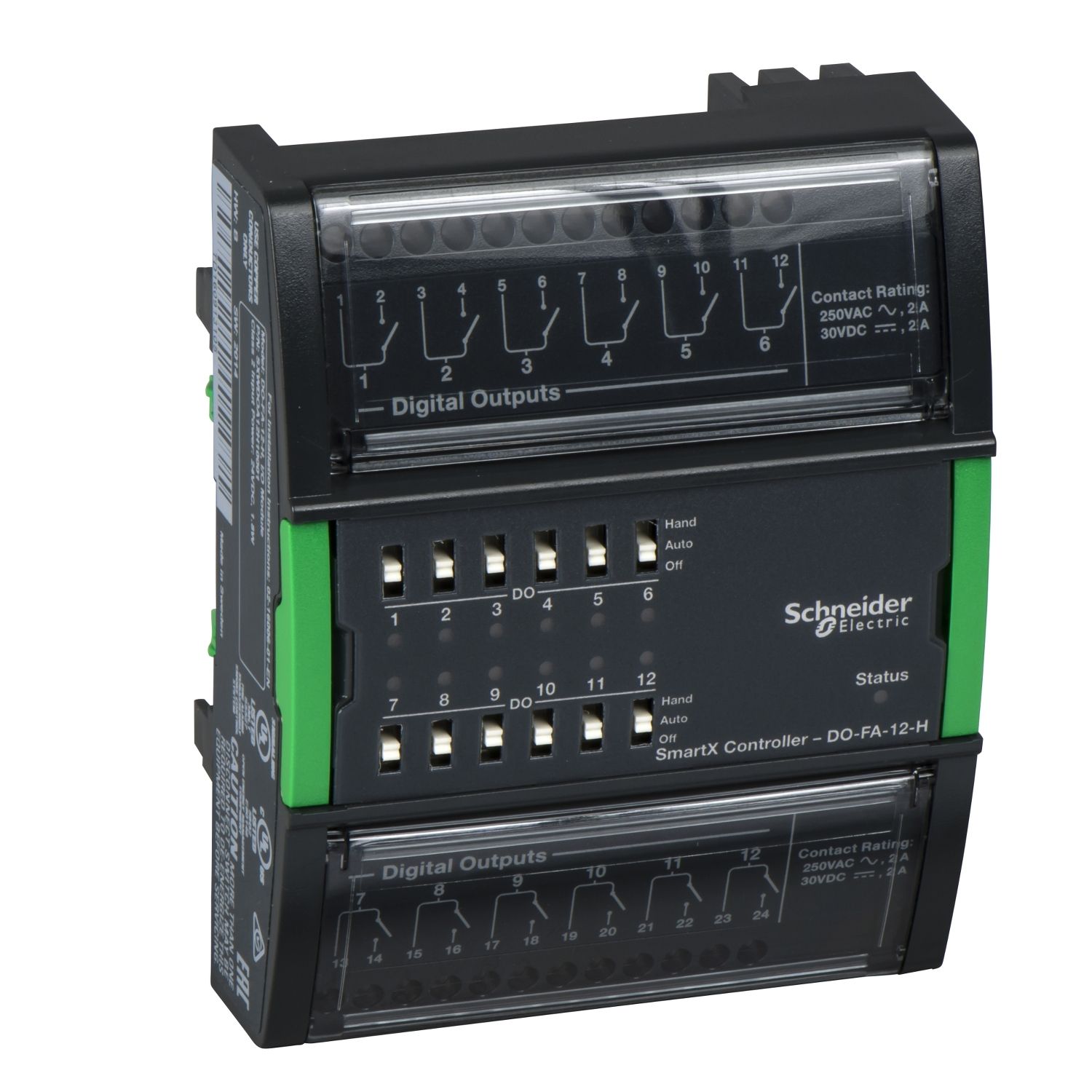

Picture of Central I/O module, SpaceLogic, 12 Form A digital outputs, hand control/override switches
SKU:

SXWDOA12H10001

Central I/O module, SpaceLogic, 12 Form A digital outputs, hand control/override switches

$2,570.40
Available for Shipping : 24-Nov-2024
Central I/O module, SpaceLogic, 12 Form A digital outputs, hand control/override switches
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
End of life manual
Declaration of conformity
Instruction sheet
CAD
Product Page Link
Product Data Sheet
The SpaceLogic DO-FA-12-H is a digital output 12 channel I/O expansion module for the SpaceLogic AS-P Server. The digital outputs support digital Form A point types designed for direct load applications. The DO-FA-12-H I/O expansion module features 12 Form A digital outputs with hand/off/auto override switches. Its dimensions are 114 mm (4.5 in.) in height, 90 mm (3.6 in.) in width and 64 mm (2.5 in.) in depth. This I/O module requires a SpaceLogic Central I/O Terminal Base (SXWTBIOW110001).

Products specifications

Attribute name Attribute value
Main
IP degree of protection IP20
Device short name DO-FA-12-H
Depth 64 mm
Width 30 mm
Relative humidity 0-95 % non-condensing
Power consumption in VA 1.8 W
Ambient air temperature for storage -20-70 °C
Flame retardance UL94V0-5VB
Range EcoStruxure Building Operation
Net weight 194 g
Product name I/O Modules
Product or component type I/O module
Ambient air temperature for operation 0-50 °C
Height 114 mm
Product brand Schneider Electric
Product certifications RCM, CE, FCC part 15 class B, ICES-003
Complementary
Electrical connection plug-in sub-base
Material ABS + PC
Discrete output number 12
Control type with integrated switch for off/on/automatic
Local signalling LED (green) for relay energised
Range compatibility EcoStruxure Building Operation TB-IO-W1 terminal base
Standards FCC CFR 47 part 15, UL 916, UL 864
Mounting support DIN rail, wall
Discrete input voltage 24 V
Discrete output type triac
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.1 cm
Package 1 Width 5.7 cm
Package 1 Length 11.7 cm
Package 1 Weight 206.2 g
