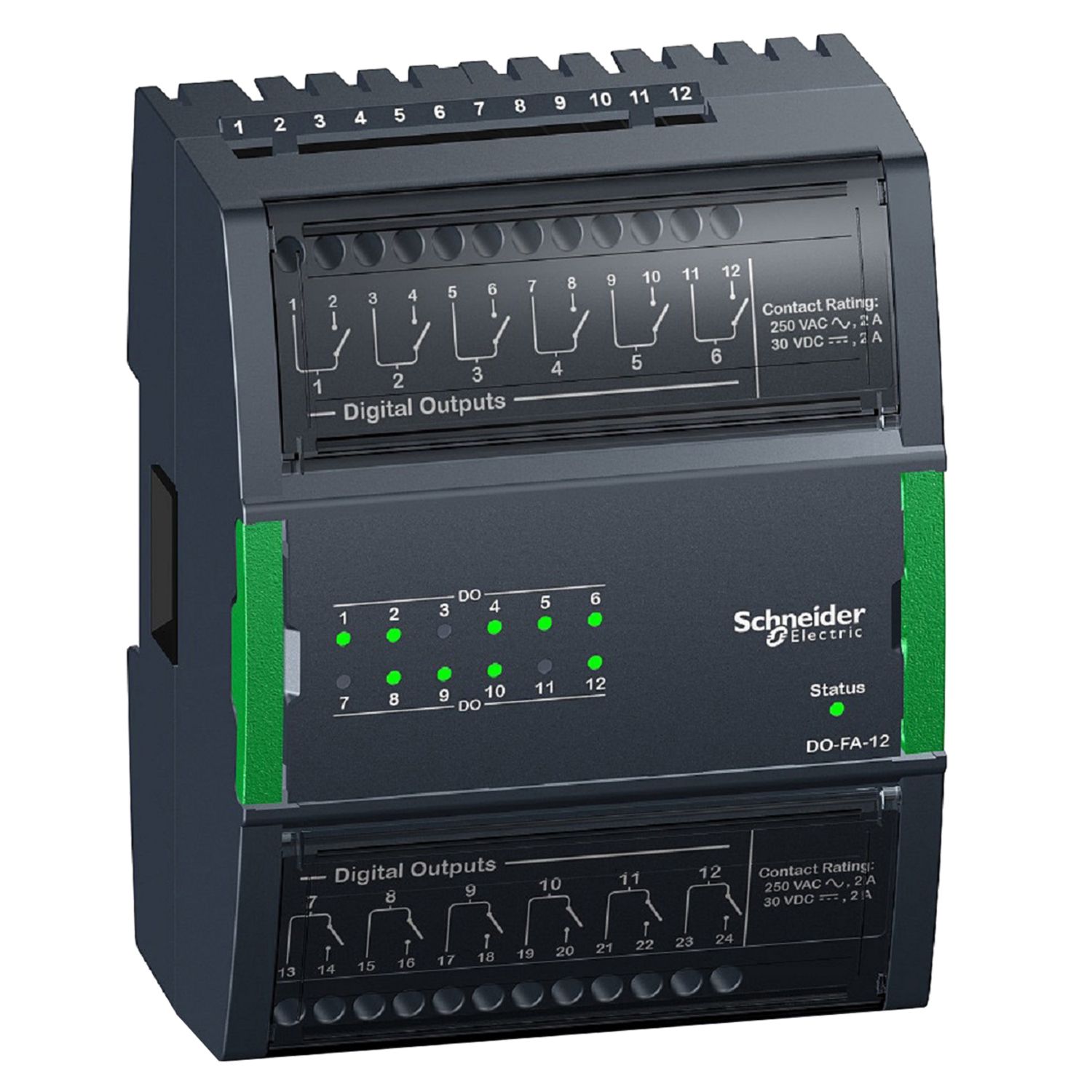

Picture of Central I/O module, SpaceLogic, 12 Form A digital outputs
SKU:

SXWDOA12X10001

Central I/O module, SpaceLogic, 12 Form A digital outputs

Please Contact Sales to buy this Product. click here
Central I/O module, SpaceLogic, 12 Form A digital outputs
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Product environmental
End of life manual
Declaration of conformity
CAD
Instruction sheet
Product Page Link
Product Data Sheet
The SpaceLogic DO-FA-12 is a digital output 12 channel I/O expansion module for the SpaceLogic AS-P Server. The digital outputs support digital Form A point types designed for direct load applications. The DO-FA-12 I/O expansion module features 12 Form A digital outputs. Its dimensions are 114 mm (4.5 in.) in height, 90 mm (3.6 in.) in width and 64 mm (2.5 in.) in depth. This I/O module requires a SpaceLogic Central I/O Terminal Base (SXWTBIOW110001).

Products specifications

Attribute nameAttribute value
Main
IP degree of protectionIP20
Device short nameDO-FA-12
Depth64 mm
Width30 mm
Relative humidity0-95 % non-condensing
Power consumption in VA1.8 W
Ambient air temperature for storage-20-70 °C
Flame retardanceUL94V0-5VB
RangeEcoStruxure Building Operation
Net weight194 g
Product nameI/O Modules
Product or component typeI/O module
Ambient air temperature for operation0-50 °C
Height114 mm
Product brandSchneider Electric
Product certificationsRCM, CE, FCC part 15 class B, ICES-003
Complementary
Electrical connectionplug-in sub-base
MaterialABS + PC
Discrete output number12
Control typewithout
Local signallingLED (green) for relay energised
Range compatibilityEcoStruxure Building Operation TB-IO-W1 terminal base
StandardsFCC CFR 47 part 15, UL 916, UL 864
Mounting supportwall, DIN rail
Discrete input voltage24 V
Discrete output typerelay
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height9.0 cm
Package 1 Width5.7 cm
Package 1 Length11.8 cm
Package 1 Weight196.2 g

Related products

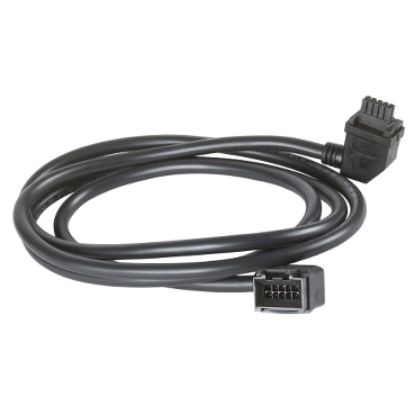

Picture of Extension cord, SpaceLogic, S-cable, for automation server I/O bus, L-shaped connectors, 1.5m

Extension cord, SpaceLogic, S-cable, for automation server I/O bus, L-shaped connectors, 1.5m

SXWSCABLE10002
Please Contact Sales to buy this Product. click here
View Detail
Picture of Extension cord, SpaceLogic, S-cable, for automation server I/O bus, straight connectors, 0.75m

Extension cord, SpaceLogic, S-cable, for automation server I/O bus, straight connectors, 0.75m

SXWSCABLE10003
Please Contact Sales to buy this Product. click here
View Detail
Picture of Power supply module, SpaceLogic, 24VAC or 21-30VDC, for AS-P and I/O modules

Power supply module, SpaceLogic, 24VAC or 21-30VDC, for AS-P and I/O modules

SXWPS24VX10001
Please Contact Sales to buy this Product. click here
View Detail

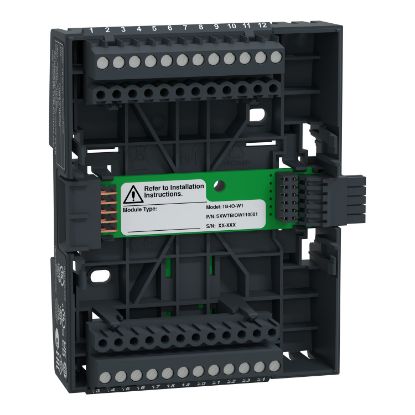

Picture of Terminal base, SpaceLogic, required for I/O modules

Terminal base, SpaceLogic, required for I/O modules

SXWTBIOW110001
Please Contact Sales to buy this Product. click here
View Detail

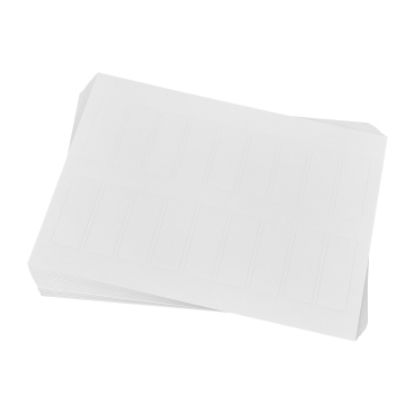

Picture of Adhesive labels, SpaceLogic, A4-size blank printable, 100 Sheets, 18 labels per sheet

Adhesive labels, SpaceLogic, A4-size blank printable, 100 Sheets, 18 labels per sheet

SXWTERLBL10011
Please Contact Sales to buy this Product. click here
View Detail

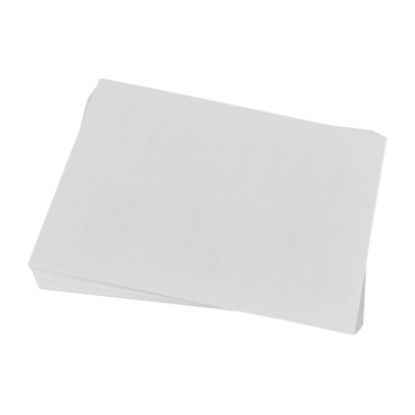

Picture of Adhesive labels, SpaceLogic, letter-size blank printable, 100 sheets, 16 labels per sheet
