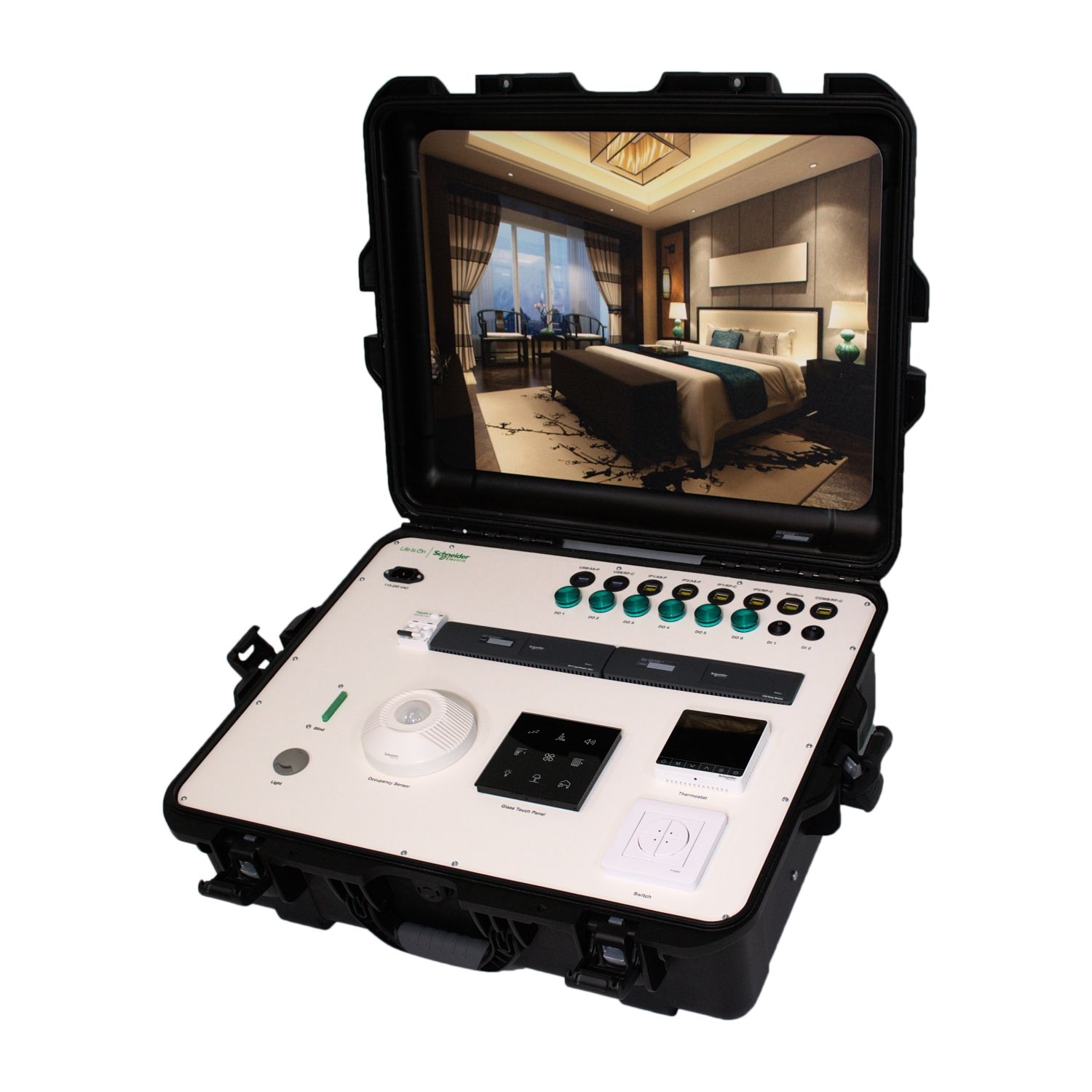

Picture of Demo kit, SpaceLogic RP Expansion Modules, for hotels
SKU:

SXWHHDEMO10001

Demo kit, SpaceLogic RP Expansion Modules, for hotels

Please Contact Sales to buy this Product. click here
Demo kit, SpaceLogic RP Expansion Modules, for hotels
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 12-Oct-2024
Product Page Link
Product Data Sheet
The SpaceLogic CRS-HH-DEMO is a demonstration kit for the Connected Room Solutions for Hotels. It is ideal for training and demoing at trade shows and in meetings with partners, consultants, or end-customers. This portable tool is for use in 110V to 250V applications. The demo kit demonstrates Connected Room Solutions for hotels functions such as light, blind, courtesy control and temperature adjustment. The size and transportability make the demo kit suited for training, both in-classroom or virtual sessions Mechanical dimensions are 638 mm in height (25.1 in), 505 mm in width (19.9) and 224 mm in depth (8.8 in). It includes one AS-P, one PS-24V, one RP-C, one 10-channel relay module, one DALI light module. It also includes one glass touch panel, one occupancy sensor, one push-button switch and one thermostat. The demo kit is designed for 110 to 250 VAC (50/60 Hz) operation.

Products specifications

Attribute nameAttribute value
Main
RangeSpaceLogic
Product or component typedemo kit
Kit composition1 PIR occupancy sensor, 1 SpaceLogic glass touch panel LSSMBU06NP, 1 SpaceLogic 10 channel relay module CRS-HH-REL-10, 1 SpaceLogic DALI light module RP-EXT-DALI-M-PD, 1 SpaceLogic room controller RP-C-12C-F-24V, 1 SpaceLogic power supply PS-24V, 1 SpaceLogic automation server AS-P, 1 thermostat TC907
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height22.4 cm
Package 1 Width50.5 cm
Package 1 Length63.8 cm
Package 1 Weight10.89 kg
