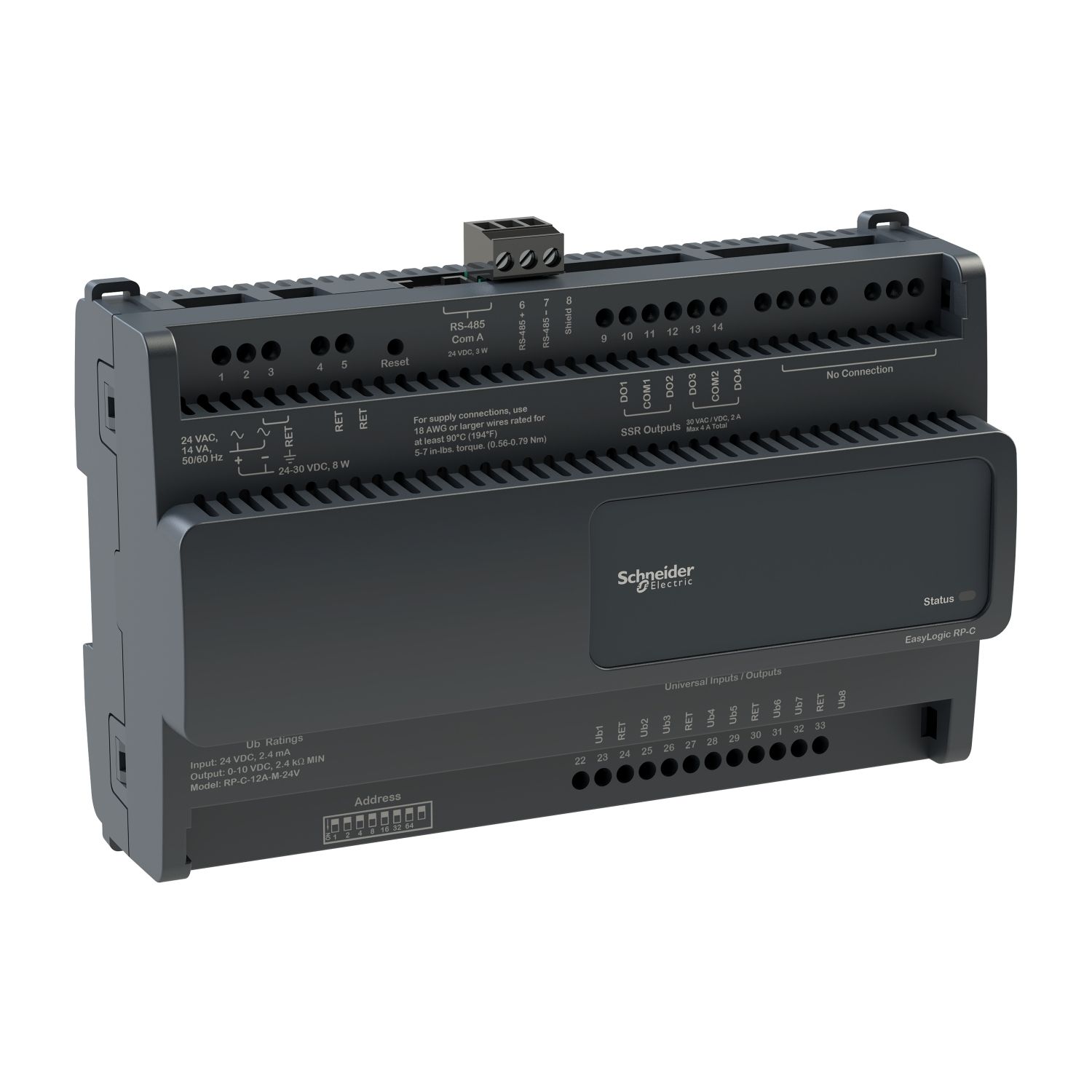

Picture of Controller, EasyLogic, RP-C, BACnet MS/TP, 8 universal input/output, 4 solid state relay outputs
SKU:

SXWRCF12AM10001

Controller, EasyLogic, RP-C, BACnet MS/TP, 8 universal input/output, 4 solid state relay outputs

$766.45
Available for Shipping : 24-Nov-2024
Controller, EasyLogic, RP-C, BACnet MS/TP, 8 universal input/output, 4 solid state relay outputs
  • Easy interface with Engage mobile application for user room control
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
CAD
Declaration of conformity
End of life manual
Product environmental
Product Page Link
Product Data Sheet
EasyLogic RP-C is a room-purpose, fully programmable, BACnet MS/TP based field controller for Fan Coil, Chilled Beam and Heat Pump applications. The RP-C can either be used as a standalone field controller or as part of an EcoStruxure BMS with a SpaceLogic AS-P or AS-B server or an Enterprise Server as the parent server. The RP-C is a BACnet Advanced Application controller (B-AAC) that can be installed as a 3rd party BACnet device in any BACnet BMS, or as natively part of an EcoStruxure Building BMS system. The RP-C is a terminal unit controller typically to control fan coil units, heat pumps and chilled beams. It has a flexible range of IO enabling control of any required configuration of points. The RP-C controller comes in three models with different IO count. The RP-C-12A has 8 Universal IO Type Ub and 4 Solid-state Relay outputs. Its dimensions are 110 mm (4.3 in.) in height, 180 mm (7.1 in.) in width and 64 mm (2.5 in.) in depth. It is a UL 916 (Open Class Energy Management Equipment) listed product for the United States and Canada - UL file E80146. The device can be mounted in a DIN rail or other flat surface inside a cabinet. Available optional IO terminal covers (SXWRPCCOV10001), DIN-RAIL clip/end clip (SXWDINEND10001), eCommission Bluetooth Adapter (SXWBTAECXX10001).

Products specifications

Attribute name Attribute value
Main
IP degree of protection IP20
Device short name RP-C-12A-M-24V
Device application chilled beam, low voltage fan coil
Display type without display
Width 181 mm
Input voltage 0...10 V DC for universal input
Relative humidity 0-95 % RH, non-condensing
Power consumption in VA 14 VA
Ambient air temperature for storage -20-70 °C
Colour black
Mounting mode panel-mounted, DIN rail mount
Memory type 32 MB flash, 6 MB internal
Function available smart sensor input, programmable
Topology daisy chain
Height 110 mm
Depth 64 mm
Range EasyLogic
Input/output type 8 universal I/O
Product or component type field controller
Protection type MOV suppression, internal fuse
Power consumption in W 8 W
Ambient air temperature for operation 0-50 °C at normal operation
Number of outputs 0 form C relay, 0 form A relay output
Range of product EasyLogic
Communication port support RS485
[Us] rated supply voltage 24 V AC +/- 15 %
Network frequency 60 Hz, 50 Hz
Product certifications UL listed, cUL listed, RCM
Complementary
Product compatibility BACnet field controller
Processor name flash 32 MB,  FRAM 8 kB, ARM Cortex-A7 single core 500 MHz SRAM 6 MB
Flame retardance UL94-V0
Backup time 7 days
Power consumption in VA 14 VA
Communication port protocol BACnet MS/TP
Range compatibility EasyLogic controller
Standards ICES-003, UL 916, EN 50491-3, EN 60730-2-11, EN 60730-1, EN 50491-5-3, EN 61000-6-2, UL 2043, EN 50491-5-2, EN 61000-6-3
Switching frequency 25 Hz
Product brand Schneider Electric
Output voltage 0...10 V DC for analog output
Range EasyLogic
Model RP-C-F12A-M
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.2 cm
Package 1 Width 6.6 cm
Package 1 Length 18 cm
Package 1 Weight 376 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 39.8 cm
Package 2 Width 29.9 cm
Package 2 Length 15 cm
Package 2 Weight 3.062 kg
Unit Type of Package 3 3
Number of Units in Package 3 168
Package 3 Height 60 cm
Package 3 Width 80 cm
Package 3 Length 103 cm
Package 3 Weight 84 kg
