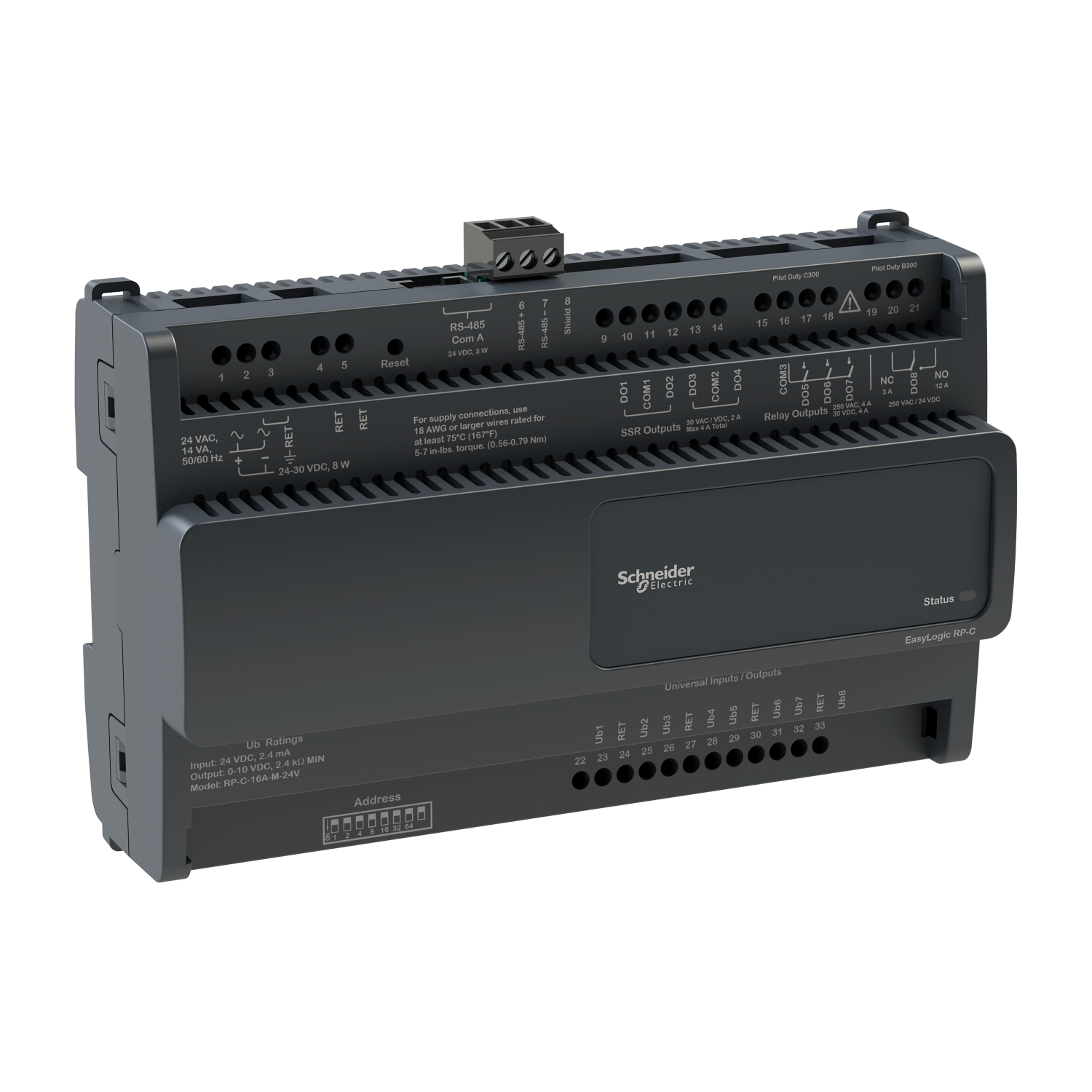

Picture of Controller, EasyLogic, RP-C, BACnet MS/TP, 8 universal input/output, 4 solid state relay outputs, 3 relay form A outputs, 1 high power relay output
SKU:

SXWRCF16AM10001

Controller, EasyLogic, RP-C, BACnet MS/TP, 8 universal input/output, 4 solid state relay outputs, 3 relay form A outputs, 1 high power relay output

Please Contact Sales to buy this Product. click here
Controller, EasyLogic, RP-C, BACnet MS/TP, 8 universal input/output, 4 solid state relay outputs, 3 relay form A outputs, 1 high power relay output
  • Easy interface with Engage mobile application for user room control
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Instruction sheet
CAD
Declaration of conformity
End of life manual
Product environmental
Product Page Link
Product Data Sheet
EasyLogic RP-C is a room-purpose, fully programmable, BACnet MS/TP based field controller for Fan Coil, Chilled Beam and Heat Pump applications. The RP-C can either be used as a standalone field controller or as part of an EcoStruxure BMS with a SpaceLogic AS-P or AS-B server or an Enterprise Server as the parent server. The RP-C is a BACnet Advanced Application controller (B-AAC) that can be installed as a 3rd party BACnet device in any BACnet BMS, or as natively part of an EcoStruxure Building BMS system. The RP-C is a terminal unit controller typically to control fan coil units, heat pumps and chilled beams. It has a flexible range of IO enabling control of any required configuration of points. The RP-C controller comes in three models with different IO count. The RP-C-16B has 8 universal IO Type Ub, 4 solid-state relay outputs, 3 Form A relays and 1 high power relay outputs. Its dimensions are 110 mm (4.3 in.) in height, 180 mm (7.1 in.) in width and 64 mm (2.5 in.) in depth. It is a UL 916 (Open Class Energy Management Equipment) listed product for the United States and Canada - UL file E80146. The device can be mounted in a DIN rail or other flat surface inside a cabinet. Available optional IO terminal covers (SXWRPCCOV10001), DIN-RAIL clip/end clip (SXWDINEND10001), eCommission Bluetooth Adapter (SXWBTAECXX10001).

Products specifications

Attribute nameAttribute value
Main
IP degree of protectionIP20
Device short nameRP-C-16A-M-24V
Device applicationchilled beam, low voltage fan coil
Display typewithout display
Width181 mm
Input voltage0...10 V DC for universal input
Relative humidity0-95 % RH, non-condensing
Power consumption in VA14 VA
Ambient air temperature for storage-20-70 °C
Colourblack
Mounting modepanel-mounted, DIN rail mount
Memory type32 MB flash, 6 MB internal
Function availablesmart sensor input, programmable
Topologydaisy chain
Height110 mm
Depth64 mm
RangeEasyLogic
Input/output type8 universal I/O
Product or component typefield controller
Protection typeMOV suppression, internal fuse
Power consumption in W8 W
Ambient air temperature for operation0-50 °C at normal operation
Number of outputs4 solid-state relay output, 1 form C relay, 3 form A relay output
Range of productEasyLogic
Communication port supportRS485
[Us] rated supply voltage24 V AC +/- 15 %
Network frequency60 Hz, 50 Hz
Product certificationsUL listed, cUL listed, RCM
Complementary
Product compatibilityBACnet field controller
Sensor typeBACnet field controller
Processor nameflash 32 MB,  FRAM 8 kB, ARM Cortex-A7 single core 500 MHz SRAM 6 MB
Flame retardanceUL94-V0
Backup time7 days
Power consumption in VA14 VA
Communication port protocolBACnet MS/TP
Range compatibilityEasyLogic controller
StandardsICES-003, UL 916, EN 50491-3, EN 60730-2-11, EN 60730-1, EN 50491-5-3, EN 61000-6-2, UL 2043, EN 50491-5-2, EN 61000-6-3
Switching frequency25 Hz
Product brandSchneider Electric
Output voltage0...10 V DC for analog output
RangeEasyLogic
ModelRP-C-F16A-M
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height12.2 cm
Package 1 Width6.6 cm
Package 1 Length18 cm
Package 1 Weight400 g
Unit Type of Package 22
Number of Units in Package 27
Package 2 Height39.8 cm
Package 2 Width29.9 cm
Package 2 Length15 cm
Package 2 Weight3.23 kg
Unit Type of Package 33
Number of Units in Package 3168
Package 3 Height60 cm
Package 3 Width80 cm
Package 3 Length103 cm
Package 3 Weight88 kg
