Light expansion module, SpaceLogic RP Expansion Modules, 0-10 VDC, 4 Channel

Please Contact Sales to buy this Product. click here
Light expansion module, SpaceLogic RP Expansion Modules, 0-10 VDC, 4 Channel
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 12-Oct-2024
Instruction sheet
Declaration of conformity
CAD
End of life manual
Product environmental
Product Page Link
Product Data Sheet

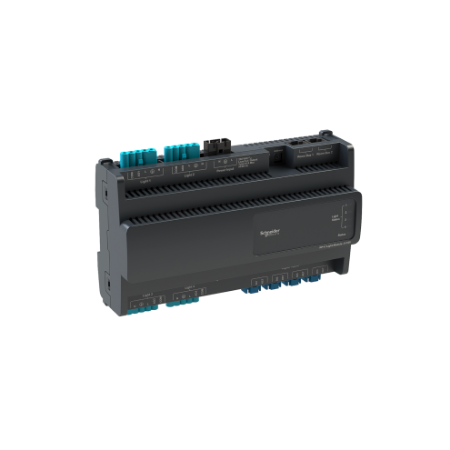

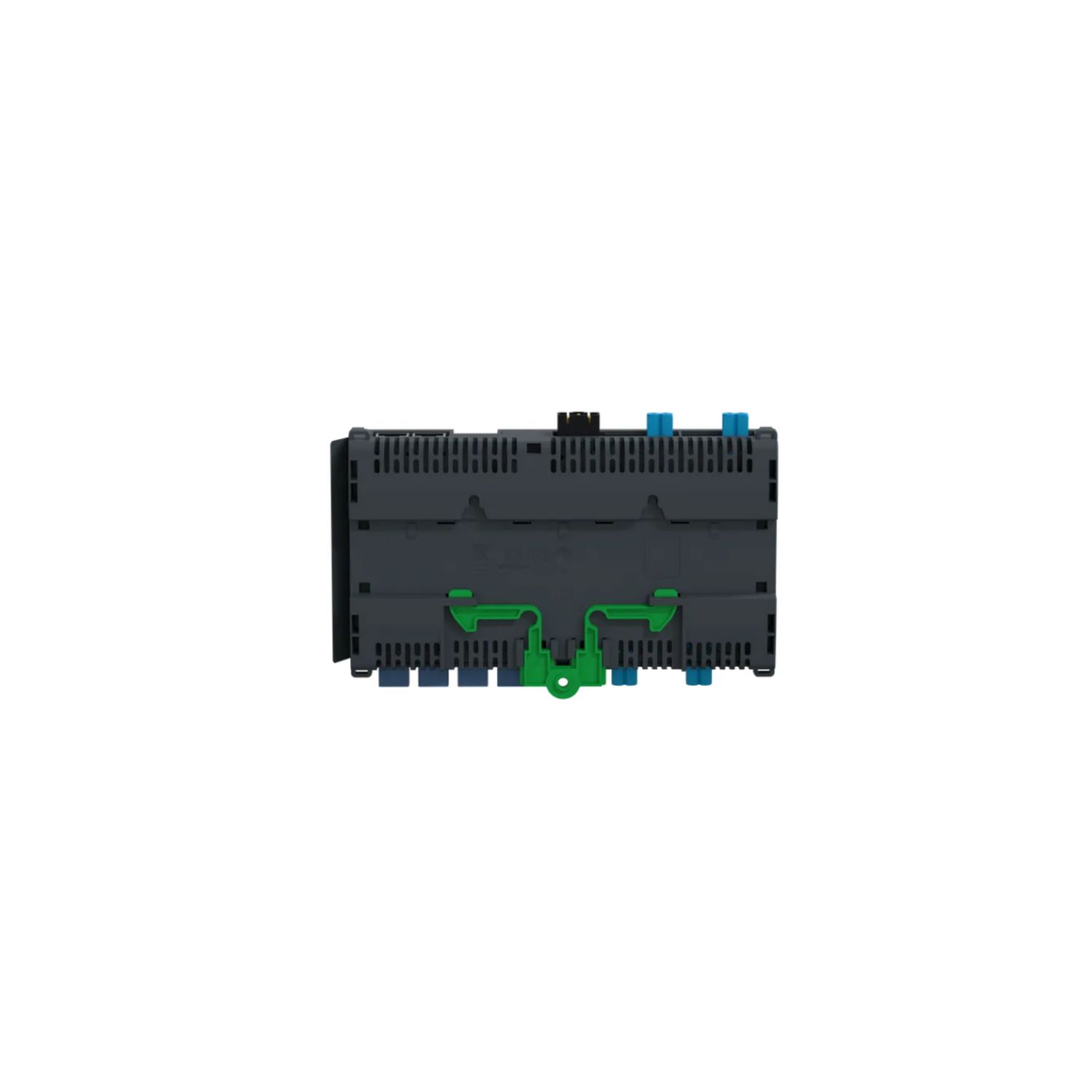

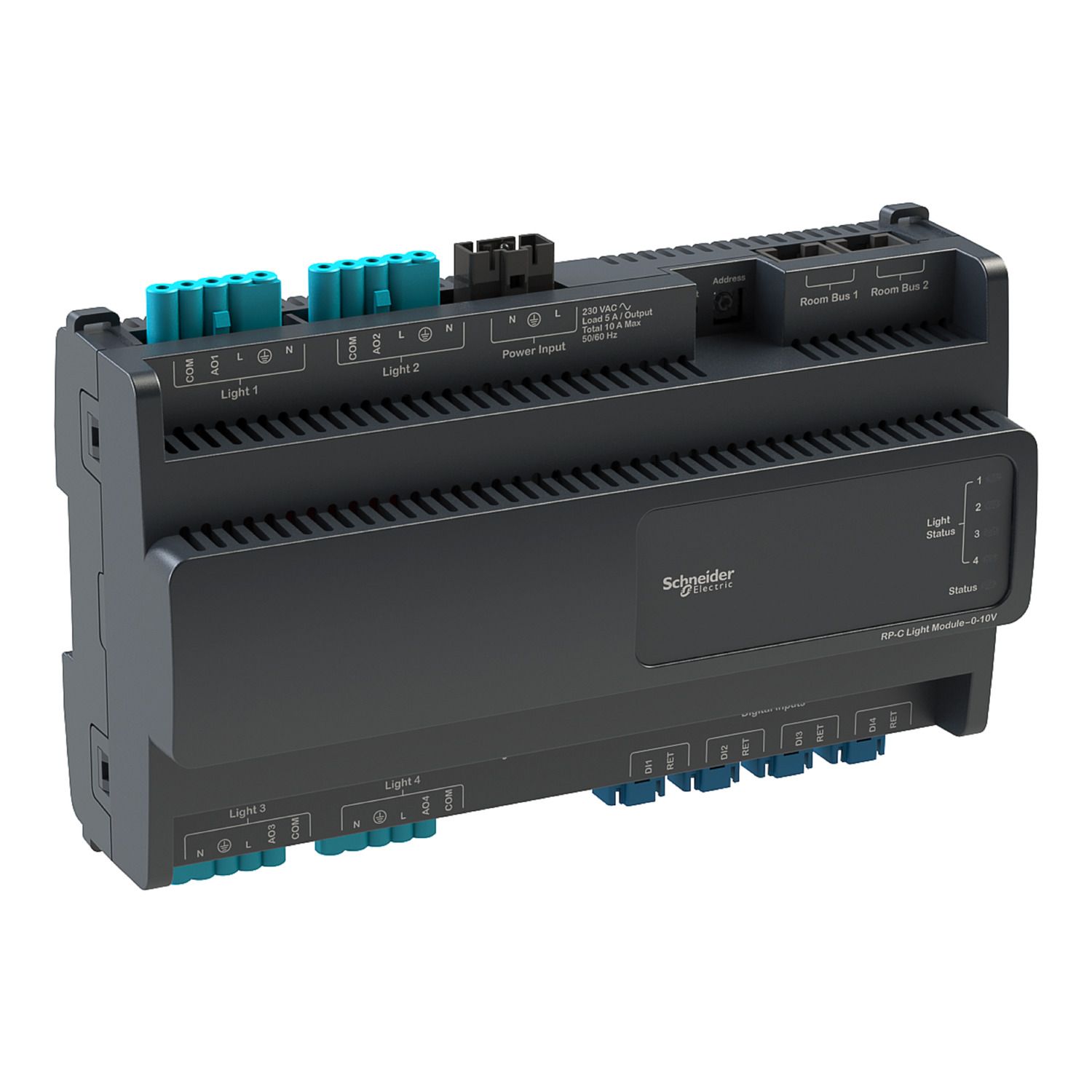

The SpaceLogic RP-C-EXT-0-10V-4 light module connects to the RP room controllers and provides I/O expansion for 0-10V lighting control. The 0-10V light module enables control of lights equipped with 0-10V ballasts. Its dimensions are 110 mm (4.3 in.) in height, 198 mm (7.8 in.) in width and 64 mm (2.5 in.) in depth. Plastic flame rating is UL94 V-0 and the ingress protecton rating is IP20. This module is part of the RP Series expansion modules for connected room solution and can be combined with other modules from this product range.

Products specifications

Attribute nameAttribute value
Main
Device short nameRP-C-EXT-0-10V-4
Discrete input number4 , dry contact
[Us] rated supply voltage100...277 V AC
Discrete output voltage100...277 V AC for power supply output, 0...10 V for lamp
RangeEcoStruxure Building Operation
Product nameSmartX Room Purpose Controller
Product or component typecontrol unit 0-10 V
Discrete output number4 lamp
Product brandSchneider Electric
Complementary
Memory descriptioninternal RAM 320 kB, flash 512 KB
Maximum power consumption in VA10 VA
Depth64 mm
Range compatibilityEcoStruxure Building Operation software
Width198 mm
Local signallingLED (green/red) for status indication
Mounting supportsurface mount, DIN rail
Colourblack
Control typeADDRESS, range: 0-9 with rotary switch(es)
Supply voltage limits90-304 V
Power supply input current2.2 mA at 5 V
Processor nameARM Cortex-M4
Function availablelight control
Input typedigital
Communication port protocolRS485, Ethernet Modbus TCP/IP daisy chain
Port Ethernet10/100BASE-T 2 port RJ45
Height110 mm
Electrical connection3-pin terminal block, 1 terminal(s) power supply, 2-pin terminal block, 4 terminal(s) output, 2-pin terminal block, 4 terminal(s) input circuit
Data backed up16 MB flash memory
Network frequency60 Hz, 50 Hz
Environment
Overvoltage categoryIII
IP degree of protectionIP20
Relative humidity20-90 %, non-condensing
Ambient air temperature for storage-20-70 °C
Flame retardanceUL94-V0
Electromagnetic compatibilityimmunity to electromagnetic emissions conforming to EN 61000-6-2, immunity to electromagnetic emissions conforming to EN 50491-5-3, electromagnetic emission class B conforming to FCC part 15 Subpart B, electromagnetic emission conforming to EN 50491-5-2, electromagnetic emission conforming to EN 61000-6-3
Ambient air temperature for operation0-50 °C
Product certificationsRCM
Pollution degree2
StandardsUL 916, EN 50491-3, EN 60730-2-11, EN 60730-1
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height21.2 cm
Package 1 Width7.0 cm
Package 1 Length13.5 cm
Package 1 Weight468.0 g
Unit Type of Package 22
Number of Units in Package 210
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight5.125 kg
