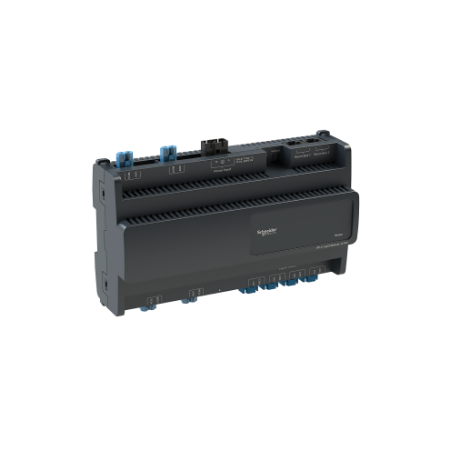

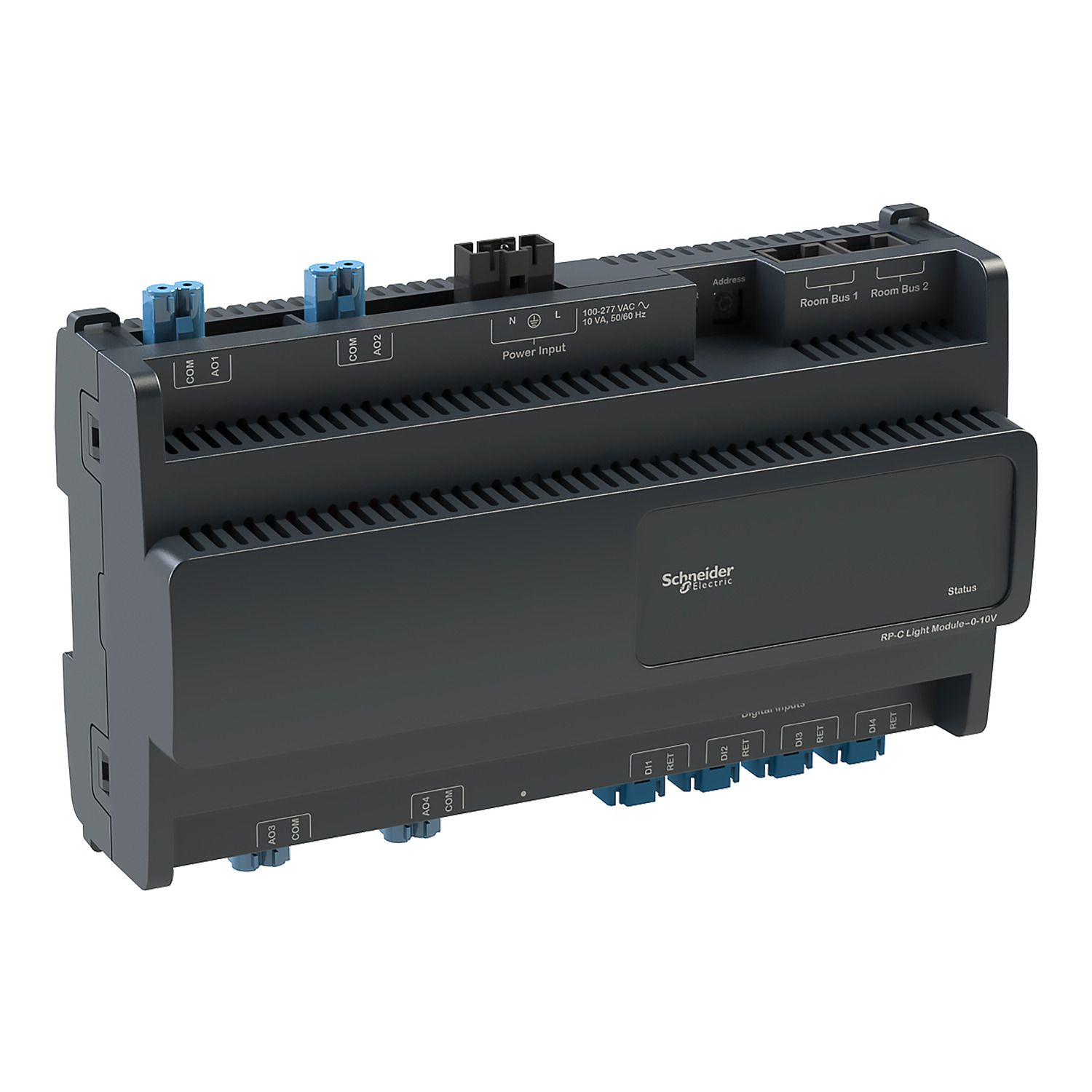

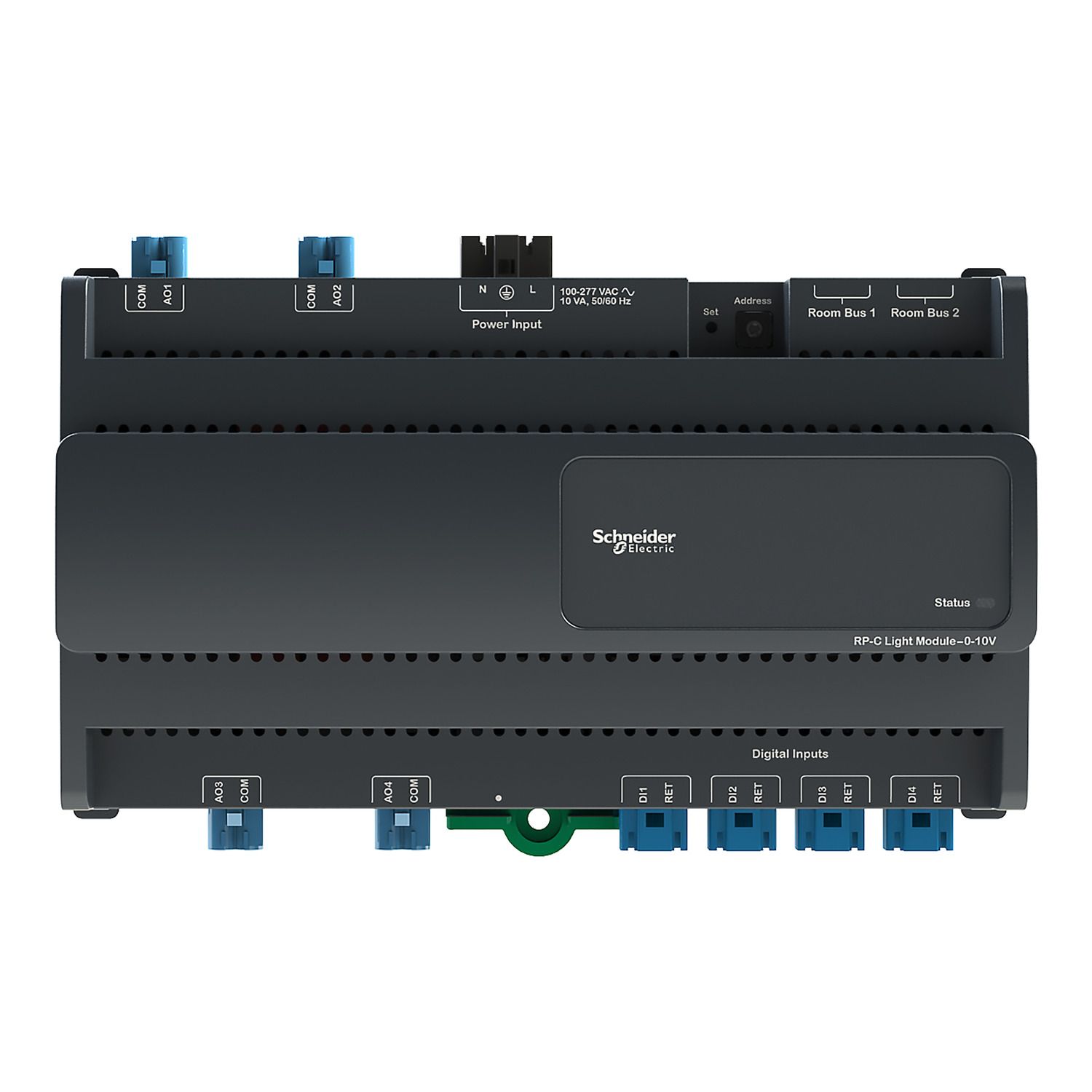

The SpaceLogic RP-C-EXT-0-10V-4-PD light module connects to the RP room controllers and provides I/O and power supply for 0-10V lighting control. The 0-10V light module enables power supply and control of lights equipped with 0-10V ballasts. Its dimensions are 110 mm (4.3 in.) in height, 198 mm (7.8 in.) in width and 64 mm (2.5 in.) in depth. Plastic flame rating is UL94 V-0 and the ingress protecton rating is IP20. This module is part of the RP Series expansion modules for connected room solution and can be combined with other modules from this product range.

Products specifications

Attribute nameAttribute value
Main
Device short nameRP-C-EXT-0-10V-4-PD
Discrete input number4 , dry contact
[Us] rated supply voltage230 V AC
Discrete output voltage230 V AC for power supply output, 0...10 V for lamp
RangeEcoStruxure Building Operation
Discrete output current5 A for per output (AO)
Product nameSmartX Room Purpose Controller
Product or component typeexpansion unit
Discrete output number4 lamp
Product brandSchneider Electric
Complementary
Memory descriptioninternal RAM 320 kB, flash 512 KB
Supplymains, <10 A
Depth64 mm
Range compatibilityEcoStruxure Building Operation software
Width198 mm
Measurement accuracy1 %
Local signallingLED (green) for output relay state, LED (green/red) for status indication
Mounting supportsurface mount, DIN rail
Colourblack
Control typeADDRESS, range: 0-9 with rotary switch(es)
Supply voltage limits207-253 V
Power supply input current2.2 mA at 5 V
Processor nameARM Cortex-M4
Function availablelight control
Input typedigital
Net weight433 g
Protection typeexternal fuse at 16 A
Communication port protocolRS485, Ethernet Modbus TCP/IP daisy chain
Maximum current per output common10 A at AO
Port Ethernet10/100BASE-T 2 port RJ45
Measurement range1…3000 W
Height110 mm
Electrical connection3-pin terminal block, 1 terminal(s) power supply, 5-pin terminal block, 4 terminal(s) output, 2-pin terminal block, 4 terminal(s) input circuit
Data backed up16 MB flash memory
Network frequency60 Hz, 50 Hz
Environment
Overvoltage categoryIII
IP degree of protectionIP20
Relative humidity20-90 %, non-condensing
Ambient air temperature for storage-20-70 °C
Flame retardanceUL94-V0
Electromagnetic compatibilityimmunity to electromagnetic emissions conforming to EN 61000-6-2, immunity to electromagnetic emissions conforming to EN 50491-5-3, electromagnetic emission class B conforming to FCC part 15 Subpart B, electromagnetic emission conforming to EN 50491-5-2, electromagnetic emission conforming to EN 61000-6-3
Ambient air temperature for operation0-50 °C
Product certificationsRCM
Pollution degree2
StandardsEN 61000-6-2, EN 50491-5-3, EN 50491-3, EN 60730-2-11, EN 60730-1
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height21.2 cm
Package 1 Width7.0 cm
Package 1 Length13.5 cm
Package 1 Weight468.0 g
Unit Type of Package 22
Number of Units in Package 210
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight5.121 kg
