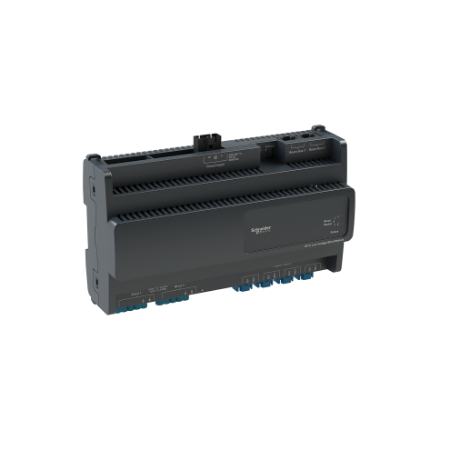

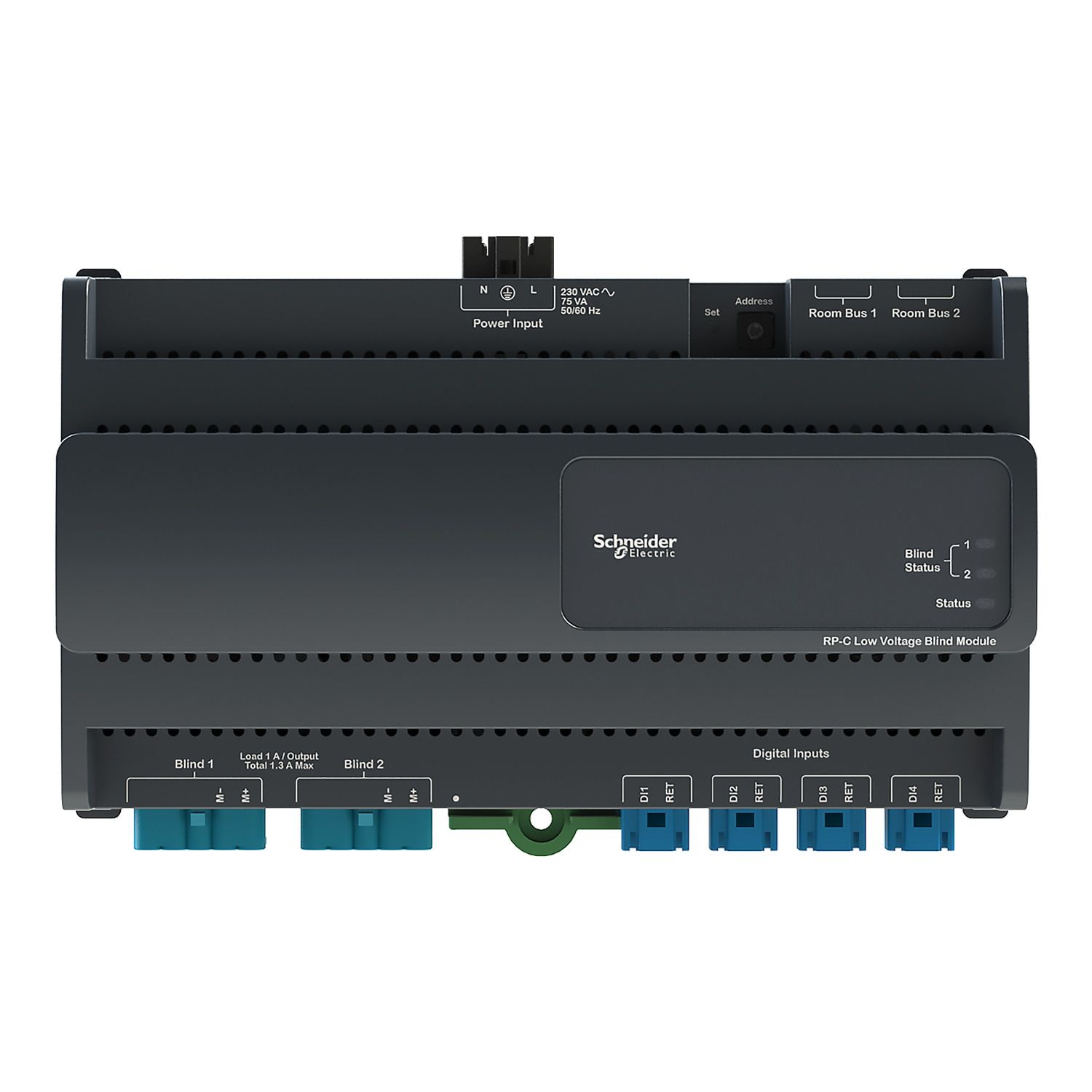

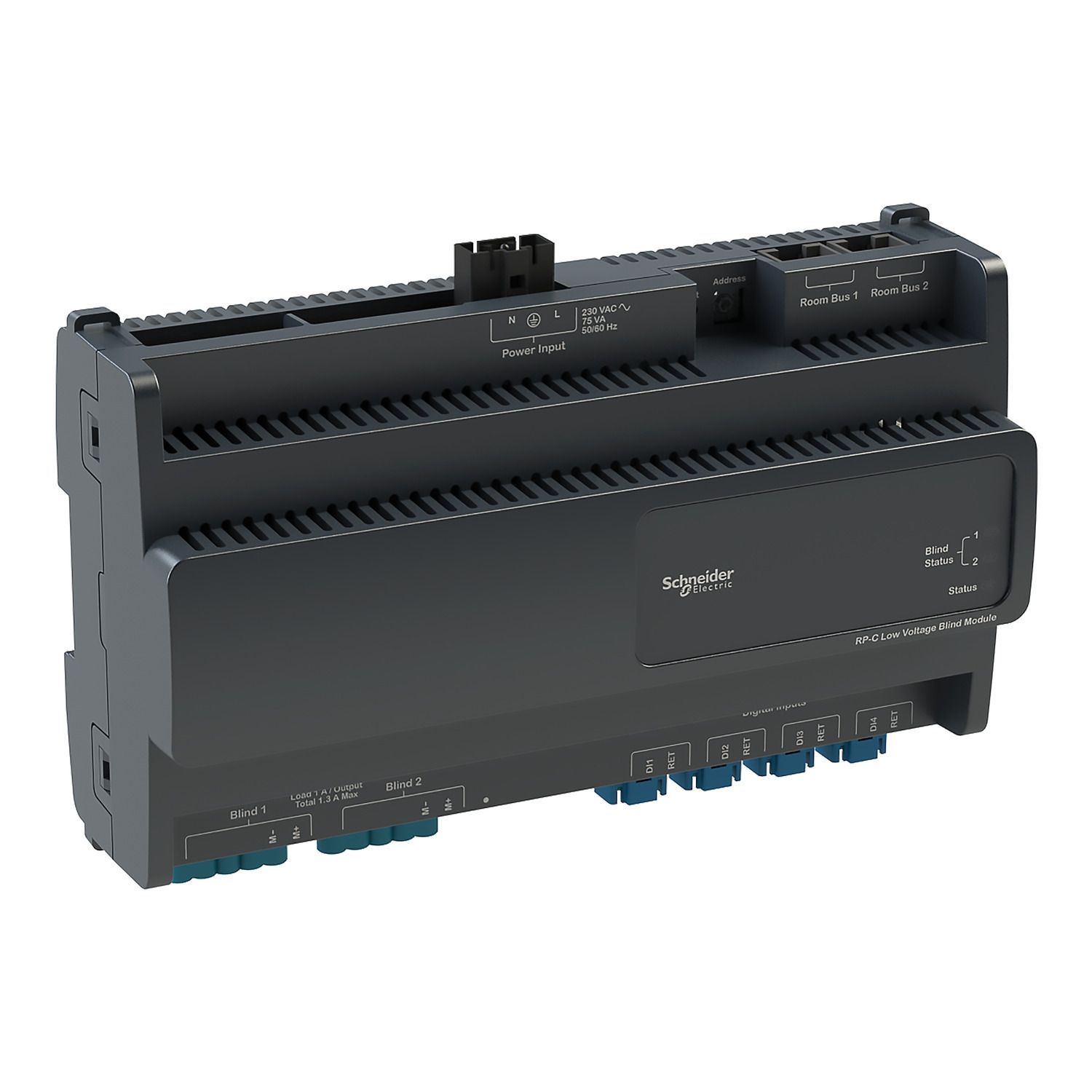

Picture of Blind output expansion module, SpaceLogic RP Expansion Modules, 2 channel, low voltage
SKU:

SXWREB2LVPD10001

Blind output expansion module, SpaceLogic RP Expansion Modules, 2 channel, low voltage

Please Contact Sales to buy this Product. click here
Blind output expansion module, SpaceLogic RP Expansion Modules, 2 channel, low voltage
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 12-Oct-2024
CAD
Declaration of conformity
End of life manual
Instruction sheet
Product environmental
Image of product
Product Page Link
Product Data Sheet
The SpaceLogic RP-C-EXT-BL-2-LV-PD module connects to the RP controller and provides I/O expansion and power supply for low-voltage blind control. The low-voltage blind module enables control and power supply (24 VDC) of motorized window blinds and shutters. It features four digital inputs for connection of blind switches and window contacts. Its dimensions are 110 mm (4.3 in.) in height, 198 mm (7.8 in.) in width and 64 mm (2.5 in.) in depth. Plastic flame rating is UL94 V-0 and the ingress protecton rating is IP20. Wieland connectors are included for quick and easy installation. This module is part of the RP Series expansion modules for connected room solution and can be combined with other modules from this product range.
