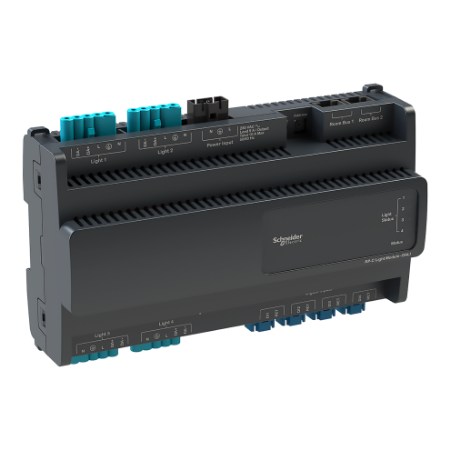

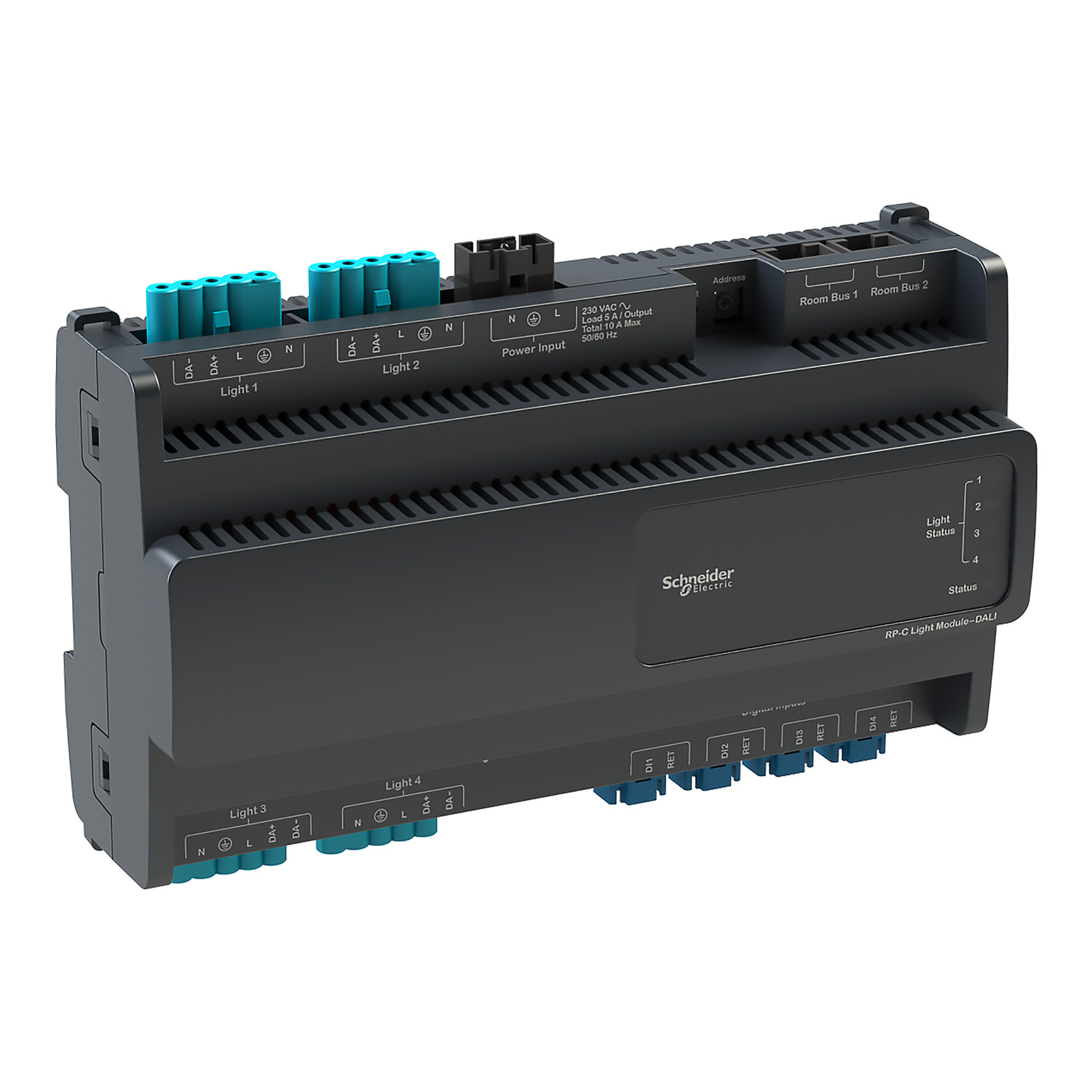

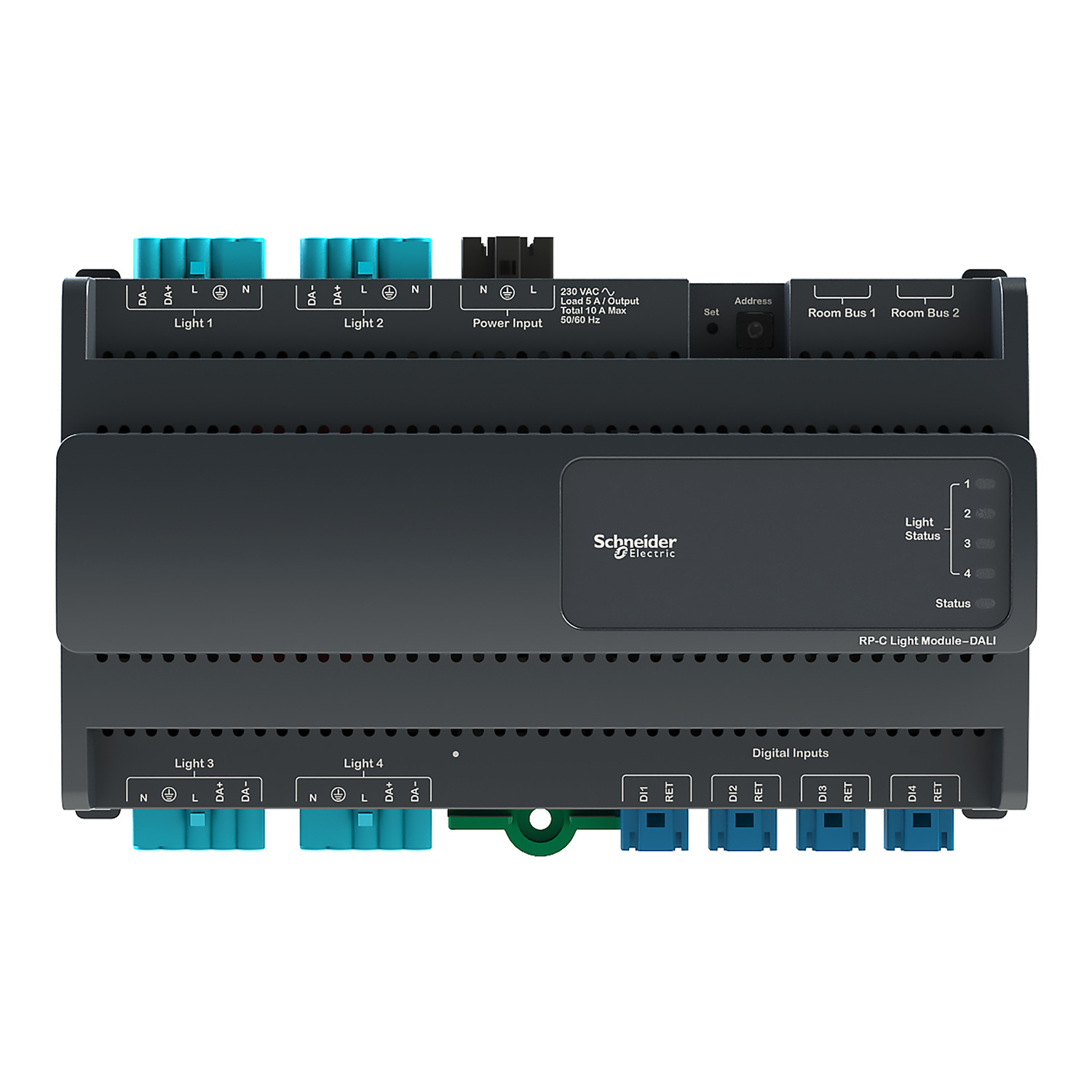

Picture of Light expansion module, SpaceLogic RP Expansion Modules, DALI, power distribution
Picture of Light expansion module, SpaceLogic RP Expansion Modules, DALI, power distribution
Picture of Light expansion module, SpaceLogic RP Expansion Modules, DALI, power distribution
SKU:

SXWREDAMPD10001

Light expansion module, SpaceLogic RP Expansion Modules, DALI, power distribution

$1,392.00
Available for Shipping : 10-Dec-2024
Light expansion module, SpaceLogic RP Expansion Modules, DALI, power distribution
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
CAD
Instruction sheet
End of life manual
Product environmental
Product Page Link
Product Data Sheet
The SpaceLogic RP-C-EXT-DALI-M-PD module connects to the RP controller and provides I/O expansion and power supply for lighting control with DALI. The DALI light module enables power supply and control of lights equipped with DALI ballasts (DALI control gear). The DALI light module is a DALI-2 certified control device (application controller). Its dimensions are 110 mm (4.3 in.) in height, 198 mm (7.8 in.) in width and 64 mm (2.5 in.) in depth. Plastic flame rating is UL94 V-0 and the ingress protecton rating is IP20. This module is part of the RP Series expansion modules for connected room solution and can be combined with other modules from this product range.

Products specifications

Attribute name Attribute value
Main
Device short name RP-C-EXT-DALI-M-PD
Discrete input number 4 , dry contact
[Us] rated supply voltage 230 V AC
Discrete output voltage 230 V AC for power supply output, 0...10 V for lamp
Range EcoStruxure Building Operation
Discrete output current 5 A for per output (L-N), 64 mA for lamp (DA+, DA-)
Product name SmartX Room Purpose Controller
Product or component type expansion unit
Discrete output number 4 lamp
Product brand Schneider Electric
Complementary
Memory description internal RAM 320 kB, flash 1024 kB
Supply mains, <10 A
Depth 64 mm
Range compatibility EcoStruxure Building Operation software
Width 198 mm
Measurement accuracy 1 %
Local signalling LED (green) for output relay state, LED (green/red) for status indication
Mounting support surface mount, DIN rail
Colour black
Control type ADDRESS, range: 0-9 with rotary switch(es)
Supply voltage limits 253-253 V
Power supply input current 2.2 mA at 5 V
Processor name ARM Cortex-M4
Function available DALI bus terminal, light control
Input type digital
Net weight 433 g
Protection type external fuse at 16 A
Communication port protocol RS485, Ethernet Modbus TCP/IP daisy chain
Maximum current per output common 10 A at L-N, 250 mA at DA+, DA-
Port Ethernet 10/100BASE-T 2 port RJ45
Measurement range 1…3000 W
Height 110 mm
Electrical connection 3-pin terminal block, 1 terminal(s) power supply, 5-pin terminal block, 4 terminal(s) output, 2-pin terminal block, 4 terminal(s) input circuit
Data backed up 16 MB flash memory
Network frequency 60 Hz, 50 Hz
Environment
Overvoltage category III
IP degree of protection IP20
Relative humidity 20-90 %, non-condensing
Ambient air temperature for storage -20-70 °C
Flame retardance UL94-V0
Electromagnetic compatibility immunity to electromagnetic emissions conforming to EN 61000-6-2, immunity to electromagnetic emissions conforming to EN 50491-5-3, electromagnetic emission class B conforming to FCC part 15 Subpart B, electromagnetic emission conforming to EN 50491-5-2, electromagnetic emission conforming to EN 61000-6-3
Ambient air temperature for operation 0-50 °C
Product certifications RCM
Pollution degree 2
Standards IEC/EN 62386-103:2018/A1, IEC/EN 62386-103:2014, EN 62386-101:2018/A1, EN 62386-101:2014, EN 61000-6-2, EN 50491-5-3, EN 50491-3, EN 60730-2-11, EN 60730-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 21.2 cm
Package 1 Width 7.0 cm
Package 1 Length 13.5 cm
Package 1 Weight 483.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 5.271 kg
Unit Type of Package 3 3
Number of Units in Package 3 80
Package 3 Height 75.0 cm
Package 3 Width 60.0 cm
Package 3 Length 80.0 cm
Package 3 Weight 50.668 kg

Related products

Picture of DIN-rail end clip, SpaceLogic, package of 25 pieces

DIN-rail end clip, SpaceLogic, package of 25 pieces

SXWDINEND10001
$206.40
View Detail
Picture of Digital input connector, SpaceLogic RP Expansion Modules

Digital input connector, SpaceLogic RP Expansion Modules

SXWRPCCONWDI
$1,836.00
View Detail

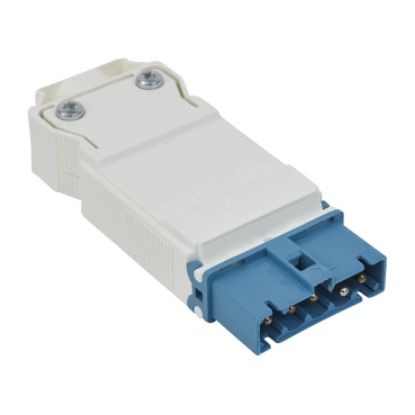

Picture of Low voltage SMI blind output connector, SpaceLogic RP Expansion Modules, pack of 50
